Introduction

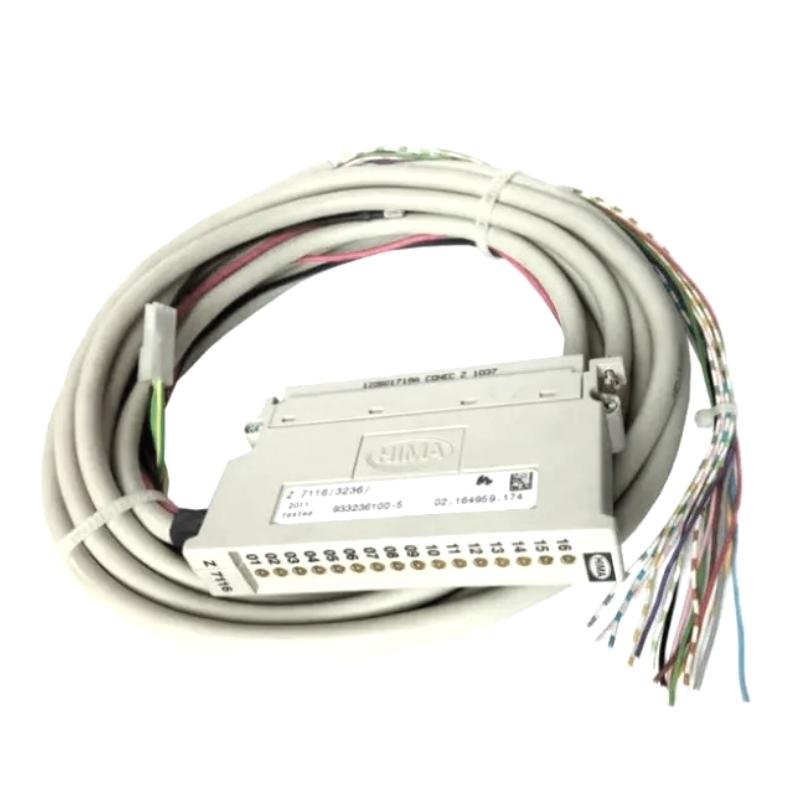

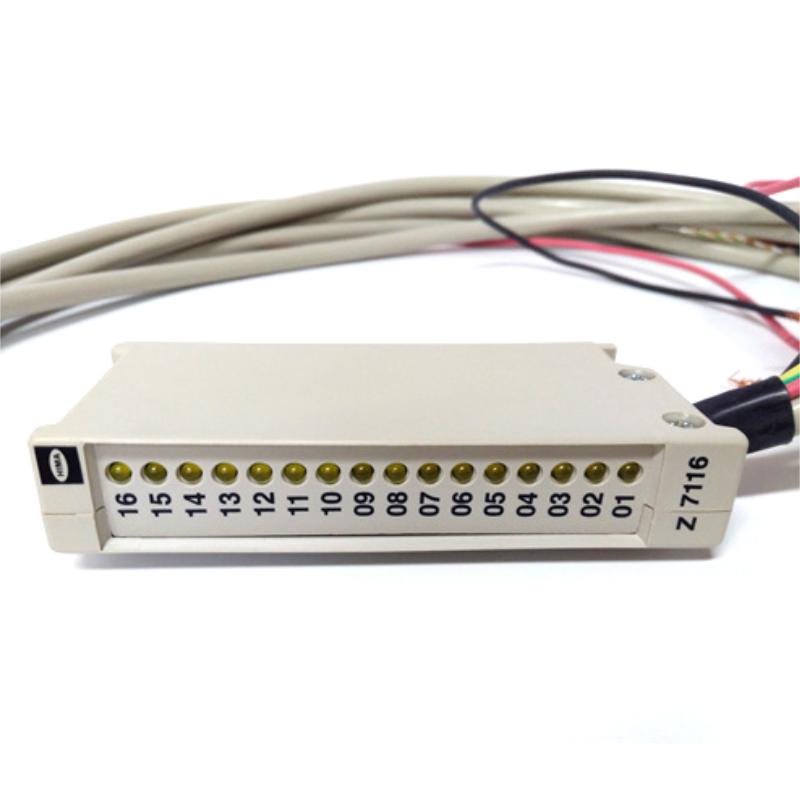

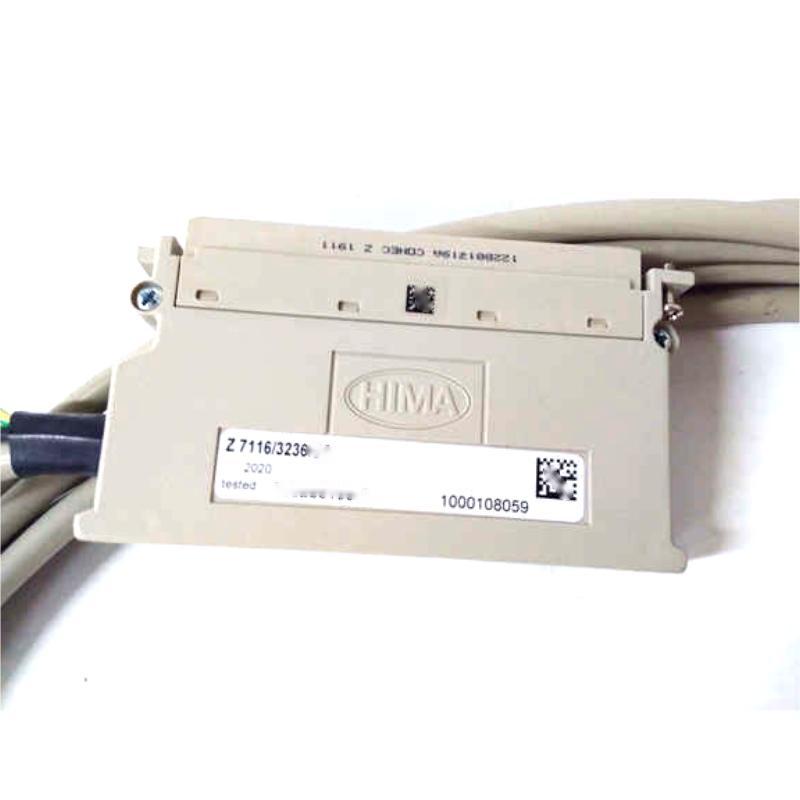

The HIMA Z7116 Cable Plug is a precision-engineered connector designed for robust, reliable connections in safety-critical automation systems. Its rugged design ensures secure signal transmission in harsh industrial environments, supporting HIMA’s suite of safety controllers and modules. Lightweight, compact, and easy to install, the Z7116 ensures dependable performance where system integrity and safety are non-negotiable.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | Z7116 |
| Type | Cable Plug Connector |
| Compatible Modules | HIMA Safety Modules and Relay Modules |
| Pin Configuration | 16-pin standard configuration |
| Connector Type | Industrial-grade plug with locking mechanism |
| Cable Compatibility | 0.25–1.0 mm² wires |
| Contact Material | Gold-plated for high conductivity |
| Dimensions | 60 mm × 25 mm × 20 mm (L × W × H) |
| Weight | 0.05 kg (0.11 lbs) |
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Certifications | IEC 61508, SIL 3 Compatible |
