Introduction

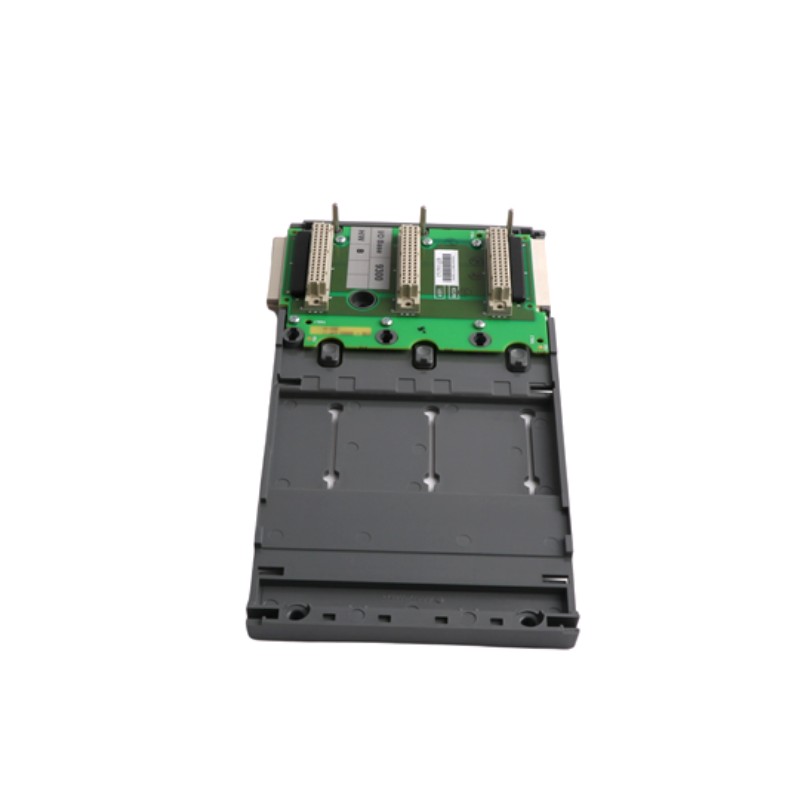

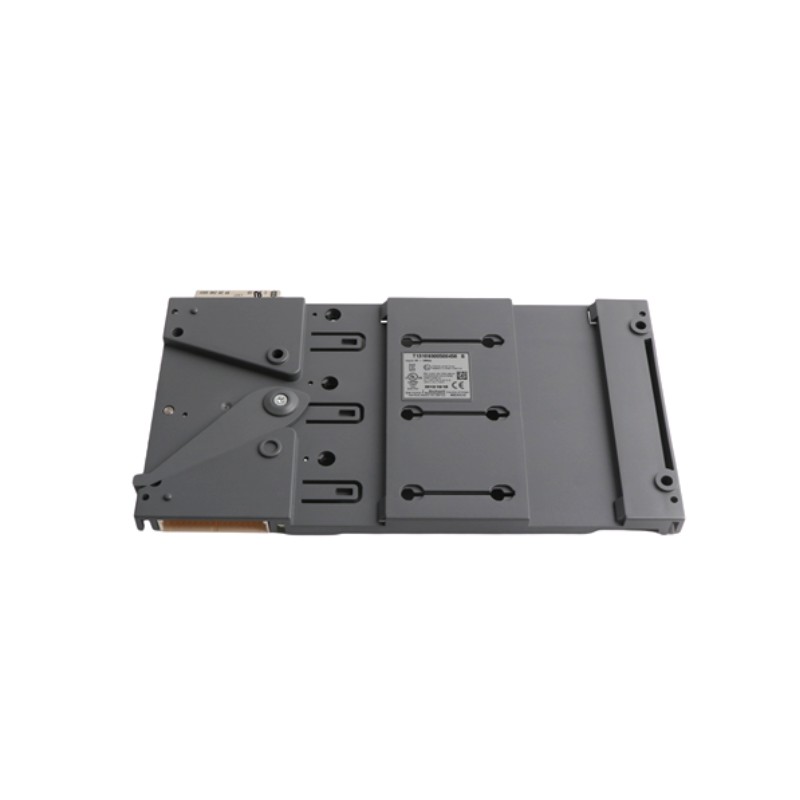

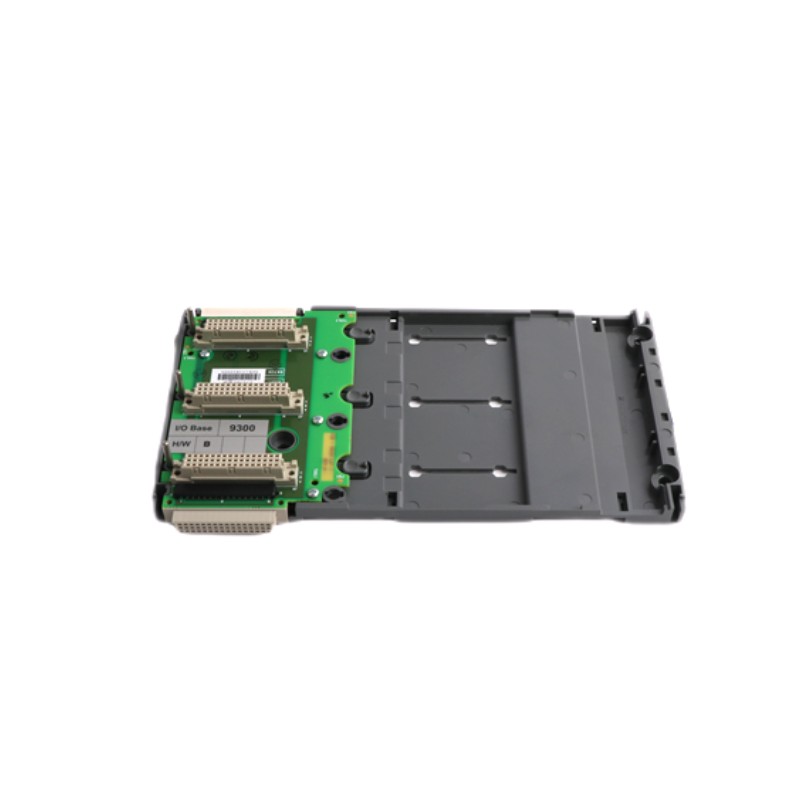

The ICS Triplex T9300 (T9851) I/O Backplane serves as a robust backbone for critical control systems, delivering reliable connectivity and data integrity across multiple modules. Engineered for high-availability environments, this backplane ensures seamless integration with Triplex control systems while supporting advanced I/O configurations. Designed with precision and industrial durability in mind, it is ideal for nuclear, process, and high-reliability automation applications.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | T9300 (T9851) |
| Type | I/O Backplane |
| Slots | 16 Standard Module Slots |
| Connector Type | High-Reliability Edge Connector |
| Voltage | 5 VDC nominal |
| Current | 2 A per slot (maximum) |
| Dimensions | 450 mm × 100 mm × 50 mm (L × W × H) |
| Weight | 1.6 kg (3.53 lbs) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Certifications | IEEE, IEC 61508 Compliant |
