Product Introduction

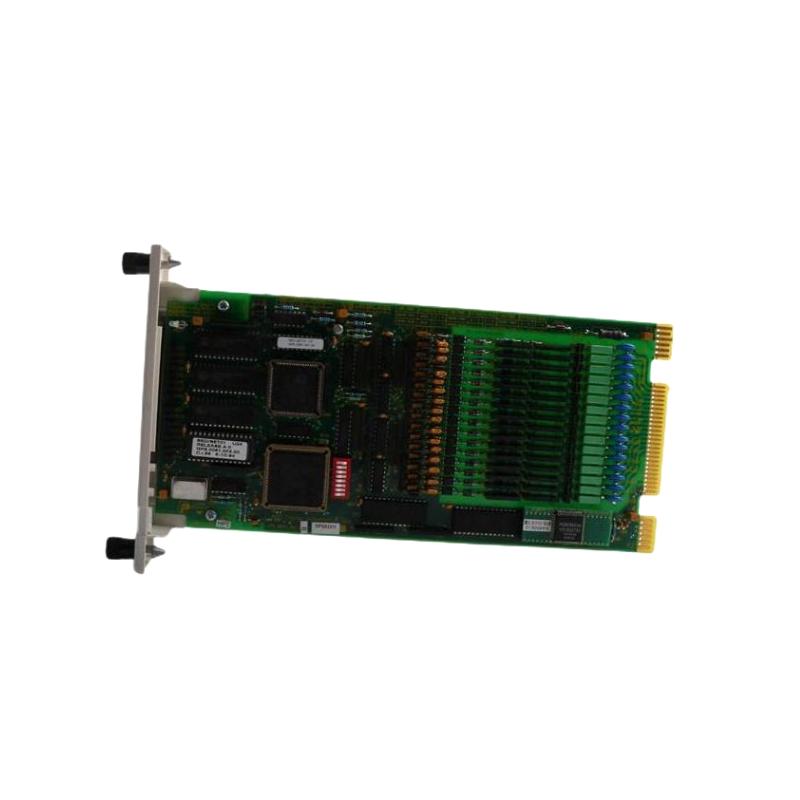

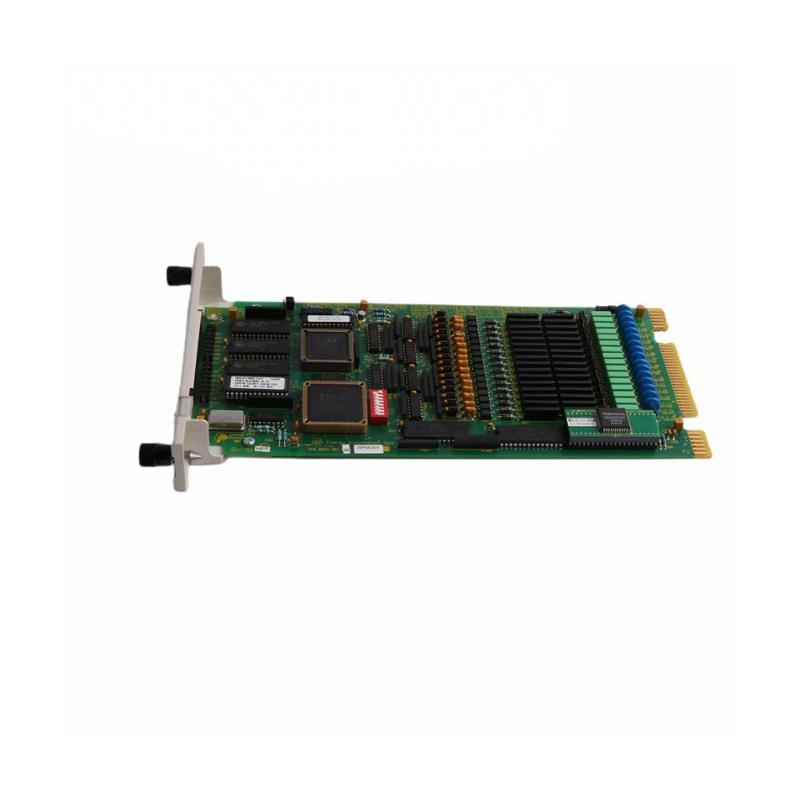

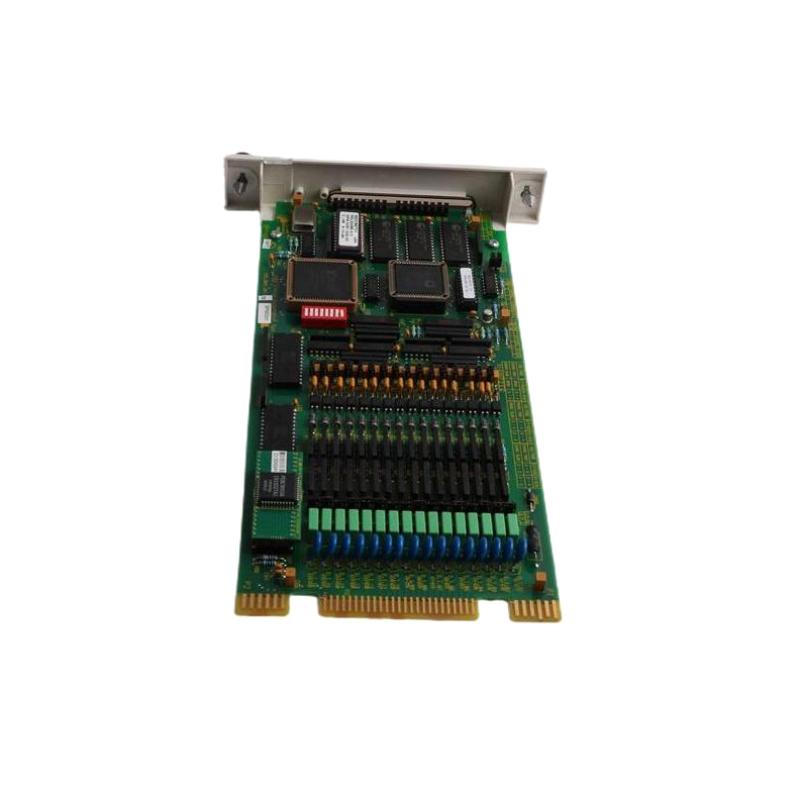

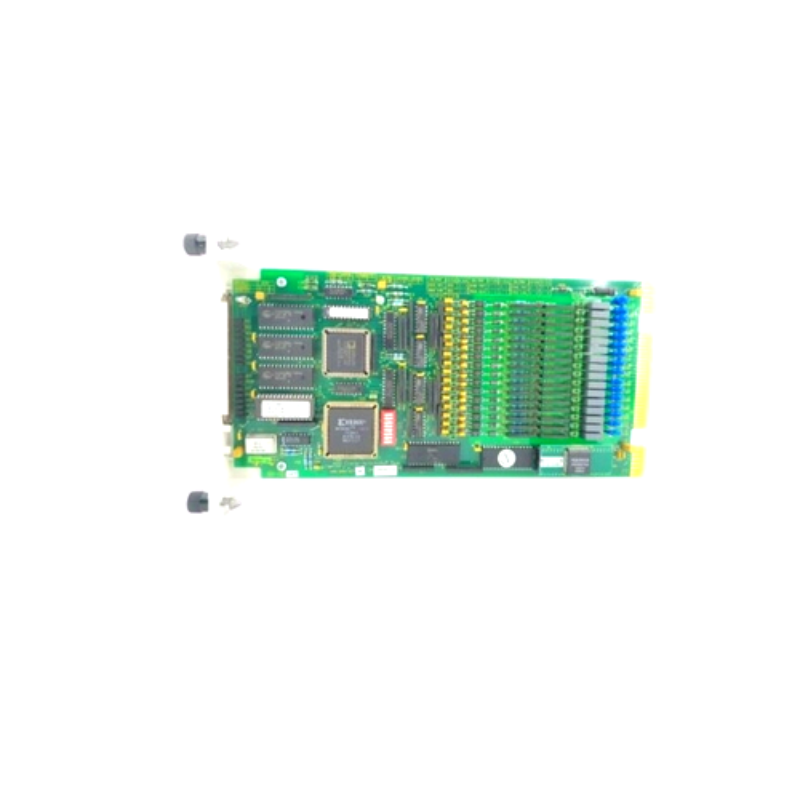

The ABB Bailey SPSED01 Digital Input Module is a robust, high‑integrity interface designed to capture and relay discrete ON/OFF signals from field devices into ABB Bailey distributed control systems (such as INFI‑90, Bailey, and compatible automation platforms). Built for reliable performance in industrial environments, this module transforms physical state changes — such as switch positions, sensor triggers, and contact closures — into digital input data that controllers can use for logic decisions, monitoring, and alarm processing. Its industrial engineering ensures dependable signal acquisition under electrical noise, vibration, and temperature variation typical of manufacturing or process plants.
Technical Specifications
| Specification | Detail |
|---|
| Product Type | Digital Input Module |
| Model Number | ABB Bailey SPSED01 |
| Input Type | Discrete digital (ON/OFF) |
| Number of Channels | Multiple independent channels |
| Signal Voltage | Standard industrial discrete levels (e.g., 24 V DC) |
| Isolation | Channel‑to‑bus galvanic isolation |
| Communication Interface | ABB Bailey I/O subsystem connection |
| Mounting | DIN‑rail or cabinet rack compatible |
| Power Supply | Standard industrial 24 V DC |
| Operating Temperature | Industrial operating range |
Typical Industrial Applications
The SPSED01 Digital Input Module is commonly deployed wherever discrete field information needs to be monitored and processed:
-
Pushbutton and selector switch status in operator panels
-
Position feedback from mechanical limit switches
-
Safety interlock and emergency stop status inputs
-
Level, flow, or pressure switch condition monitoring
-
Alarm and event capture for process and machine automation
By relaying these digital signals into the control system, engineers gain accurate, near‑real‑time visibility into the state of field equipment and system logic.
Key Advantages & Features
-
Reliable Discrete Signal Capture:
Designed to consistently detect ON/OFF transitions across multiple independent channels, ensuring logic decisions are based on accurate input status.
-
Galvanic Isolation:
Electrical isolation between input channels and system bus improves noise immunity and reduces the risk of signal interference.
-
Modular and Compact Design:
The SPSED01 fits standard DIN‑rail or cabinet rack configurations, optimizing space in distributed I/O systems.
-
Industrial‑Grade Construction:
Withstand vibration, electrical noise, and temperature extremes typical of heavy industrial environments.
-
Seamless Integration:
Works natively with ABB Bailey control frameworks — supporting configuration, diagnostics, and expansion without special adaptation.
These strengths make the SPSED01 a dependable discrete input interface for a wide range of automation applications.
