Typical Industrial Applications

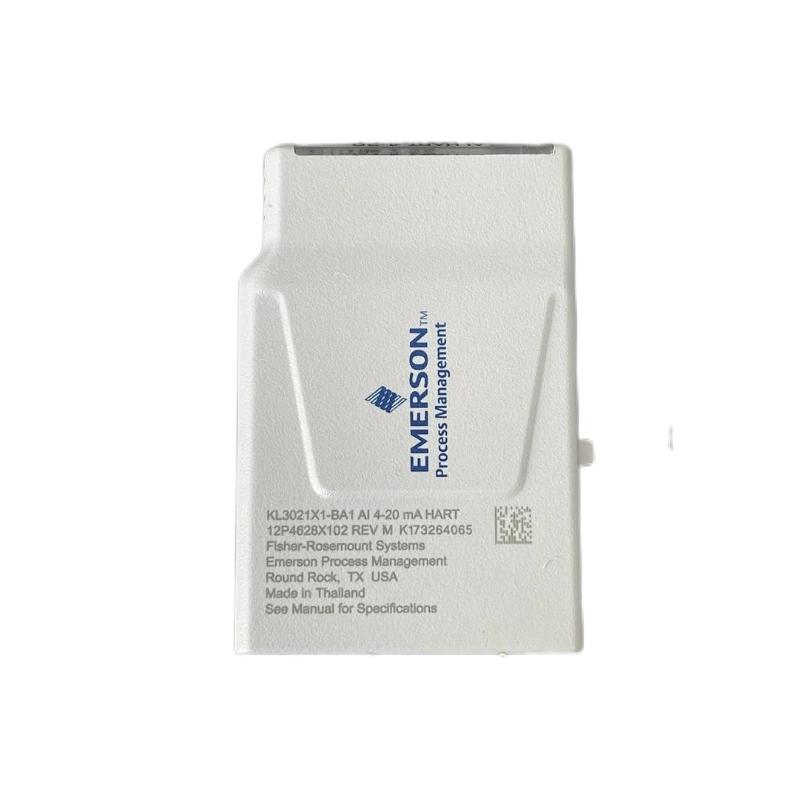

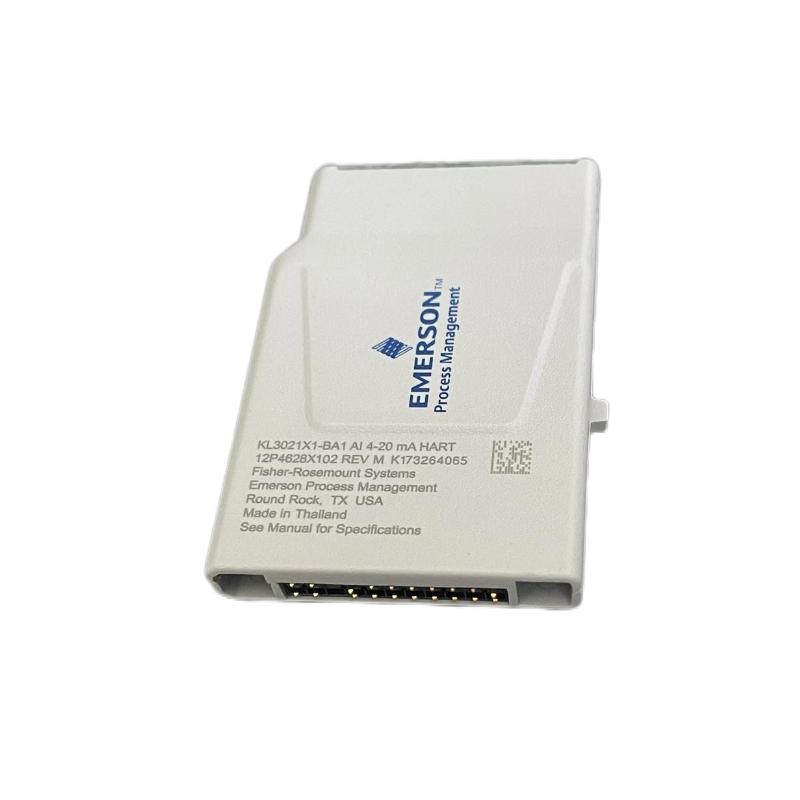

The KL3021X1‑BA1 is suited for applications where accurate analog process measurements and digital device communication are required:
-
4–20 mA loop input with HART diagnostics from transmitters
-
Process instrumentation interfaces in DeltaV I/O subsystems
-
Hazardous area analog acquisition with compliant environmental tolerance
-
Distributed automation panels requiring scalable input points
-
Field signal capture for flow, pressure, temperature, and level devices
Its combination of analog loop capture and HART interaction helps bridge field instrumentation with automation logic and diagnostics.
Advantages & Key Features
-
Integrated HART Support: Captures traditional 4–20 mA process values while enabling HART device communication.
-
CHARM Architecture: Easy insertion into DeltaV CHARM sockets for modular I/O expansion.
-
Industrial‑Grade Tolerance: Designed to withstand vibration, shock, and temperature variation common in plant environments.
-

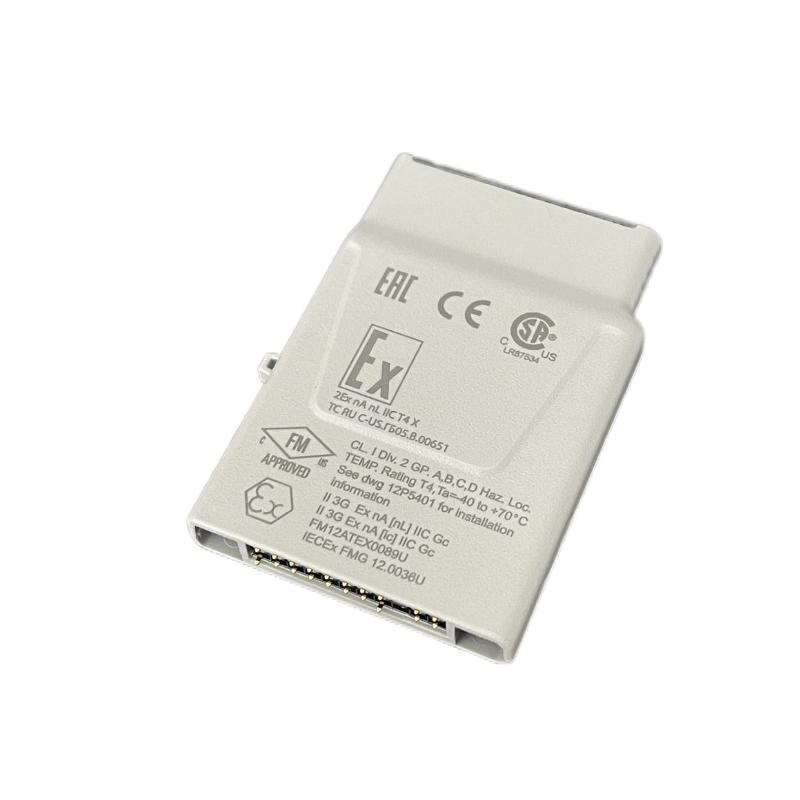

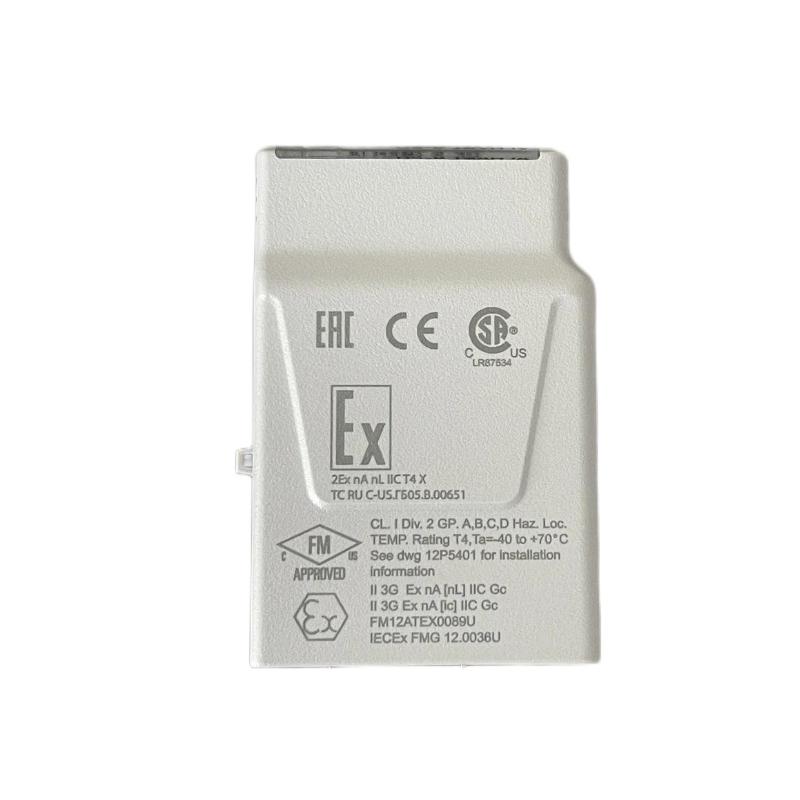

Hazardous‑Area Certifications: Engineered for safety in classified plant locations (certification specifics vary by installation).
-
Compact and Serviceable: Small footprint simplifies field wiring layouts and boosts maintainability.
These strengths make it a dependable choice where analog information accuracy and operational resilience matter most.
Technical FAQs
-
What type of input does this card support?
Single 4–20 mA analog input with HART communication.
-
Is HART communication available on this module?
Yes — the KL3021X1‑BA1 supports HART protocol over the analog loop.
-
What voltage power supply is required?
+24 V DC for the field circuit and +6.3 V DC from the CHARM backplane.
-
Can this card be used in hazardous areas?
Yes — it is built to withstand harsh and classified environments; certification details depend on the installation.
-
What environmental range does it support?
–40 °C to +70 °C with industrial humidity and contaminant tolerance.
-
Does this module include multiple analog channels?
No — it is a single‑channel analog input CHARM module.
-
How is it physically mounted?
The CHARM plug‑in module installs into the appropriate CHARM socket on a DeltaV I/O card.
-
Does it require calibration?
Analog input cards typically arrive factory configured; field calibration depends on system setup.
-
Is shock and vibration resistance built in?
Yes — engineered to meet industrial shock and vibration standards.
-
Is it suitable for retrofit projects?
Its modular CHARM design makes it easy to add or replace in existing DeltaV I/O systems.
