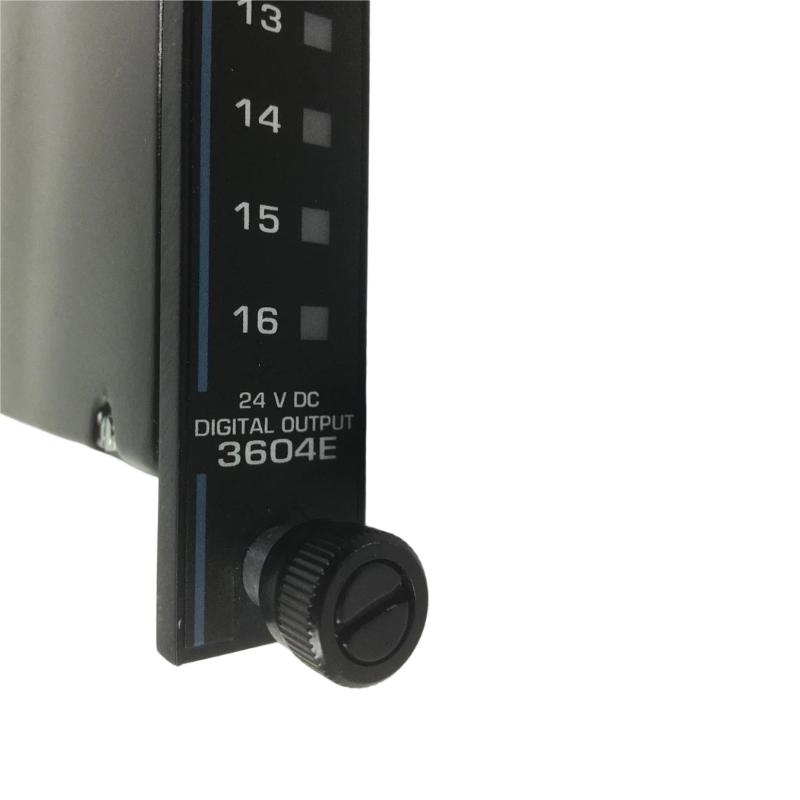

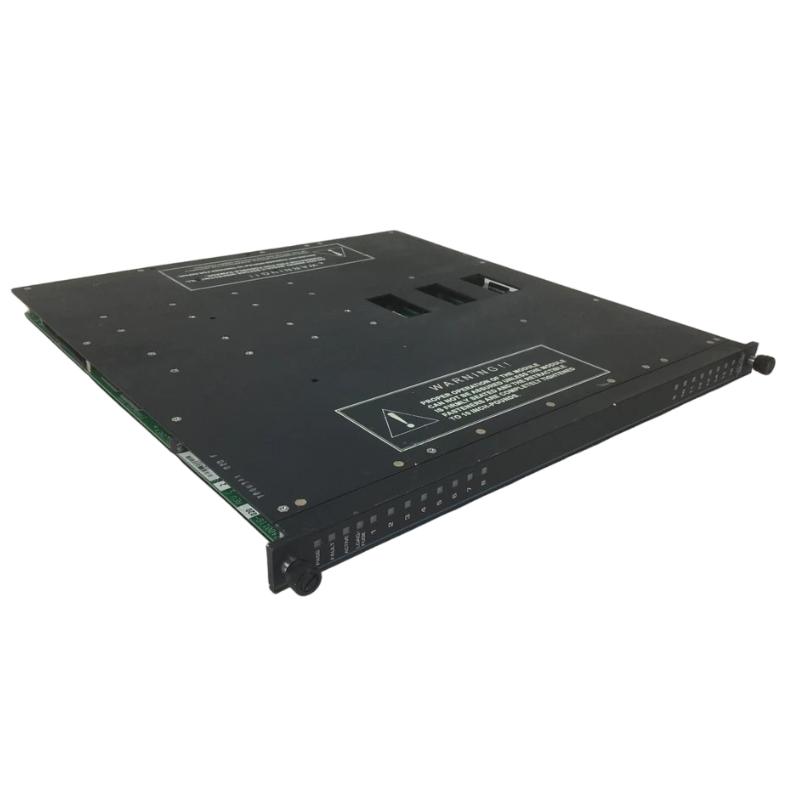

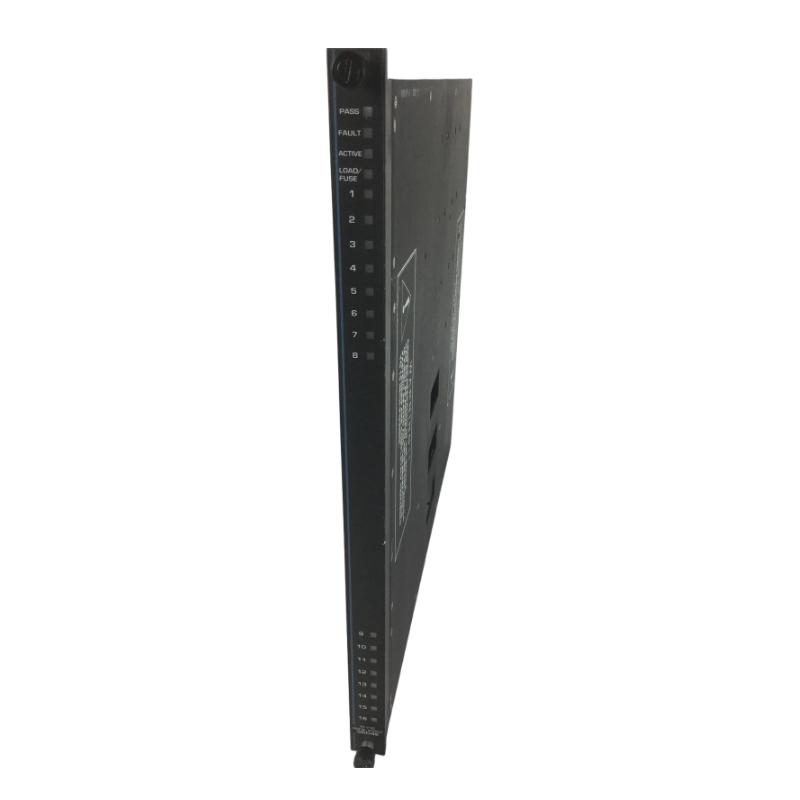

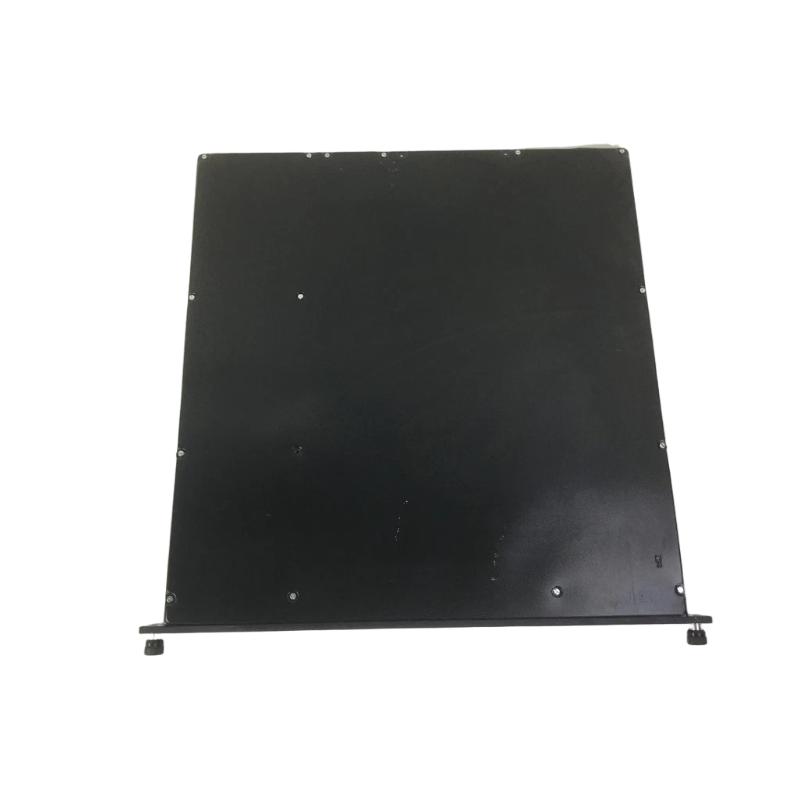

Triconex 3604E Digital Output Module

Brand:Invensys Triconex
Item No.:Triconex 3604E
Product Origin:USA
Product Dimensions:175 × 45 × 125 mm
Product Weight:0.6 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction

The Triconex 3604E is a safety-rated digital output module designed to deliver reliable discrete signals from a safety controller to field devices such as actuators, relays, and alarms. Built for integration into triple-modular-redundant (TMR) systems, the 3604E ensures deterministic output behavior, fault tolerance, and compatibility with high-integrity industrial control environments. Its modular design and robust construction make it suitable for operation in harsh conditions typical of petrochemical, oil & gas, and power generation industries.

Technical Specifications

Parameter Specification
Module Type Digital Output Module
Model / Part Number 3604E
Output Channels 16 discrete digital outputs (typical configuration)
Output Signal Type 24 V DC or relay-driven discrete lines
Isolation Channel-to-backplane isolation for safety and signal integrity
Redundancy Compatibility Compatible with TMR and safety-rated system architectures
Power Supply Powered via system backplane; no external auxiliary supply required under nominal load
Environmental Rating Industrial-grade: vibration, EMI, shock, temperature tolerant
Dimensions (Estimated) 175 × 45 × 125 mm (H × W × D)
Weight (Estimated) ≈ 0.60 kg
Mounting Rack-mounted within Triconex-style system chassis

Applications

  • Driving discrete field devices, including actuators, contactors, valves, and alarms

  • Integration into safety instrumented systems (SIS) in oil & gas, petrochemical, chemical, and power generation industries

  • System expansion to increase digital output capacity in TMR safety racks

  • Delivering deterministic, fault-tolerant outputs for safety-critical processes

  • Maintaining electrical separation between control logic and field devices for reliable operation


Advantages

  • Provides fault-tolerant digital outputs for safety-critical control loops

  • Electrical isolation prevents interference and ensures safe operation

  • Modular design enables easy replacement and system expansion

  • Robust industrial-grade construction supports harsh environmental conditions

  • Compatible with redundant TMR architectures to maintain operation during partial failures

  • Simplifies wiring layout and fault detection in high-density output systems

  • Predictable output response supports precise process control

  • Reduces maintenance complexity by localizing faults to individual modules

  • Facilitates scalable system design with additional modules as output needs grow

  • Enhances compliance with safety standards through structured system integration


Technical FAQs

  1. What types of devices can the 3604E drive?
    Actuators, relays, valves, alarms, and other discrete-output field devices.

  2. How many output channels are provided?
    Typically 16 discrete digital output channels.

  3. Does the module provide isolation?
    Yes — channel-to-backplane isolation ensures signal integrity and safety separation.

  4. Is it compatible with redundant systems?
    Yes — designed for TMR and other safety-rated redundant architectures.

  5. Can multiple modules be installed in a single rack?
    Yes — the modular design allows expansion by adding multiple 3604E modules.

  6. Does the module require an external power supply?
    No — it draws power from the system backplane under nominal operation.

  7. Is calibration required?
    No — periodic functional testing is sufficient; discrete output modules do not require calibration.

  8. Is it suitable for harsh industrial environments?
    Yes — designed to tolerate vibration, EMI, temperature fluctuations, and shock.

  9. What happens if one output channel fails?
    Redundant architecture isolates the fault and diagnostics flag the issue while maintaining safe operation.

  10. Can the module be used in simplex systems?
    Yes, but redundancy-based safety benefits will be reduced compared to TMR configurations.
