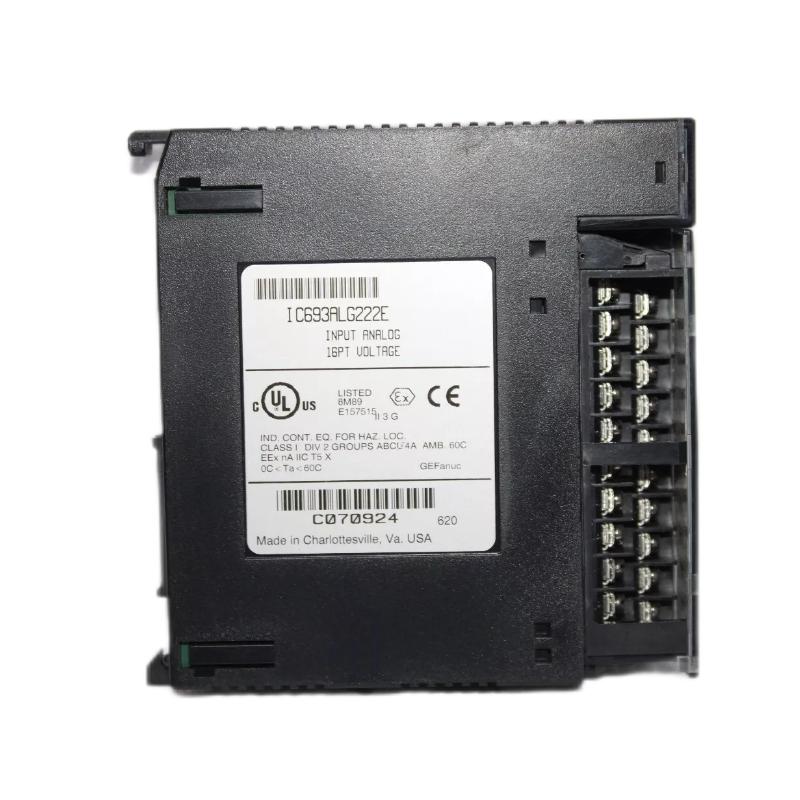

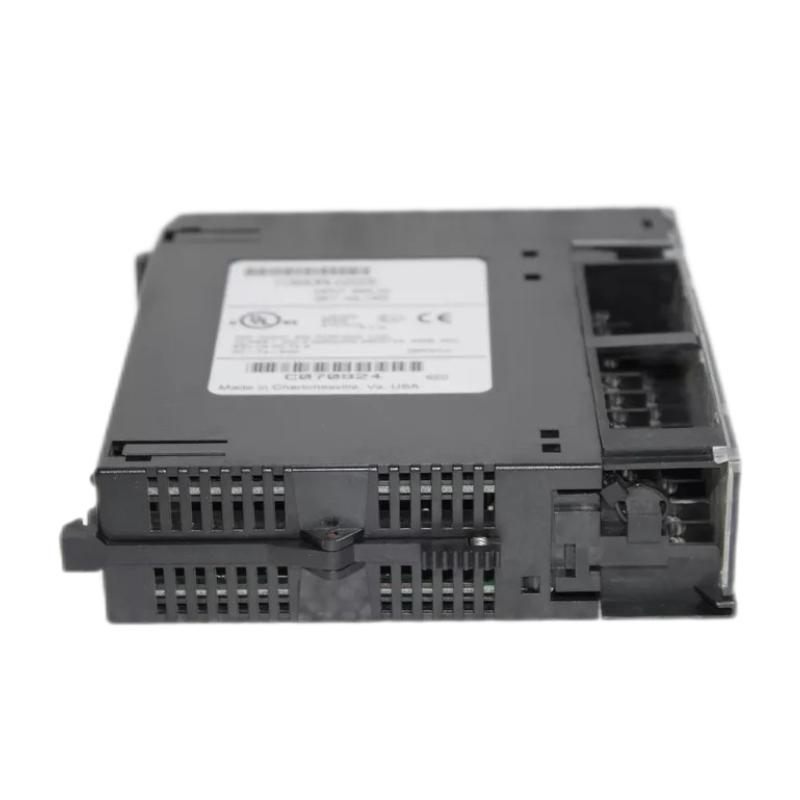

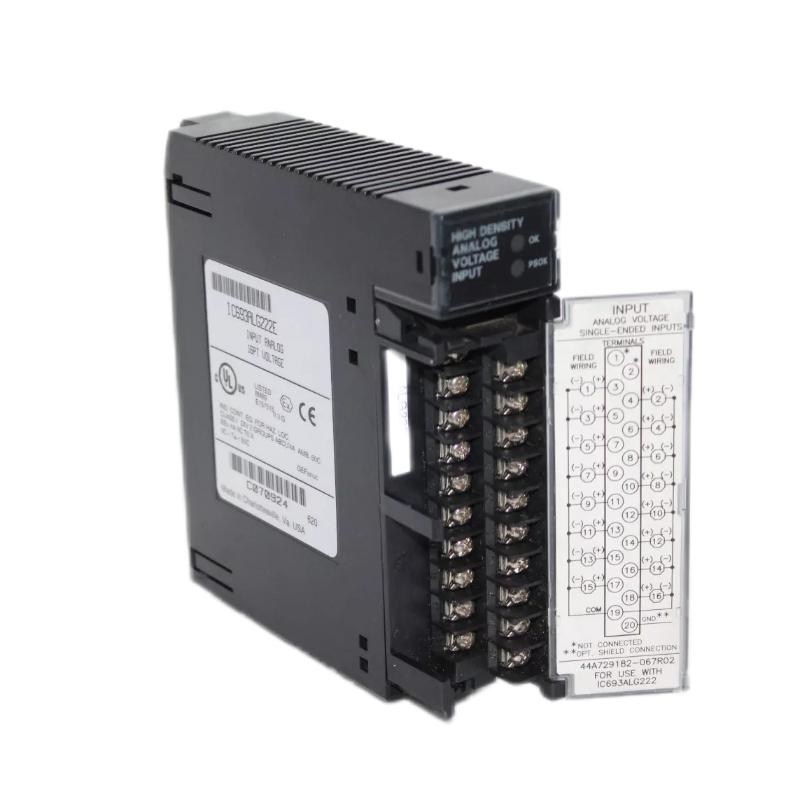

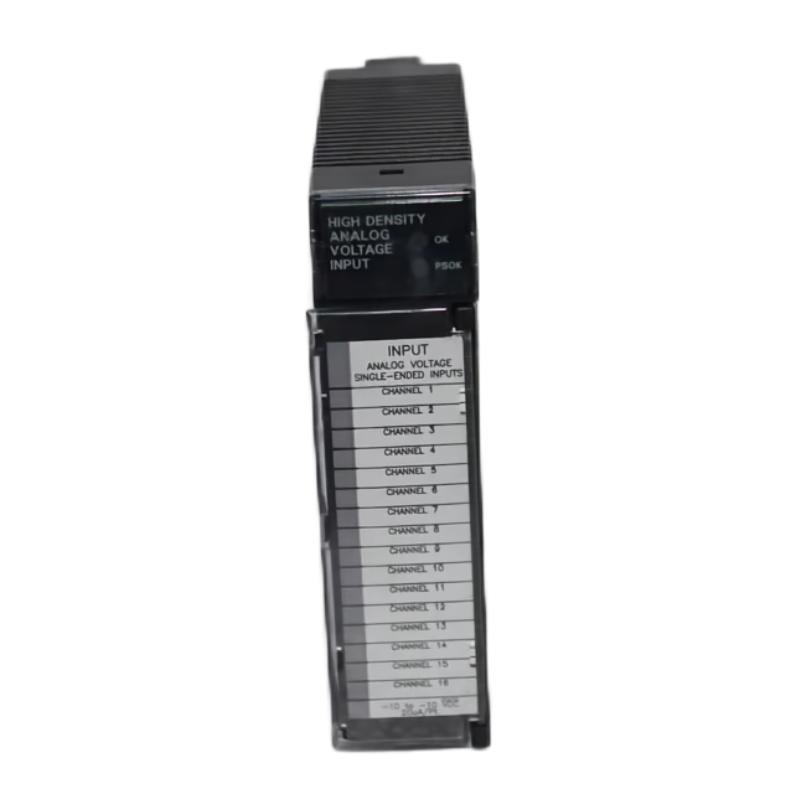

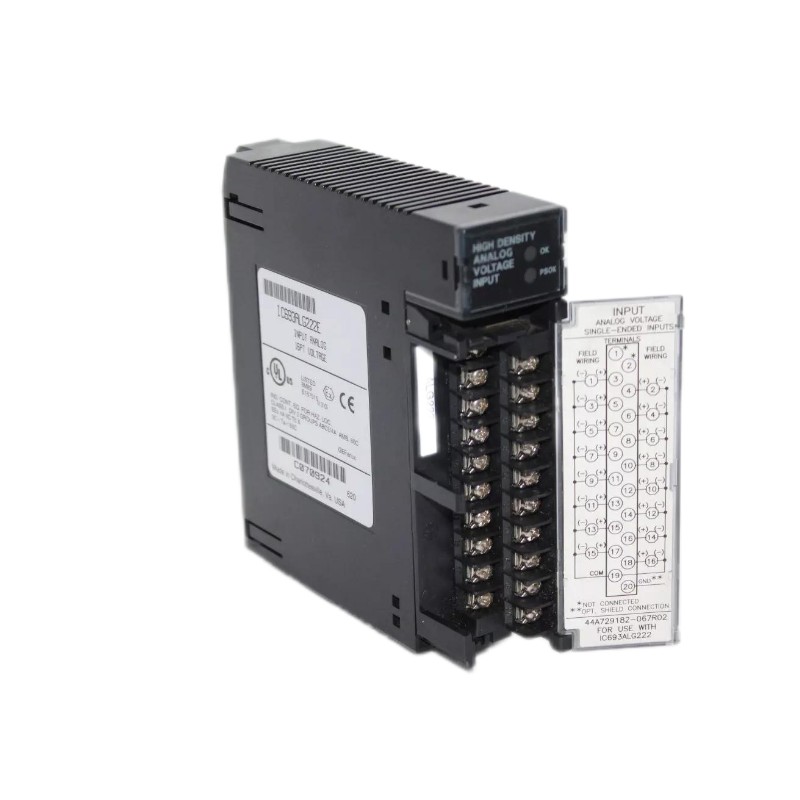

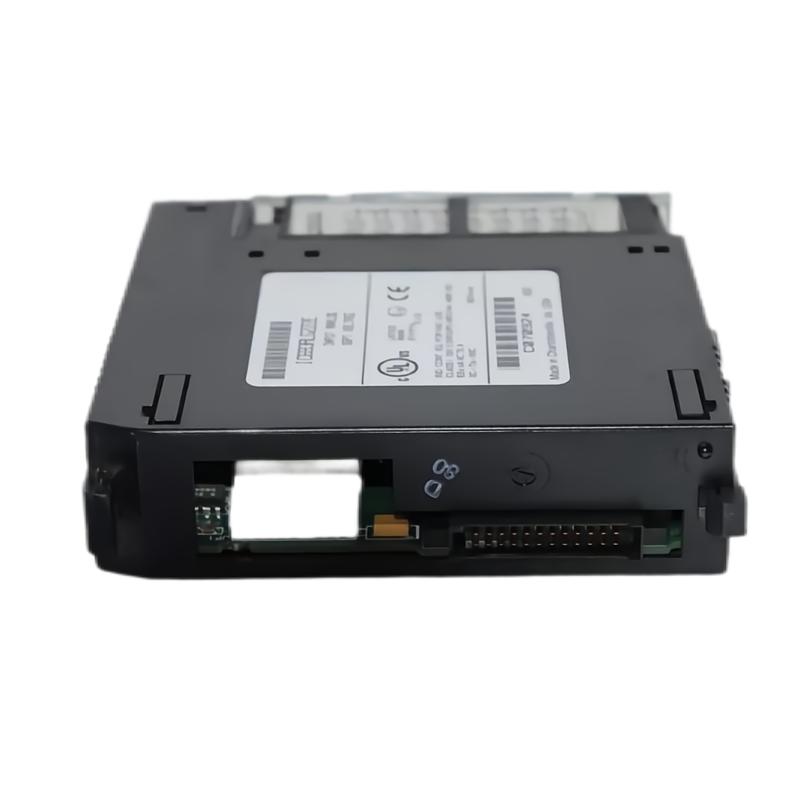

GE Fanuc IC693ALG222E Analog Input Modules

Brand:GE Fanuc PLC
Item No.:IC693ALG222E
Product Origin:USA
Product Dimensions:174 x 114 x 39 mm
Product Weight:0.41kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

IC693ALG222E 1IC693ALG222E 4IC693ALG222E 2IC693ALG222E 5IC693ALG222EIC693ALG222E 3

Introduction

The GE Fanuc IC693ALG222E Analog Input Module is a high-performance input interface designed for Series 90-30 and Rx3i industrial PLC systems. It provides accurate acquisition of multiple analog field signals — such as voltage and current — and translates them into digital data that can be processed by the PLC logic. Engineered for demanding automation environments, the ALG222E supports precise measurement and robust signal conditioning for control, monitoring, and diagnostic tasks across process and discrete-oriented applications.

Technical Specifications

SpecificationDetails
ModelIC693ALG222E
Module TypeAnalog Input Module
PLC CompatibilityGE Fanuc Series 90-30 / Rx3i
Channels8 analog input channels
Input TypesVoltage and current (module-dependent ranges)
ConversionHigh-resolution A/D conversion
AccuracyIndustrial-grade precision for control and measurement
IsolationElectrical isolation between field and logic domains
CommunicationBackplane communication to PLC processor
MountingRack backplane installation
Operating TemperatureIndustrial ambient range
Relative Humidity5 %–95 % non-condensing
Protection ClassIndustrial control cabinet installation
DimensionsStandard Series 90-30 / Rx3i module footprint
WeightApprox. 0.4 kg


Application Areas

The IC693ALG222E module is used in a variety of industrial automation applications where precise analog data acquisition is required, such as:

  • Process Control: Reading sensor output from temperature, pressure, flow, and level instruments

  • Machine Automation: Monitoring motor currents, encoder voltages, and analog feedback devices

  • System Diagnostics: Feeding analog data into trend logging and health-monitoring functions

  • Closed-Loop Control: Providing real-time measurement inputs for PID control loops

This module enables the PLC to make informed decisions based on continuous process variables.


Advantages

  • Multi-Channel Analog Acquisition: Eight separate inputs allow consolidated analog monitoring

  • High-Resolution Conversion: Ensures accurate representation of field signals

  • Adaptable Input Types: Supports current and voltage ranges for diverse sensor types

  • Electrical Isolation: Protects logic electronics from noise and field transients

  • PLC Integration: Seamless communication with Series 90-30 and Rx3i processors

These features make the ALG222E well-suited for both control and monitoring functions in complex automation systems.


Technical FAQs

  1. What does the IC693ALG222E do?
    It captures multiple analog input signals and converts them for processing by the PLC.

  2. How many analog inputs does it support?
    Eight channels are provided for voltage and current signal acquisition.

  3. What input types are accepted?
    Configurable current and voltage ranges suitable for standard industrial sensors.

  4. Does it support isolation?
    Yes — electrical isolation helps maintain signal quality and protect the PLC logic.

  5. Where is this module installed?
    In a Series 90-30 or Rx3i PLC rack backplane.

  6. Is special configuration required?
    Yes — channel configuration and scaling are set up through the PLC programming environment.

  7. Can it be used for high-speed signals?
    Analog sampling is suited for control and monitoring speeds typical of process automation.

  8. Does it require external signal conditioning?
    Field wiring practices apply; additional conditioning may be used for specialized sensors.

  9. How is signal accuracy maintained?
    Through high-resolution A/D conversion and isolation design.

  10. What industries rely on this module?
    Petrochemical, manufacturing, power generation, water treatment, and complex machinery.
