Product Introduction

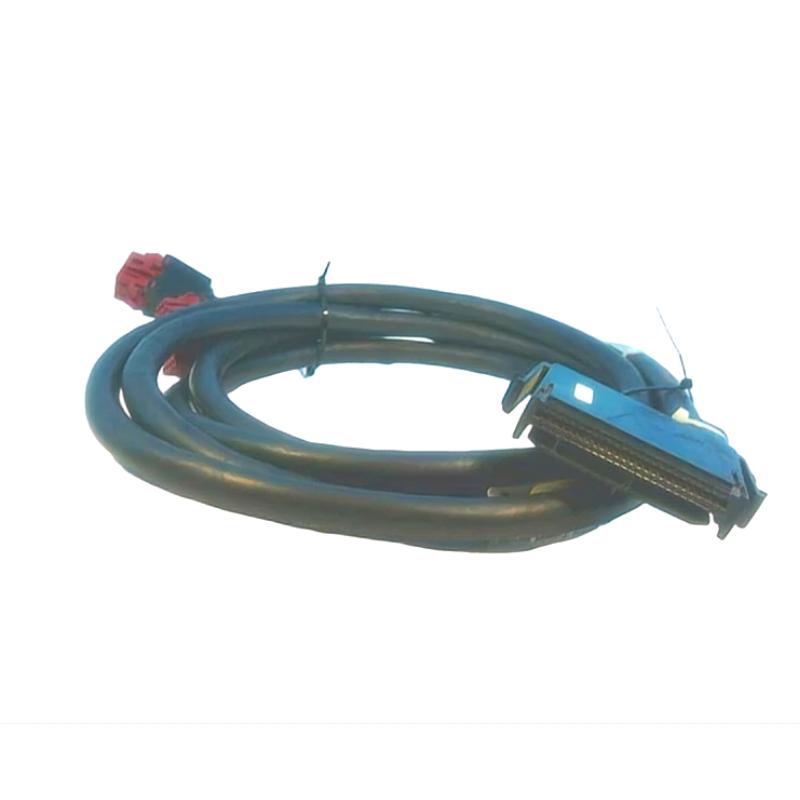

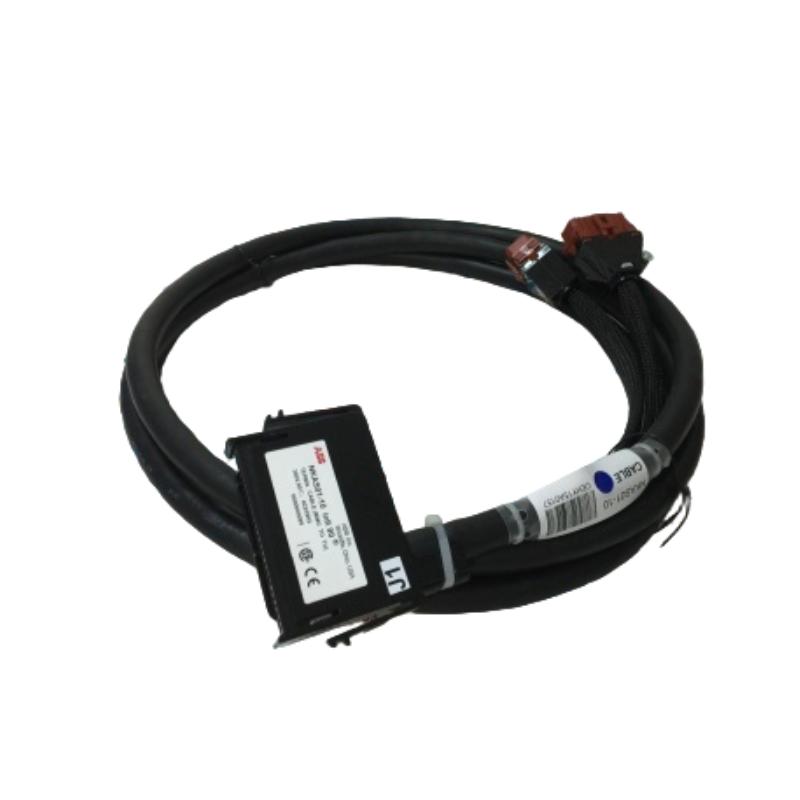

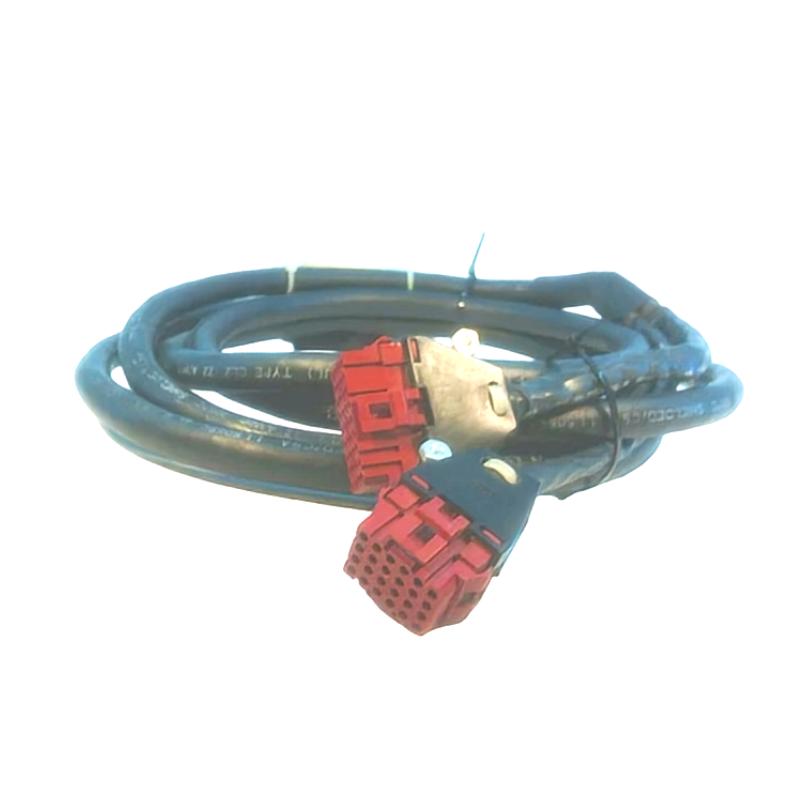

The ABB Bailey NKAS01-10 Analog Module TU Cable is a precision-engineered, industrial-grade communication cable used to connect analog input/output modules to Termination Units (TU) within ABB Bailey’s INFI 90 and Harmony Distributed Control Systems (DCS).
Built for demanding industrial environments, this cable ensures signal integrity and secure communication between analog modules and field devices, helping maintain overall system reliability. Its high-quality shielding, robust construction, and long service life make it the ideal choice for both new installations and system retrofits where analog signals play a critical role in process automation and control.
Designed to ABB’s strict quality standards, the NKAS01-10 TU Cable minimizes noise, reduces signal loss, and delivers consistent performance even in electrically noisy or high-vibration settings — making it the trusted choice for process industries worldwide.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | ABB Bailey NKAS01-10 Analog Module TU Cable |
| Model Number | NKAS01-10 |
| Application | Analog Module to Termination Unit (TU) |
| Cable Type | Multi-conductor shielded cable |
| Cable Length | 10 feet (3 meters) |
| Conductor Material | Tinned copper |
| Insulation Material | High-temperature PVC or XLPE |
| Outer Jacket | PVC, flame retardant |
| Shielding | Foil and braided shield |
| Signal Capacity | Supports full analog I/O module signals |
| Operating Voltage | ≤ 300V |
| Operating Temperature | -20°C to +70°C (-4°F to 158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Bend Radius | Minimum 5x cable diameter |
| EMI/RFI Immunity | High (per IEC and CE standards) |
| Weight | 0.658 kg |
| Flame Rating | UL VW-1, CSA FT1 |
| Certifications | CE, UL, CSA compliant |
