Product Overview

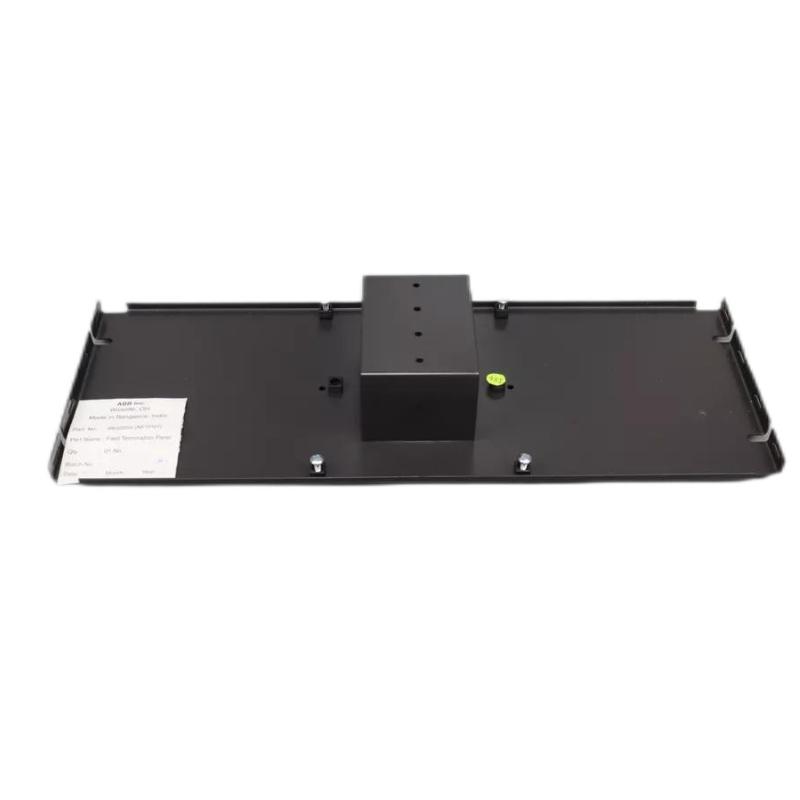

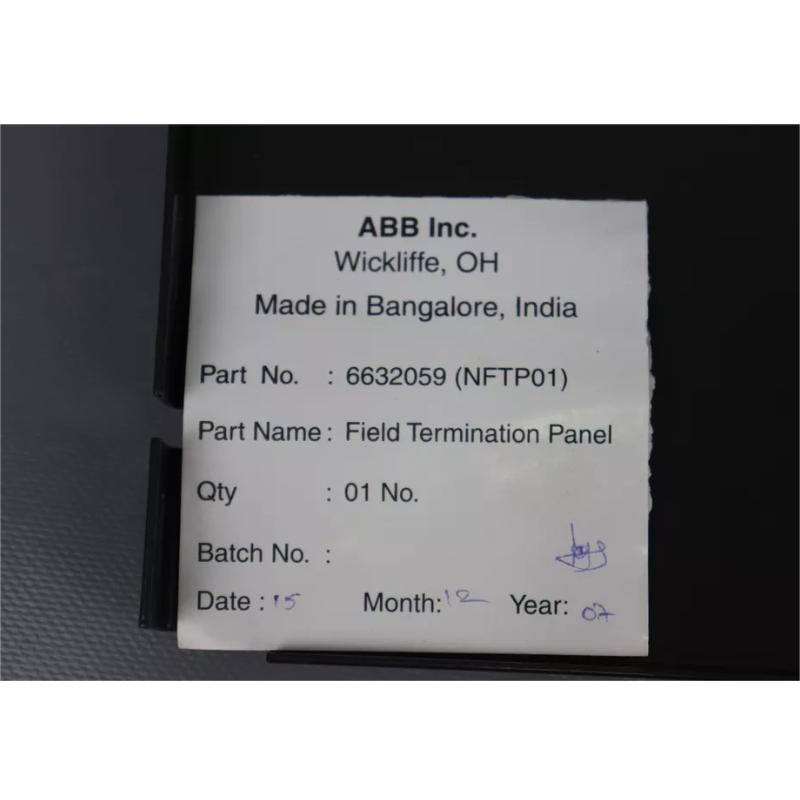

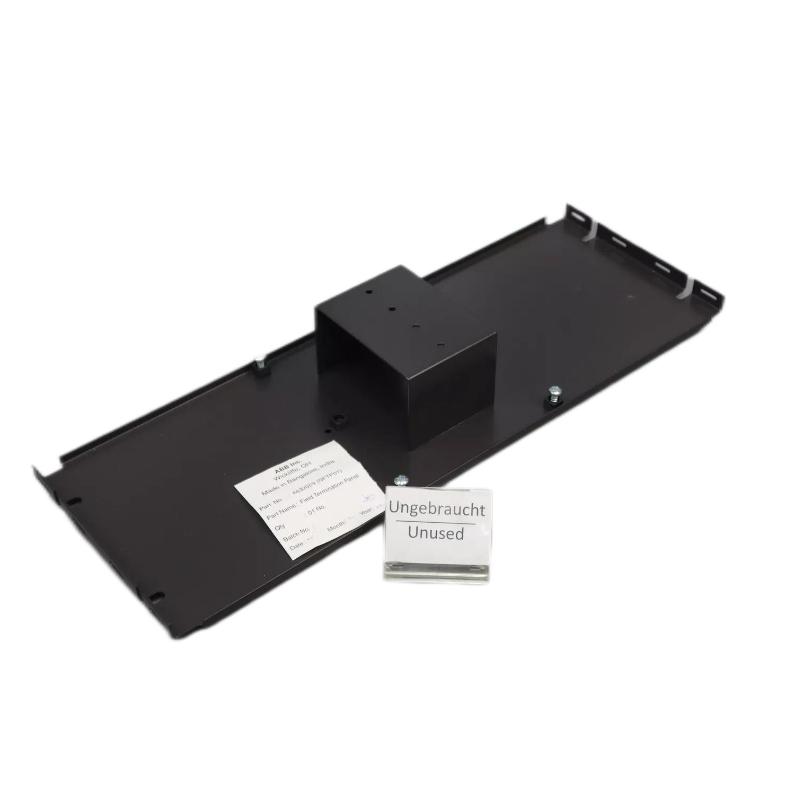

The ABB Bailey NFTP01 Field Termination Panel is a structured enclosure and wiring support platform used in ABB Bailey Distributed Control Systems (DCS) such as INFI 90, Network 90, and Symphony control architectures. It provides a centralized location for organizing, terminating, and protecting field cabling before it interfaces with termination units and is routed into main control cabinets. This panel improves installation quality, standardizes field connections, and simplifies both commissioning and long‑term maintenance in complex automation environments.
Technical Specifications
| Specification | Details |
|---|
| Model | NFTP01 |
| Product Type | Field Termination Panel |
| System Compatibility | ABB Bailey INFI 90 / Network 90 / Symphony DCS |
| Function | Field wiring termination and mounting platform |
| Panel Type | Enclosure with termination station support |
| Mounting | Field, wall, or control cabinet panel mount |
| Signal Support | Termination for digital, analog, control, and communication cables |
| Cable Access | Terminal block locations, cable glands, and conduit fittings |
| Environmental Rating | Suitable for industrial field environments |
| Protection | Provides secure attachment and routing for field terminations |
| Weight | Approx. 1.2 kg (typical panel) |
| Dimensions | Depends on installation arrangement and enclosure choice |
| Termination Units | Supports multiple signal and communication termination boards |
Application Scenarios
The NFTP01 Field Termination Panel is typically implemented wherever field wiring needs to be organized, secured, and prepared before entering the main DCS termination and I/O racks. Typical use cases include:
-
Distributed I/O Field Racks: Central point where field sensor and actuator cables are routed before termination.
-
Control Panel Front Ends: Mounting surface for termination hardware adjacent to control enclosures.
-
Plant Expansion Projects: Standardized panel location for adding new field wiring and termination units.
-
Retrofitting Legacy Systems: Dedicated field interface point that improves wiring clarity for older installations.
By centralizing cable entry points and termination locations, this field panel facilitates better cable management and faster diagnostics.
Advantages
-
Structured Field Interface: Centralizes field cable termination to reduce clutter and improve layout.
-
Modular Unit Support: Provides mounting locations for various standard termination boards (digital, analog, communications).
-
Simplified Maintenance: Organized termination points and access improve troubleshooting efficiency.
-
Enhanced Protection: Enclosure supports secure mounting and routing, protecting connectors and terminal blocks.
-
Standardized Architecture: Supports consistent installations across multiple control zones or plant areas.
These characteristics help reduce installation errors and improve system robustness.
Technical FAQs
-
What is the purpose of the NFTP01 field panel?
It serves as a centralized mounting and termination location for field cables before they feed into DCS termination units.
-
Does NFTP01 process signals?
No — it provides physical interfaces for termination units that handle signal interfacing.
-
Which systems use this panel?
ABB Bailey control systems, including INFI 90, Network 90, and Symphony architectures.
-
Where is this panel installed?
Typically in field enclosures, machine hubs, or near cabinets where field cables are routed into the control room.
-
Does it include terminal blocks?
The panel supports mounting of termination units that include the actual terminal blocks.
-
Can it support multiple cable types?
Yes — with appropriate termination units, it can support analog, digital, control, and communication cables.
-
Is enclosure protection included?
The panel provides structural protection; environmental protection depends on the selected enclosure.
-
Does it support conduit and cable glands?
Yes — provisions for cable entry via glands or conduit fittings are part of its design.
-
Is the panel suitable for outdoor field use?
With proper enclosure and sealing, it can be adapted for outdoor installations as required.
-
How does it improve troubleshooting?
Centralized and labeled termination points make it easier to isolate and trace field wiring issues.
