Product Overview

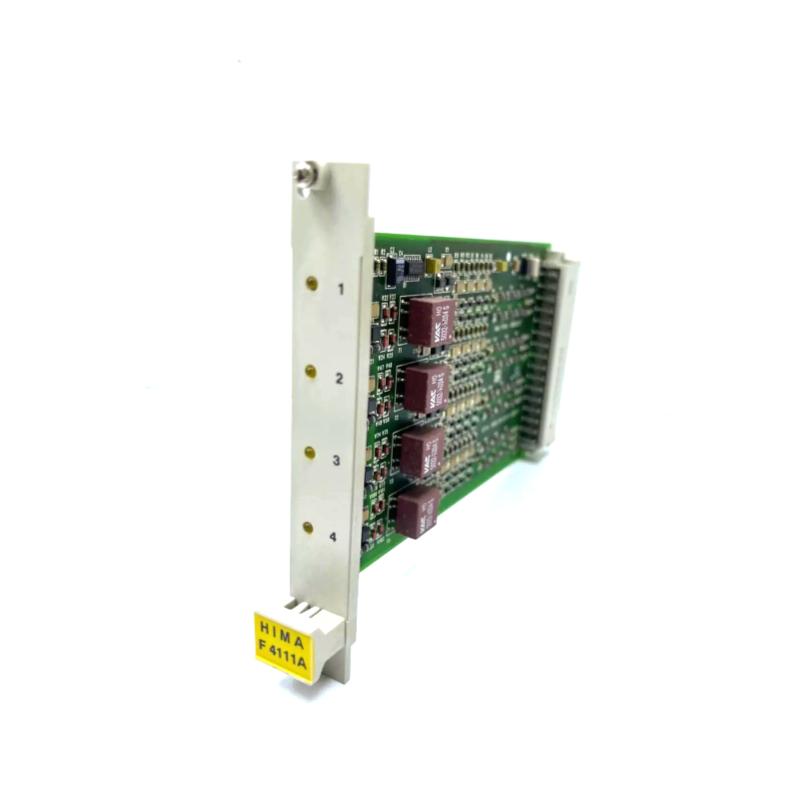

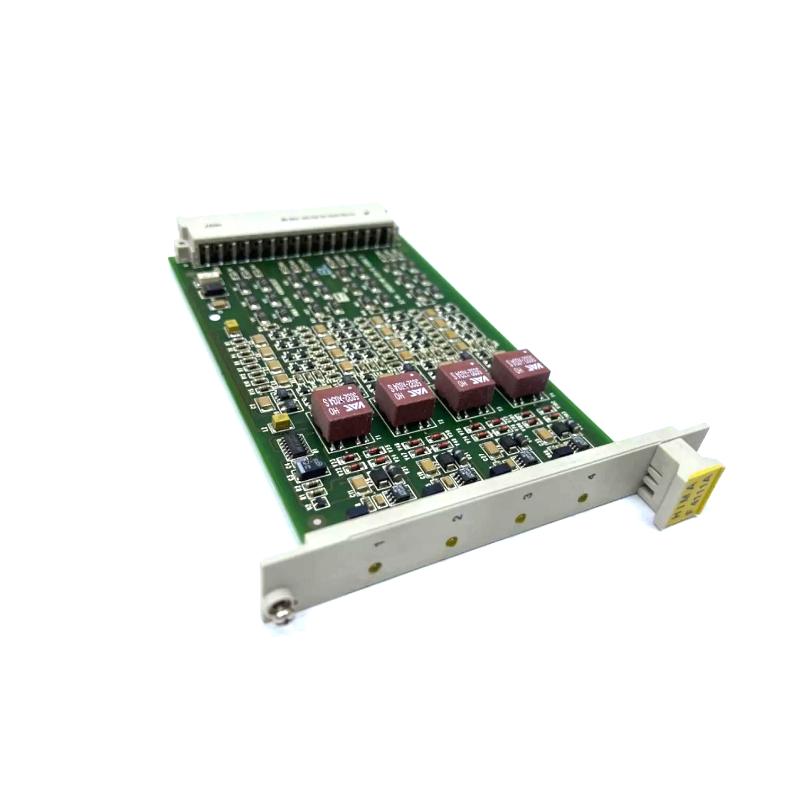

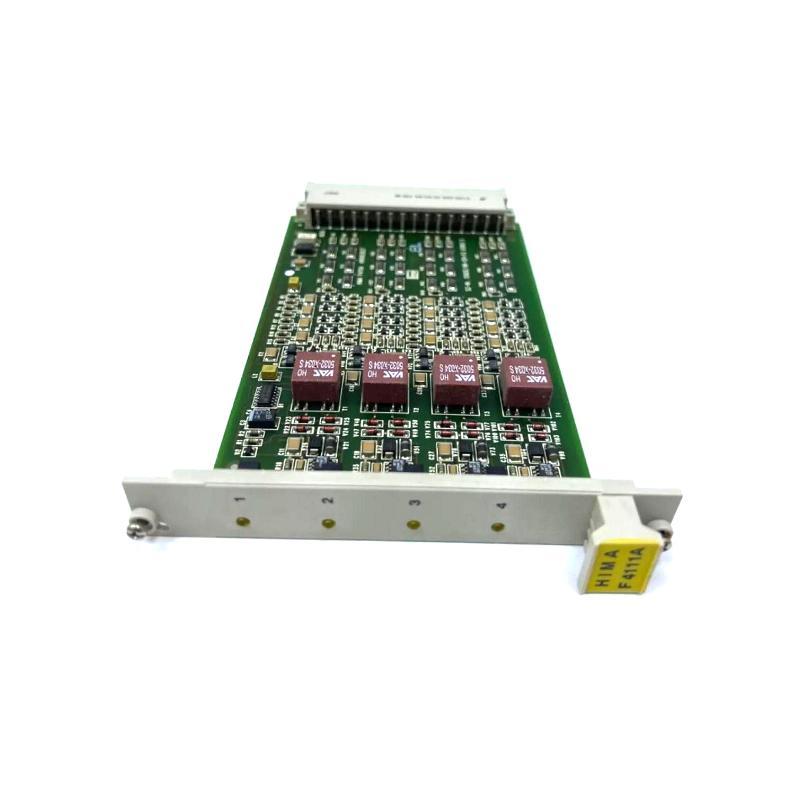

The HIMA F4111A Safety-Related Four-Channel AND Door Module is an advanced logic interface module designed for high-integrity safety systems in industrial automation environments. It evaluates four discrete safety inputs using AND logic with integrated door or guard monitoring functionality, ensuring that all required safety conditions are met before enabling a controlled action. Engineered for use within certified HIMA safety platforms such as Planar F and HIMax, this module supports deterministic safety logic, continuous self-diagnostics, and robust electrical isolation — all crucial for personnel protection and machine safeguarding in complex systems.
Technical Specifications
| Specification | Details |
|---|---|
| Model | F4111A |
| Product Type | Safety Related AND Logic & Door Monitoring Module |
| System Compatibility | HIMA Safety Systems (Planar F, HIMax, etc.) |
| Logic Function | Four-channel AND evaluation with integrated safety door status check |
| Input Channels | 4 discrete safety inputs |
| Output Interface | Safety logic output compatible with downstream actuators or controllers |
| Diagnostic Support | Continuous internal self-test with fault reporting |
| Mounting | Rack / chassis mount in HIMA safety enclosure |
| Operating Temperature | Industrial ambient range |
| Relative Humidity | 5 %–95 % non-condensing |
| Protection Class | Designed for industrial enclosure installation |
| Dimensions (H × W × D) | Approx. 100 × 50 × 125 mm (4.0 × 2.0 × 5.0 in) |
| Weight | Approx. 0.22 kg (0.49 lb) |
