Product Overview

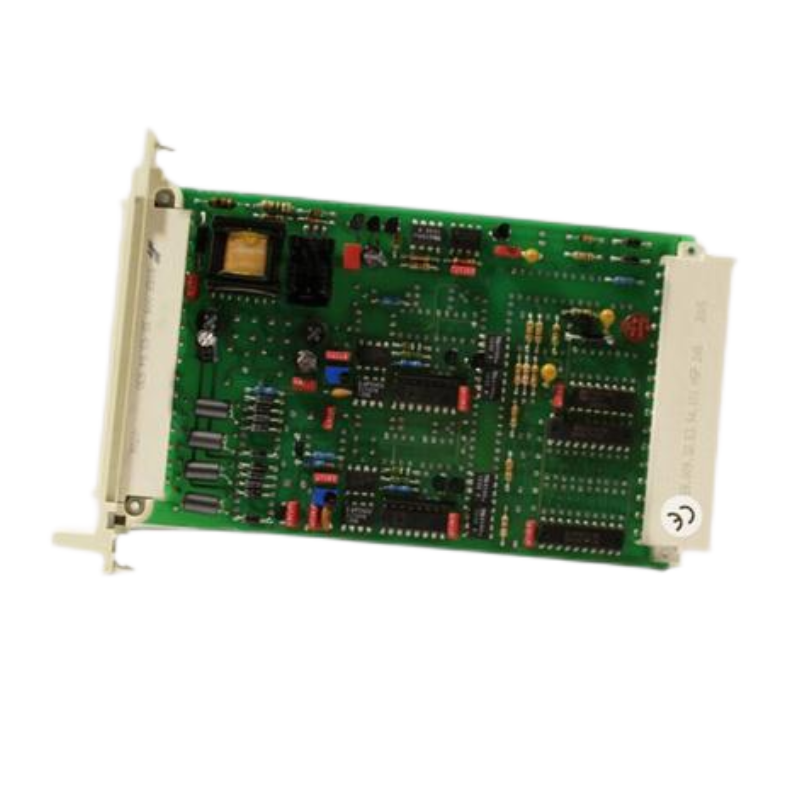

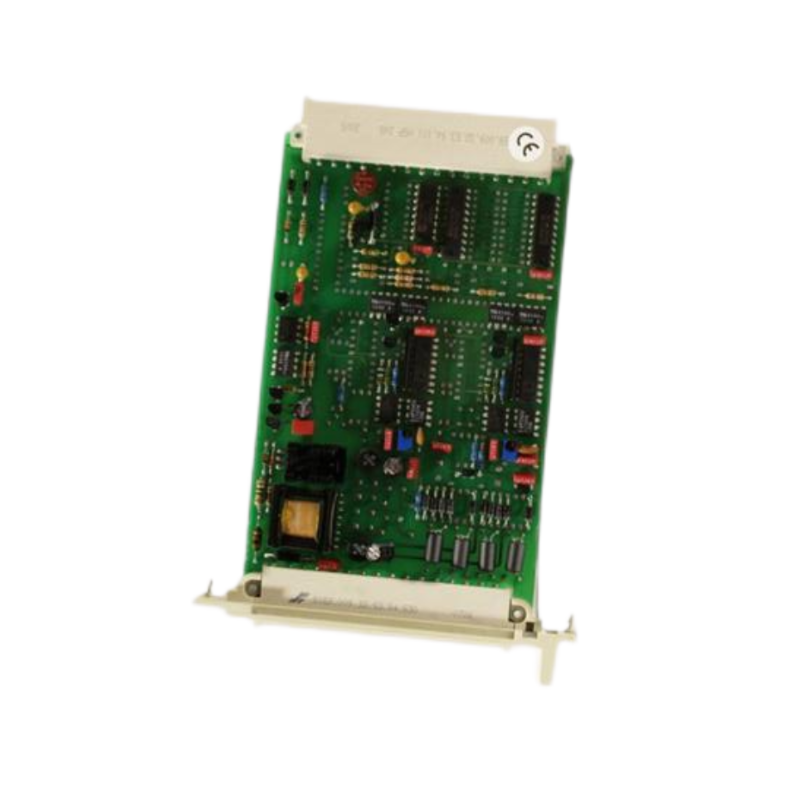

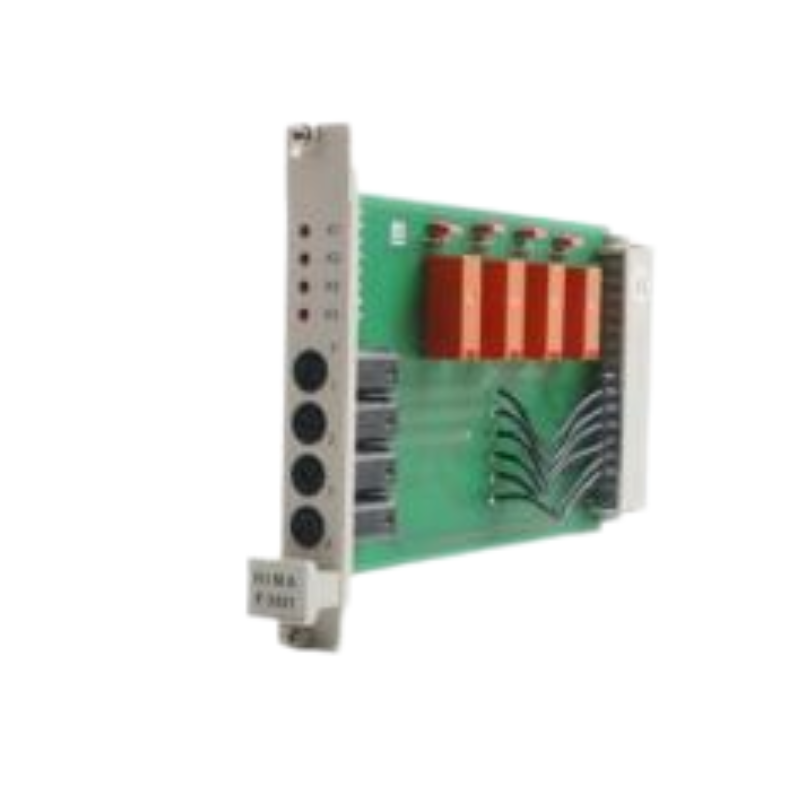

The HIMA F3430 4-Fold Relay Module is a compact, high-reliability relay interface designed to support safety and control system architectures such as HIMA Planar F and related automation platforms. Engineered for rugged industrial environments, this module provides four independent relay channels that deliver isolation and switching capability between logic outputs and field devices. Its robust construction ensures consistent performance in safety-critical applications, serving as a dependable intermediary between control logic and actuators, alarms, or auxiliary equipment.
Technical Specifications
| Specification | Details |
|---|---|
| Model | F3430 |
| Product Type | 4-Fold Relay Module |
| System Compatibility | HIMA safety and control platforms (e.g., Planar F) |
| Output Type | Electromechanical relay outputs |
| Number of Channels | 4 independent relay channels |
| Contact Configuration | Normally Open (NO) / Normally Closed (NC) contacts depending on wiring |
| Rated Load | Industrial control signal levels (refer to specific HIMA documentation) |
| Coil Voltage | Industrial control standard voltages |
| Isolation | Galvanic isolation between logic and load circuits |
| Mounting | Rack or chassis mount via carrier backplane |
| Operating Temperature | Standard industrial ambient range |
| Relative Humidity | 5 %–95 % non-condensing |
| Protection Class | Designed for enclosure installation (IP20 typical) |
| Dimensions (H × W × D) | Approx. 100 × 50 × 125 mm (4.0 × 2.0 × 5.0 in) |
| Weight | Approx. 0.20 kg (0.44 lb) |
