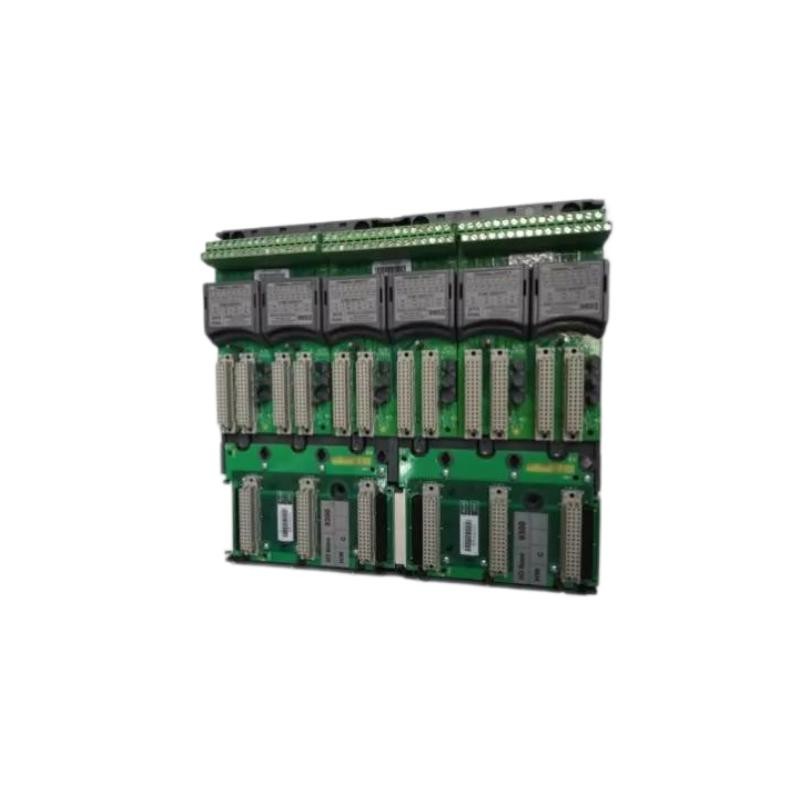

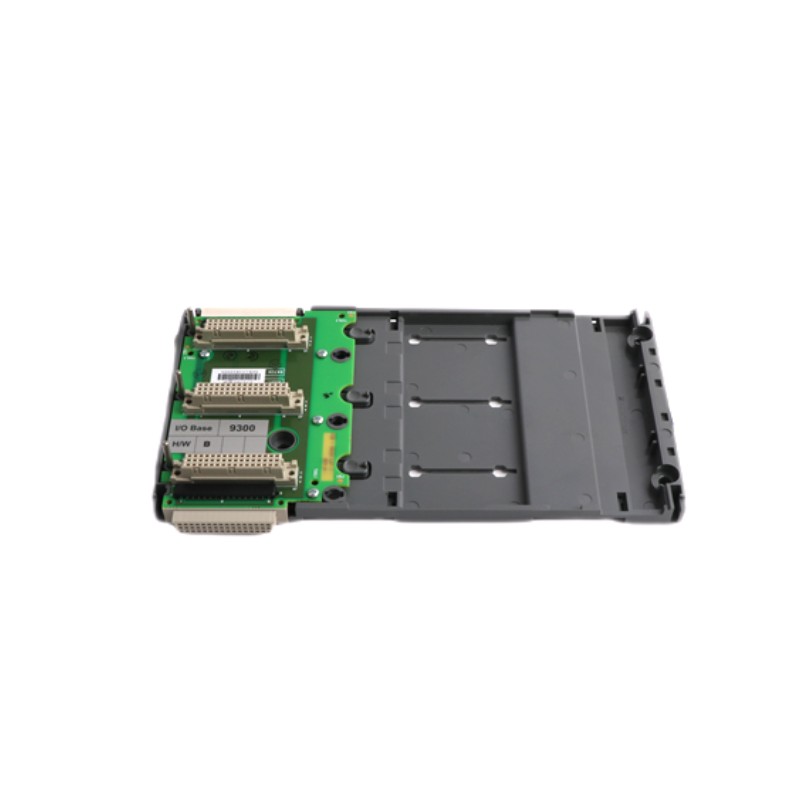

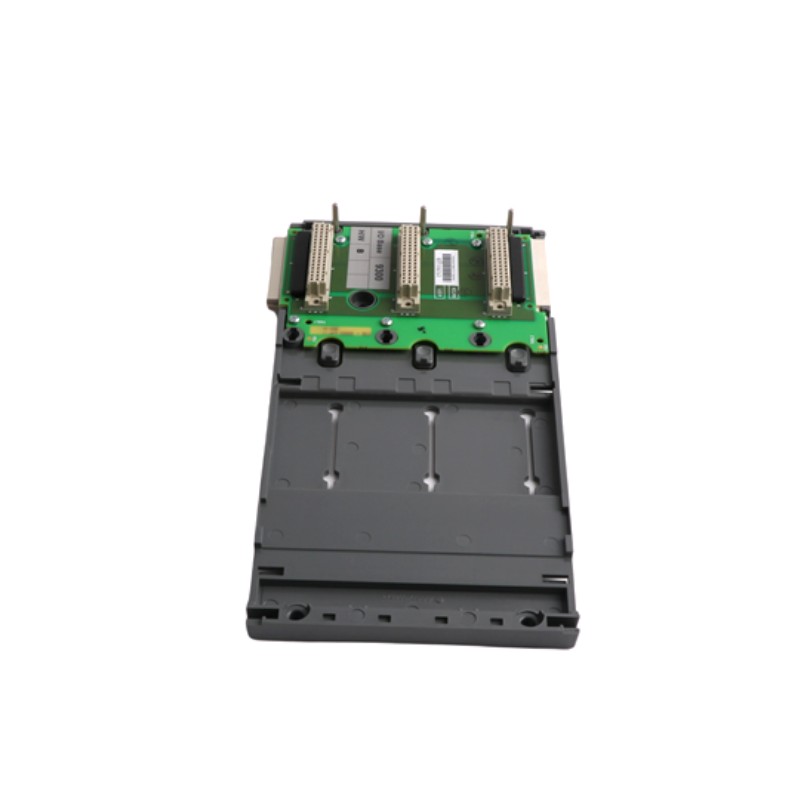

ICS Triplex T9300 (T9801) I/O Backplane

Brand:ICS Triplex PLC
Item No.:T9300 (T9801)
Product Origin:USA
Product Dimensions:233 x 126 x 18 mm
Product Weight:0.13kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

T9300 (T9851)-3T9300 (T9851)-2T9300 (T9851)-1ICS T9300(T9851)-4

Product Overview

The ICS Triplex T9300 (also referenced as T9801) I/O Backplane is the structural and electrical foundation for Triplex safety, alarm, and control systems. It serves as the backbone into which a series of I/O modules are installed, enabling robust communication between distributed field I/O and the central processing units. Manufactured for high-reliability industrial environments, this backplane supports hot-swappable I/O cards, power distribution, and signal pathways that are critical to maintaining deterministic system behavior with minimal service interruption.

Technical Specifications

SpecificationDetails
ModelT9300 / T9801
Product TypeI/O Backplane / System Backplane
System CompatibilityICS Triplex control and safety systems
FunctionElectrical and communications backbone for I/O modules
Slot ArchitectureMulti-slot configuration for discrete/analog I/O cards
Module InterfaceEdge connector slots for Triplex I/O modules
Bus SupportBackplane data, control, and power distribution
Redundancy SupportDesigned to operate in redundant power and module configurations
MountingRack or chassis compatible for industrial control cabinets
Operating EnvironmentIndustrial ambient temperatures
Relative Humidity5 %–95 % non-condensing
Protection RatingDesigned for installation within industrial enclosures
DimensionsDependent on configuration and slot count
WeightDependent on configuration


Application Scenarios

The Triplex T9300/T9801 I/O Backplane is used wherever robust, modular I/O integration is needed in mission-critical systems. Typical use cases include:

  • Safety Instrumented Systems (SIS): Providing the modular backbone for safety logic integration

  • Distributed Control Systems: Supporting reliable field I/O interconnection

  • Oil & Gas and Petrochemical Plants: Handling process measurements and control signals

  • Power Generation: Backbone for turbine controls, alarms, and protective elements

  • Large Manufacturing Automation: Integrating discrete and analog I/O at scale

Its modular design allows flexible system expansion and slot reassignment without major structural changes.


Advantages

  • Modularity: Supports flexible installation of discrete, analog, and specialty I/O modules

  • Serviceability: Slot-based architecture facilitates quick module replacement or upgrades

  • System Integration: Provides a stable platform for signal, power, and data distribution in Triplex systems

  • Redundancy Support: Works in architectures with redundant power and multiple safety CPUs

  • Industrial Durability: Designed for long-term operation in rugged industrial environments

These features help maintain high system uptime and efficient field service.


Technical FAQs

  1. What is the purpose of this I/O backplane?
    It provides the structural and electrical interface for Triplex I/O modules, linking them to the system’s communication and power pathways.

  2. Can this backplane support redundant power feeds?
    Yes, Triplex system architectures permit redundant power distribution to backplanes depending on configuration.

  3. Does the backplane directly connect field wiring?
    No, field wiring is terminated through individual I/O modules installed in the backplane slots.

  4. How many I/O modules can be installed?
    The number of slots varies with backplane and rack configurations; consult system design documentation for specifics.

  5. Can modules be swapped without powering down the system?
    Hot-swap capability depends on system design and safety protocols; always follow operational procedures.

  6. Is the backplane specific to Triplex systems?
    Yes, it is designed for use with ICS Triplex branded safety and control systems.

  7. Does the backplane perform diagnostics?
    Diagnostics are handled at the module and system controller level, not by the backplane itself.

  8. What environmental conditions are supported?
    Industrial control room and enclosed cabinet conditions with typical temperature and humidity ranges.

  9. Can this backplane be used in hazardous areas?
    Usage in classified areas depends on enclosure ratings and compliance standards.

  10. Is the backplane field replaceable?
    Replacement procedures depend on system configuration and safety policies; trained technicians should perform service.
