Product Introduction:

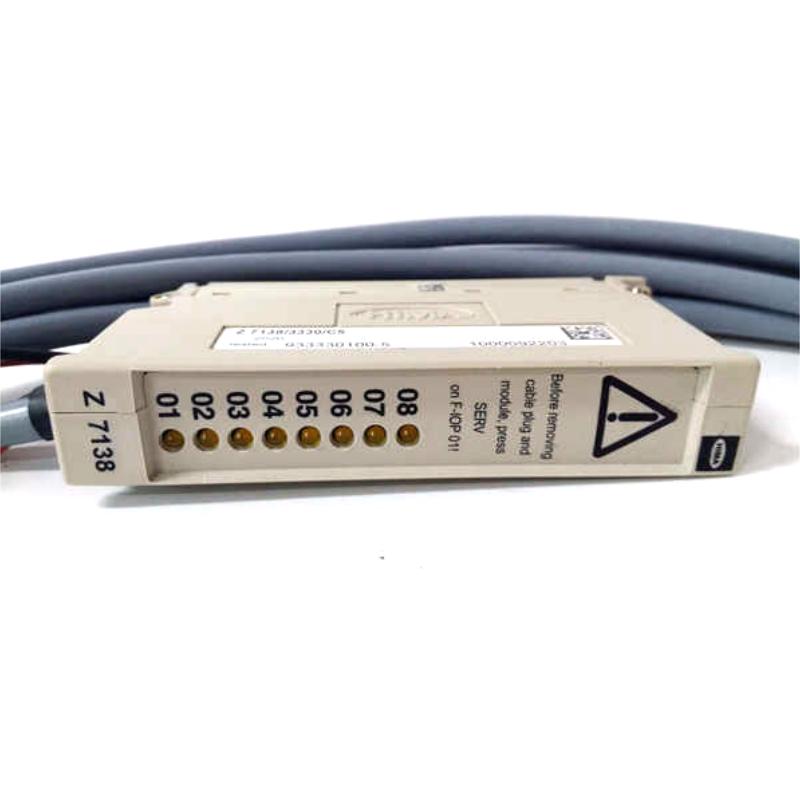

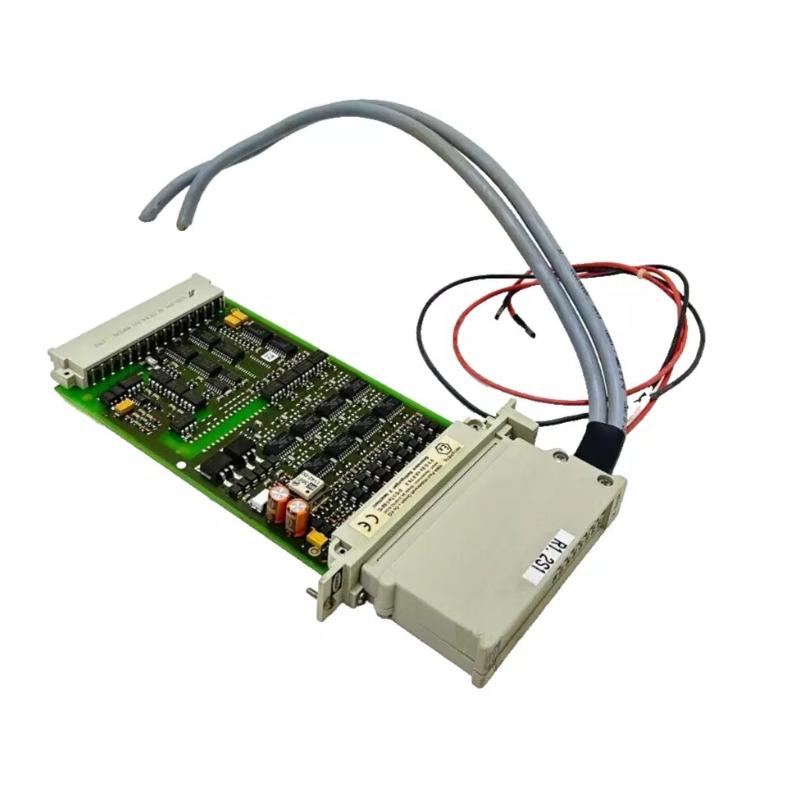

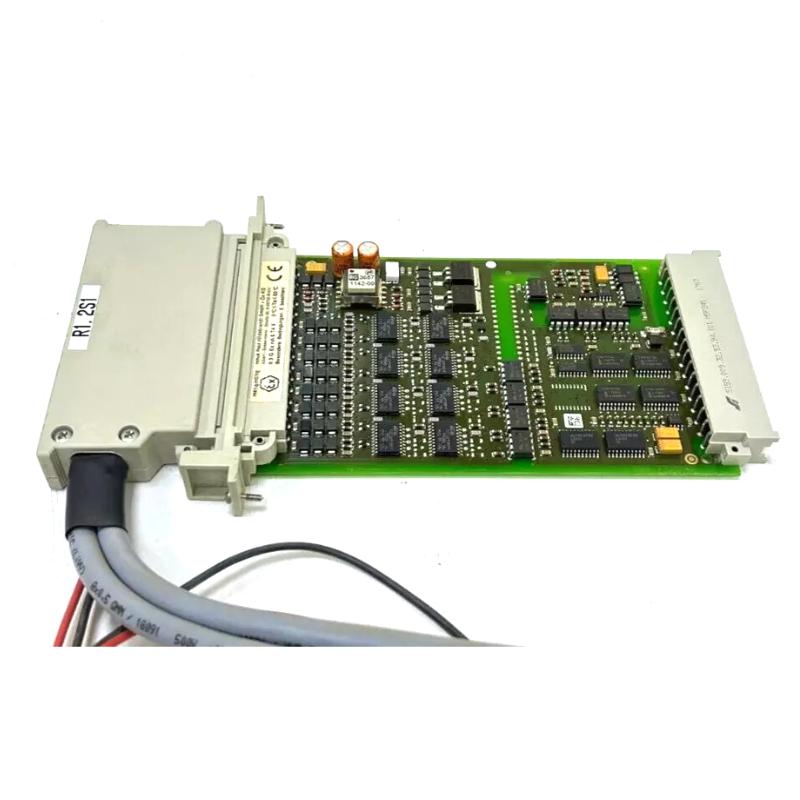

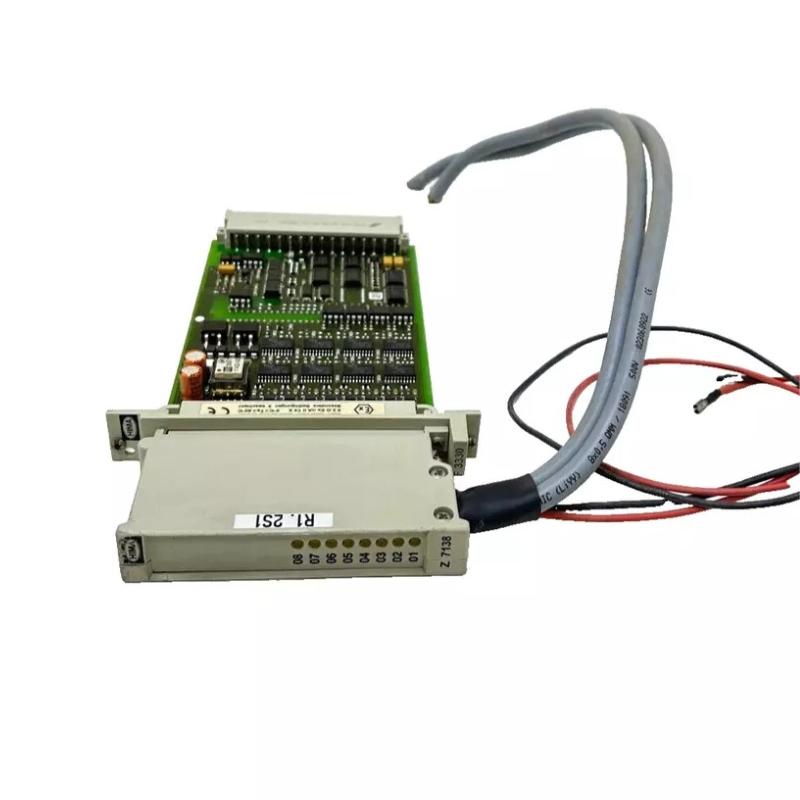

The HIMA Z7138/3330/C15/S2088 Cable Plug is a high-reliability industrial connector developed by HIMA, a globally renowned manufacturer specializing in safety-related automation solutions. This cable plug is engineered to interface securely with HIMA’s programmable safety systems and field devices, ensuring uninterrupted communication and power transmission even in critical environments.
Constructed with rugged materials and precision contacts, the Z7138/3330/C15/S2088 is built for demanding industrial sectors such as petrochemical plants, power generation facilities, and safety-instrumented systems (SIS). It provides secure electrical connectivity, electromagnetic compatibility (EMC), and excellent mechanical durability. Its modular design allows for flexibility in wiring and easy field termination, making it a preferred choice for OEMs and maintenance engineers alike.
Product Specifications:
| Parameter | Details |
|---|---|
| Product Name | Z7138/3330/C15/S2088 |
| Manufacturer | HIMA |
| Product Type | Industrial Cable Plug |
| Connector Type | Multipole Plug |
| Number of Poles | 15-pole |
| Contact Type | Crimp Contacts / Screw Terminals |
| Rated Voltage | 250 V AC/DC |
| Rated Current | Up to 10 A (per contact) |
| Insulation Resistance | > 10⁹ Ohms |
| Dielectric Strength | 2.5 kV AC (1 min) |
| Mechanical Durability | > 500 mating cycles |
| EMC Shielding | Yes (360° shielding) |
| Material (Housing) | Zinc Alloy, nickel-plated |
| Material (Insulation) | Thermoplastic (UL94-V0) |
| Cable Entry | PG11 / PG13.5 |
| Operating Temperature Range | -40°C to +85°C |
| Storage Temperature Range | -55°C to +90°C |
| Degree of Protection | IP65 (mated condition) |
| Cable Length | 15 meters |
| Weight | 0.25 kg |
| Certifications | CE, RoHS, IEC 61984, UL-compliant |
