Emerson KL3104X1-BA1 Digital Output CHARM Module

Brand:Emerson Module
Item No.:KL3104X1-BA1
Product Origin:USA
Product Dimensions:107 × 38 × 125 mm
Product Weight:0.33kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

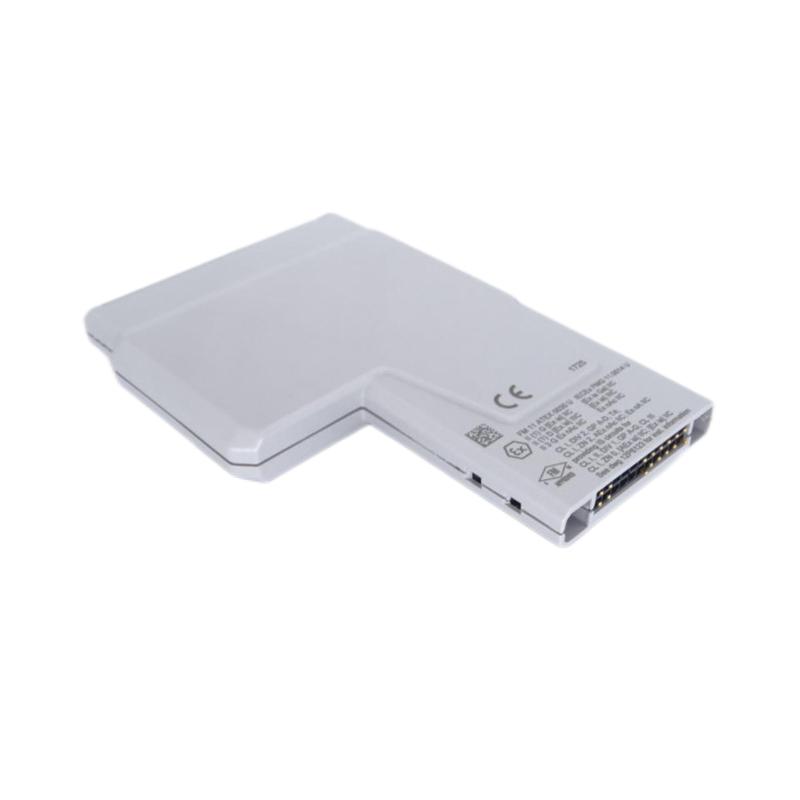

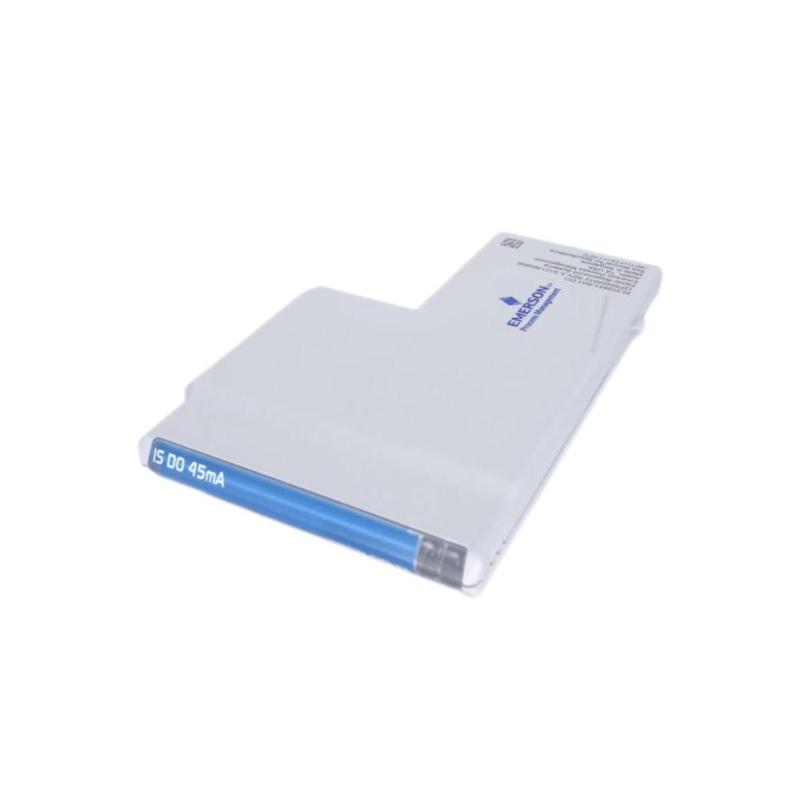

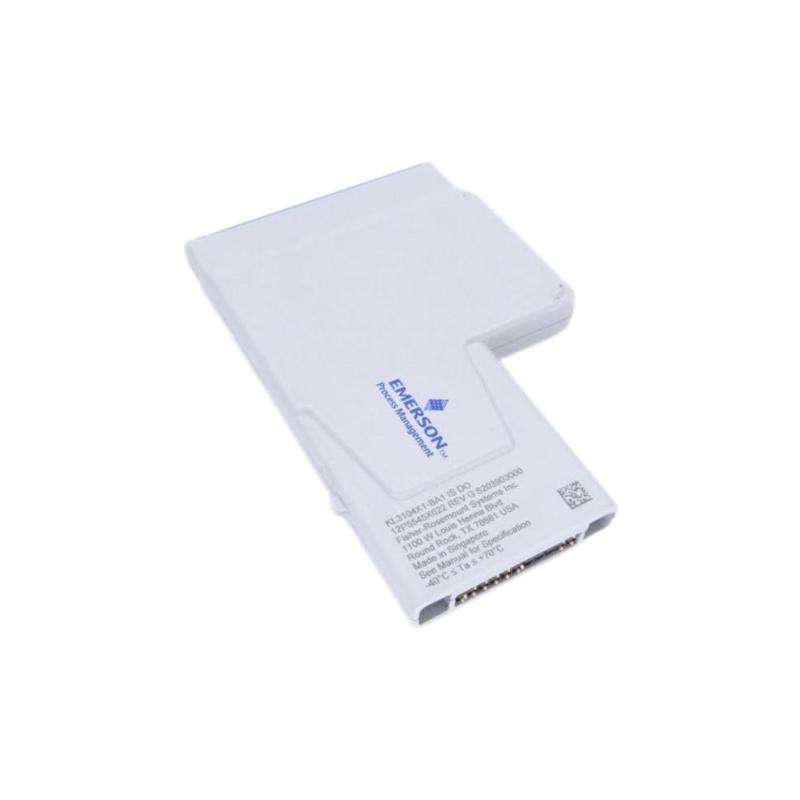

Emerson KL3104X1-BA1-1Emerson KL3104X1-BA1-2Emerson KL3104X1-BA1-4Emerson KL3104X1-BA1-3

Product Introduction

The Emerson KL3104X1‑BA1 Digital Output CHARM Module is an advanced field‑interface output module designed for use within DeltaV™ Electronic Marshalling architectures. As part of the CHARM ecosystem, this module delivers high‑integrity digital output channels that can be flexibly configured to support a variety of discrete control functions. Its modular design and software‑defined signal allocation help reduce wiring complexity while improving operational transparency in demanding industrial environments.

Technical Specifications & Physical Data

SpecificationDetails
ModelKL3104X1‑BA1
Module TypeDigital Output CHARM Module
System CompatibilityEmerson DeltaV Electronic Marshalling
Output Channels4 Discrete Output Channels
Output TypeDigital (on/off)
Load VoltageStandard industrial discrete levels
Output CurrentPer channel industrial drive capability
Diagnostic SupportChannel‑level status reporting
MountingCHARM baseplate interface
Protection RatingIP20
Operating Temperature−40 °C to +70 °C (−40 °F to +158 °F)
Storage Temperature−40 °C to +85 °C (−40 °F to +185 °F)
Relative Humidity5 %–95 % non‑condensing


Application Scenarios

The KL3104X1‑BA1 is typically used in industrial control systems needing reliable discrete output control. Common implementation contexts include:

  • Actuator control in process automation

  • Discrete machine sequencing and interlock operations

  • Load switching in manufacturing and packaging lines

  • Interface to PLC/SCADA driven discrete outputs

Its CHARM‑based architecture allows output channels to be defined late in the project lifecycle, reducing dependency on exact wiring definitions during early engineering phases.


Operational Advantages

  • Flexible Output Allocation – Channels can be assigned through software configuration, reducing hardware constraint risk

  • Clear Diagnostics – Per‑channel indication improves troubleshooting efficiency and reduces downtime

  • Industrial Reliability – Engineered to withstand temperature, vibration, and humidity inherent to plant environments

  • Compact, Modular Design – Preserves cabinet space and simplifies expansion strategies

  • Seamless DeltaV Integration – Fully supported within engineering and runtime tools

These attributes make the module a strong candidate for new installations and phased automation upgrades alike.


Technical FAQs

  1. What is the primary function of the KL3104X1‑BA1?
    It provides four software‑configurable digital output channels for CHARM Electronic Marshalling systems.

  2. Can output channels be reconfigured after installation?
    Yes, signal assignments are defined through DeltaV software.

  3. Does this module support diagnostics?
    Yes, channel‑level status and fault reporting are available.

  4. Is the module suitable for high‑noise industrial environments?
    Yes, it is designed for robust performance in typical plant conditions.

  5. What external devices are typically controlled?
    Valves, relays, contactors, solenoids, and other discrete loads.

  6. Does it require external power?
    Power and communication are provided through the CHARM baseplate interface.

  7. Can modules be replaced during operation?
    Replacement procedures depend on overall system design and redundancy strategy.

  8. Is special wiring required?
    Standard industrial wiring practices apply.

  9. Is this module compatible with remote I/O configurations?
    Yes, when deployed within supported DeltaV distributed topologies.

  10. Does it support future output capacity expansion?
    Yes, additional CHARM modules can be added as needed.
