Emerson SE4601T07 KL4201X1-BA1 Charm Baseplate

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

Emerson SE4601T07 KL4201X1-BA1 Charm Baseplate

Name: Emerson SE4601T07 KL4201X1-BA1 Charm Baseplate
Brand: Emerson Module
SKU: 4850
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Emerson Module
Item No.:SE4601T07 KL4201X1-BA1
Product Origin:USA
Product Dimensions:250 × 120 × 75 mm
Product Weight:1.2 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Foundation Overview

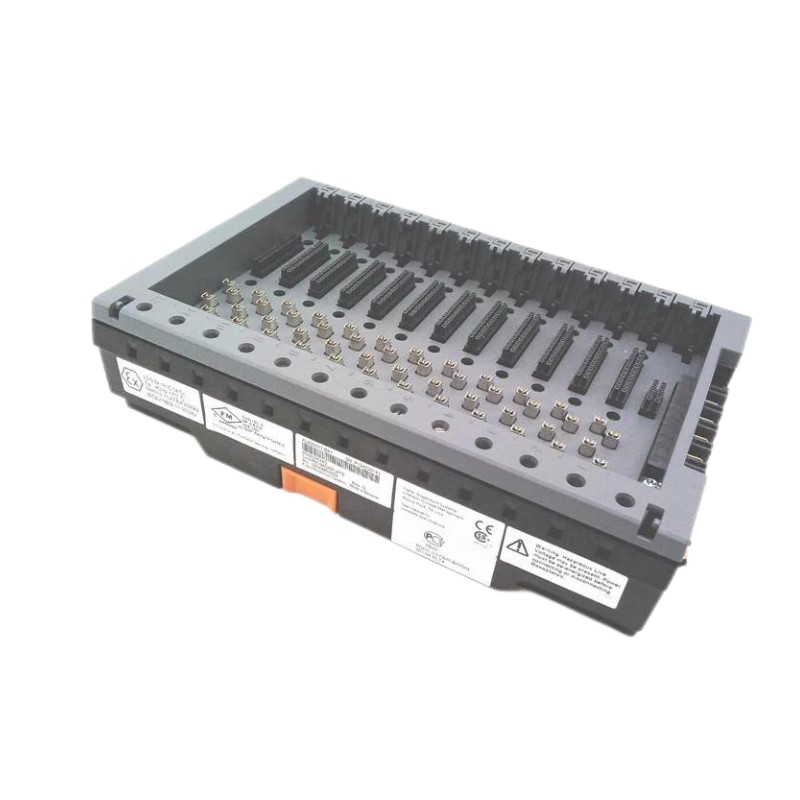

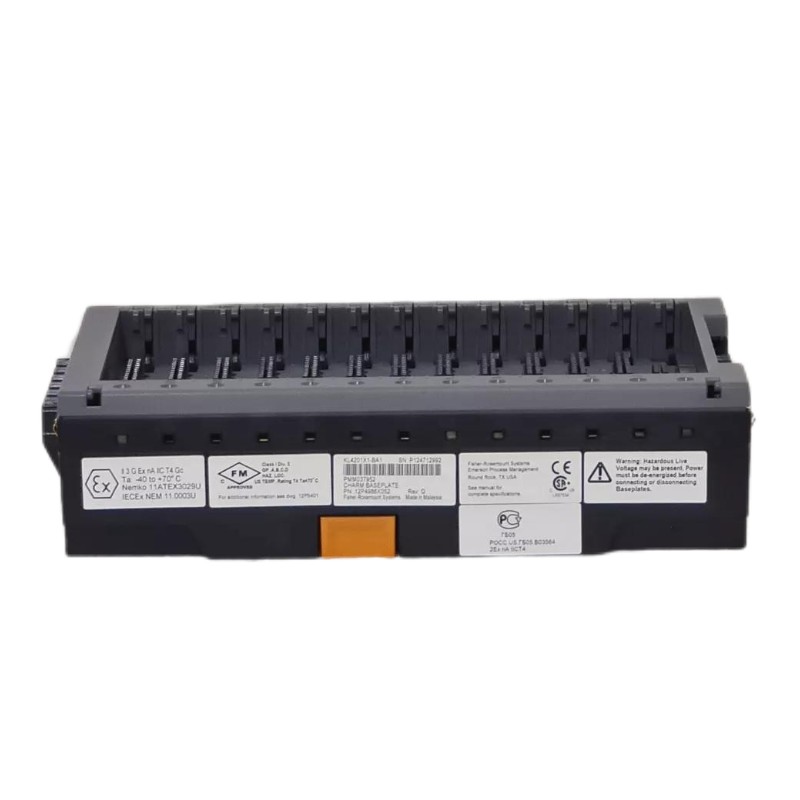

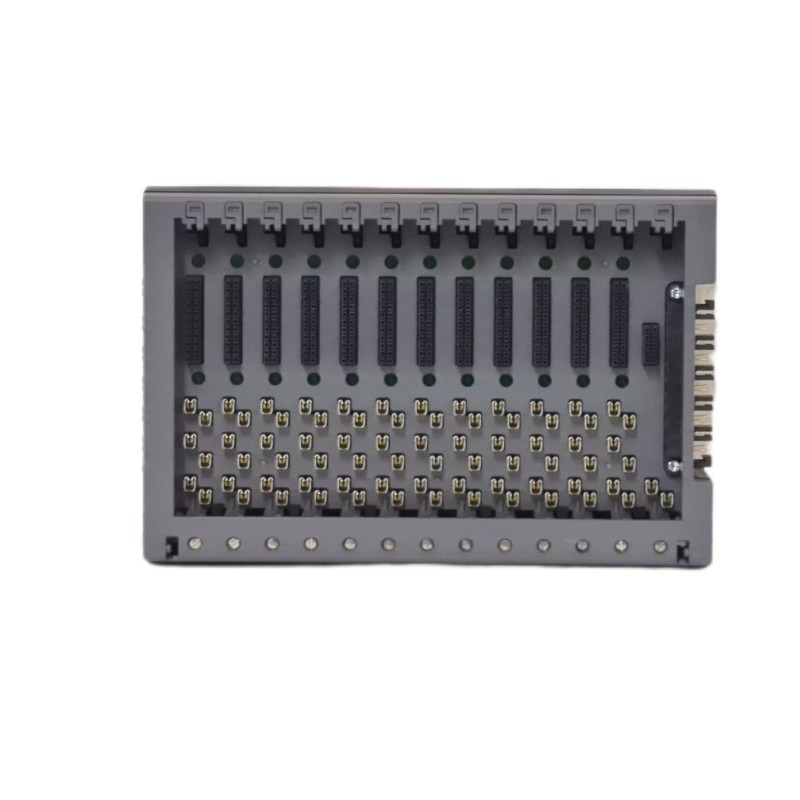

The Emerson SE4601T07 KL4201X1-BA1 CHARM Baseplate serves as the physical and electrical foundation of the DeltaV™ Electronic Marshalling system. Designed to host CHARM I/O modules, it provides structured mounting, organized field wiring, and stable power distribution in a compact industrial form. This baseplate is a key enabler for flexible I/O strategies, supporting late-stage configuration changes without compromising system integrity.

Technical Specifications and Physical Data

Item	Specification
Model Reference	SE4601T07 / KL4201X1-BA1
Module Type	CHARM Baseplate
System Compatibility	Emerson DeltaV Electronic Marshalling
CHARM Bus Power	6.3 V DC
Field Circuit Power	24 V DC
Mounting Method	Panel or rack mounting
Protection Rating	IP20
Operating Temperature	−40 °C to +70 °C (−40 °F to +158 °F)
Storage Temperature	−40 °C to +85 °C (−40 °F to +185 °F)
Shock Resistance	10 g, 11 ms half-sine
Vibration Resistance	1 mm p-p (2–13.2 Hz), 0.7 g (13.2–150 Hz)

Application Scenarios

The KL4201X1-BA1 Baseplate is widely used in process automation sectors that demand structured field wiring and modular expansion. Typical application areas include:

Industrial process control panels and distributed I/O racks
Chemical and petrochemical automation systems
Oil & gas production and processing facilities
Power generation and utilities control systems
The platform enhances field wiring management and simplifies integration of digital, analog, and specialty CHARM cards

Operational Benefits

Modular Expansion Foundation – Provides a standardized base for deploying CHARM I/O modules with minimal mechanical complexity
Reliable Power Distribution – Supports both bus and field power channels with engineered stability
Industrial Durability – Designed to withstand shock, vibration, and wide temperature ranges
Hazardous Area Certifications – Enables installation in classified zones with appropriate safety compliance
Scalable System Architecture – Supports flexible growth of I/O capacity as control requirements evolve

These features make the baseplate a core building block for modern DeltaV distributed control solutions.

Technical FAQs

What is the main purpose of the KL4201X1-BA1?
It provides mounting, power distribution, and wiring structure for CHARM I/O modules.
Which modules can be installed on this baseplate?
DeltaV CHARM analog, digital, and specialty I/O modules.
Does the baseplate distribute field power?
Yes, it supports distribution of field circuit power.
Is it suitable for remote I/O cabinets?
Yes, it is commonly used in distributed DeltaV architectures.
Does the baseplate handle signal processing?
No, it functions as a mechanical and electrical platform.
Can it be used in hazardous environments?
It supports industrial installations when system certifications are applied.
How is the baseplate mounted?
It is designed for secure panel or rack mounting.
Does it support system diagnostics?
Diagnostics are provided through the connected CHARM modules.
What happens if a CHARM module is replaced?
Modules can be replaced without changing field wiring.
Is this baseplate suitable for future system expansion?
Yes, it is designed to support scalable I/O growth.
