Introduction — Precision Analog Input for DeltaV Systems

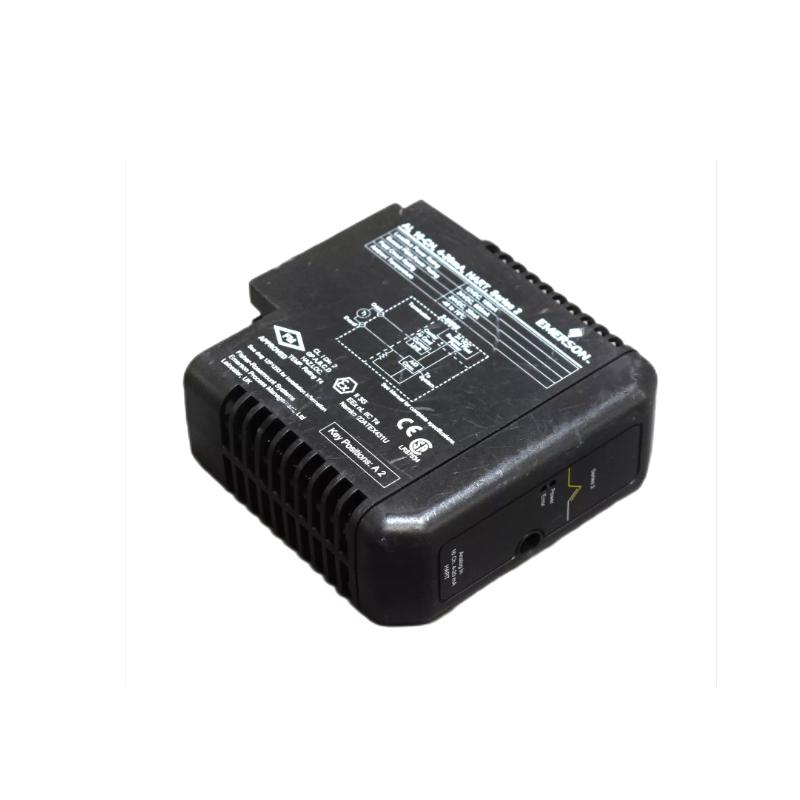

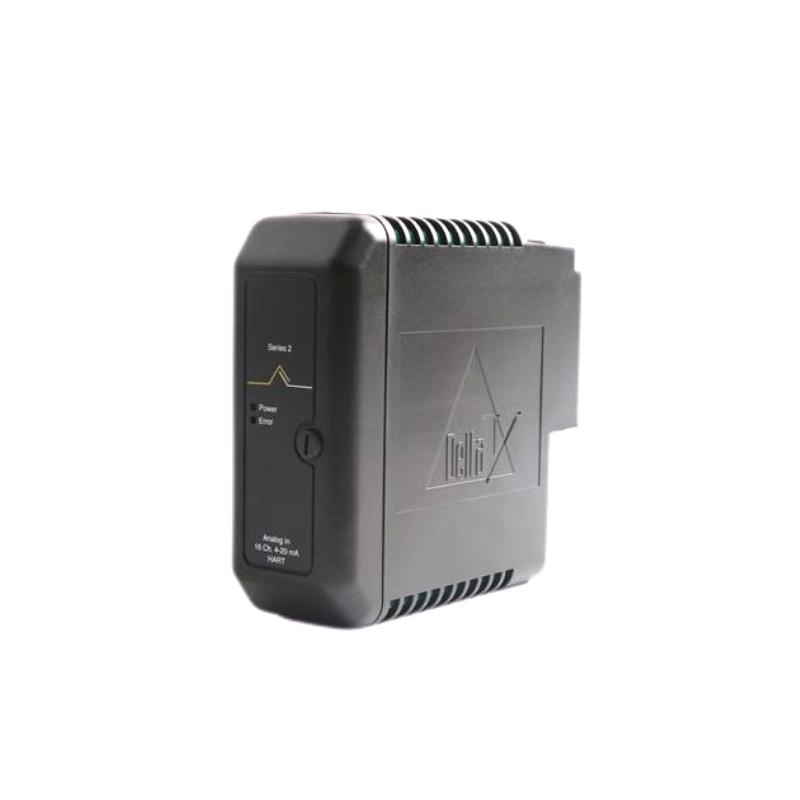

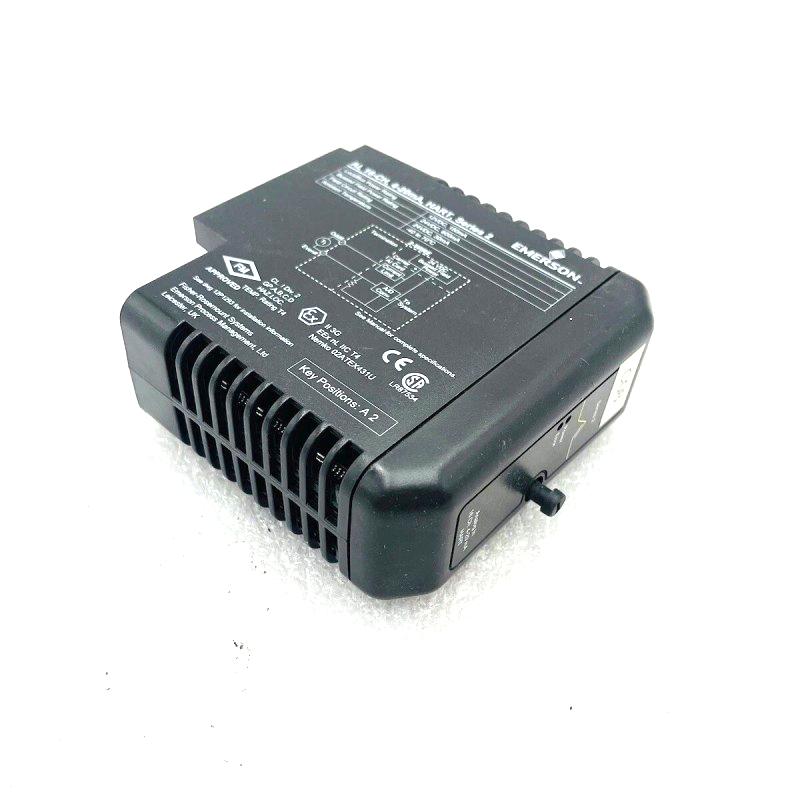

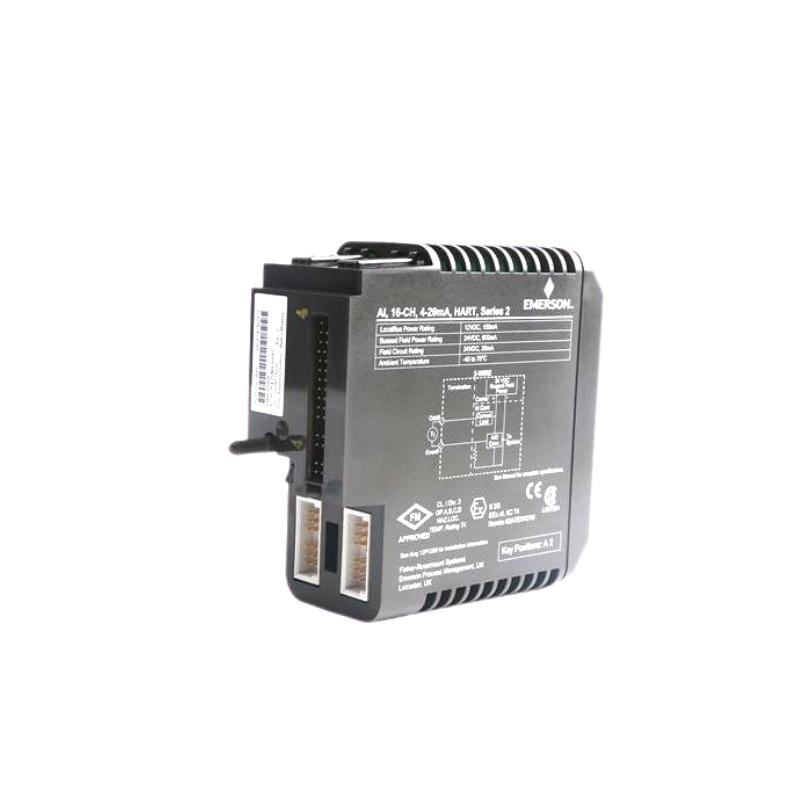

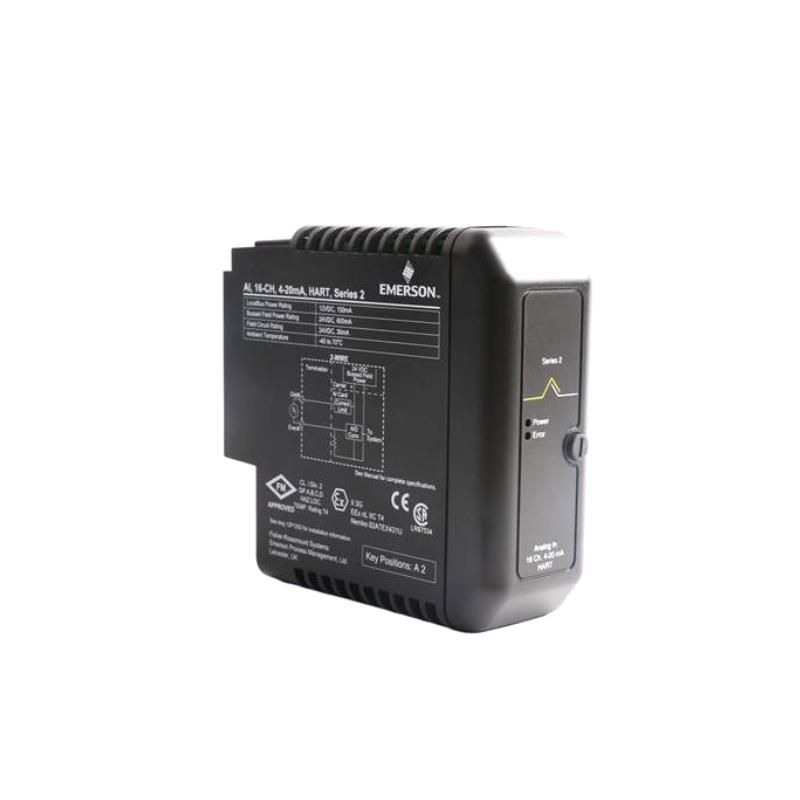

The Emerson VE4003S2B9 KJ3223X1-BA1 DeltaV Analog Input Card is a high-performance module designed to acquire analog signals from industrial sensors with precision and reliability. Specifically built for Emerson DeltaV control systems, it enables accurate, real-time data acquisition from process instrumentation such as pressure, temperature, flow, and vibration sensors. With support for high-availability and redundant system architectures, this analog input card is ideal for mission-critical industrial automation applications.
Technical Specifications — Electrical & Mechanical Overview
| Specification | Details |
|---|---|
| Brand | Emerson |
| Model | VE4003S2B9 / KJ3223X1-BA1 |
| Function | Analog Input Card |
| Input Channels | 16 analog channels |
| Input Types | 4–20 mA, 0–10 V, or configurable voltage/current inputs |
| Resolution | 16-bit analog-to-digital conversion |
| Sampling Rate | Up to 1 kHz per channel |
| Redundancy Support | Compatible with DeltaV redundant architectures |
| Operating Temperature | 0°C to +70°C |
| Power Supply | 5 V / 24 V dc via host backplane |
| Communication Interface | DeltaV backplane bus |
| Housing Dimensions | Approx. 215 × 110 × 50 mm |
| Mounting Type | Rack or backplane slot installation |
| Approximate Weight | ~1.2 kg |
