Introduction — Robust Fieldbus H1 Connection Solution

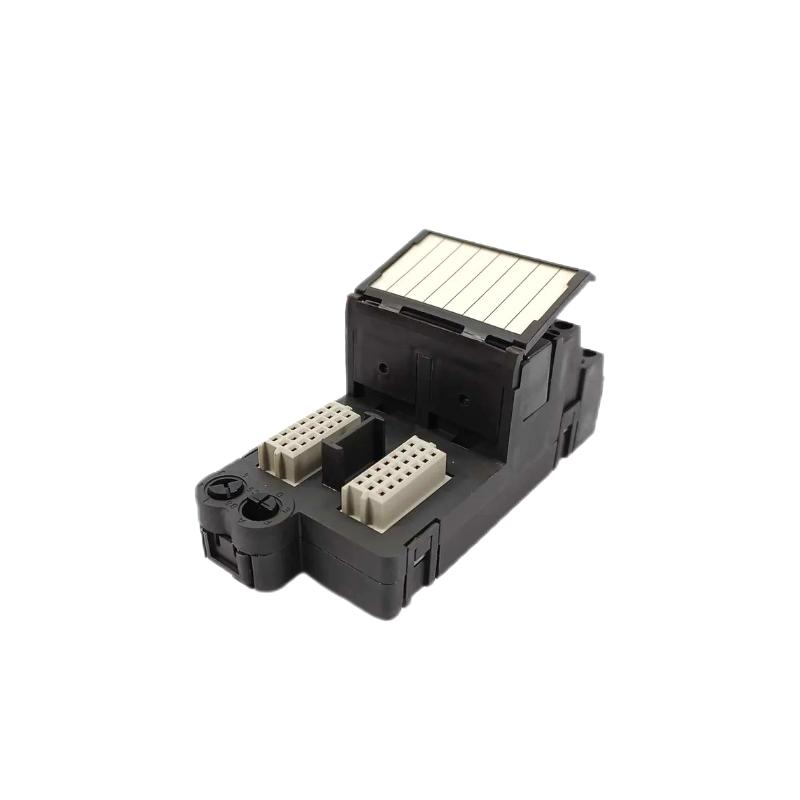

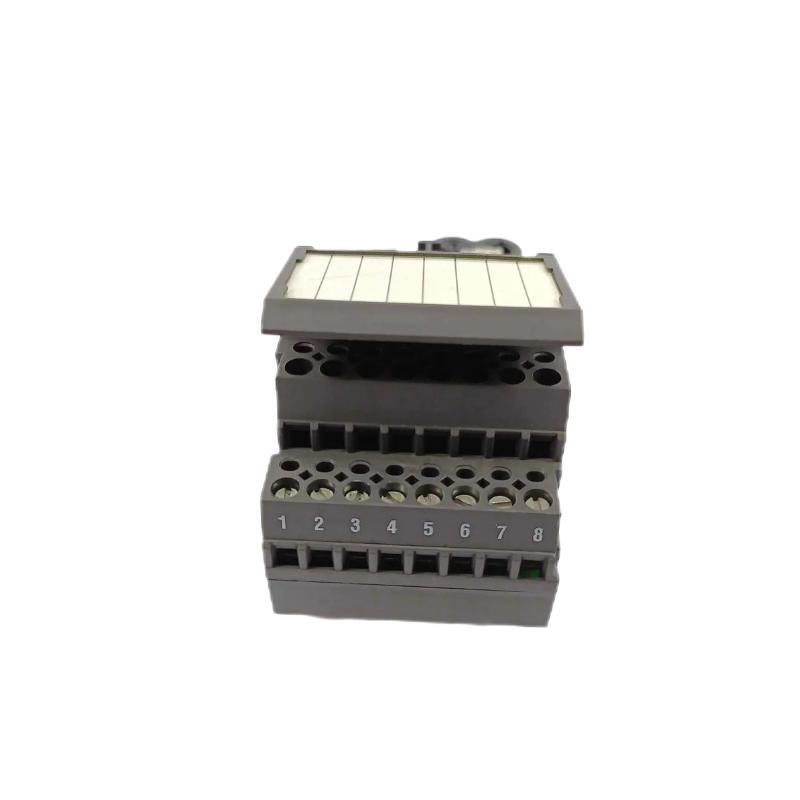

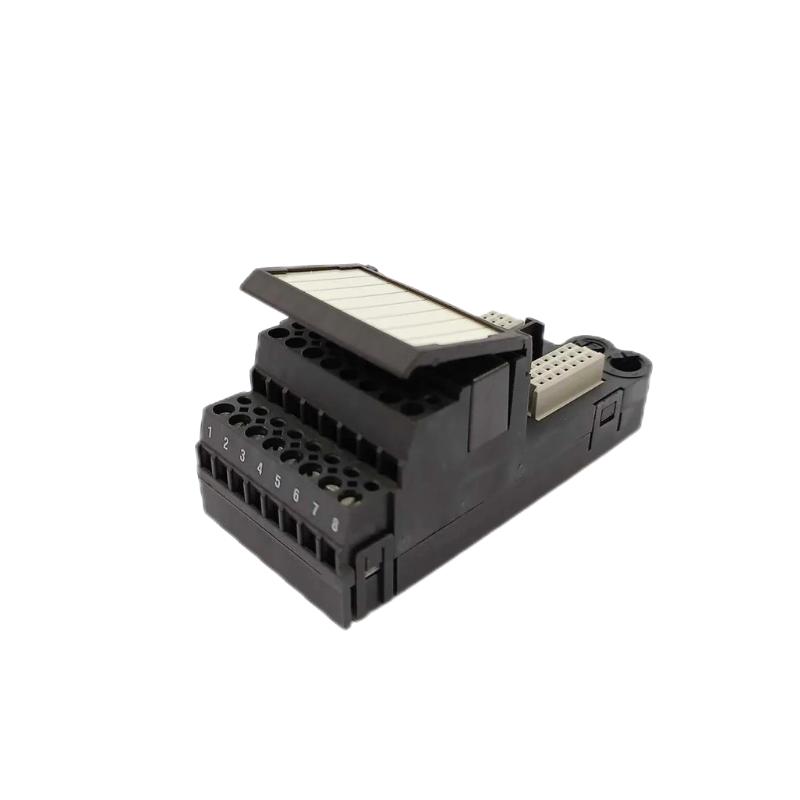

The Emerson KJ3242X1-EA1 Fieldbus H1 Terminal Block is a precision industrial terminal block designed to provide reliable Fieldbus H1 connectivity in Emerson Ovation and DeltaV automation systems. It serves as a critical interface between Fieldbus H1 network cables and control system modules, ensuring secure signal transmission, stable power distribution, and long-term reliability in mission-critical industrial environments. Engineered for simplicity and robustness, the KJ3242X1-EA1 supports seamless integration of Fieldbus devices into redundant and standard automation architectures.
Technical Specifications — Electrical & Mechanical Overview
| Specification | Details |
|---|---|
| Brand | Emerson |
| Model | KJ3242X1-EA1 |
| Function | Fieldbus H1 Terminal Block |
| Interface Type | Fieldbus H1 (IEC 61158-2, Foundation Fieldbus) |
| Device Support | Supports connection to Fieldbus H1 devices and segments |
| Wire Size Compatibility | 14–24 AWG (solid or stranded) |
| Redundancy Support | Compatible with Emerson redundant architectures |
| Operating Temperature | 0°C to +70°C |
| Voltage Rating | 24 V dc nominal for Fieldbus H1 segments |
| Mounting Type | DIN rail or panel mountable |
| Housing Dimensions | Approx. 120 × 50 × 40 mm |
| Approximate Weight | ~0.25 kg |
