Introduction — High-Precision Analog Input for Safety-Critical Systems

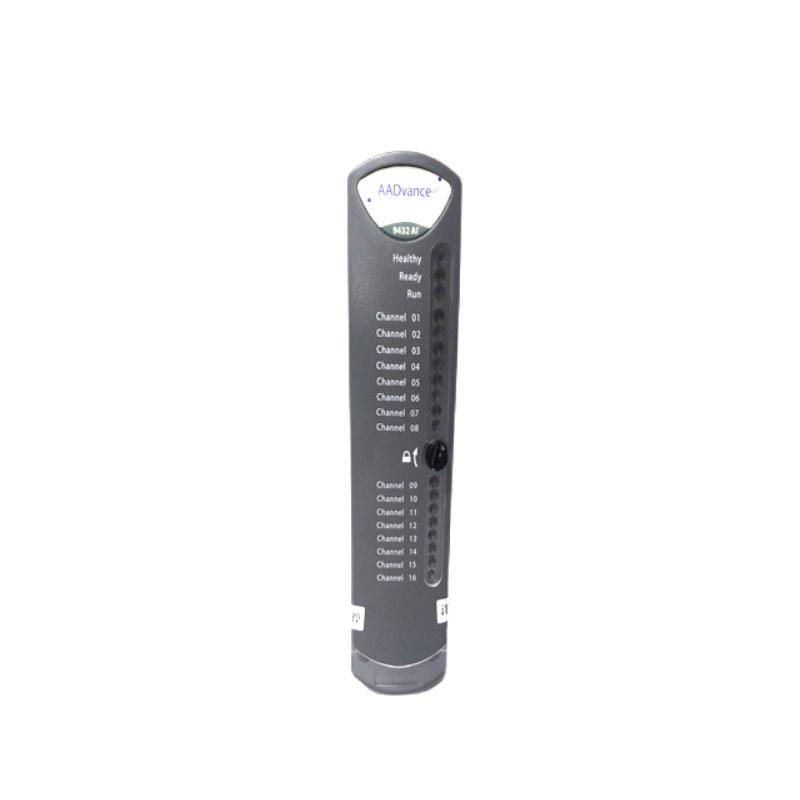

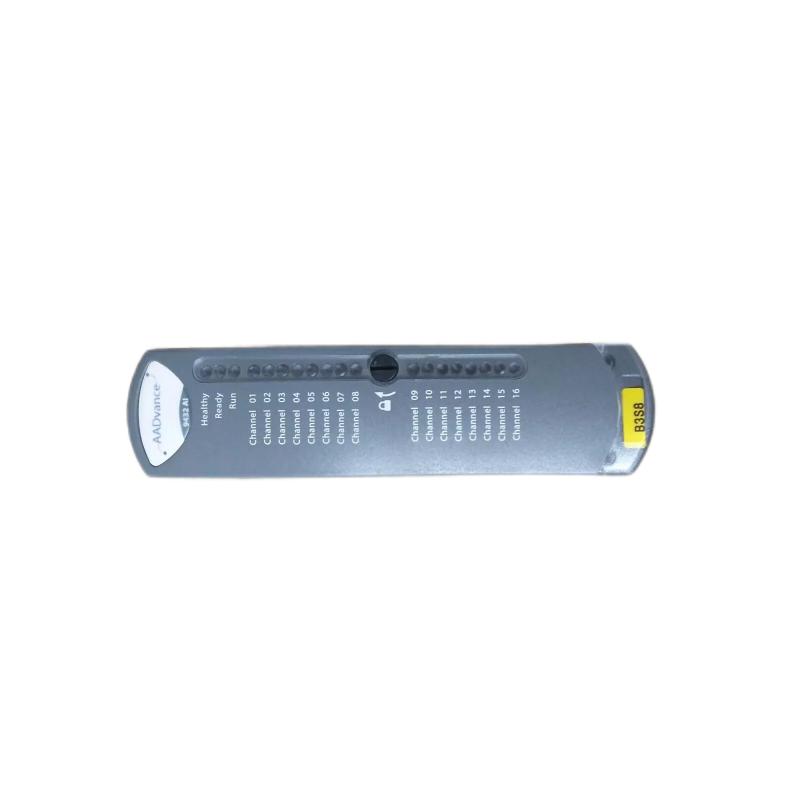

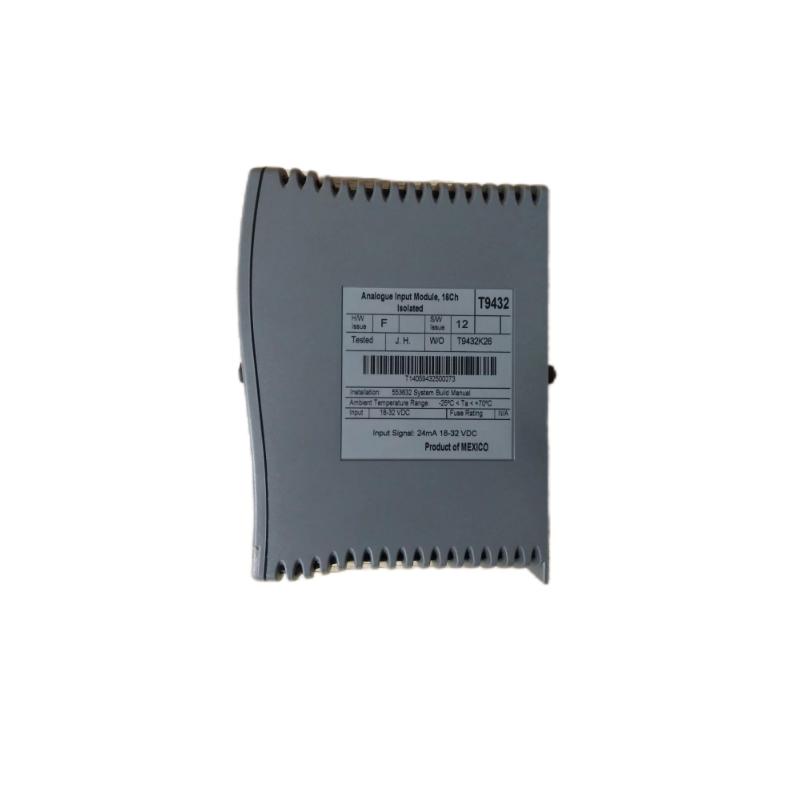

The ICS Triplex T9432 Analog Input Module is a rugged, high-performance interface designed for acquiring analog signals from industrial sensors in safety-critical applications. As part of the ICS Triplex AADvance system, the T9432 provides precise, deterministic analog signal processing for pressure, temperature, vibration, and speed sensors. Engineered for triple modular redundant (TMR) systems, it ensures fault-tolerant analog signal acquisition, supporting over-speed, over-acceleration, and machinery protection applications in harsh industrial environments.
Technical Specifications — Electrical & Mechanical Overview
| Specification | Details |
|---|---|
| Brand | ICS Triplex |
| Model | T9432 |
| Function | Analog Input Module |
| Input Channels | 8 analog channels |
| Input Type | 4–20 mA, 0–10 V, or voltage/current configurable |
| Resolution | 16-bit analog-to-digital conversion |
| Redundancy | Triple Modular Redundant (TMR) architecture |
| Sampling Rate | Up to 1 kHz per channel |
| Operating Temperature | −10°C to +60°C |
| Power Supply | 24 V dc nominal |
| Communication Interface | AADvance system bus |
| Housing Dimensions | Approx. 215 × 110 × 50 mm |
| Mounting Type | DIN rail or panel mount compatible |
| Approximate Weight | ~1.2 kg |
