Introduction — Reliable Power Supply for TMR Systems

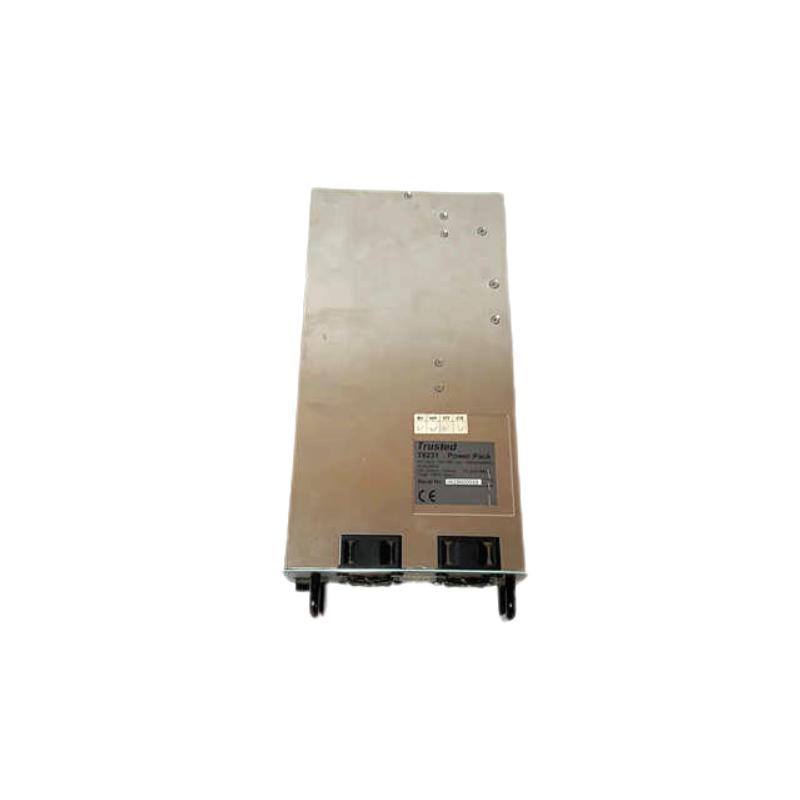

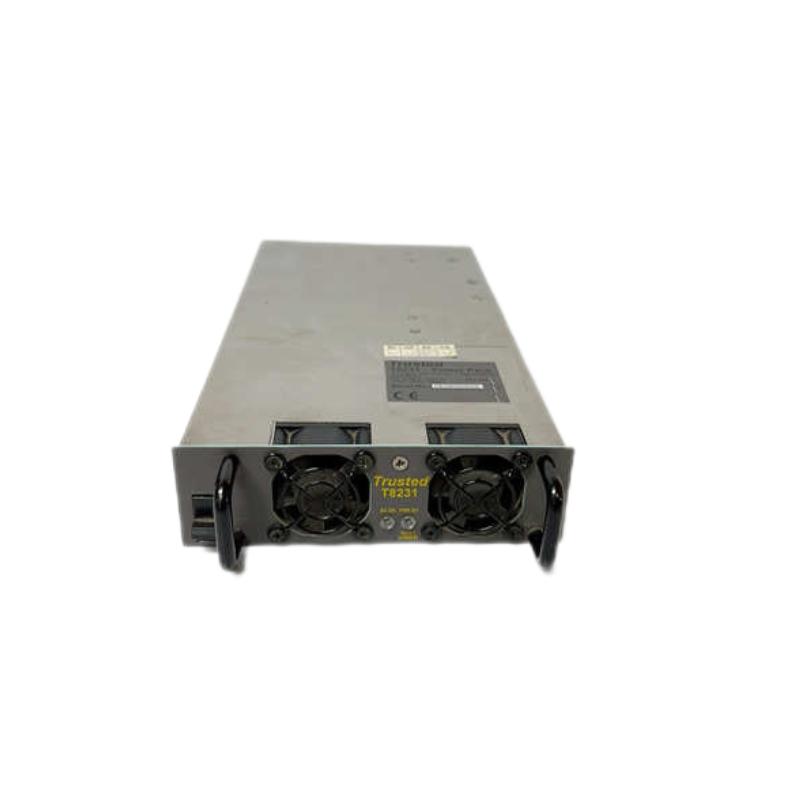

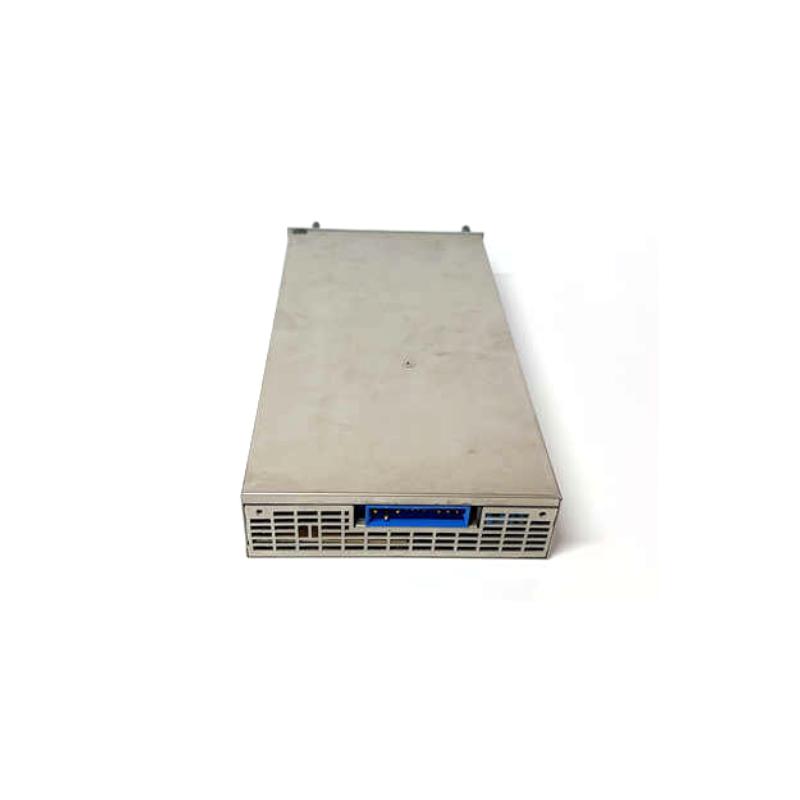

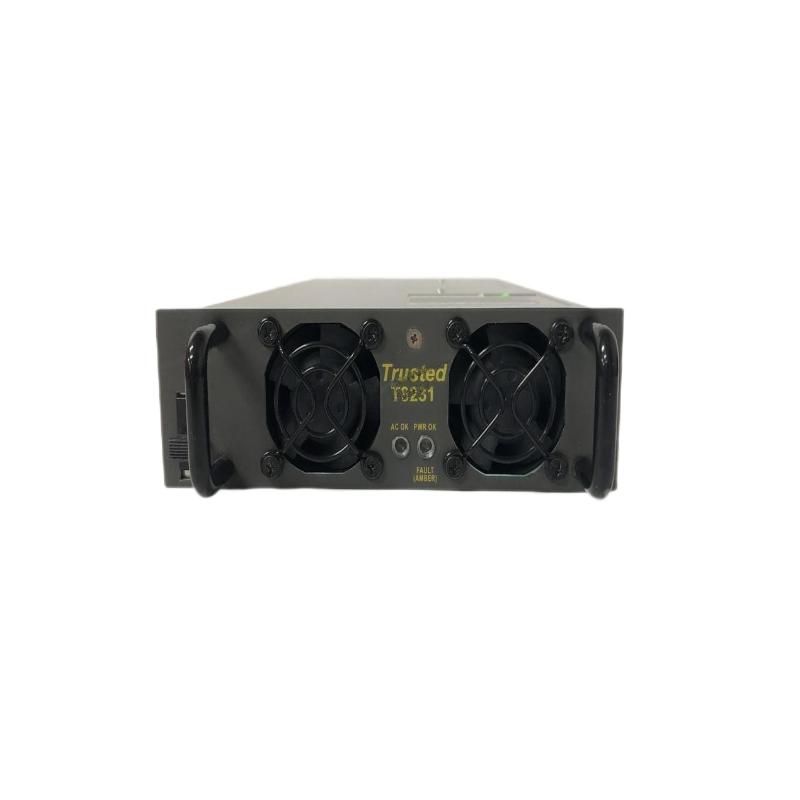

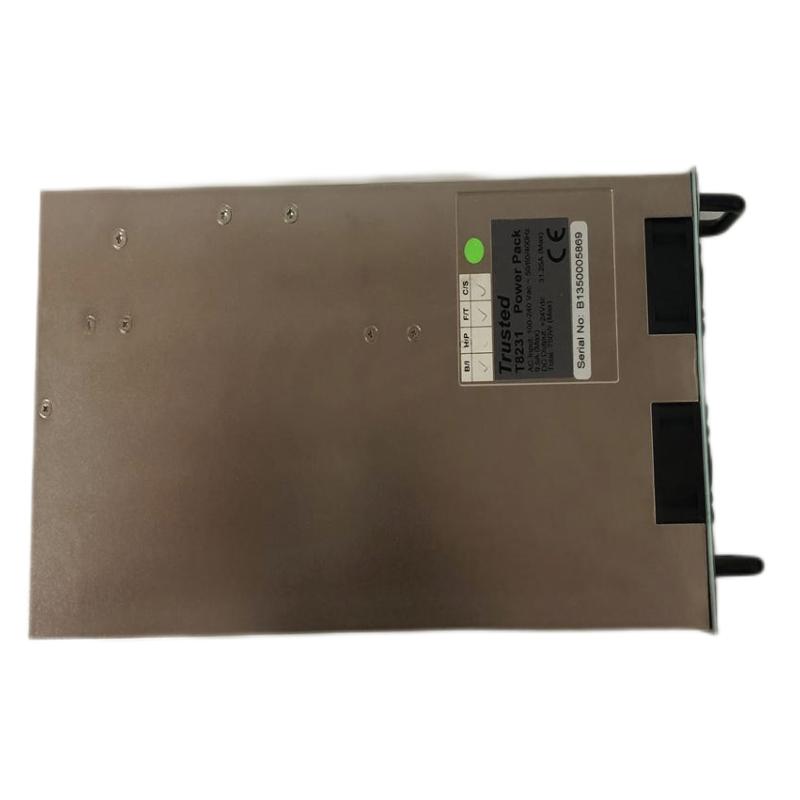

The ICS Triplex T8231 Power Pack is a robust and high-reliability power supply module designed for ICS Triplex AADvance systems. It provides stable, redundant DC power to base unit processors, input/output modules, and termination assemblies in triple modular redundant (TMR) architectures. Engineered for continuous operation in industrial environments, the T8231 ensures consistent voltage delivery, system stability, and protection for mission-critical speed monitoring and machinery protection applications.
Technical Specifications — Electrical & Mechanical Overview
| Specification | Details |
|---|---|
| Brand | ICS Triplex |
| Model | T8231 |
| Function | Power Pack / DC Power Supply |
| Output Voltage | 24 V dc nominal |
| Output Current | Up to 10 A (typical) |
| Redundancy Support | Supports TMR system power redundancy |
| Input Voltage Range | 110–240 V ac, 50/60 Hz |
| Ripple & Noise | ≤ 50 mV peak-to-peak |
| Operating Temperature | −10°C to +60°C |
| Efficiency | ≥ 85% |
| Housing Dimensions | Approx. 215 × 140 × 60 mm |
| Mounting Type | Panel or rack mount compatible |
| Approximate Weight | ~2.3 kg |
