Precision Analog Control for Distributed Automation Systems

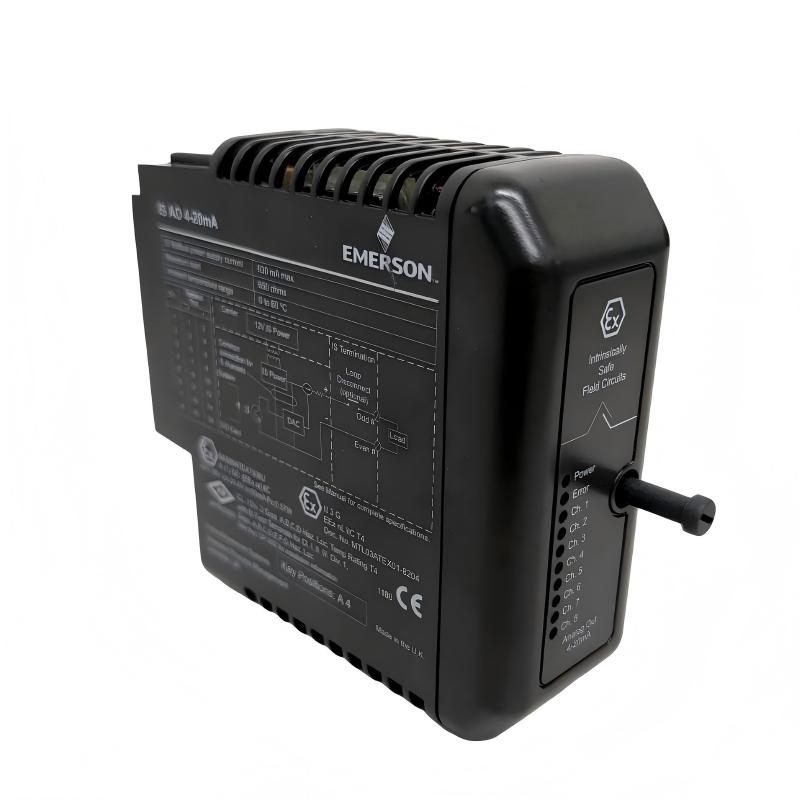

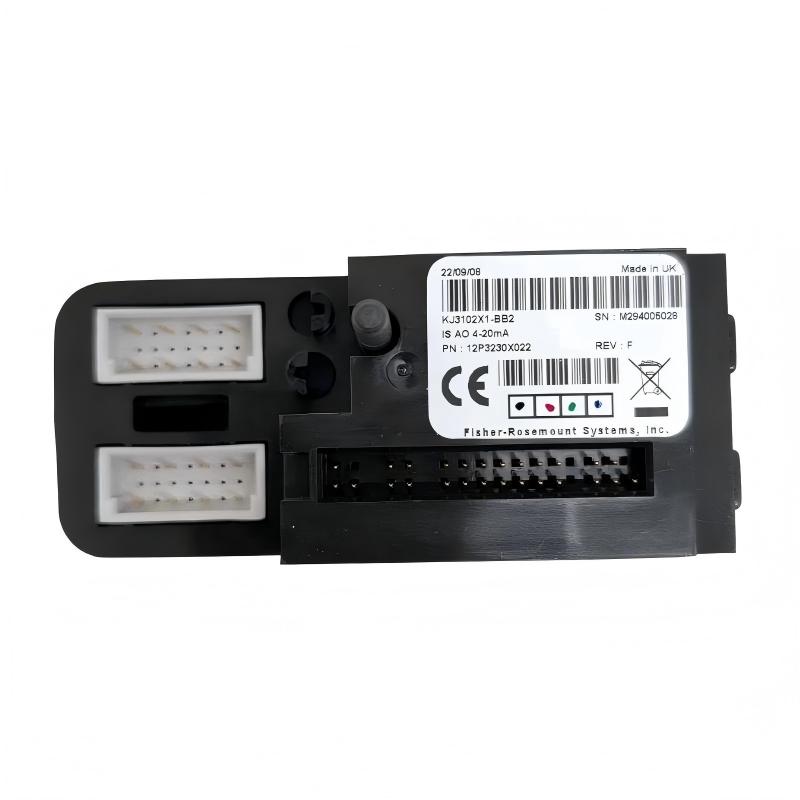

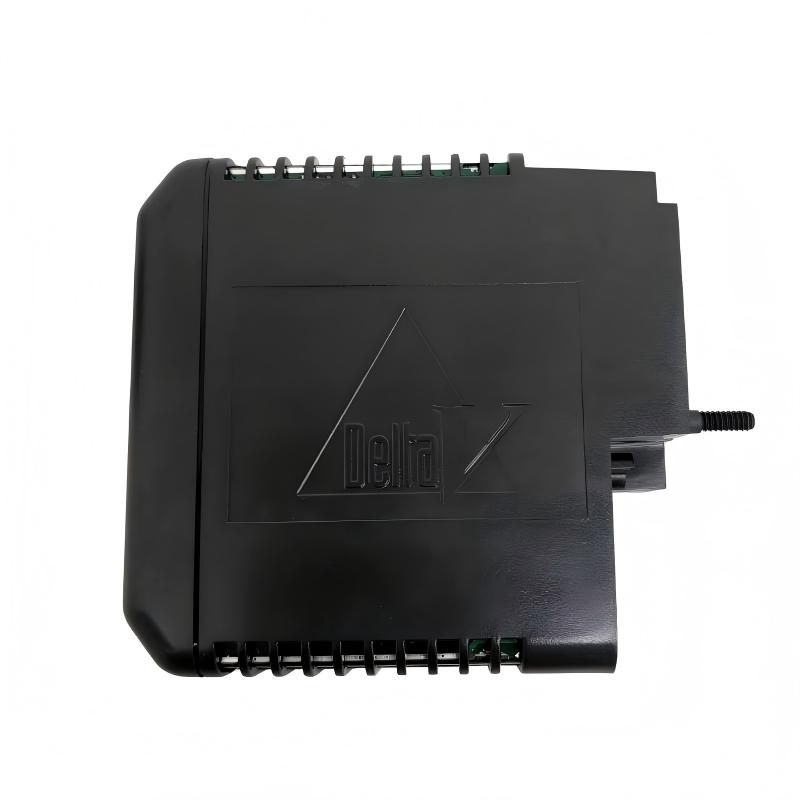

The Emerson KJ3102X1‑BB2 Analog Output Module is an industrial‑grade interface unit designed to deliver accurate and reliable analog output signals from Emerson control platforms such as DeltaV distributed control systems and compatible I/O rack architectures. This module translates digital control values into proportional analog voltages or currents, enabling smooth regulation of industrial devices such as valve positioners, variable speed drives, actuators, and process instrumentation.
Built to meet the demands of continuous industrial operation, the KJ3102X1‑BB2 combines high signal fidelity with solid electrical performance and clear diagnostics, making it ideal for process control, motion regulation, and equipment modulation tasks.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Analog Output Module |
| Model Number | KJ3102X1‑BB2 |
| Manufacturer | Emerson Automation Solutions |
| Output Channels | Multiple analog outputs (typically 4 channels) |
| Output Signal Types | Current (4–20 mA) and/or Voltage (0–10 V), field selectable |
| Output Resolution | High‑resolution DAC for precise control |
| Load Drive Capability | Typical industrial control levels |
| Accuracy & Linearity | ±0.1% or better (industry standard) |
| Isolation | Channel isolation to minimize crosstalk |
| Operating Temperature | –40 °C to +70 °C |
| Protection Rating | IP20 (cabinet installation) |
| Mounting | Rack or DIN rail compatible |
| Module Dimensions | Standard automation I/O footprint |
| Weight (Approx.) | ~0.17 kg |
| Diagnostics | Status LEDs and fault indication |
