Industrial‑Grade Digital Output Interface Module

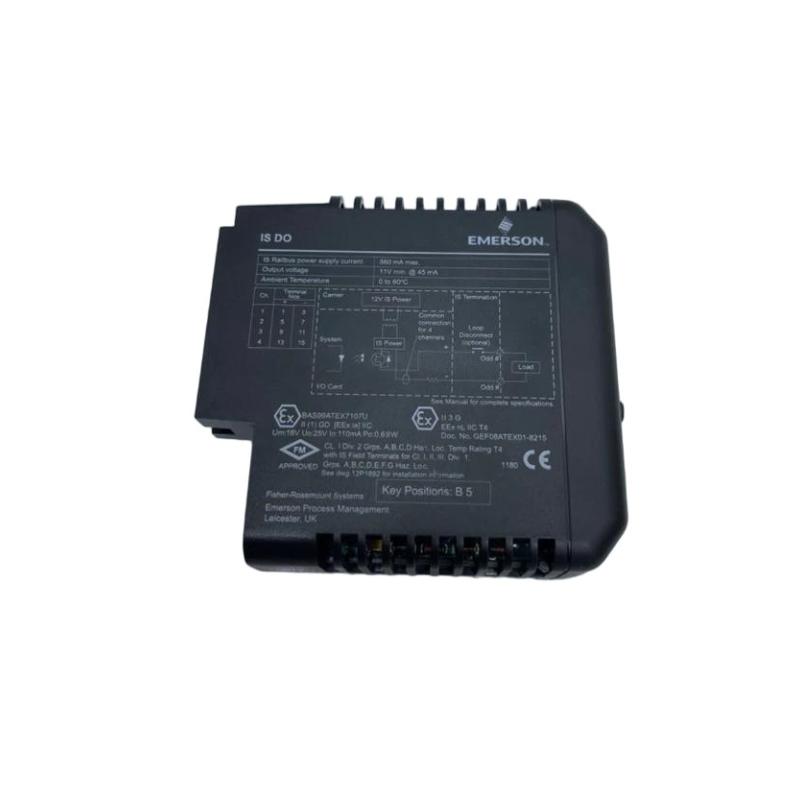

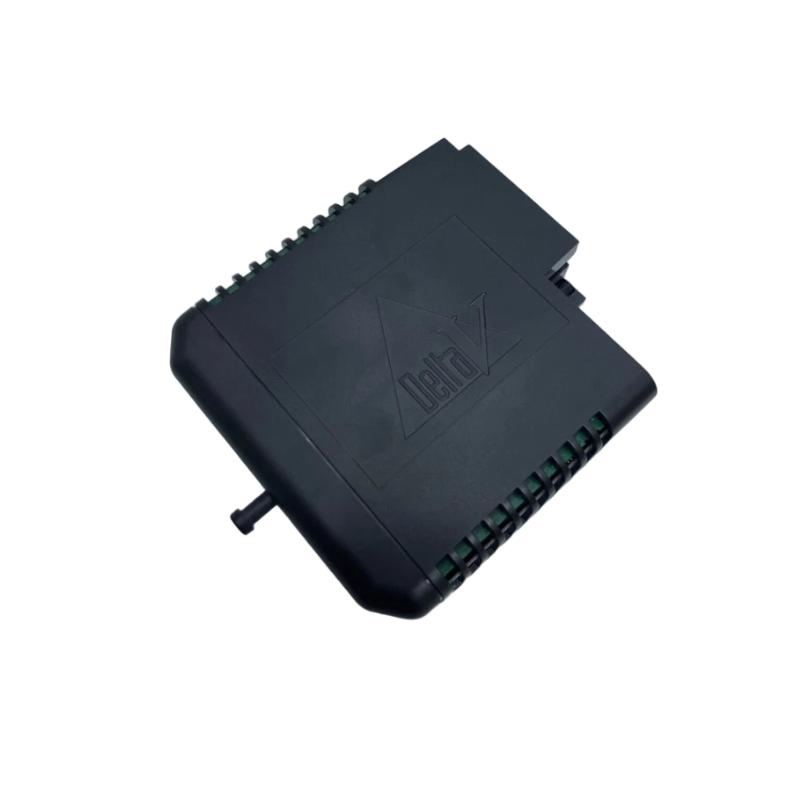

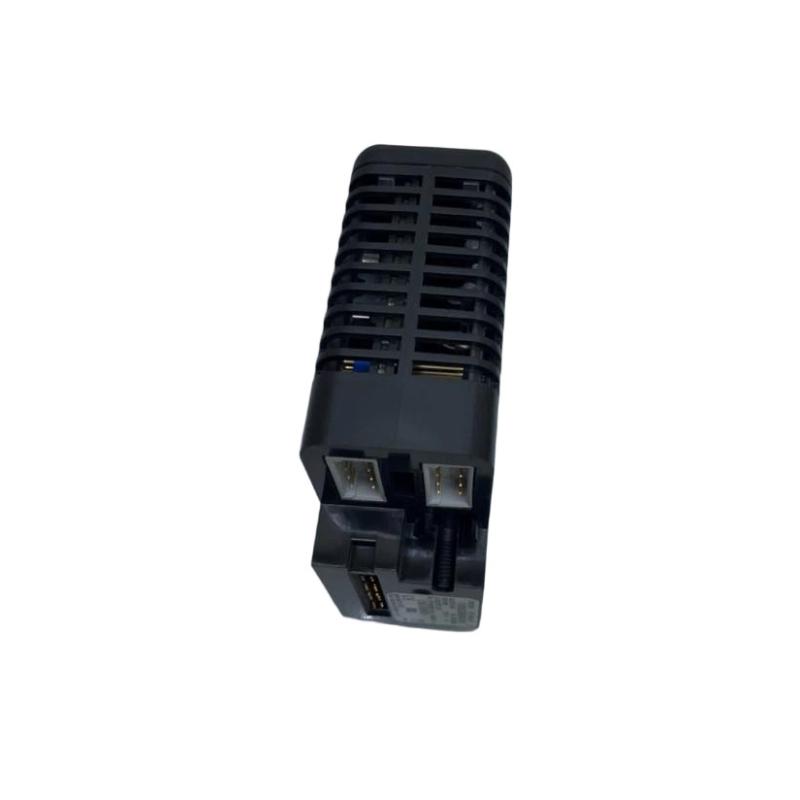

The Emerson KJ3101X1‑BA1 Discrete Output Module is a rugged and reliable digital output interface designed for use in Emerson automation systems such as DeltaV distributed control platforms and compatible rack‑based I/O architectures. This module converts logic output signals from a controller into discrete electrical signals that switch field actuators, relays, indicators, and other on/off devices in industrial environments.
Engineered for continuous operation in demanding conditions, the KJ3101X1‑BA1 provides consistent performance, clear status diagnostics, and robust signal switching — helping maintain predictable control logic execution in process and manufacturing applications.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Discrete Output Module |
| Model Number | KJ3101X1‑BA1 |
| Manufacturer | Emerson Automation Solutions |
| Output Channels | Multiple discrete outputs (typically 8 channels) |
| Output Type | Digital switching outputs |
| Load Voltage | Industrial DC switching range (field dependent) |
| Output Current Rating | Per channel industrial standard (e.g., up to 1–2 A) |
| Output Isolation | Channel‑by‑channel isolation |
| Response Time | Millisecond‑class switching speed |
| Operating Temperature | –40 °C to +70 °C |
| Protection Rating | IP20 (cabinet installation) |
| Mounting | Rack or DIN rail compatible |
| Module Dimensions | Standard automation I/O footprint |
| Weight (Approx.) | ~0.15 kg |
| Diagnostics | Individual status LEDs per output |
