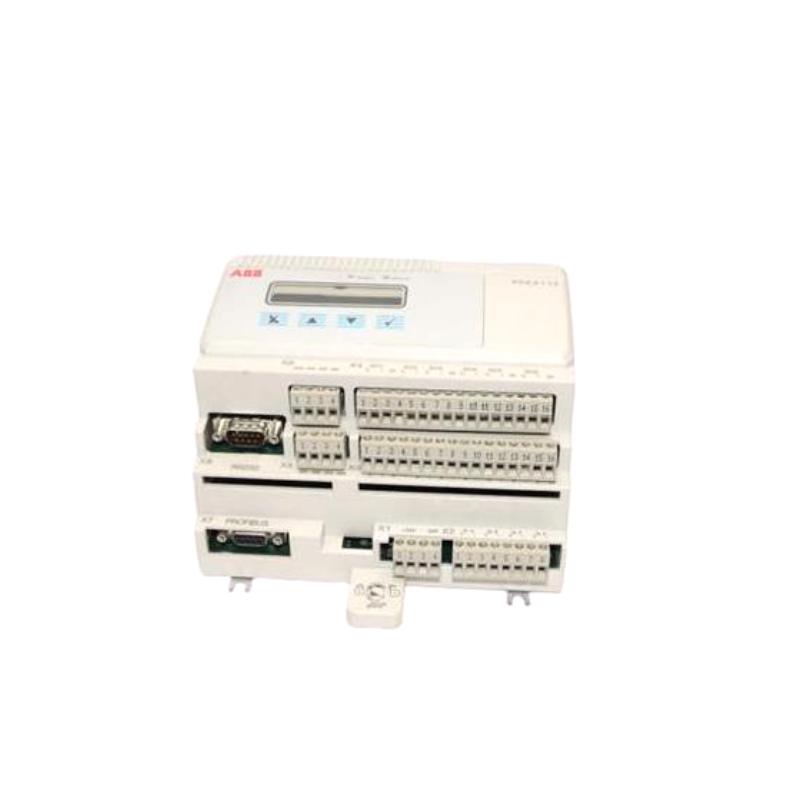

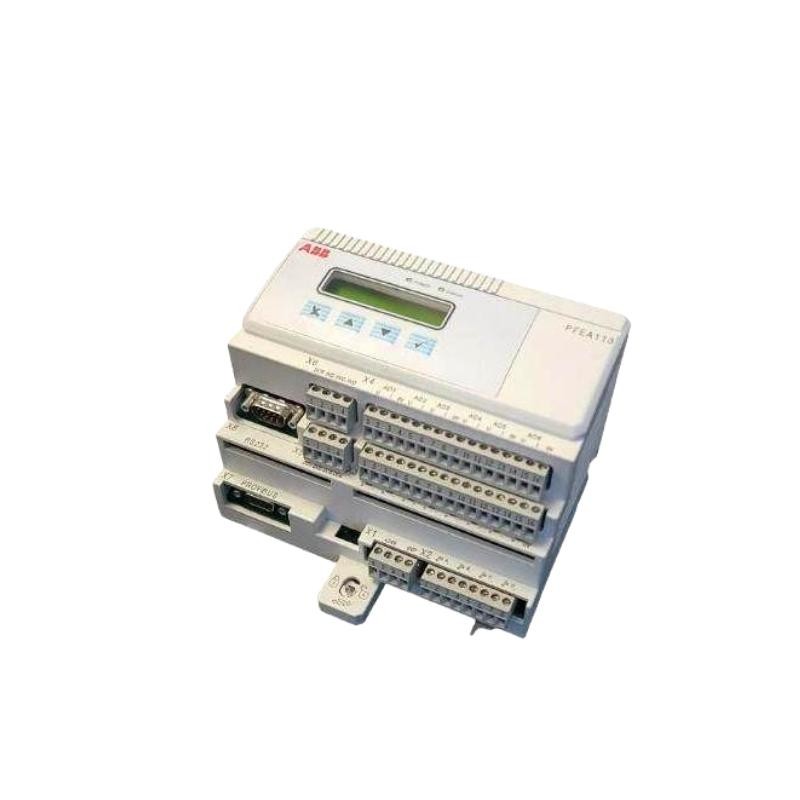

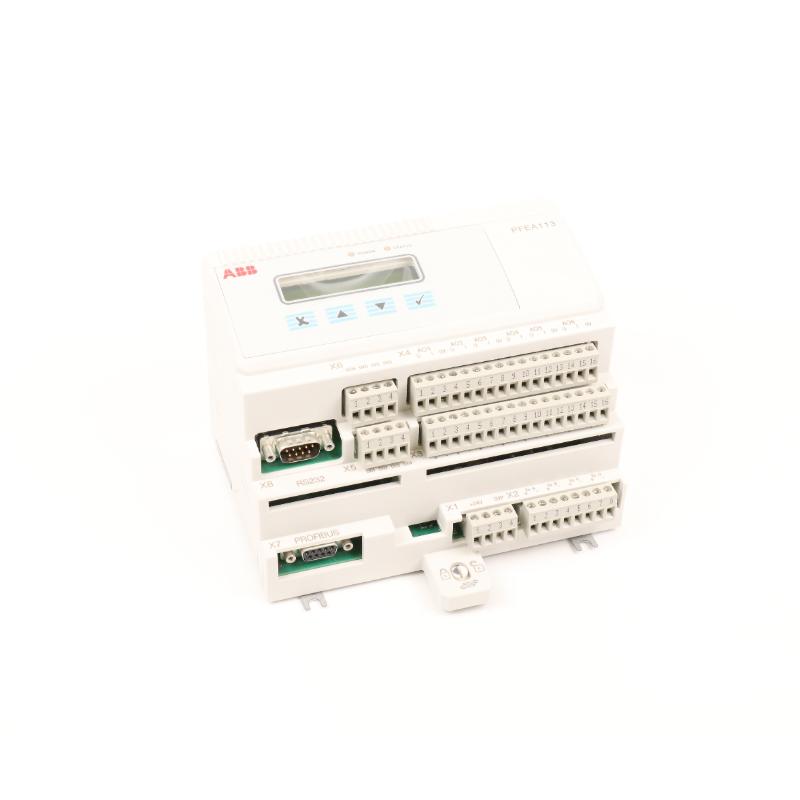

ABB PFEA113-20 3BSE050092R20 Tension Sensor

Name: ABB PFEA113-20 3BSE050092R20 Tension Sensor
Brand: ABB PLC
SKU: 4797
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:PFEA113-20 3BSE050092R20
Product Origin:Sweden
Product Dimensions:135 × 120 × 65 mm
Product Weight:1kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Accurate Tension Measurement for Demanding Web Processes

The ABB PFEA113-20 3BSE050092R20 Tension Sensor Module is a high-precision industrial unit designed to measure, process, and regulate material tension in continuous production environments. Acting as the core interface between load cells and control systems, it ensures stable and repeatable tension control across a wide range of web-based applications.

Engineered with ABB’s proven force-measurement technology, this module delivers reliable performance in applications where product quality, material stability, and process efficiency depend on accurate tension feedback.

Key Technical Parameters

Specification	Detail
Product Type	Tension Sensor / Tension Controller Module
Model	PFEA113-20
ABB Part Number	3BSE050092R20
Supply Voltage	24 V DC
Load Cell Inputs	Up to 4 isolated channels
Supported Signal Types	Standard load cell signals
Output Signals	Configurable analog and digital outputs
Communication Interface	Industrial fieldbus capable
Mounting Method	DIN rail mounting
Protection Class	IP20
Operating Environment	Industrial control cabinets

Industrial Applications

The PFEA113-20 is widely used in processes where precise tension control directly affects production quality:

Paper, pulp, and coating lines
Plastic film extrusion and printing machinery
Textile and fabric processing equipment
Metal strip, foil, and wire handling systems
Packaging and converting lines

By providing accurate real-time tension feedback, it helps reduce material waste, prevent web breaks, and improve overall line stability.

Performance Advantages

High Measurement Accuracy – Delivers stable tension feedback even during speed changes.
Multi-Channel Input Design – Supports multiple load cells for balanced force measurement.
Flexible Integration – Easily connects with PLC, DCS, and drive systems.
Industrial Reliability – Designed for continuous operation in demanding environments.
User-Friendly Configuration – Simplifies setup, tuning, and maintenance tasks.

Technical FAQs

What is the main function of the PFEA113-20?
It measures tension from load cells and provides control signals for regulating material tension.
How many load cells can be connected?
Up to four load cell inputs are supported.
What supply voltage does the module require?
It operates on a 24 V DC power supply.
Is it suitable for continuous production lines?
Yes, it is designed for 24/7 industrial operation.
Can it integrate with automation control systems?
Yes, it supports industrial communication interfaces for system integration.
What types of materials can it measure tension on?
Paper, film, textiles, metal strip, foil, wire, and similar materials.
How is the module mounted?
Standard DIN rail mounting inside control cabinets.
Does it provide analog outputs?
Yes, configurable analog outputs are available for control loops.
What is the approximate weight of the module?
Around 1.0 kg.
Is it suitable for retrofit or upgrade projects?
Yes, it is commonly used in both new installations and system upgrades.
