Introduction

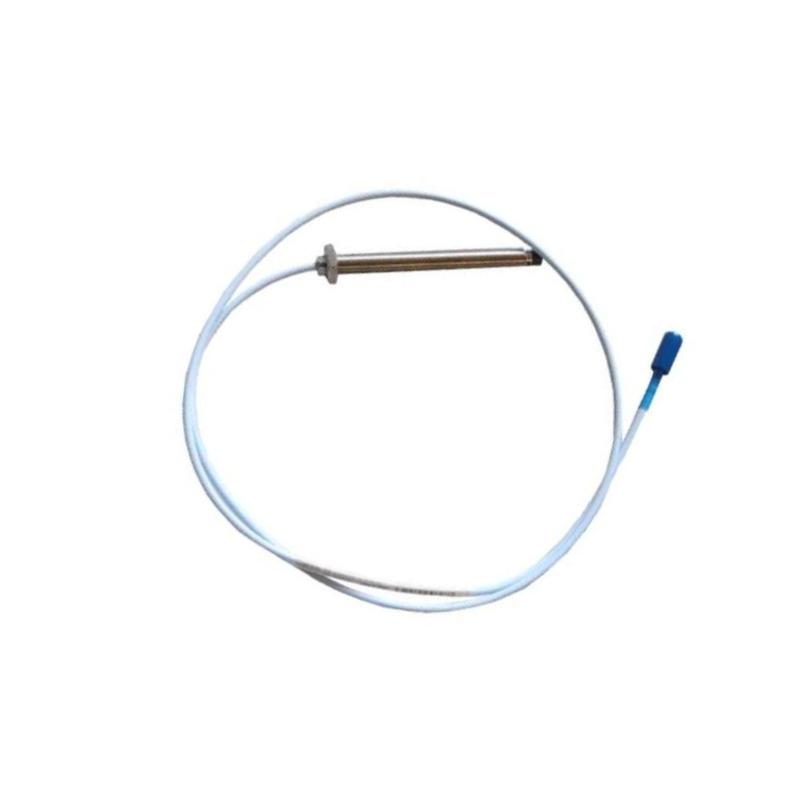

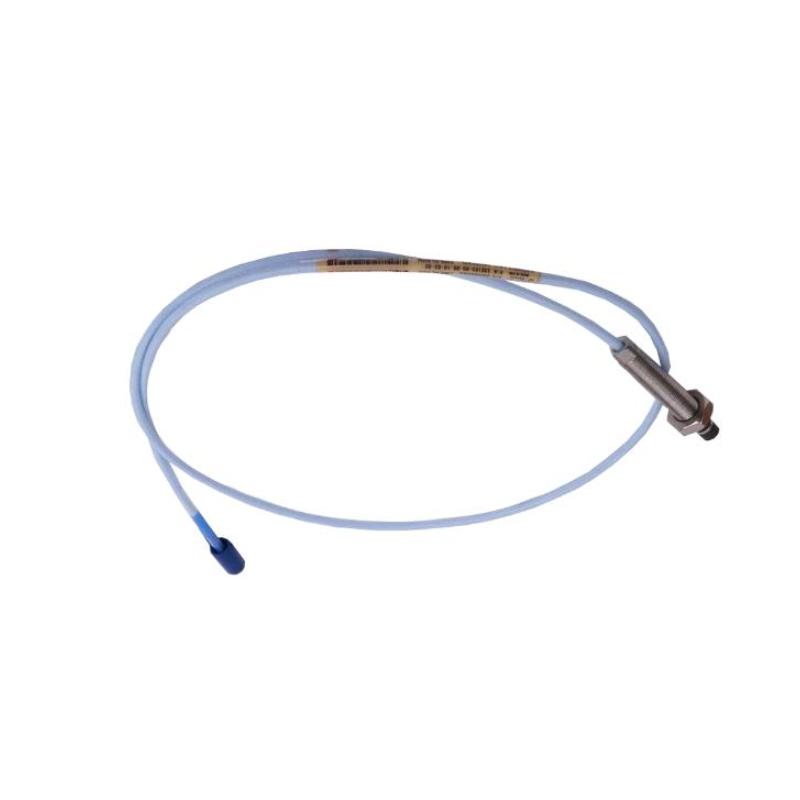

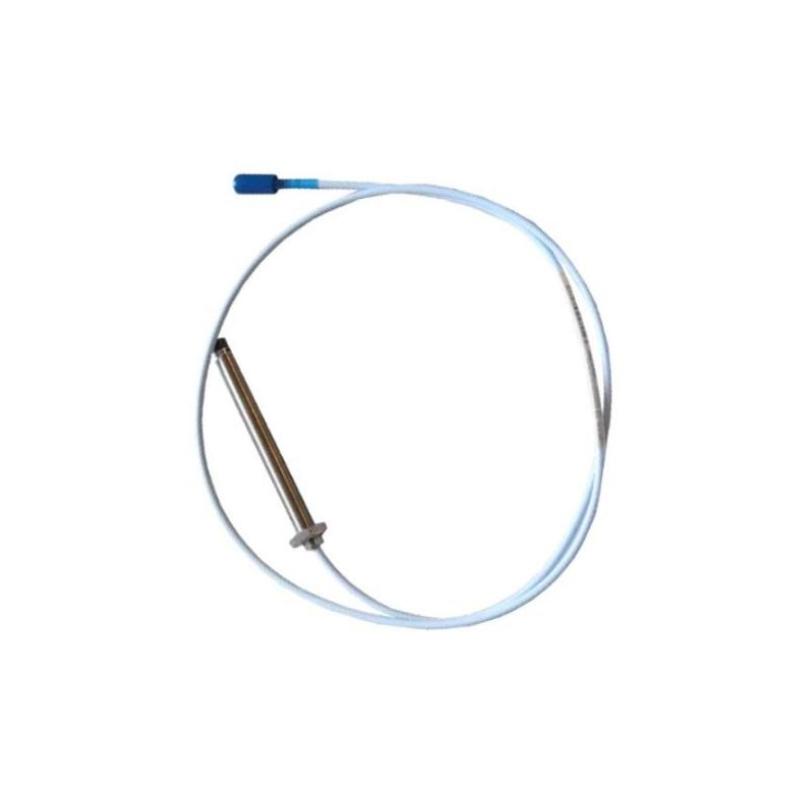

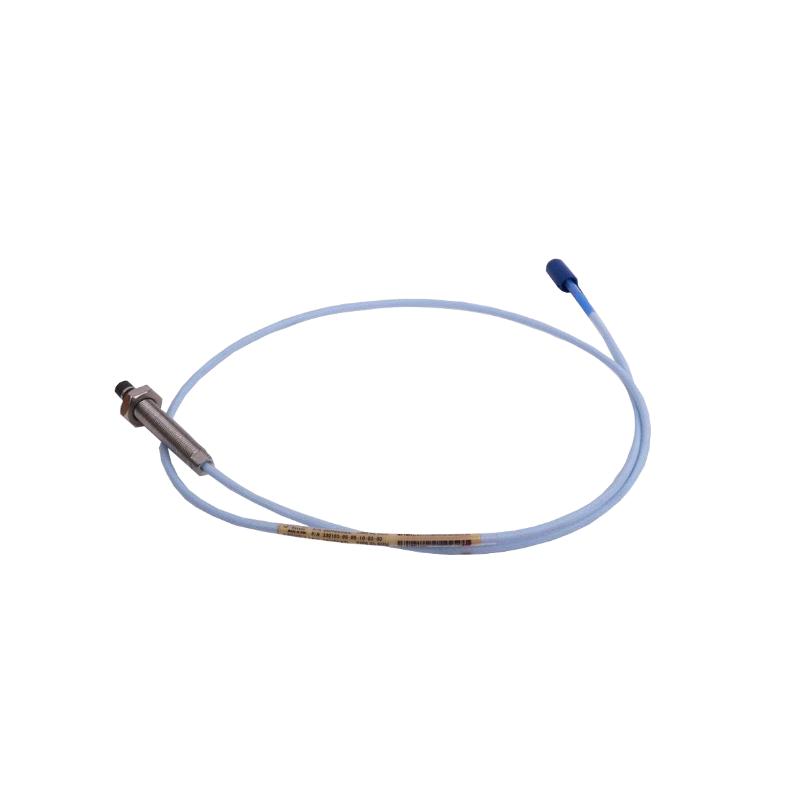

The Bently Nevada 330104-00-10-10-02-CN 3300 XL 8 mm Proximity Probe is designed for precise, long-term monitoring of shaft vibration and position in critical rotating equipment. As part of the industry-proven 3300 XL platform, this probe delivers consistent signal performance and mechanical durability, even in continuous-duty industrial environments.
The CN configuration variant supports global deployment requirements while maintaining the same electrical and mechanical performance standards expected from the 3300 XL series, making it a dependable choice for condition monitoring and machinery protection systems.
Product Configuration & Technical Details
| Specification | Description |
|---|---|
| Product Type | Proximity Probe |
| Series | 3300 XL |
| Model Code | 330104-00-10-10-02-CN |
| Sensing Principle | Eddy current, non-contact |
| Probe Tip Diameter | 8 mm |
| Thread Size | M10 × 1 |
| Housing Material | Stainless steel |
| System Compatibility | 3300 XL Proximitor® and extension cables |
| Probe Cable Length (Approx.) | 1.0 m |
| Overall Dimensions (Approx.) | Ø8 mm probe tip, compact body design |
| Weight (Approx.) | 0.2 kg |
| Installation Environment | Industrial rotating machinery |
