Introduction — Precision Encoder Signal Integration for ABB Drive Systems

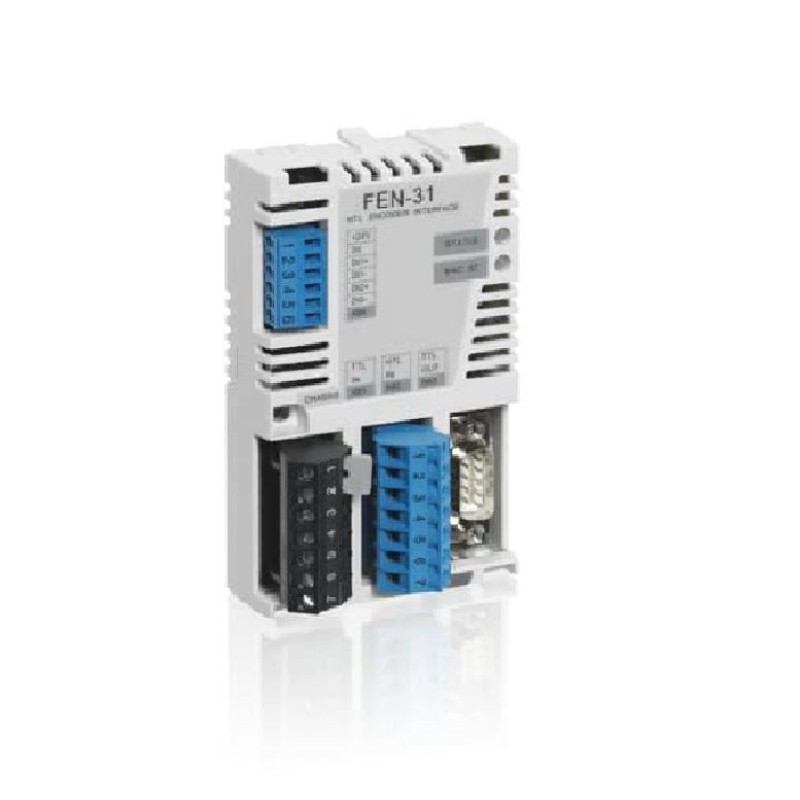

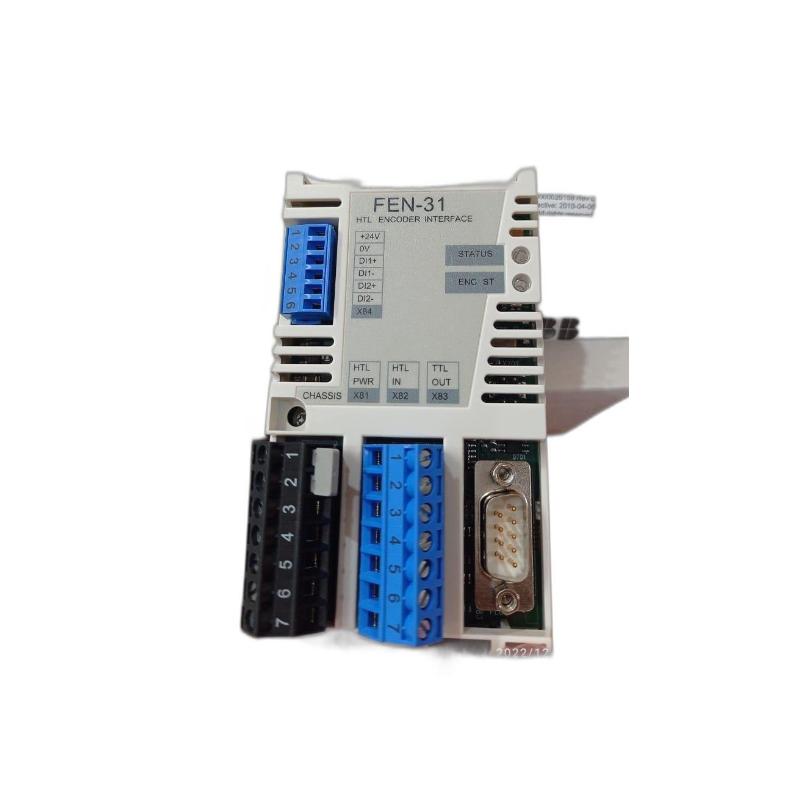

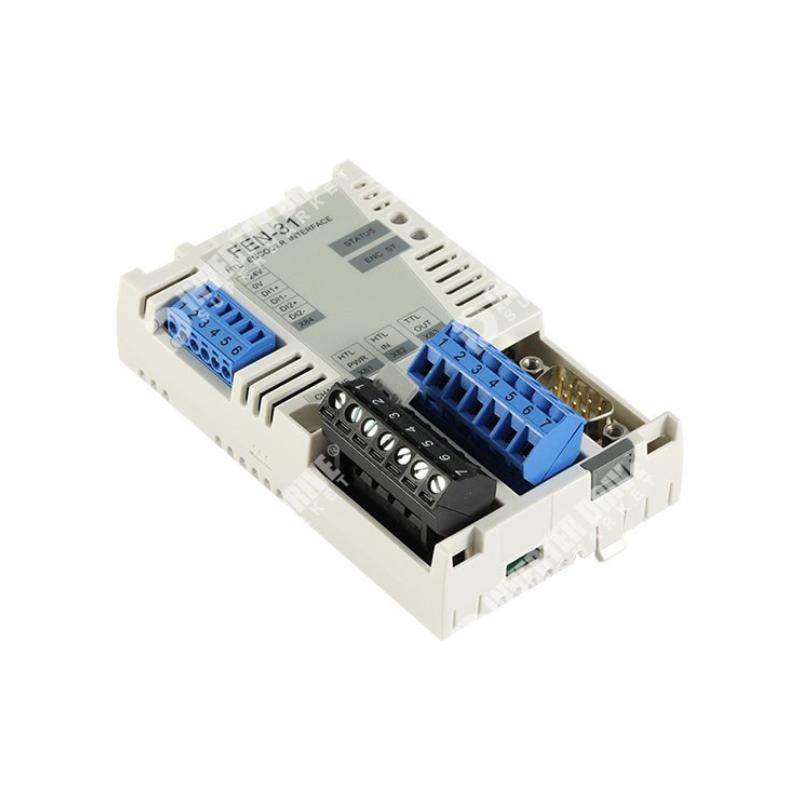

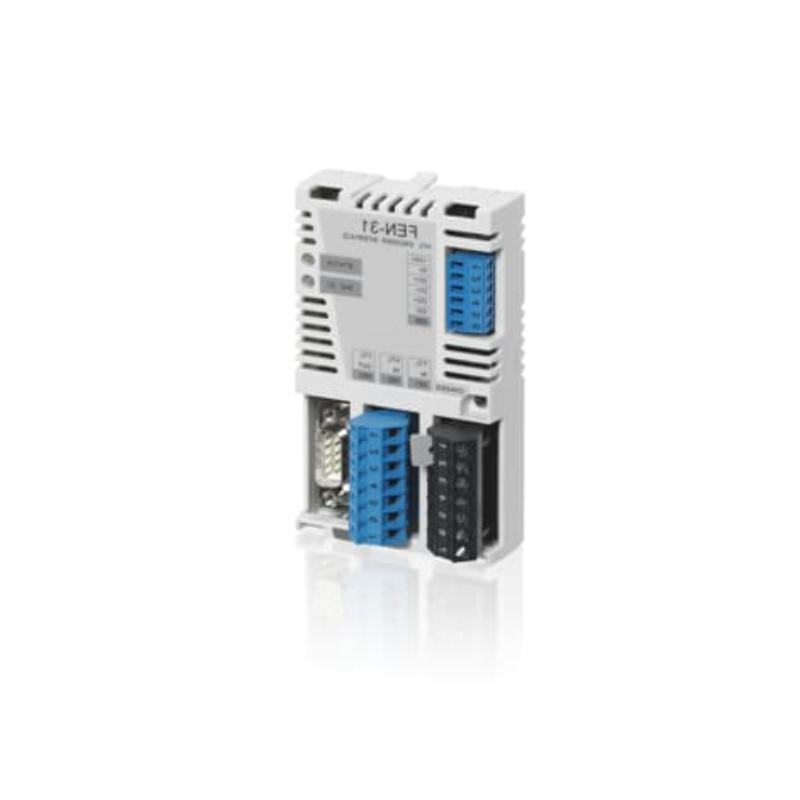

The ABB FEN‑31 Encoder Interface Module (3AUA0000031044) is a high‑performance interface designed to bridge rotary encoder feedback signals with ABB variable frequency drives and motion control systems. By accurately capturing and translating encoder position and speed data, the FEN‑31 enables precise motor control, improved dynamic response, and tight synchronization in advanced automation applications. Built for industrial durability and signal integrity, this module enhances drive feedback performance in demanding environments such as manufacturing, robotics, and process control.
Technical Specifications — Signal Handling & Physical Profile
| Specification | Description |
|---|---|
| Module Type | Encoder Interface Module |
| Model / Part Number | FEN‑31 / 3AUA0000031044 |
| Primary Function | Interface for incremental and absolute encoder feedback |
| Supported Encoders | Incremental / incremental with direction / absolute (system dependent) |
| Signal Standards | TTL / HTL / differential line drivers (depending on configuration) |
| Communication | Drive internal feedback bus |
| Resolution Support | High‑resolution encoder input |
| Isolation | Channel and system isolation for noise immunity |
| Mounting | Plug‑in module, drive‑mounted |
| Operating Temperature | –10 °C to +55 °C |
| Dimensions (H × W × D) | Approx. 85 mm × 55 mm × 30 mm |
| Weight | Approx. 0.15 kg |
