Introduction | Integrated Digital I/O for Reliable Automation

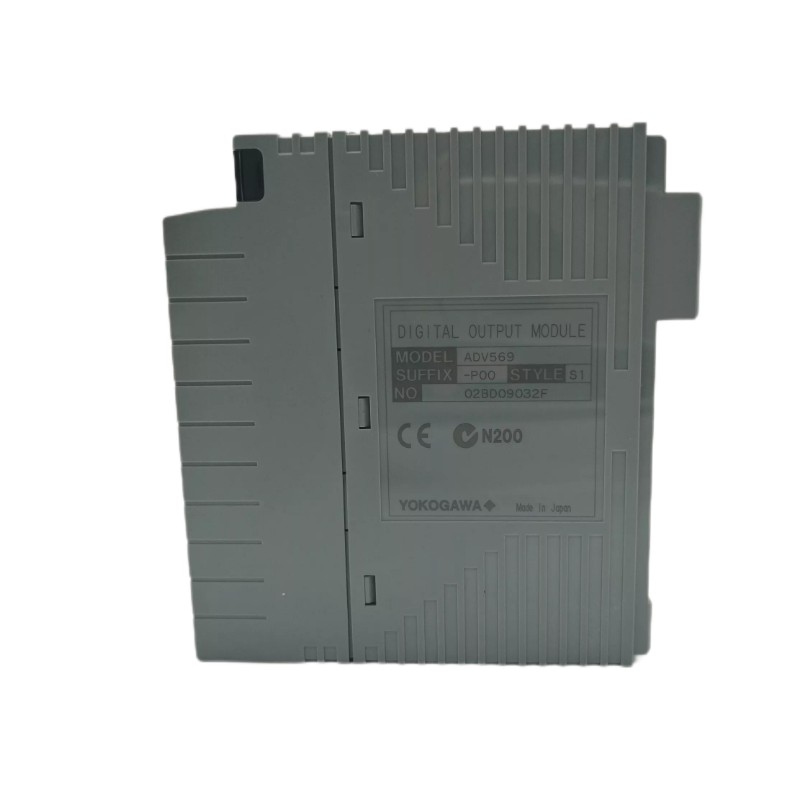

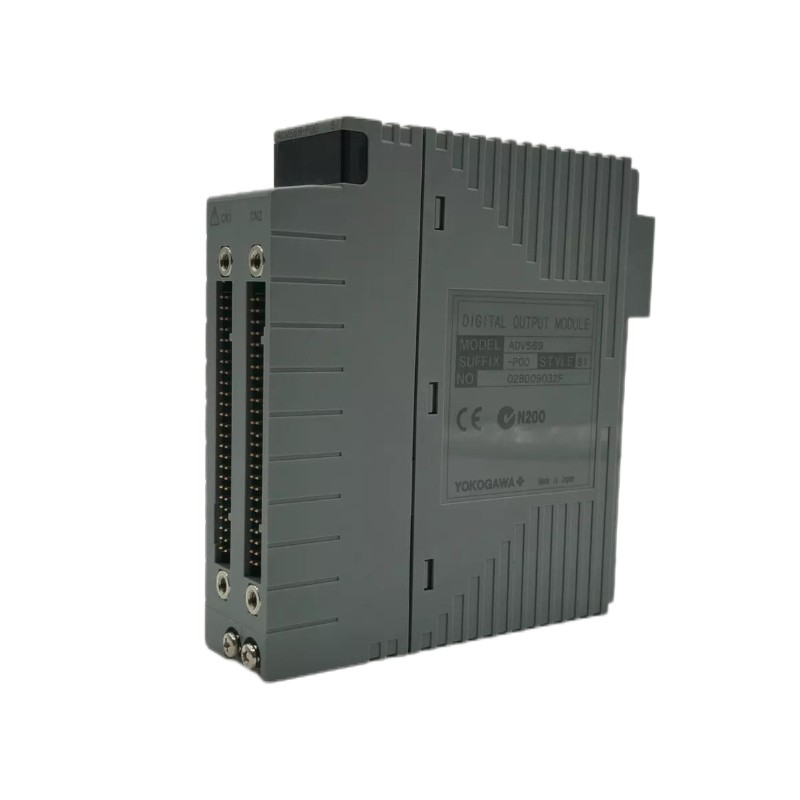

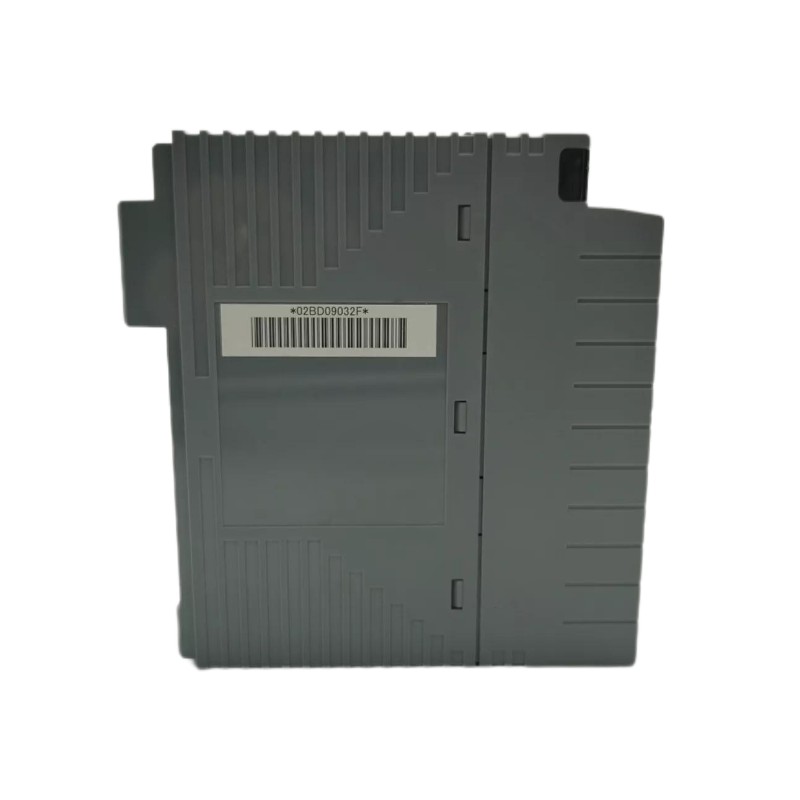

The Yokogawa ADV569 Digital I/O Module combines high-performance digital input and output channels in a single module, providing compact, efficient control for industrial automation systems. Designed for Yokogawa CENTUM VP, CENTUM CS, and FAST/TOOLS platforms, the ADV569 enables precise monitoring and control of discrete field devices. With rugged construction and isolated channels, it ensures reliable operation even in electrically noisy or demanding environments.
Technical Specifications | Electrical & Mechanical Profile
| Specification | Detail |
|---|---|
| Module Type | Digital I/O Module |
| Input Channels | 16 isolated digital inputs |
| Output Channels | 16 isolated digital outputs |
| Input Voltage | 24 V DC nominal |
| Output Voltage | 24 V DC nominal |
| Output Current | Up to 0.5 A per channel |
| Channel Isolation | Fully isolated for both input and output |
| Response Time | Fast and deterministic |
| Mounting | Rack-mounted or DIN-rail compatible |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | –20 °C to 70 °C |
| Humidity | 5%–95% RH, non-condensing |
