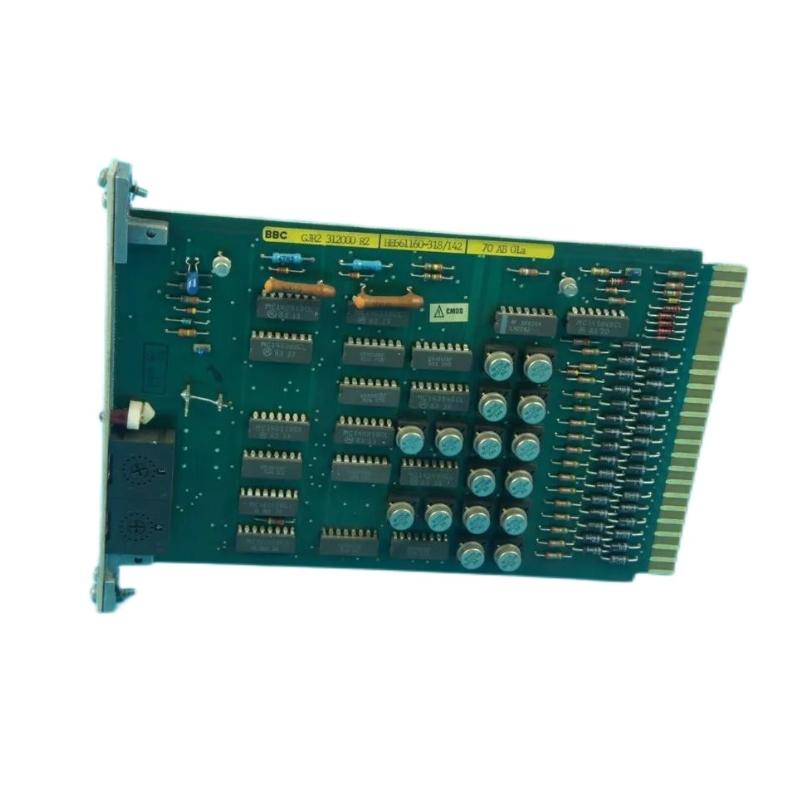

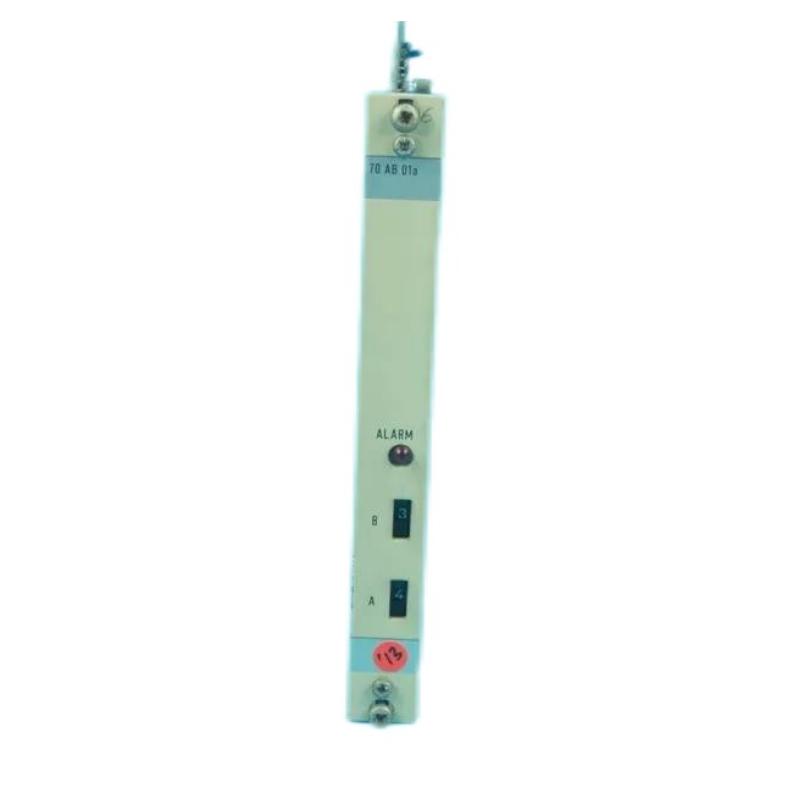

ABB 70AB01a GJR2312000R0002 Digital Output Module
Introduction — High-Performance Digital Output for Industrial Automation
The ABB 70AB01a GJR2312000R0002 Digital Output Module is engineered to deliver reliable, high-speed digital control signals in industrial automation systems. Designed for ABB’s modular control systems, this module provides multiple isolated digital output channels, enabling precise switching of actuators, relays, and other field devices. Its compact, robust design ensures long-term operational stability, making it ideal for complex industrial environments where reliability and safety are critical.
Technical Specifications — Dimensions & Performance
| Specification | Description |
|---|---|
| Module Type | Digital Output Module |
| Model Number | 70AB01a GJR2312000R0002 |
| Number of Channels | 8 isolated digital outputs |
| Output Type | Relay / Solid-state compatible |
| Output Voltage | 24–240 V AC/DC (depending on configuration) |
| Maximum Load per Channel | 2 A |
| Isolation Voltage | 1500 V AC (channel-to-system) |
| Update Rate | 5 ms per channel |
| Power Supply | 24 V DC nominal |
| Operating Temperature | –20°C to +60°C |
| Dimensions | 120 mm × 35 mm × 150 mm |
| Weight | ~0.28 kg |
| Mounting | DIN rail or rack mounting |
