Introduction — Deterministic Discrete Output for Safety-Critical Systems

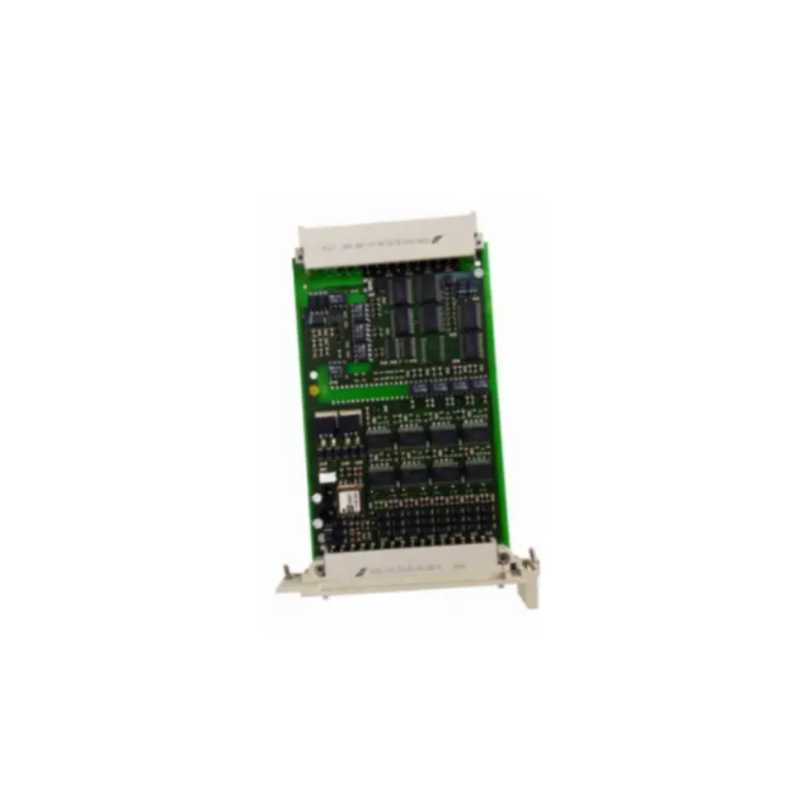

The HIMA F2304 8-Channel Output Module is a high-integrity discrete output interface designed specifically for functional safety and industrial automation applications. Engineered to operate within HIMA’s safety instrumented system (SIS) architectures, this module delivers reliable on/off switching of field devices while meeting stringent requirements for safety, redundancy, and signal determinism. With robust electrical design and fail-safe behavior, the F2304 helps ensure that critical outputs activate exactly when needed and contribute to predictable, safe operation in demanding industrial environments.
Technical Specifications — Electrical & Physical Profile
| Specification | Description |
|---|---|
| Module Type | 8-Channel Output Module |
| Model / Part Number | F2304 |
| Number of Output Channels | 8 discrete channels |
| Output Type | Safety-rated discrete outputs (relay/isolated) |
| Output Voltage | System-dependent (field logic voltage range) |
| Current Rating | Per channel rating suited for actuators/relays |
| Protection | Short-circuit, overcurrent and fault monitoring |
| Isolation | Channel-to-system isolation for noise immunity |
| Redundancy Support | Compatible with redundant systems |
| System Interface | Backplane or safe controller bus |
| Operating Temp. Range | –20 °C to +60 °C |
| Dimensions (H × W × D) | Approx. 135 mm × 95 mm × 130 mm |
| Weight | Approx. 0.75 kg |
| Mounting | Rack-mounted in HIMA safety rack systems |
