Yokogawa AAI543-H50 Analog Output Module

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

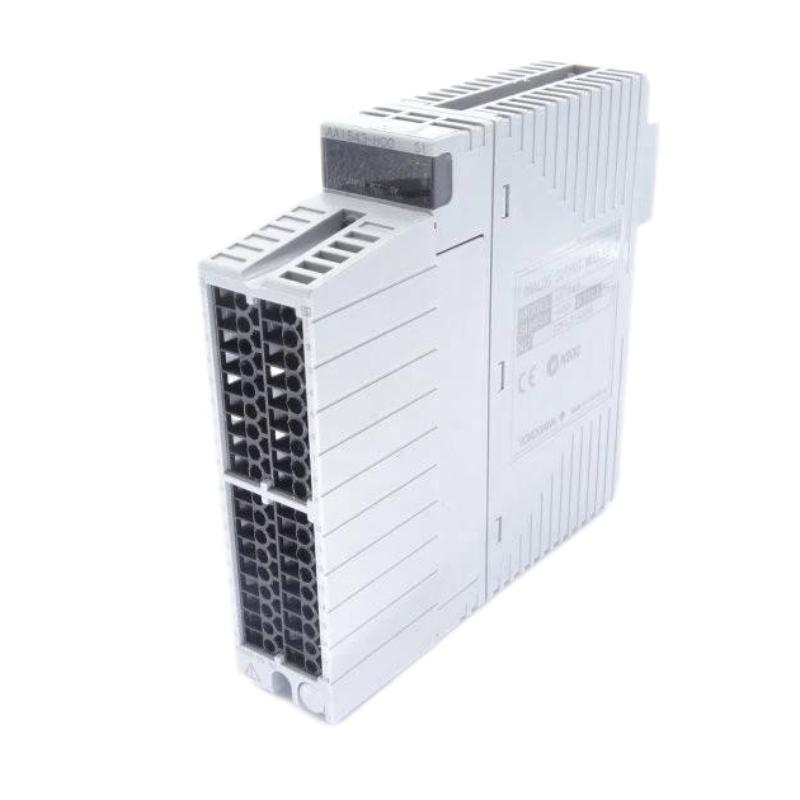

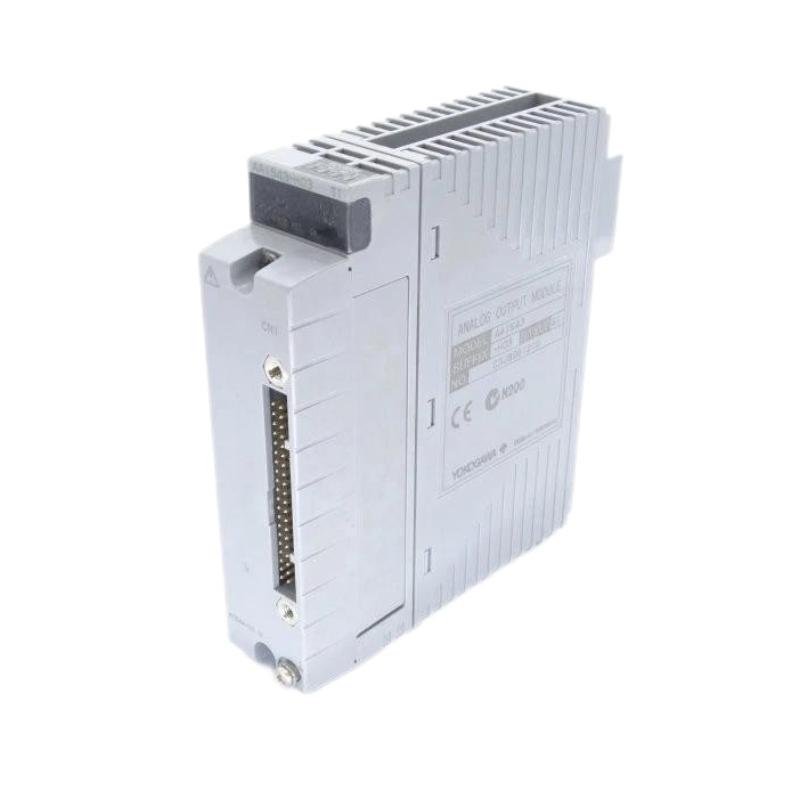

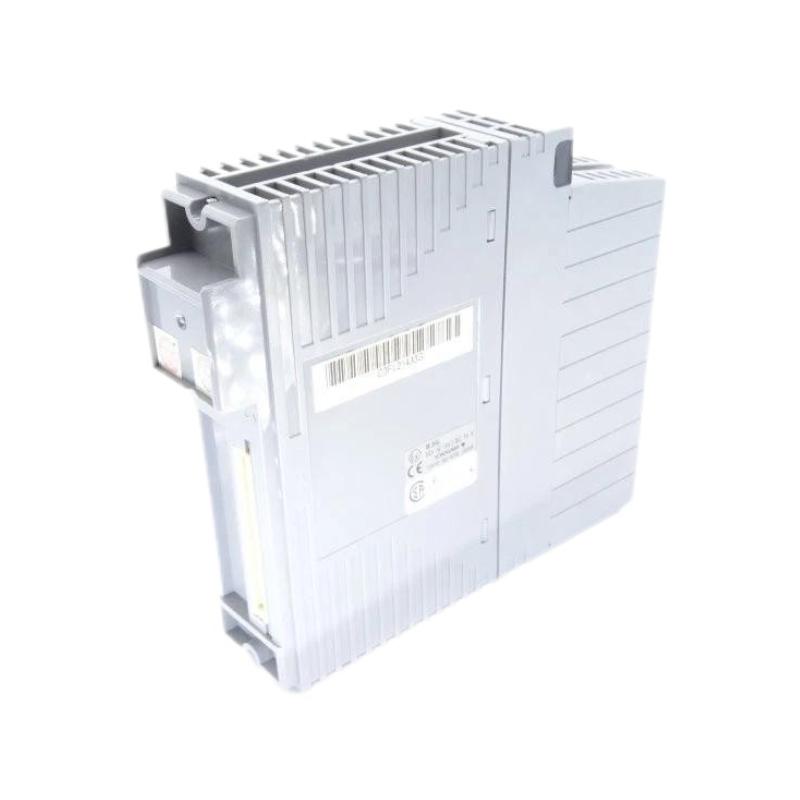

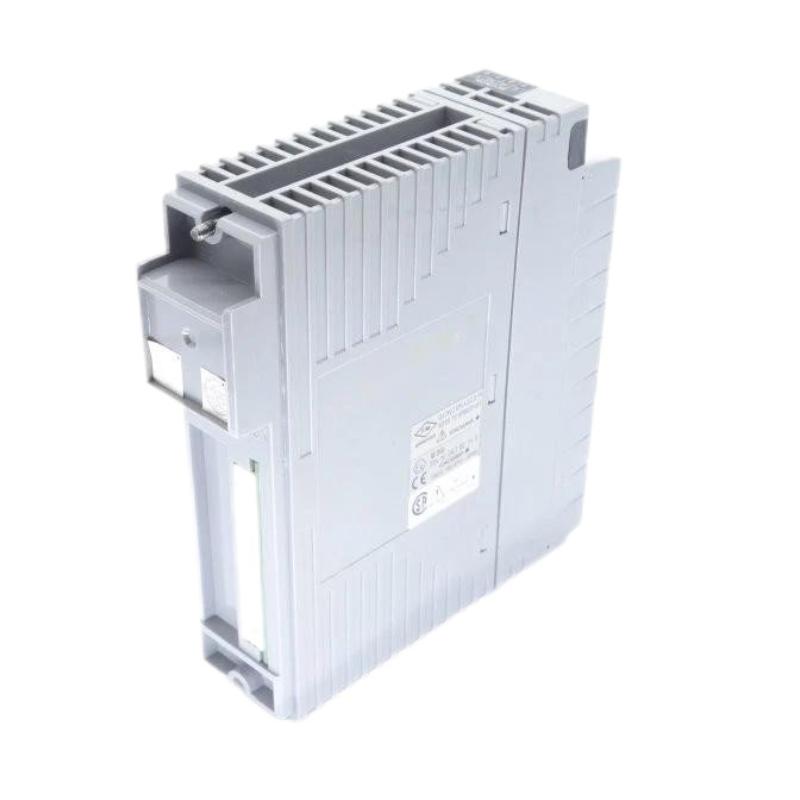

Yokogawa AAI543-H50 Analog Output Module

Name: Yokogawa AAI543-H50 Analog Output Module
Brand: Yokogawa Electric
SKU: 472
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Yokogawa Electric
Item No.:AAI543-H50
Product Origin:Japan
Product Dimensions:130 mm × 25 mm × 180 mm
Product Weight:0.3KG
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction — High-Precision Analog Output for Industrial Systems

The Yokogawa AAI543-H50 Analog Output Module is designed to provide accurate and reliable analog control signals in distributed control systems (DCS). With multiple isolated output channels, this module supports critical process control applications requiring precise 4–20 mA or 1–5 V signals. Built for demanding industrial environments, the AAI543-H50 combines high accuracy, fast response, and robust isolation to ensure seamless integration with actuators, valves, and other field devices.

Technical Specifications — Dimensions & Performance

Specification	Description
Module Type	Analog Output Module
Number of Channels	8 isolated output channels
Output Signal	4–20 mA DC standard; 1–5 V DC compatible
Output Resistance	500 Ω maximum at 20 mA
Accuracy	±0.1% of full scale
Update Rate	10 ms per channel
Isolation Voltage	1500 V AC (output-to-system)
Power Supply	24 V DC nominal
Operating Temperature	–25°C to +70°C
Dimensions	130 mm × 42 mm × 180 mm
Weight	~0.36 kg
Terminal Interface	Pressure-clamp terminals for reliable connection

Applications — Key Use Cases

Driving control valves, pumps, and actuators in process plants
High-precision analog control for chemical, water, and power systems
Integration with distributed control systems requiring 8 isolated output channels
Replacement or expansion of legacy analog output modules
Industrial environments needing isolated outputs to prevent electrical noise interference
Systems where fast and accurate analog signal generation is critical

Advantages — Why Choose the AAI543-H50

8 isolated channels for accurate and interference-free analog output
High accuracy (±0.1% full scale) ensures precise process control
Fast update rate (10 ms) for real-time control applications
Pressure-clamp terminals for reliable field connections
Compact, robust design fits efficiently in industrial racks
High isolation (1500 V AC) provides electrical safety and noise immunity
Reliable operation under demanding industrial conditions

Technical FAQs — 10 Key Questions

How many output channels does the module have?
- 8 isolated output channels.
What types of signals can it provide?
- 4–20 mA DC standard; 1–5 V DC compatible.
What is the measurement accuracy?
- ±0.1% of full scale.
What is the update rate for outputs?
- 10 ms per channel.
Is it suitable for electrically noisy environments?
- Yes, each channel is isolated at 1500 V AC.
What are the module dimensions and weight?
- 130 mm × 42 mm × 180 mm; ~0.36 kg.
What is the operating temperature range?
- –25°C to +70°C.
How are the outputs connected?
- Pressure-clamp terminals for secure field wiring.
Can it drive actuators or control valves?
- Yes, ideal for driving field devices with precise analog signals.
Is it suitable for critical process control systems?
- Yes, designed for high-reliability industrial automation applications.
