Yokogawa AAI143-S50/ATA4S-00 Analog Input Module

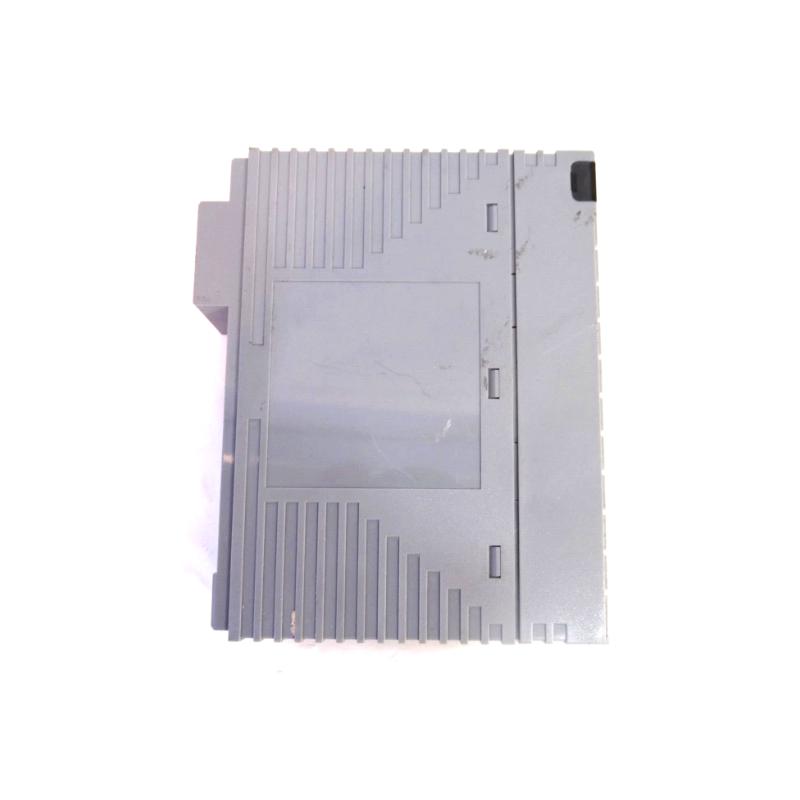

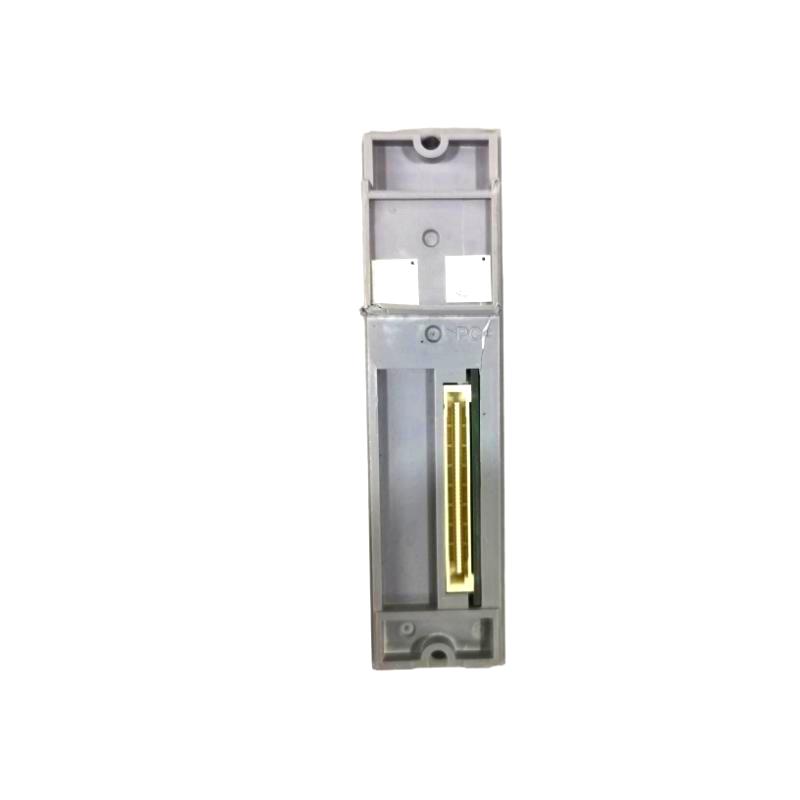

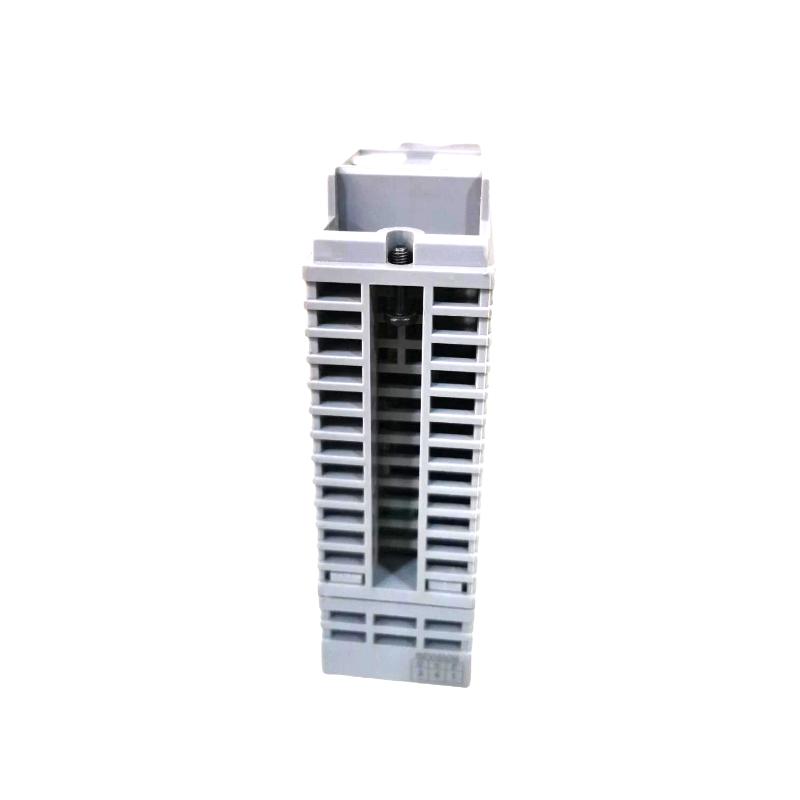

Name: Yokogawa AAI143-S50/ATA4S-00 Analog Input Module
Brand: Yokogawa Electric
SKU: 469
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Yokogawa Electric
Item No.:AAI143-S50/ATA4S-00
Product Origin:Japan
Product Dimensions:130 mm × 25 mm × 180 mm
Product Weight:0.3KG
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction — High-Reliability Analog Input for Industrial Automation

The Yokogawa AAI143-S50/ATA4S-00 Analog Input Module is engineered to provide precise, high-density analog signal acquisition for distributed control systems (DCS). With 16 isolated input channels and the robust ATA4S-00 interface, it ensures reliable 4–20 mA measurement even in challenging industrial environments. This module combines fast response, high accuracy, and simplified wiring, making it ideal for critical process control applications requiring consistent and uninterrupted operation.

Technical Specifications — Dimensions & Performance

Specification	Description
Module Type	Analog Input Module
Number of Channels	16 isolated channels
Input Signal	4–20 mA DC; 1–5 V DC compatible
Input Resistance	~270 Ω at 20 mA, 350 Ω at 4 mA
Accuracy	±16 µA typical
Update Rate	10 ms per channel
Transmitter Power Supply	19–25.5 V DC, up to 25 mA per channel
Isolation Voltage	1500 V AC (input-to-system)
Power Supply	24 V DC nominal
Operating Temperature	–25°C to +70°C
Dimensions	130 mm × 42 mm × 180 mm
Weight	~0.34 kg
Terminal Interface	ATA4S-00 pressure-clamp terminals for reliable and secure connections

Applications — Ideal Use Cases

High-density analog input for DCS in chemical, power, and water treatment plants
Measurement of critical process variables such as flow, pressure, level, and temperature
Industrial environments requiring channel isolation to prevent ground loops and electrical noise
Control loops for pumps, valves, and actuators
Replacement or expansion of existing analog input systems
Applications requiring reliable, surge-protected connections for harsh environments

Advantages — Why Choose the AAI143-S50/ATA4S-00

16 isolated channels for interference-free measurements
Fast update rate (10 ms) for responsive process monitoring
Integrated transmitter power supply reduces external wiring needs
ATA4S-00 terminal interface provides secure, reliable connections
High accuracy (±16 µA) ensures precise measurement of critical process variables
Compact, durable design for efficient rack installation
Enhanced surge and noise protection for industrial environments

Technical FAQs — 10 Key Questions

How many channels are included?
- 16 isolated analog input channels.
What types of signals does it accept?
- 4–20 mA DC and 1–5 V DC compatible.
Does the module supply power to 2-wire transmitters?
- Yes, 19–25.5 V DC up to 25 mA per channel.
What is the measurement accuracy?
- ±16 µA typical.
What is the update rate for the channels?
- 10 ms per channel.
Can it handle electrically noisy industrial environments?
- Yes, 1500 V AC isolation per channel and ATA4S-00 interface provide reliable protection.
What are its physical dimensions and weight?
- 130 mm × 42 mm × 180 mm; ~0.34 kg.
What is the operating temperature range?
- –25°C to +70°C.
Which terminal interface does this module use?
- ATA4S-00 pressure-clamp terminals.
Is it suitable for critical industrial process applications?
- Yes, designed for high-reliability operation in demanding environments.
