Introduction — Precision Time-Stamps for Industrial Automation

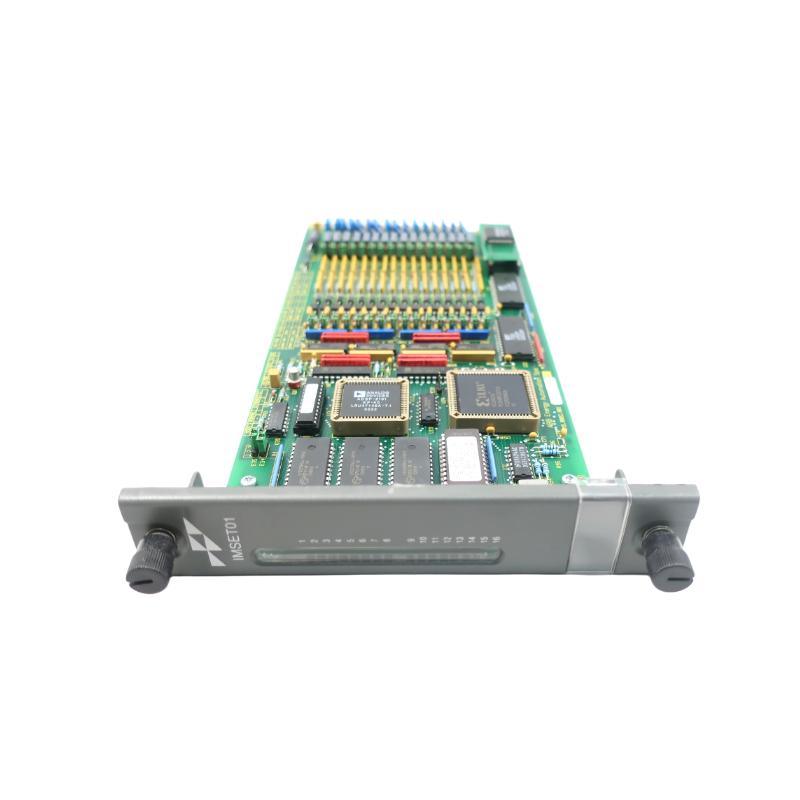

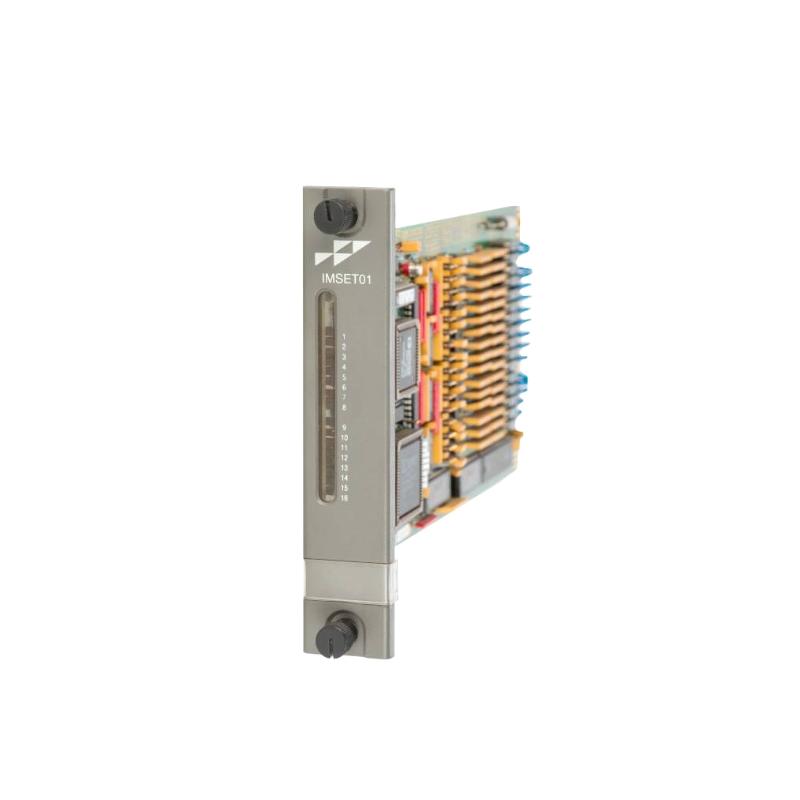

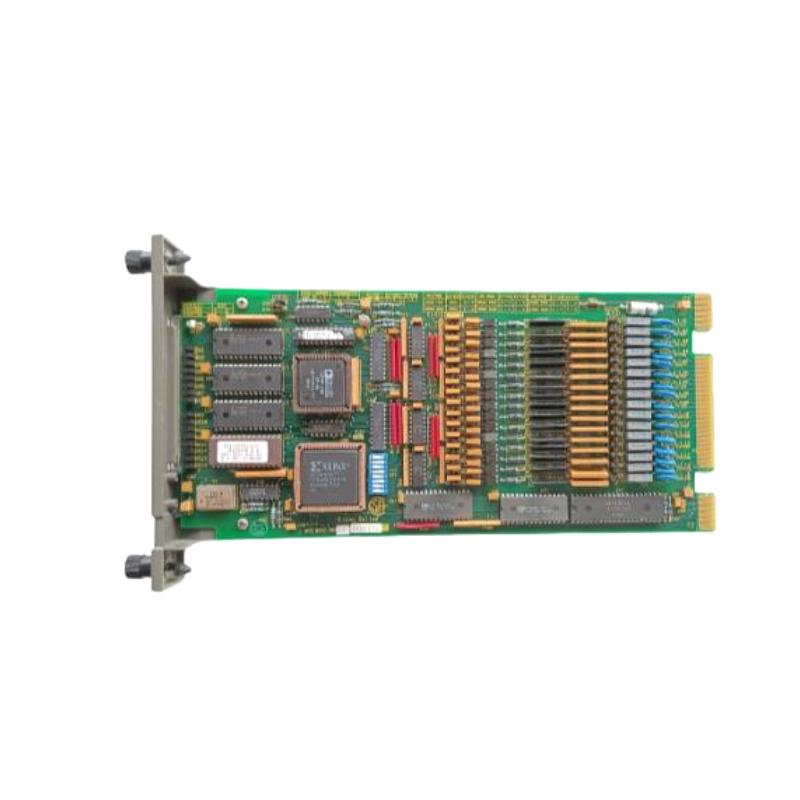

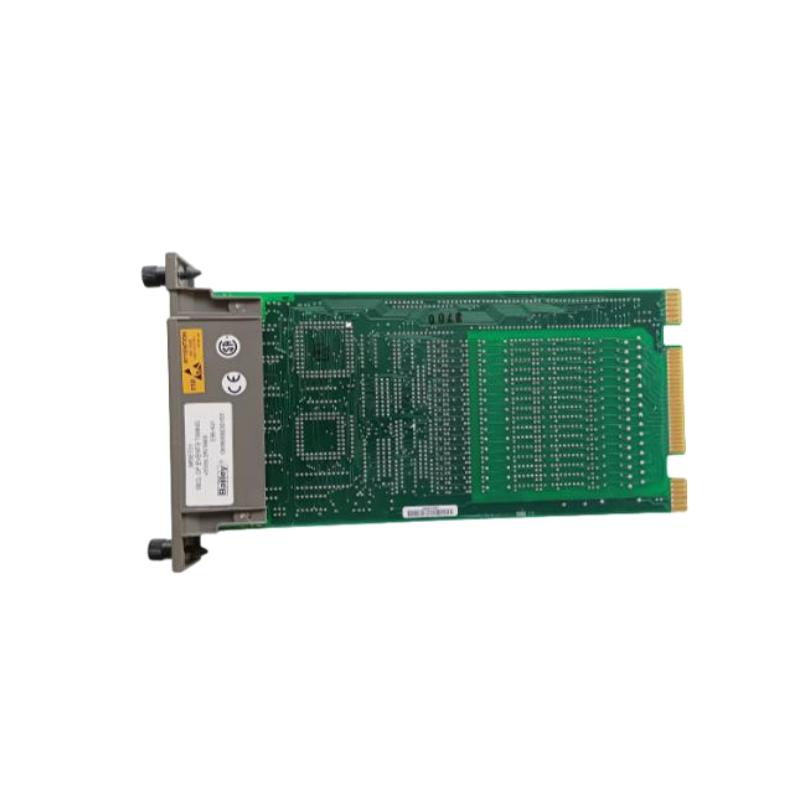

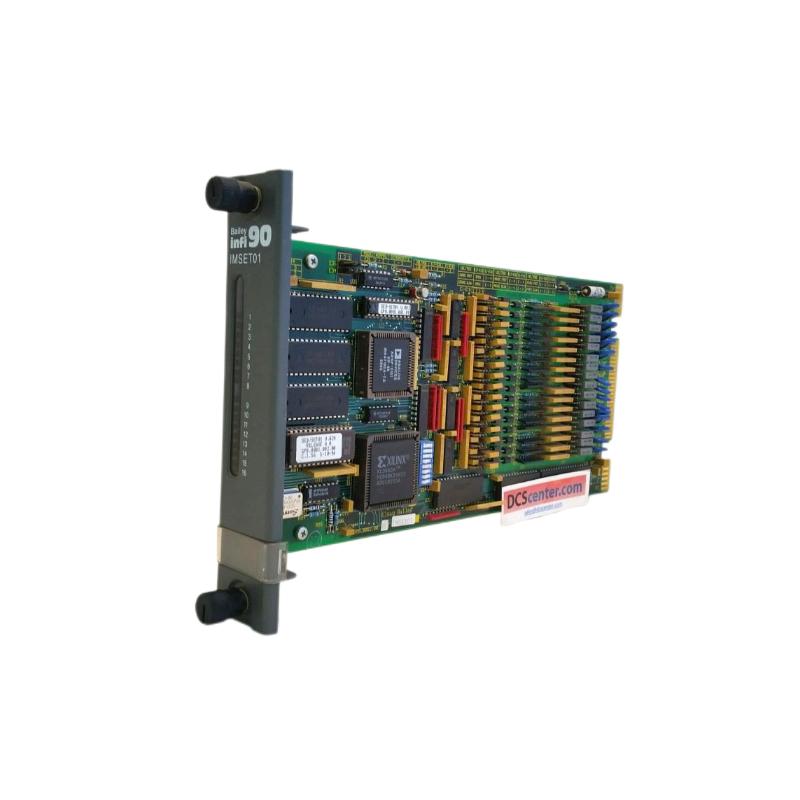

The ABB Bailey IMSET01 Sequence of Event Time Keeper Module is a specialized industrial module designed to capture and time-stamp discrete system events with precise accuracy. In complex control systems, knowing not just what happened but when it happened can be critical for fast diagnostics, sequence validation, and post-event analysis. The IMSET01 helps engineers and operators reconstruct event sequences, troubleshoot faults, and optimize system performance with confidence. Built with rugged industrial hardware and tailored for ABB Bailey automation environments, this module supports demanding uptime requirements and event integrity needs.
Technical Specifications — Event Tracking & Physical Profile
| Specification | Description |
|---|---|
| Module Type | Sequence of Event Time Keeper Module |
| Model / Part Number | IMSET01 |
| Primary Function | Capture/time-stamp digital events |
| Event Input Type | Discrete digital logic transitions |
| Time Resolution | High-precision event time referencing |
| System Interface | Backplane communication with host controller |
| Isolation | Channel isolation for noise immunity |
| Power Source | Supplied via system backplane |
| Operating Temperature Range | –20 °C to +60 °C |
| Mounting Style | Rack-mounted modular installation |
| Dimensions (L×W×H) | Approx. 130 mm × 50 mm × 140 mm |
| Weight | Approx. 0.52 kg |
