Introduction — Precision Event Capturing for Industrial Control Systems

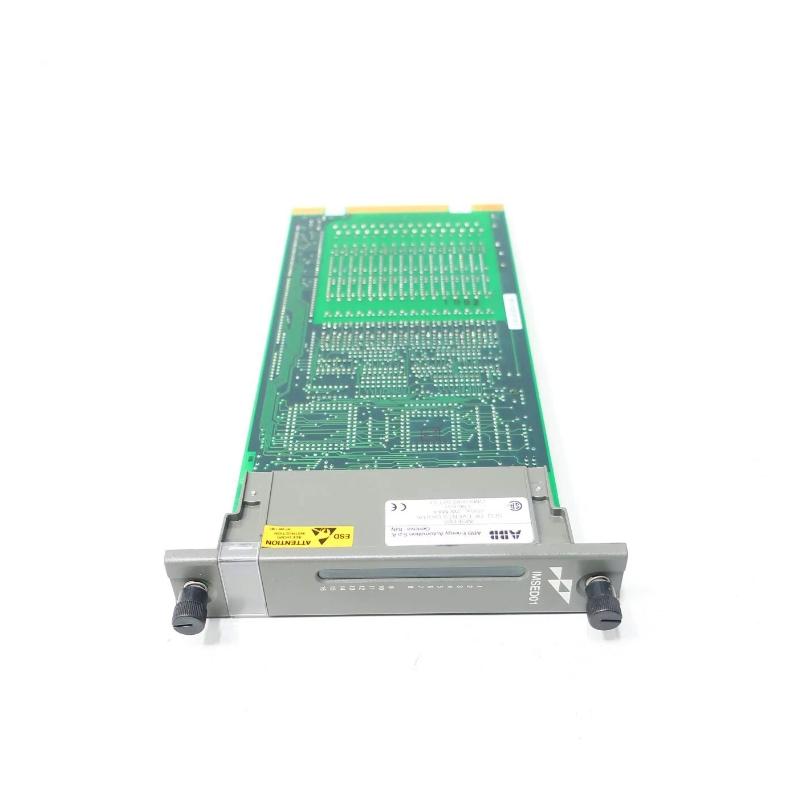

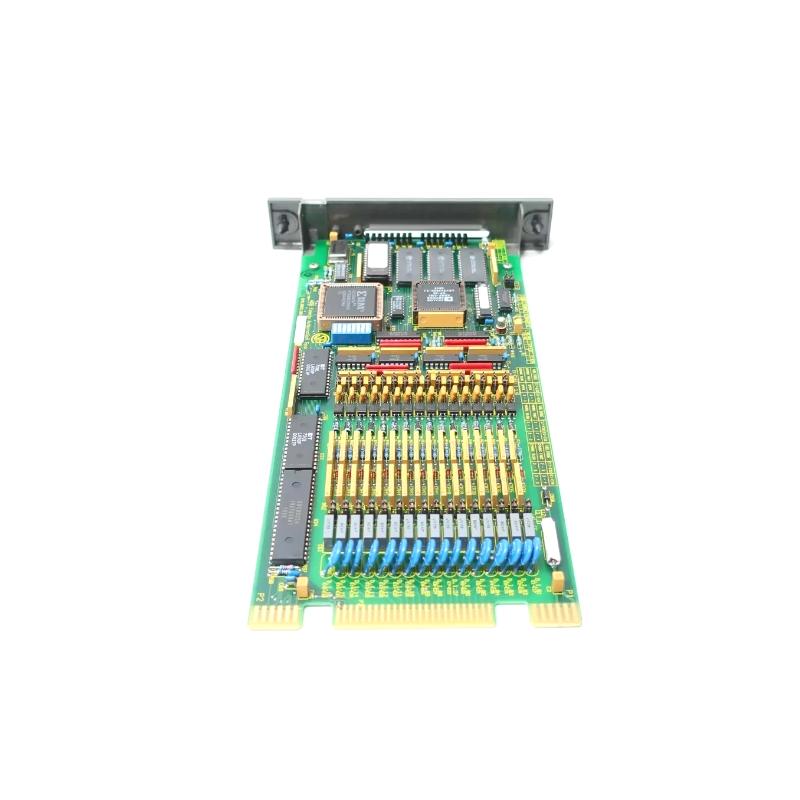

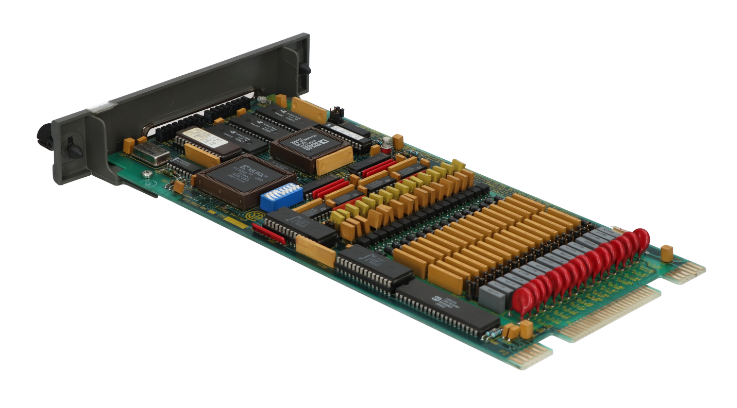

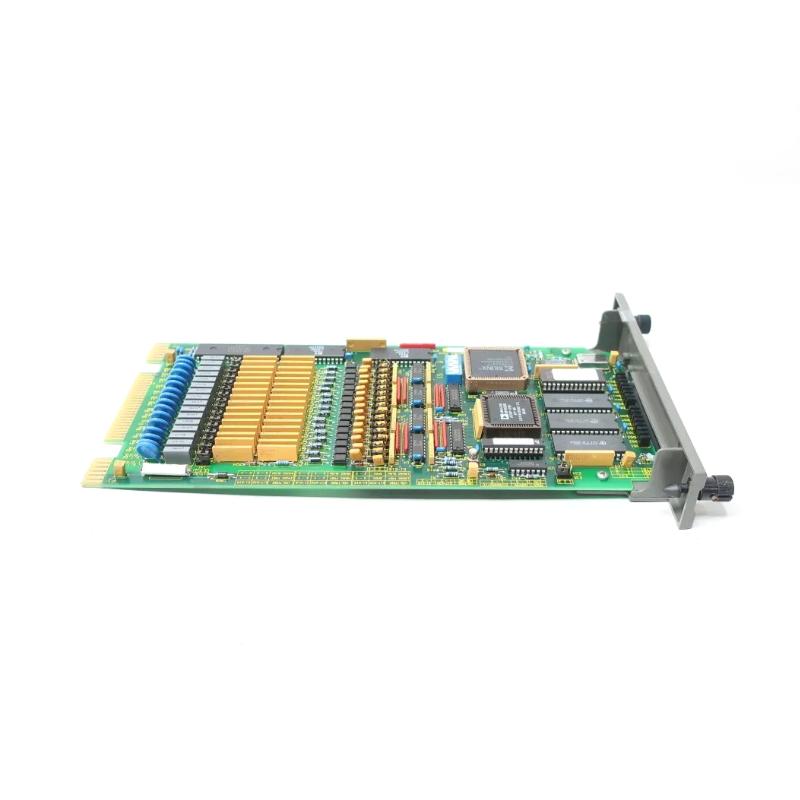

The ABB Bailey IMSED01 Sequence of Events Digital Inputs Module is a specialized input interface designed to capture, time-stamp, and report discrete digital events with high accuracy in automation and protection systems. By recording the exact sequence and timing of input state changes, this module enables precise diagnostics, fault analysis, and performance monitoring. Its robust design and compatibility with ABB control platforms make it indispensable in power generation, process control, and utility applications where event integrity and system transparency are critical.
Technical Specifications — Input Performance & Physical Profile
| Specification | Description |
|---|---|
| Module Type | Sequence of Events Digital Inputs Module |
| Model / Part Number | IMSED01 |
| Primary Function | Capture and time-stamp digital input transitions |
| Input Channels | Multiple high-speed digital input points |
| Input Signal Type | Discrete digital (voltage level logic) |
| Time Resolution | High-accuracy event time stamping |
| Isolation | Channel isolation for noise immunity |
| Communication | System bus interface to host controller |
| Power Supply | Supplied via backplane / host system |
| Operating Temperature | –20 °C to +60 °C |
| Dimensions (L×W×H) | approx. 130 mm × 50 mm × 140 mm |
| Weight | approx. 0.5 kg |
| Mounting | Rack / backplane installation |
