Technical FAQs

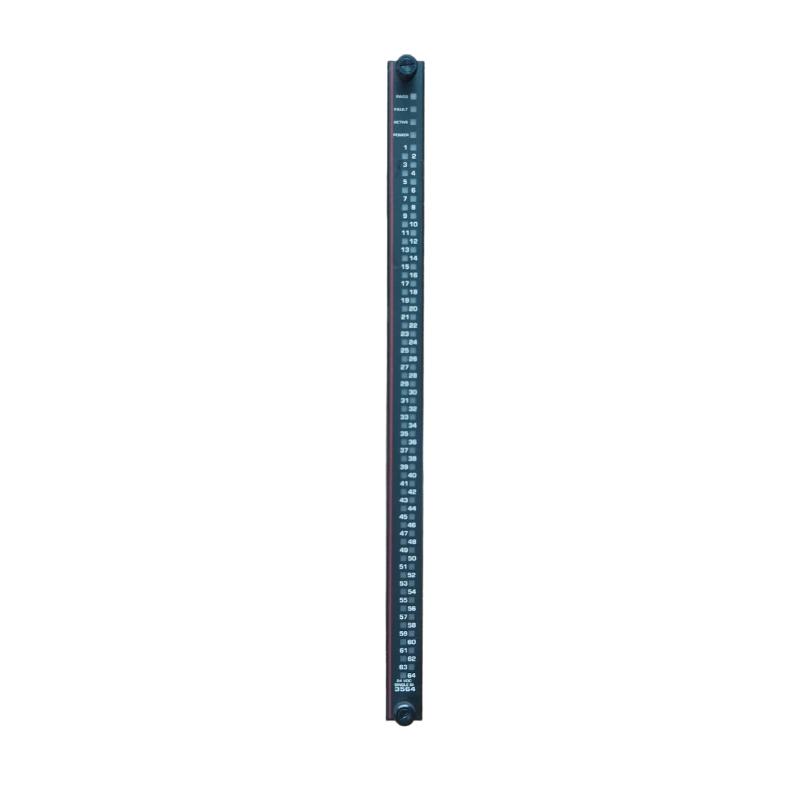

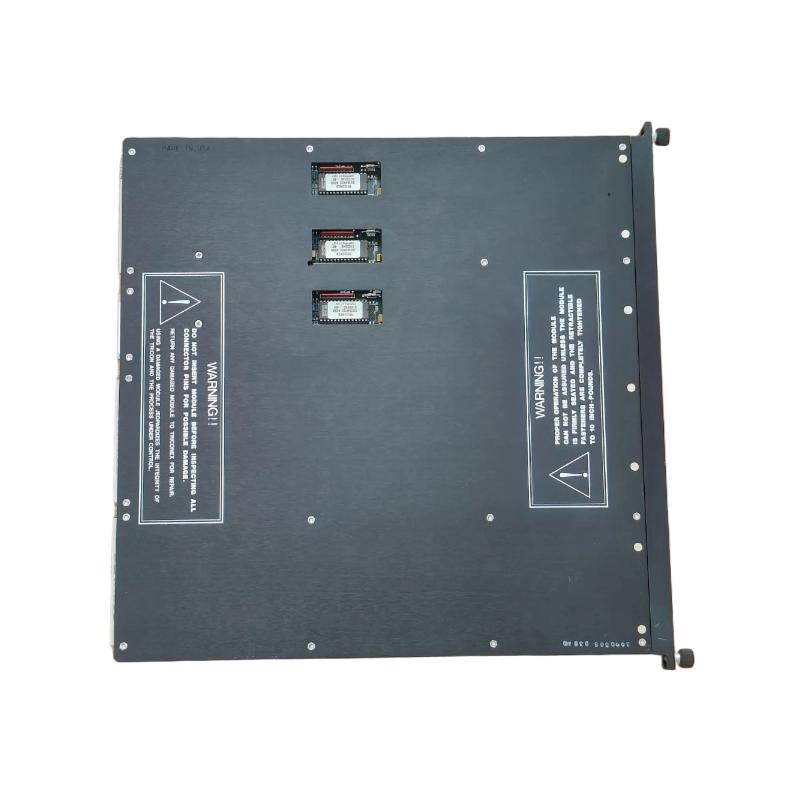

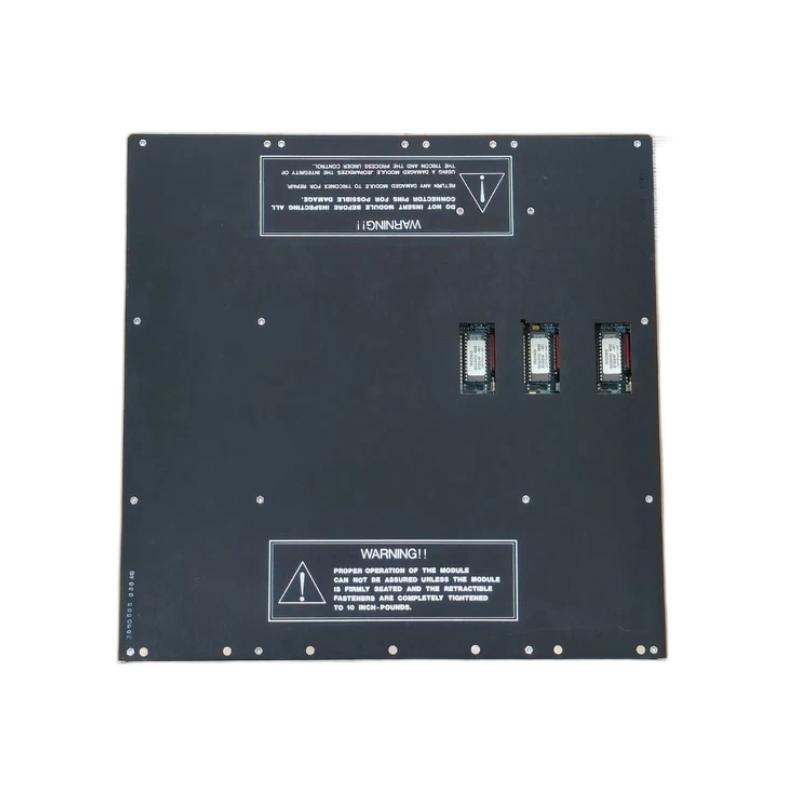

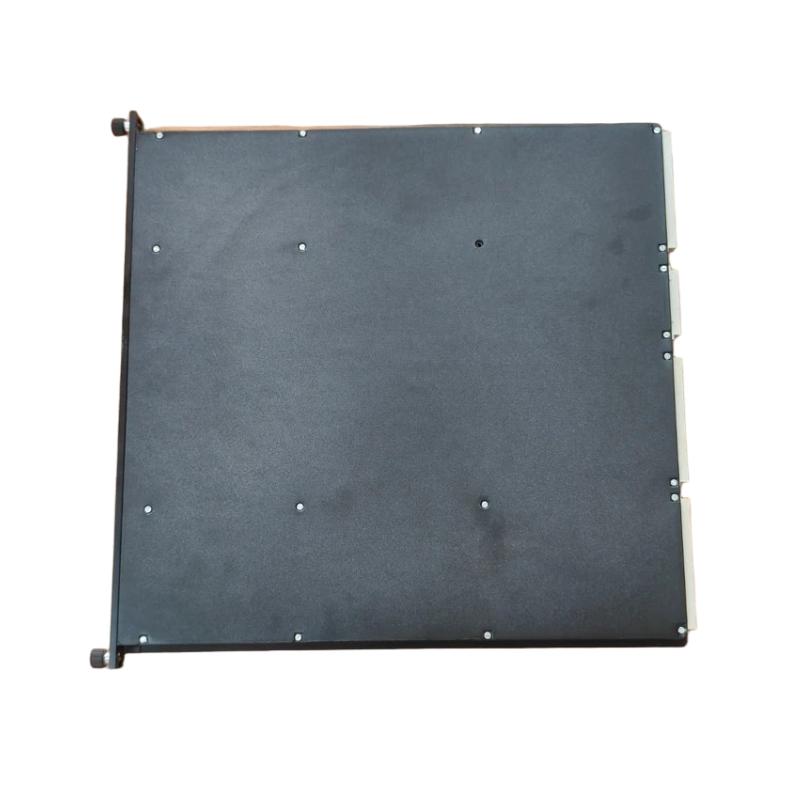

1. What types of signals can the 3564 module handle?
   It handles dry contacts and 24 V DC signals from field devices.

2. How many channels does the module provide?
   Typically 16 digital input channels.

3. Is the module hot-swappable?
   Replacement procedures depend on system redundancy and safe state procedures; TMR systems support controlled swaps in some configurations.

4. Does it provide isolation?
   Yes — channel-to-channel and channel-to-backplane isolation is implemented to ensure signal integrity.

5. Can it be used in simplex systems?
   While designed for TMR, it may function in simplex systems, though redundancy and fault tolerance are reduced.

6. Does it require configuration for each channel?
   Configuration is managed by the safety system controller; the module itself requires minimal setup.

7. Is maintenance required?
   Only routine visual inspection and functional verification per system maintenance schedule.

8. What happens if a channel fails?
   In TMR architecture, failed channel input is masked by voting logic, maintaining safe operation.

9. Can multiple 3564 modules be installed in the same rack?
   Yes — Triconex racks support multiple modules, expanding digital input capacity.

10. Is the module suitable for harsh industrial environments?
    Yes — it is designed for shock, vibration, temperature variations, and electromagnetic interference typical in industrial plants.
