Technical FAQs

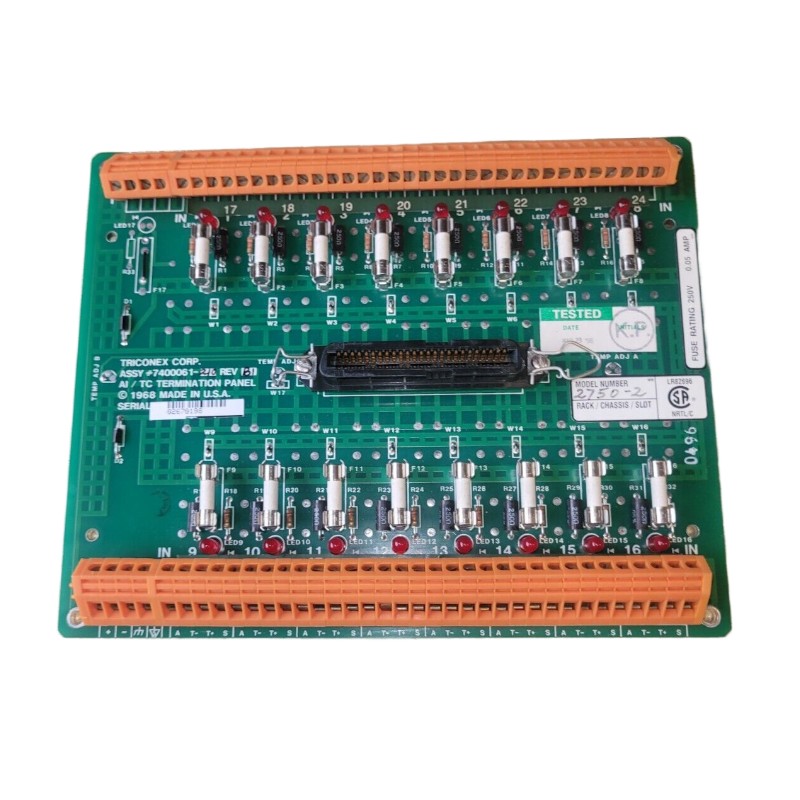

1. What is the primary purpose of the 2750‑2 panel?
   It provides a structured termination interface between field devices (sensors/actuators) and the internal control modules.

2. Does the panel include terminal blocks for both analog and digital I/O?
   Yes — it is designed to handle mixed I/O wiring in a unified termination panel.

3. Is the panel suitable for retrofit installations?
   Yes — its modular termination design simplifies integration into existing cabinets or racks.

4. Does installation require special tools?
   Standard wiring tools suffice; no specialized instrumentation is typically required.

5. How does it support wiring organization?
   By centralizing field terminations and providing clear terminal mapping, it simplifies wiring layout and documentation.

6. Is it compatible with standard control‑room cabinets?
   Yes — its estimated size and mounting format suit typical control‑cabinet interiors.

7. Does it support grounding and shielding practices for noise‑sensitive wiring?
   Yes — with appropriate wiring practices, the panel layout supports separation and shielding of signal and power lines.

8. Can it be expanded to support additional I/O in future?
   Yes — additional terminal blocks and wiring paths can be added within the termination panel’s capacity.

9. Is maintenance on this panel straightforward?
   Yes — because wiring is centralized and terminals are accessible, maintenance and inspection are simpler compared to point‑to‑point wiring.

10. Does failure in the termination panel affect system logic?
    Failure in wiring or connection may break signal paths, but the panel itself doesn’t process logic — it only serves as a wiring interface. Proper wiring and testing mitigate risks.
