Introduction

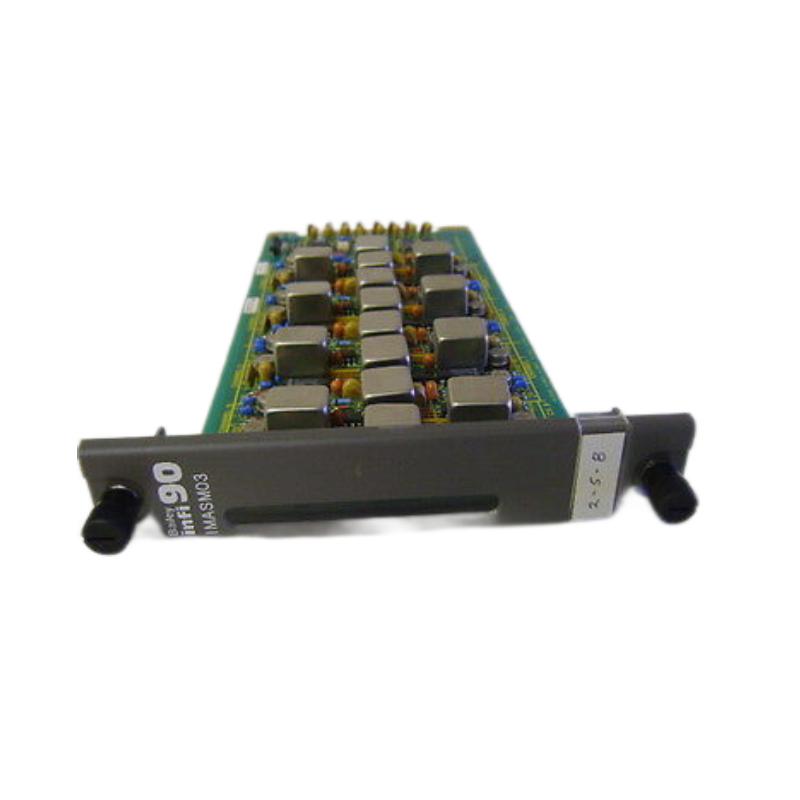

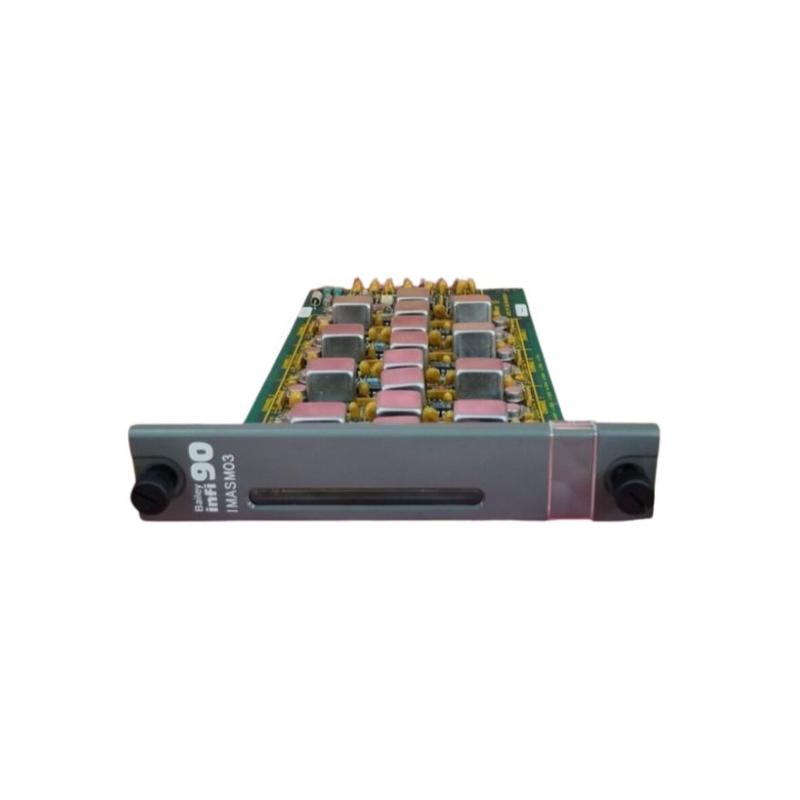

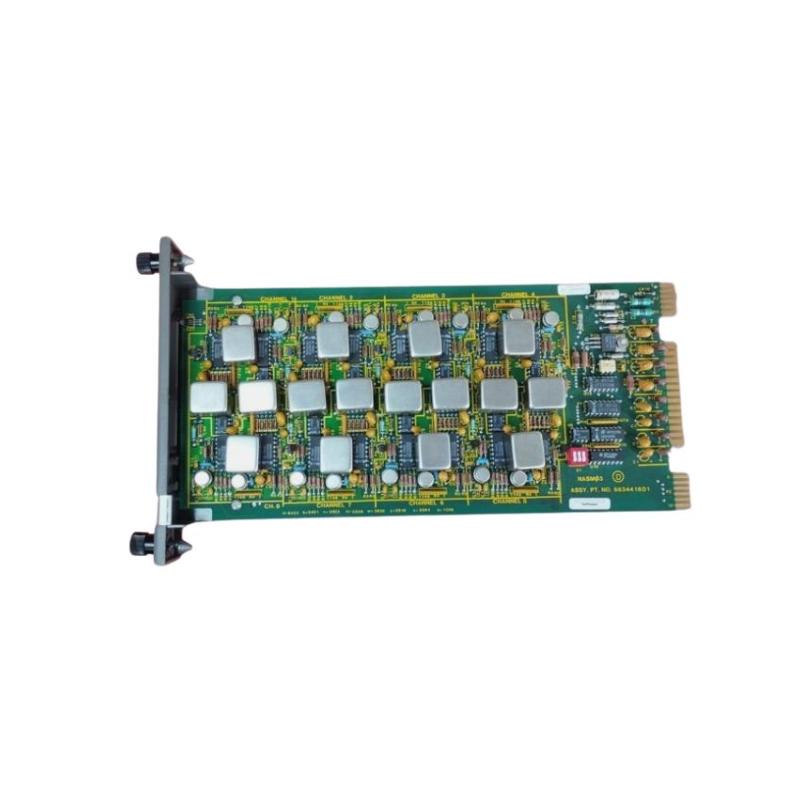

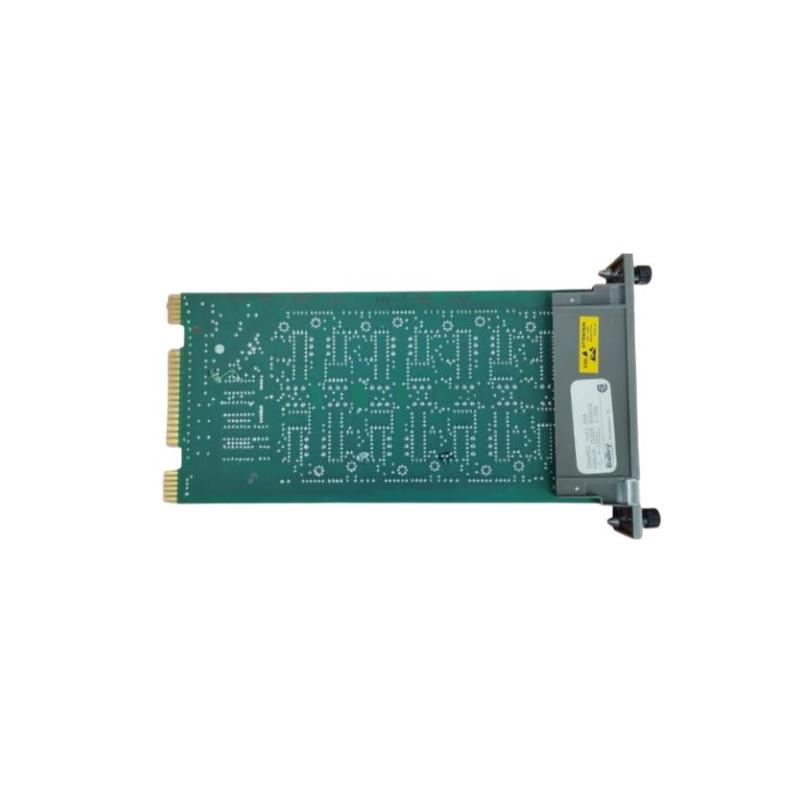

The ABB Bailey IMASM03 Analog Input Slave Module is a precision analog interface designed for the ABB Bailey Infi 90 Distributed Control System (DCS) family. As part of the modular I/O architecture, this module is responsible for acquiring and conditioning analog signals from field devices—such as transmitters, sensors, and transducers—and relaying accurate, high-resolution measurement data back to the control system for loop logic, monitoring, and HMI display.
Built for industrial environments, the IMASM03 ensures reliable analog signal capture and integration with master modules, contributing to tight process control, improved diagnostics, and consistent operational performance.
Technical Specifications
| Specification | Description |
|---|---|
| Model | IMASM03 |
| Module Type | Analog Input Slave Module |
| System Compatibility | ABB Bailey Infi 90 DCS |
| Input Channels | Typically 8 analog input channels |
| Supported Signal Types | 4–20 mA current, ±10 V voltage inputs (system dependent) |
| Resolution | High-precision analog-to-digital conversion |
| Isolation | Channel-to-channel and logic isolation |
| Mounting | Infi 90 backplane / rack mount |
| Power Supply | Via system backplane power rails |
| Operating Environment | Industrial control cabinets |
| Field Wiring Support | Standard industrial analog instrumentation |
