Introduction

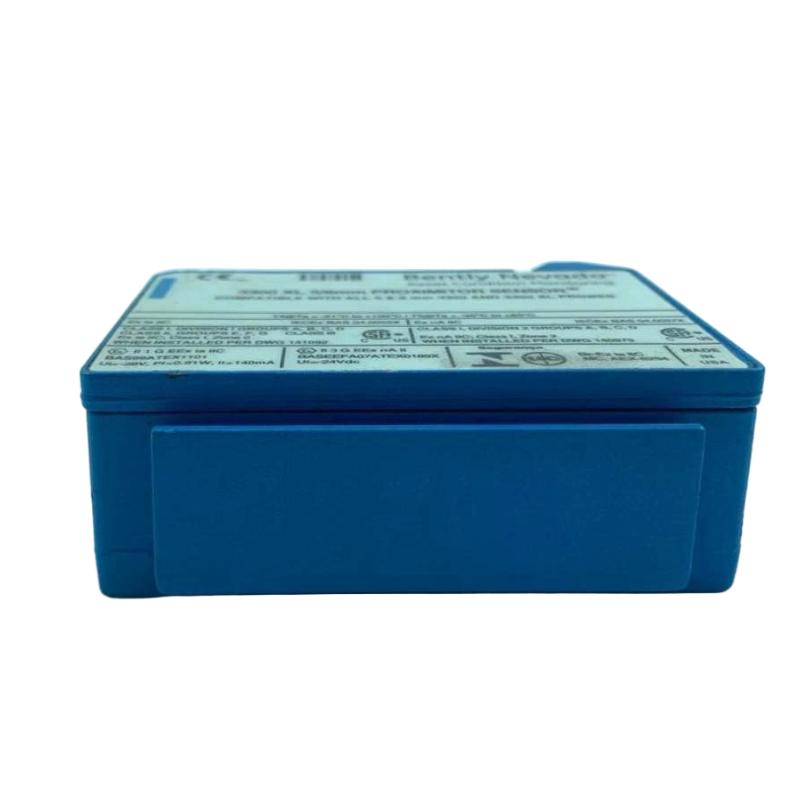

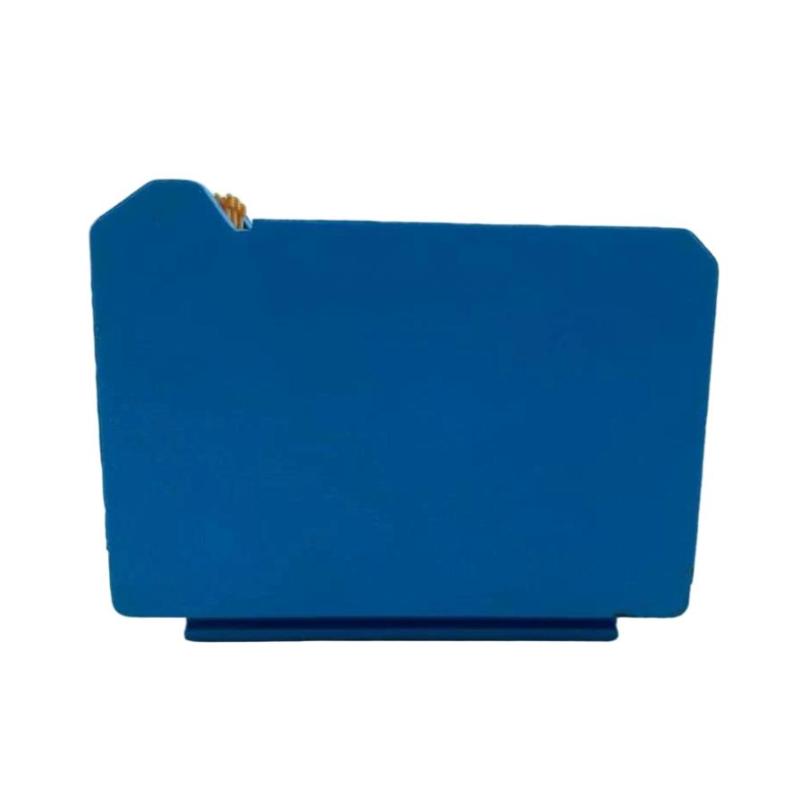

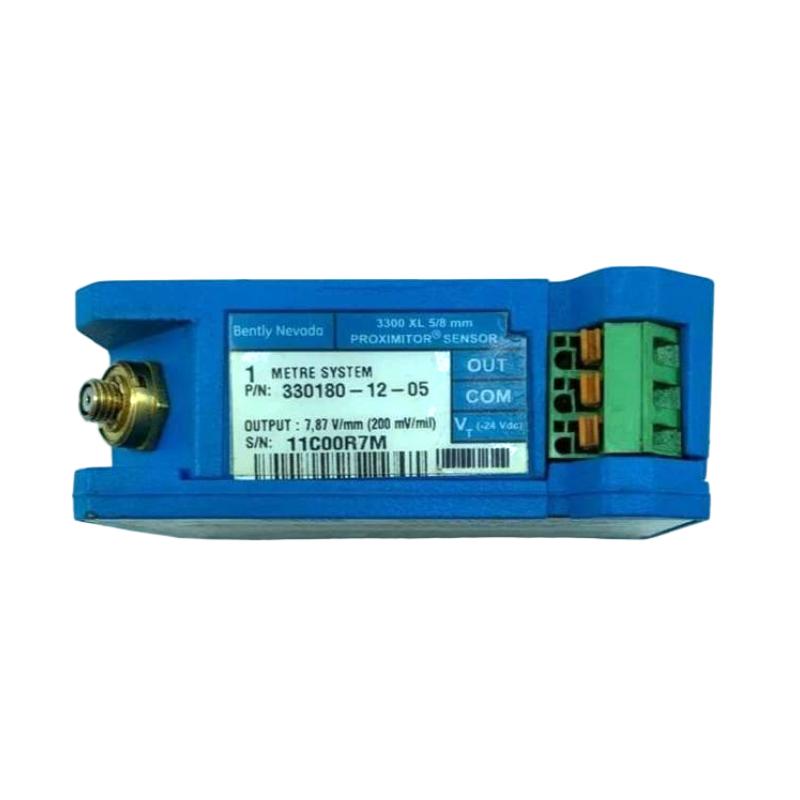

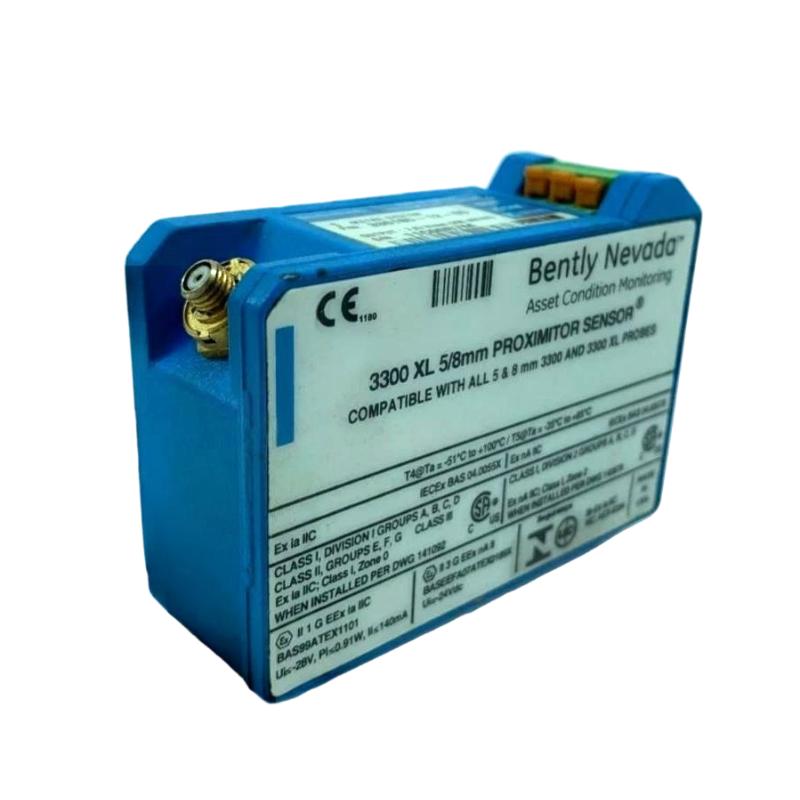

The Bently Nevada 330180-12-05 3300 XL 8mm Proximity Sensor is a high-performance, reliable sensor designed to monitor the position and movement of rotating machinery in demanding industrial environments. This sensor is part of the 3300 XL series, which is known for its accuracy, robustness, and ability to provide real-time condition monitoring. It is ideal for machinery protection, offering critical data that ensures the health of rotating equipment.
With a compact design, the 3300 XL 8mm Proximity Sensor is highly versatile and can be used in a variety of industries, including oil and gas, power generation, chemical processing, and manufacturing. By accurately measuring displacement and vibration, this sensor helps prevent costly breakdowns and reduces downtime, enhancing overall system performance and reliability.
Technical Specifications
|
Specification |
Details |
|
Model Number |
330180-12-05 |
|
Type |
8mm Proximity Sensor |
|
Dimensions (L × W × H) |
81.3 × 35.1 × 63.5 mm |
|
Weight |
0.246 kg |
|
Sensing Range |
8 mm |
|
Output |
Digital |
|
Operating Temperature |
-40°C to 85°C |
|
Voltage Supply |
24 V DC |
|
Accuracy |
±0.02 mm |
|
Compliance |
CE Certified |
|
Mounting Type |
Surface Mount |
Applications
The Bently Nevada 330180-12-05 3300 XL 8mm Proximity Sensor is used in various industries to monitor the position of rotating machinery, ensuring optimal performance and protection. Some key applications include:
-
Machinery Protection: Used to monitor critical machinery, such as turbines, compressors, and motors, detecting any misalignment or shaft displacement.
-
Vibration Monitoring: In power generation and manufacturing plants, the sensor measures the vibration of machinery components, providing early detection of potential issues before they lead to failure.
-
Pump and Motor Monitoring: The sensor is used to monitor pumps and motors in chemical plants, detecting any changes in position that could indicate wear or misalignment.
-
Turbine Monitoring: In power plants, the 3300 XL 8mm Proximity Sensor is ideal for detecting turbine rotor displacement and vibrations, preventing costly damage from misalignment.
-
Oil & Gas: Used in upstream and downstream applications to monitor equipment such as drilling rigs and rotating machinery in refineries, ensuring that any faults are detected before causing downtime.
Advantages
The Bently Nevada 330180-12-05 3300 XL 8mm Proximity Sensor offers several key advantages that make it an essential tool for industrial machinery protection:
-
High Accuracy: The sensor offers an exceptional accuracy of ±0.02 mm, ensuring precise measurement of displacement, which is crucial for reliable machinery protection.
-
Wide Temperature Range: With an operating temperature range from -40°C to 85°C, the sensor can function in harsh environmental conditions, making it suitable for a wide range of industrial applications.
-
Compact and Durable Design: The 3300 XL 8mm Proximity Sensor is designed to be both compact and durable, ensuring long-lasting performance even in challenging environments.
-
Real-Time Condition Monitoring: This sensor provides real-time feedback on machinery health, allowing operators to detect potential issues early and take preventive actions before they lead to failure.
-
Easy Installation: The surface mount design simplifies installation, ensuring that the sensor can be quickly integrated into existing systems without complex modifications.
