Introduction

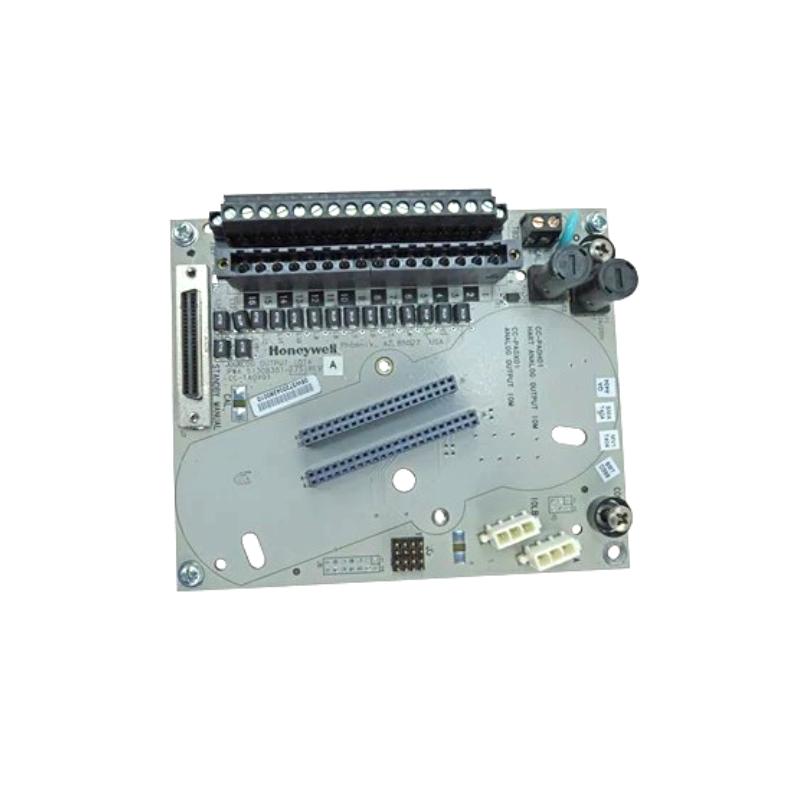

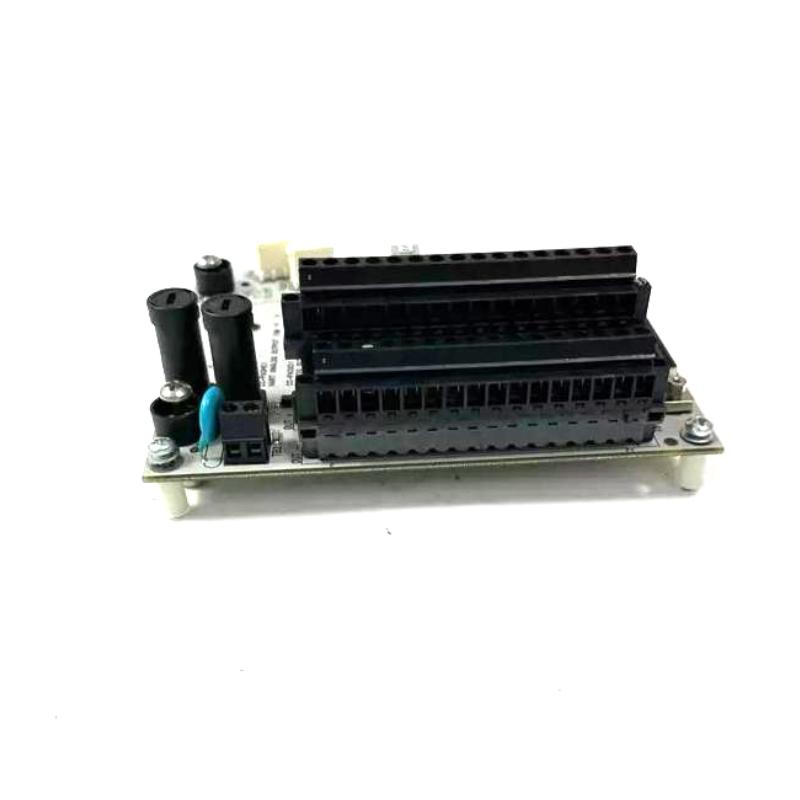

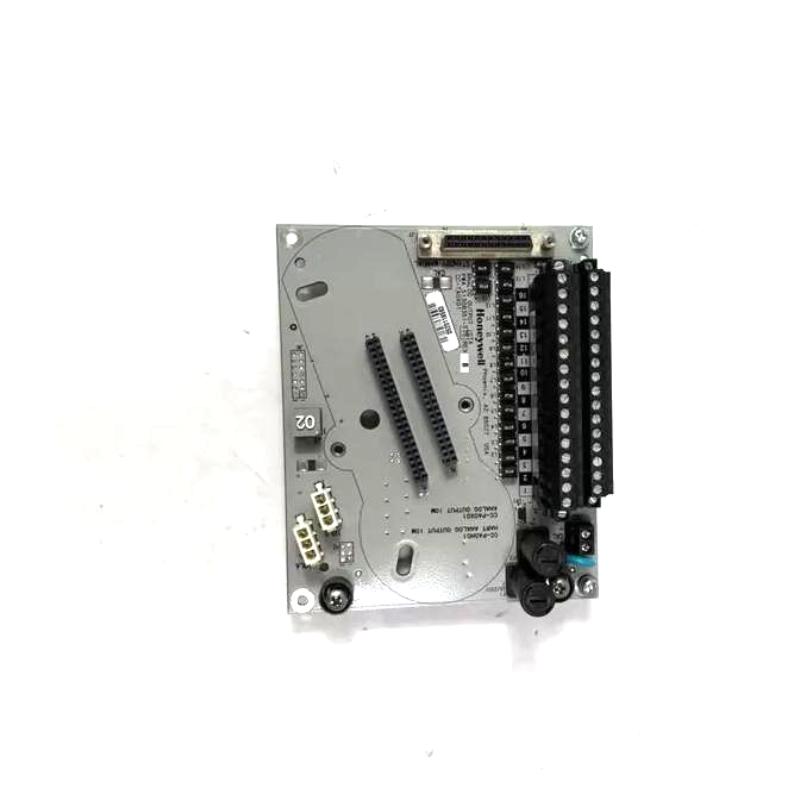

The Honeywell CC‑TAOX01 51308351‑175 Analog Output Module is a high‑precision industrial I/O component engineered for advanced process automation systems, particularly within Honeywell Experion PKS and related control environments. It delivers multiple analog current signals with excellent accuracy and diagnostic capability, making it ideal for driving field devices such as control valves, I/P converters, actuators, and other analog-driven equipment.
This module supports standardized current loop outputs and is built for use in mission‑critical applications where stability, resolution, and reliability are paramount.
Technical Specifications
| Specification | Detail |
|---|
| Model | CC‑TAOX01 |
| Part Number | 51308351‑175 |
| Module Type | Analog Output Module |
| Number of Channels | 16 analog outputs |
| Output Signal Range | 2.9 mA to 21.1 mA (configurable) |
| Resolution | 12‑bit DAC |
| Communication | HART support for configuration & diagnostics |
| Isolation | Channel-to-channel and system isolation |
| Mounting | DIN rail or panel mount capable |
| Operating Temp | –20 °C to +60 °C |
| Storage Temp | –40 °C to +85 °C |
| Humidity | 5 % to 95 % RH (non-condensing) |
| Country of Origin | USA |
| Warranty | 12 months |
Applications
This analog output module is widely deployed in industrial process and automation systems requiring precise and stable current output signals. Typical implementation scenarios include:
-
Process control loops for valves, positioners, and control devices
-
Distributed control systems (DCS) in petrochemical, energy, and utilities
-
Actuator control in manufacturing and batch process systems
-
Remote output distribution in modular I/O architectures
-
Field device signal generation in building automation and laboratory environments
Its reliable output performance supports seamless integration with field instruments and higher-level controllers, enabling responsive and maintainable control strategies.
Advantages
-
High Precision Analog Control: 12‑bit resolution DAC supports accurate analog outputs with low ripple and strong linearity
-
HART Communication: Allows remote setup, calibration, and diagnostic feedback for simplified maintenance
-
Channel Isolation: Electrical isolation mitigates interference and protects sensitive system components
-
Hot-Swap Capability: Supports module exchange without system shutdown in many architectures
-
Rugged Industrial Design: Environmental tolerance and conformal coating ensure dependable long-term service
These strengths make the CC‑TAOX01 a dependable choice for precision analog signal distribution in demanding industrial applications.
