Introduction

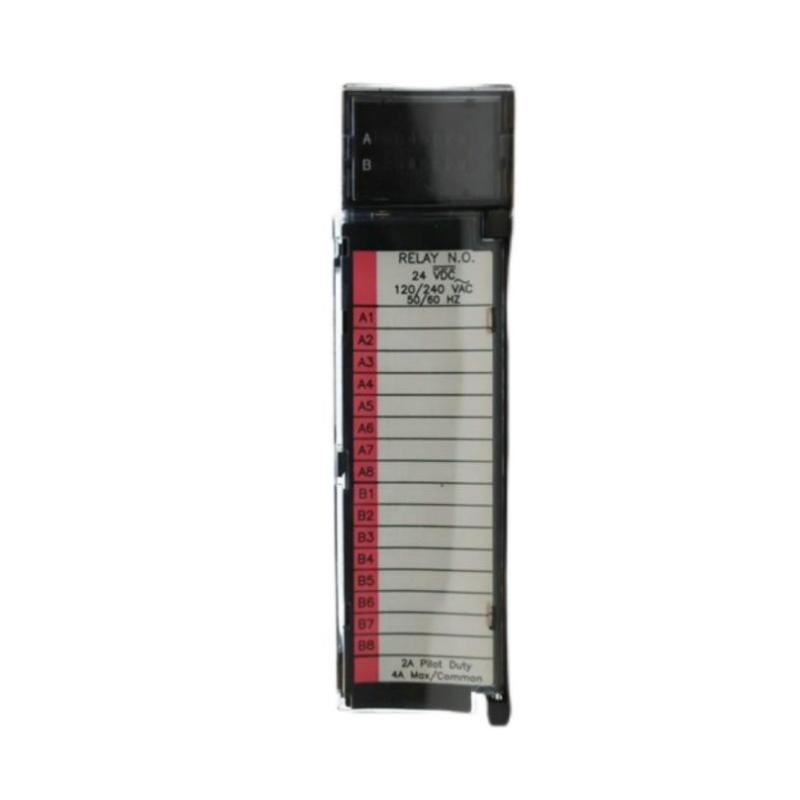

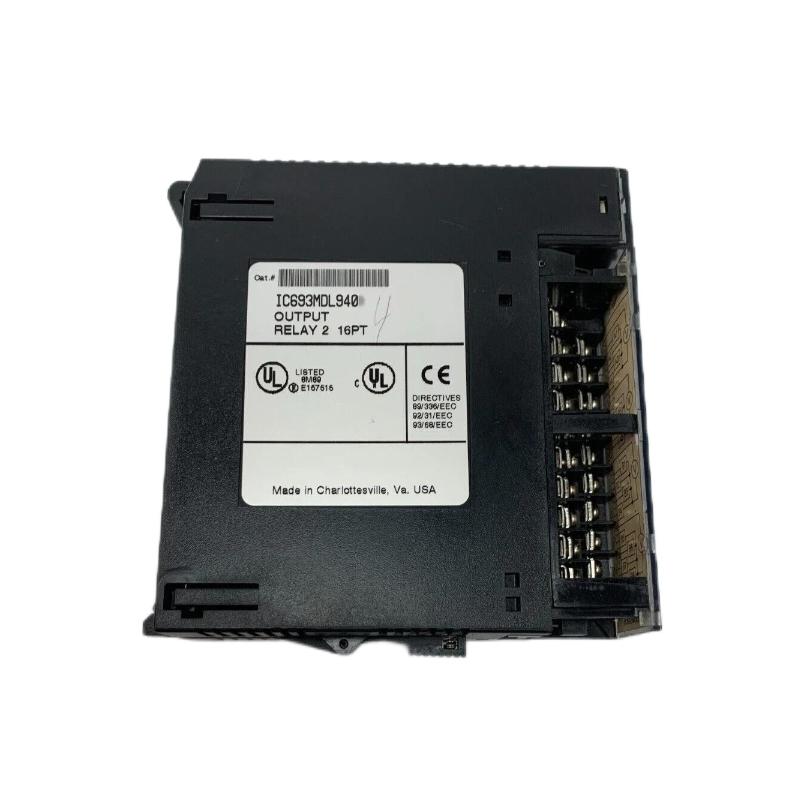

The GE Fanuc IC693MDL940 Relay Output Module is a robust discrete output card engineered for GE Fanuc Series 90‑30 PLC systems. It features electromechanical relay outputs that provide galvanic isolation and versatile load switching capability, making it ideal for controlling solenoids, pilot lights, small motors, alarms, and other field devices within industrial automation environments. With clear LED status indicators and rugged construction, the IC693MDL940 offers dependable performance and straightforward diagnostics, even under demanding conditions.
Designed for both general‑purpose output control and applications requiring enhanced electrical isolation, this module helps streamline wiring, improve maintainability, and increase uptime in machine and process control installations.
Technical Specifications
| Specification | Description |
|---|---|
| Model | IC693MDL940 |
| Module Type | Relay Output Module |
| Output Channels | 16 discrete relay outputs |
| Relay Type | Electromechanical SPST relays |
| Output Current | Up to 2 A per channel |
| Load Voltage | Up to 125 V AC / 30 V DC typical |
| Isolation | Individual channel isolation and field‑to‑logic isolation |
| LED Indicators | Yes, one per output channel |
| Mounting | Series 90‑30 PLC baseplate compatible |
| Backplane Power Draw | Typical PLC backplane supply requirements |
| Operating Environment | Industrial control panels and racks |
