Introduction

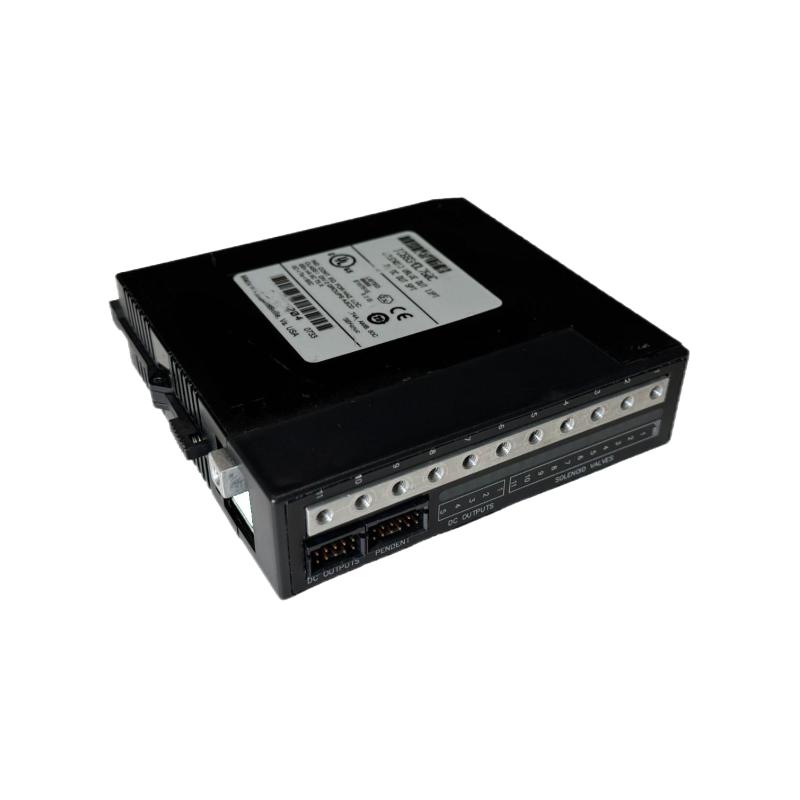

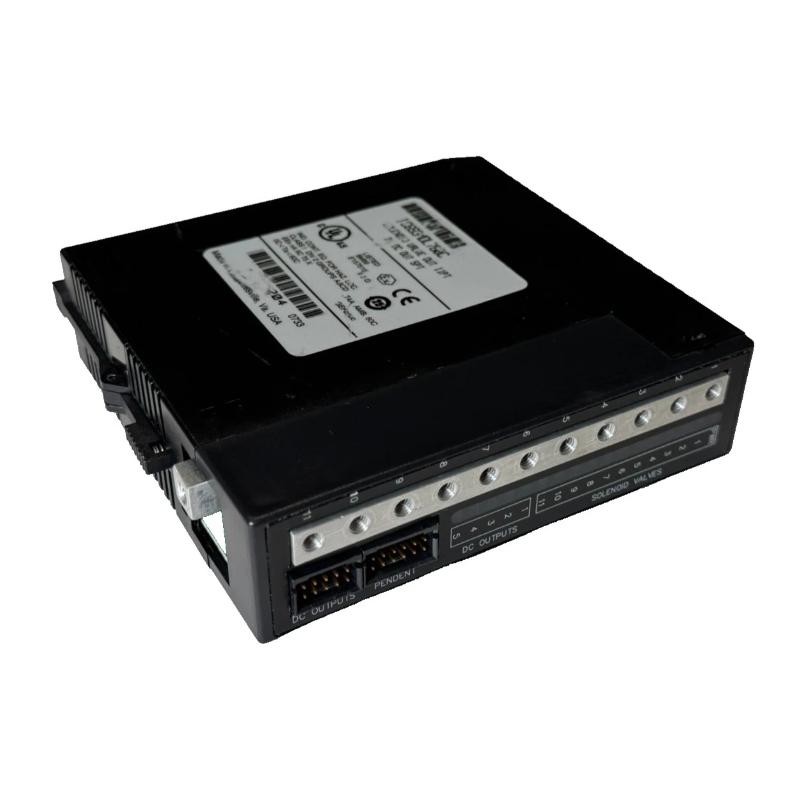

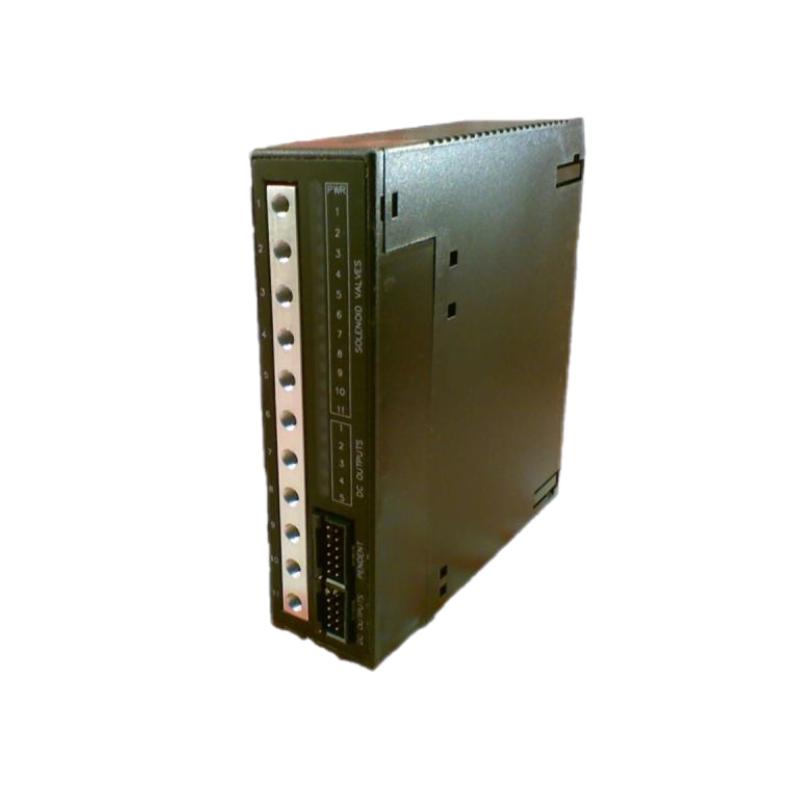

The GE IC693MDL760 Series 90‑30 Solenoid Valve Output Module is a rugged, high‑performance discrete output card engineered for GE Fanuc Series 90‑30 PLC systems. Specifically designed to drive solenoid‑type field devices, this module combines reliable load switching with robust isolation and clear diagnostic feedback. Its construction and electrical characteristics make it an ideal choice for industrial automation applications where accurate actuation of valves, relays, and similar devices is required.
With support for high‑current loads and industrial‑grade durability, the IC693MDL760 helps minimize downtime and simplify control panel layouts. Whether used in process control, material handling, or machine automation, this solenoid output module enhances control flexibility and field device responsiveness.
Technical Specifications
| Specification | Description |
|---|---|
| Model | IC693MDL760 |
| Module Type | Solenoid Valve Output Module |
| Output Points | 8 discrete outputs |
| Output Type | Sourcing DC outputs optimized for inductive loads |
| Rated Load Voltage | 24 V DC nominal |
| Load Current | Up to 1.5 A per channel |
| Total Module Load | Up to 8 A aggregate |
| Output Protection | Integrated snubber/RC network for inductive loads |
| LED Indicators | Yes, one per output |
| Isolation | Field‑to‑logic and channel isolation |
| Mounting | Series 90‑30 PLC baseplate compatible |
| Backplane Current Draw | ~180 mA (5 V) & ~150 mA (24 V) |
| Operating Environment | Industrial control cabinet |
