Introduction

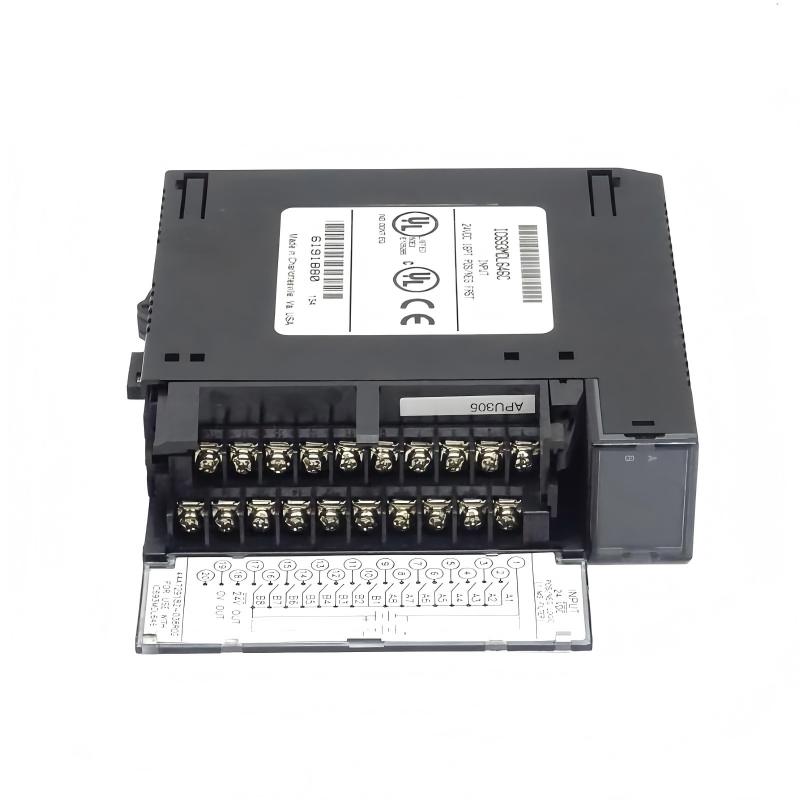

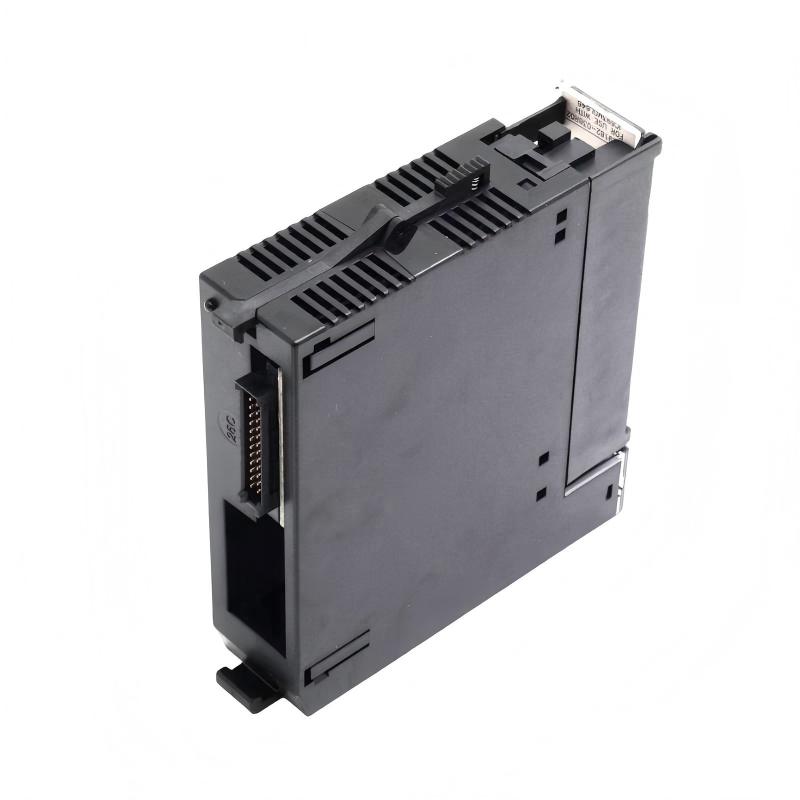

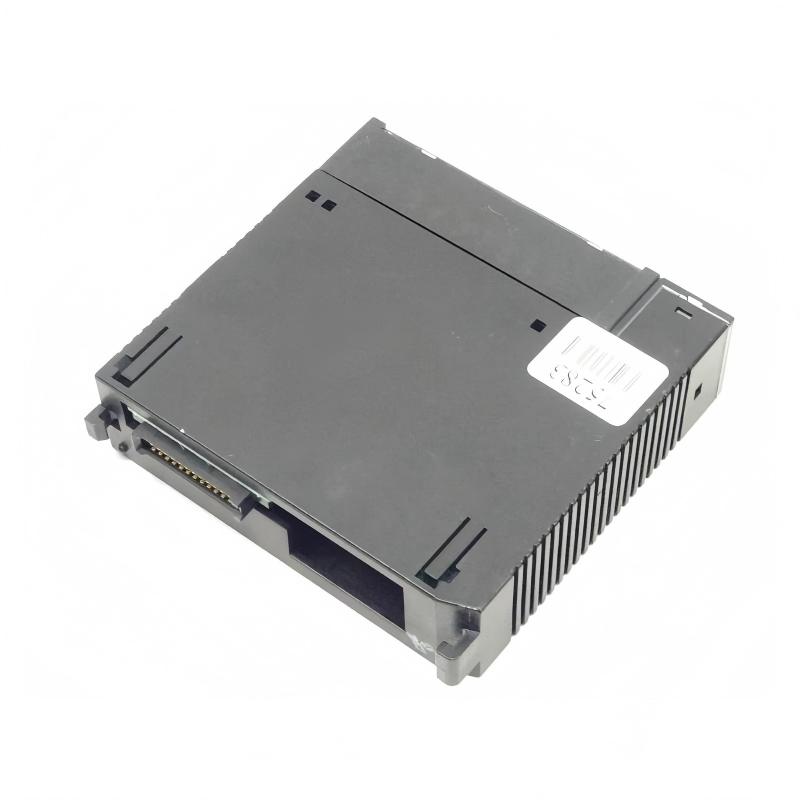

The GE IC693MOL646 Relay Output Module is a versatile discrete output card designed for GE Fanuc Series 90‑30 PLC systems. It provides reliable control of field devices through electromechanical relay outputs, making it ideal for switching higher current or voltage loads such as solenoids, lamps, motors, and alarms. Built for industrial environments, this module combines robust construction with clear LED indicators for each channel, simplifying system monitoring and troubleshooting.
Engineers rely on the IC693MOL646 for applications where galvanic isolation and mechanical relay switching are preferred over solid-state outputs, ensuring safe and predictable operation across a variety of automated processes.
Technical Specifications
| Specification | Description |
|---|---|
| Module Type | Relay Output Module |
| Model | IC693MOL646 |
| Number of Outputs | 16 discrete relay outputs |
| Output Voltage | 24 V DC nominal (up to 120 V AC compatible) |
| Output Current | 2 A per channel |
| Relay Type | Electromechanical SPST relay per channel |
| LED Indicators | Yes, one per output channel |
| Isolation | Each output electrically isolated from backplane and other channels |
| Mounting | Series 90‑30 PLC baseplate compatible |
| Backplane Consumption | ~70 mA (5 V) / ~65 mA (24 V) |
| Operating Environment | Industrial control cabinets |
