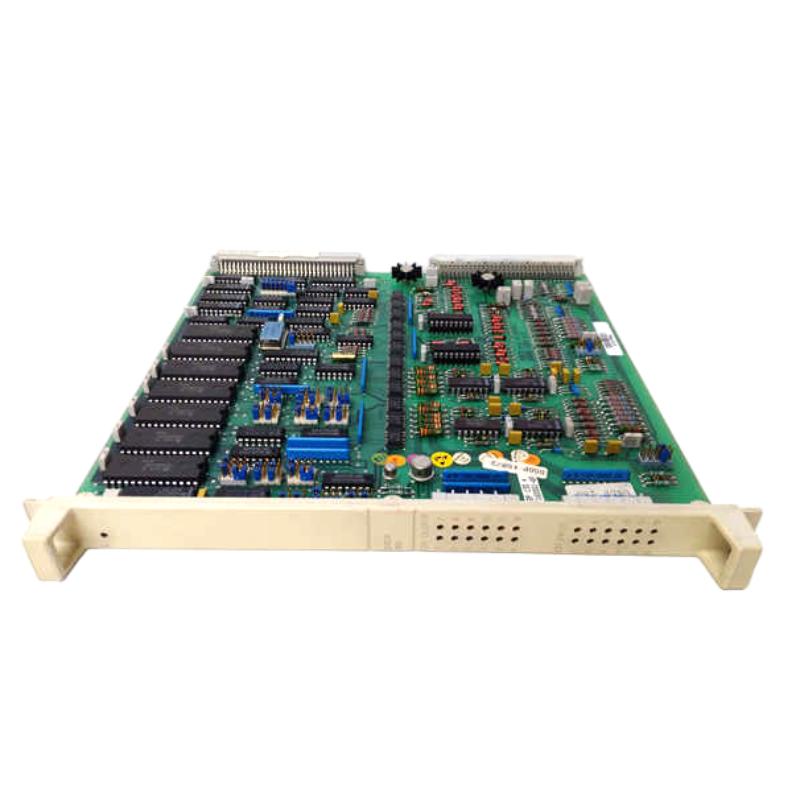

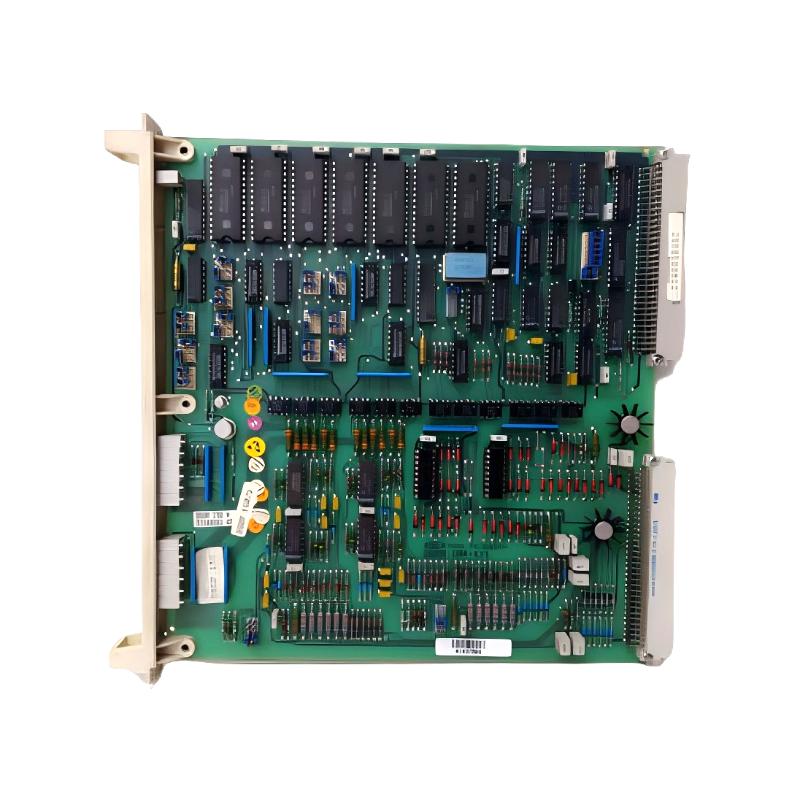

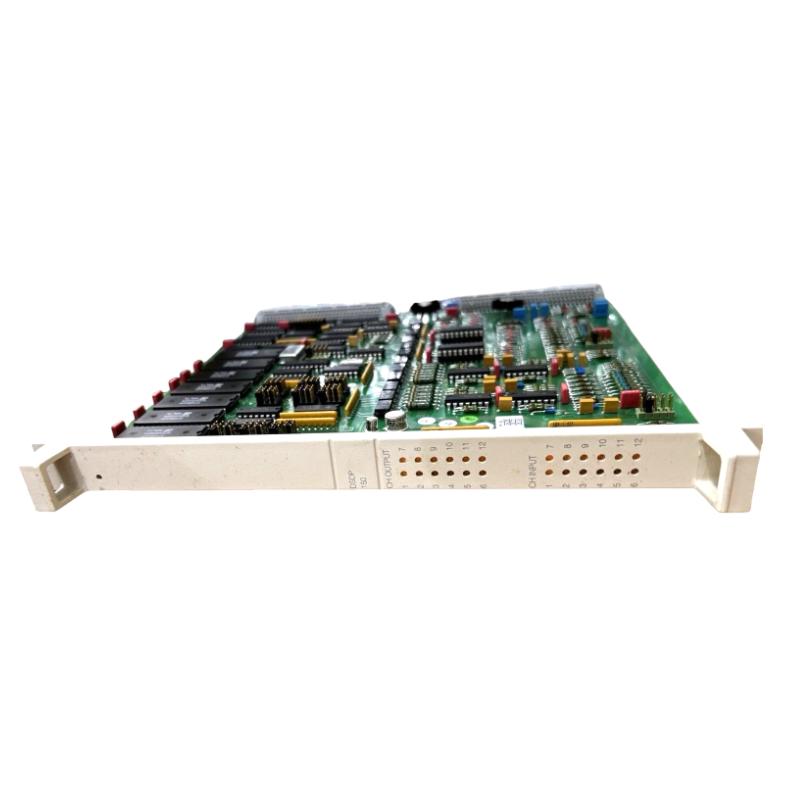

ABB DSDP 150 57160001-GF Pulse Encoder Input Unit

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

ABB DSDP 150 57160001-GF Pulse Encoder Input Unit

Name: ABB DSDP 150 57160001-GF Pulse Encoder Input Unit
Brand: ABB PLC
SKU: 4531
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:DSDP 150
Product Origin:Sweden (SE)
Product Dimensions:360 x 15 x 250 mm
Product Weight:0.425 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction:

The ABB DSDP 150 57160001-GF Pulse Encoder Input Unit is designed to interface with pulse encoders in industrial automation systems, enabling precise measurement of rotational position, speed, and movement. This unit converts pulse signals from encoders into readable data for control systems, making it essential for applications requiring high-accuracy motion tracking, such as robotic systems, CNC machines, and conveyor systems. The DSDP 150 ensures smooth integration into automation setups, offering reliable performance and flexibility across a wide range of industrial processes.

Technical Specifications:

Specification	Details
Dimensions (L x W x H)	360 x 15 x 250 mm
Weight	0.425 kg
Power Supply	24 V DC ± 20%
Input/Output Ports	4 x Pulse encoder inputs
Encoder Types Supported	Incremental, Absolute
Operating Temperature Range	-20°C to +60°C
Mounting Type	DIN rail mounting
Protection Class	IP20
Current Consumption	0.3 A (typical)

Applications:

Industrial Motion Control Systems: The DSDP 150 is used to accurately track and measure the position and speed of rotating machinery, such as motors, shafts, and conveyor belts, ensuring precise control in automation systems.
Robotics and CNC Machines: In robotic arms and CNC (Computer Numerical Control) machines, the module interfaces with encoders to provide real-time feedback on the position and velocity of mechanical components, ensuring smooth and accurate operation.
Position Sensing and Feedback Systems: Ideal for applications requiring real-time positional data, such as material handling and packaging systems, where precise movement and position tracking are crucial for automation efficiency.

Advantages:

High-Precision Motion Tracking: The DSDP 150 interfaces with incremental and absolute encoders, allowing for highly accurate measurement of rotational movement, speed, and position in real-time.
Wide Compatibility: The module supports both incremental and absolute encoder types, offering flexibility for a wide range of industrial applications that require different types of feedback systems.
Energy-Efficient Operation: With a current consumption of just 0.3 A, the DSDP 150 module ensures low energy use while delivering precise encoder data, making it suitable for continuous, long-term operation.

Technical FAQs:

What types of encoders are compatible with the DSDP 150?
The DSDP 150 is compatible with both incremental and absolute encoders, providing flexibility for different motion tracking applications.
What power supply does the DSDP 150 require?
The module operates with a 24 V DC power supply, with a tolerance of ±20%.
What is the operating temperature range of the DSDP 150?
The module is designed to operate in environments with temperatures ranging from -20°C to +60°C, ensuring reliable performance in various industrial settings.
How many pulse encoder inputs does the DSDP 150 support?
The module provides 4 pulse encoder inputs, ideal for applications requiring simultaneous tracking of multiple rotational devices.
Can the DSDP 150 be used for high-speed applications?
Yes, the module is capable of handling high-speed pulse signals from encoders, making it suitable for precision motion control in high-speed applications like robotics and CNC machining.
What is the protection rating of the DSDP 150?
The module is rated IP20, providing protection against solid objects larger than 12 mm, suitable for typical industrial environments.
How is the DSDP 150 module installed?
The module is designed for DIN rail mounting, making it easy to integrate into existing control panels or industrial enclosures.
Is the DSDP 150 compatible with third-party systems?
Yes, it is compatible with systems that use pulse encoders for motion control and feedback, making it versatile for integration into various industrial automation setups.
What is the current consumption of the DSDP 150 module?
The module has a typical current consumption of 0.3 A, ensuring efficient operation with low power usage.
Does the DSDP 150 module include diagnostic features?
Yes, the module includes built-in diagnostics to monitor the health of encoder inputs and quickly identify any issues with the pulse signal or connectivity.
