ABB DSDO 120 57160001-AK Digital Output Unit

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

ABB DSDO 120 57160001-AK Digital Output Unit

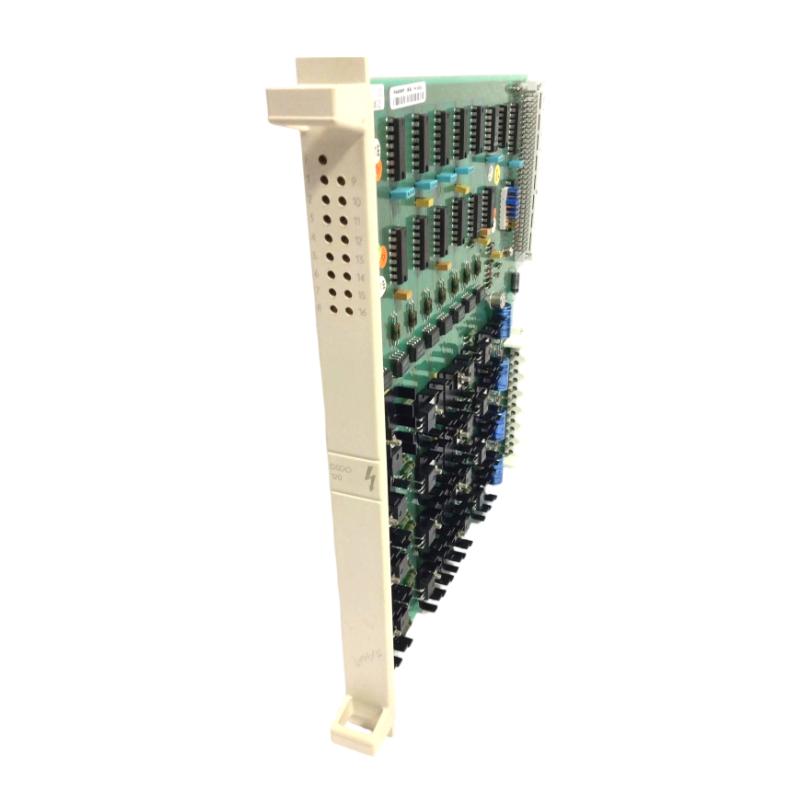

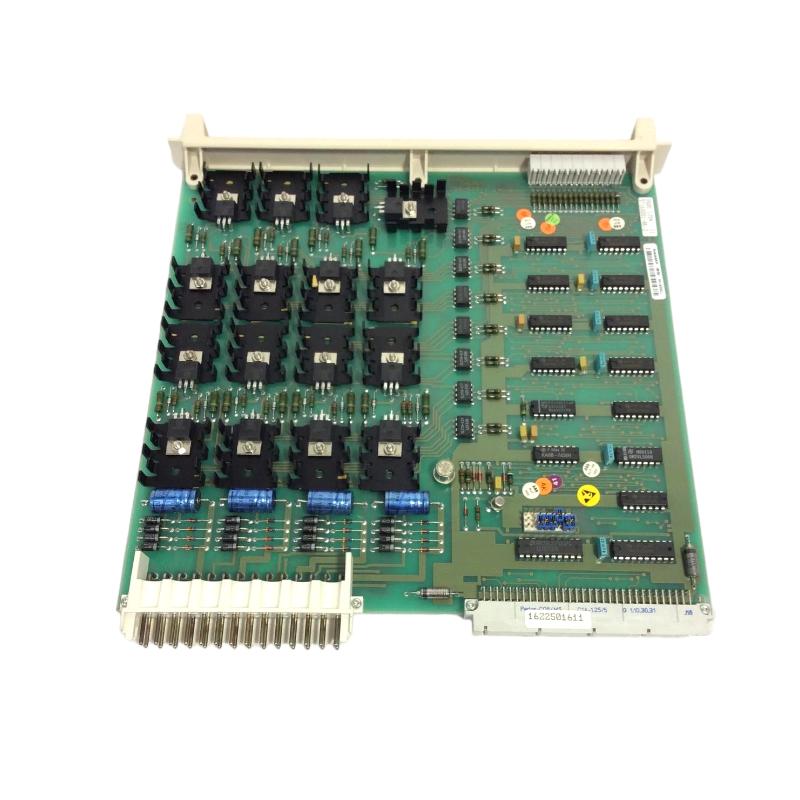

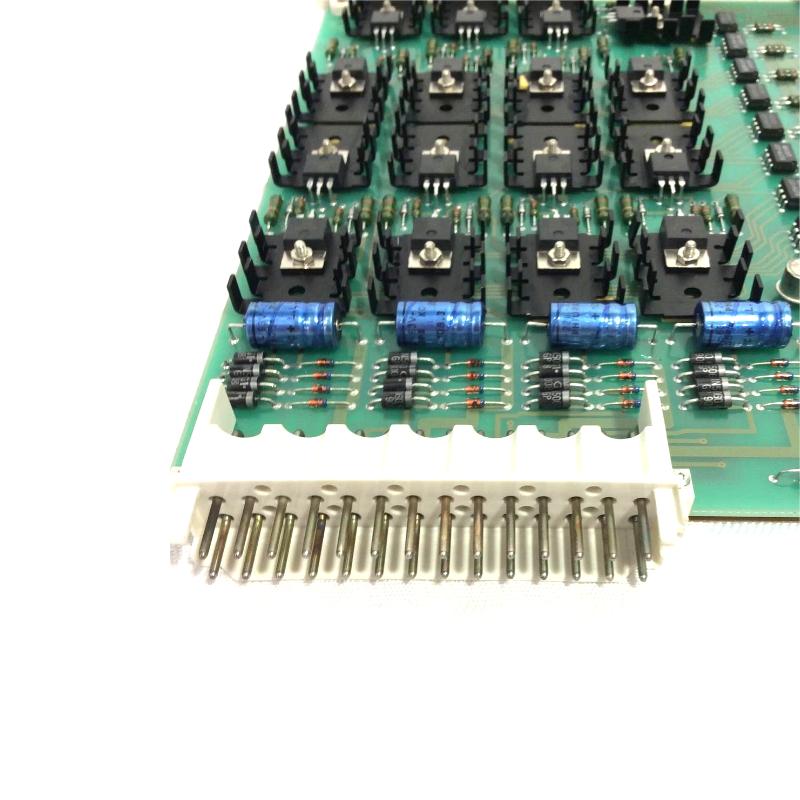

Name: ABB DSDO 120 57160001-AK Digital Output Unit
Brand: ABB PLC
SKU: 4526
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:DSDO 120
Product Origin:Sweden (SE)
Product Dimensions:342 x 22.5 x 238.5mm
Product Weight:0.46 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction:

The ABB DSDO 120 57160001-AK Digital Output Unit is designed to provide reliable and precise control of digital output signals in industrial automation systems. This module serves as an interface for controlling a wide range of field devices such as actuators, motors, solenoids, and relays, through its high-performance digital outputs. With its robust design and high-quality components, the DSDO 120 ensures optimal functionality in a variety of industrial applications, including factory automation, process control, and remote monitoring systems.

Technical Specifications:

Specification	Details
Dimensions (L x W x H)	342 x 22.5 x 238.5 mm
Weight	0.46 kg
Power Supply	24 V DC ± 20%
Input/Output Ports	16 x Digital outputs
Output Type	Sink/Source
Operating Temperature Range	-20°C to +60°C
Mounting Type	DIN rail mounting
Protection Class	IP20
Current Consumption	0.3 A (typical)

Applications:

Industrial Automation Systems: The DSDO 120 module is ideal for controlling various field devices like actuators, solenoids, and relays in automated manufacturing processes, ensuring efficient operation and accurate control.
Process Control: In process control applications, the module provides precise digital outputs to control machinery, valves, and other critical components, optimizing system performance.
Remote Monitoring and Control: The module supports SCADA systems and other remote control applications, enabling centralized monitoring and control of industrial equipment and systems over Ethernet or other networks.

Advantages:

High Output Control: The DSDO 120 module provides 16 digital outputs, allowing for precise and reliable switching of external devices in complex industrial automation systems.
Flexible Output Types: It supports both sink and source output configurations, offering versatile control options for various industrial devices and ensuring compatibility with a wide range of applications.
Energy-Efficient Operation: With a current consumption of 0.3 A, the module is optimized for energy-efficient operation, making it suitable for use in systems that require continuous and reliable performance.

Technical FAQs:

What types of outputs are supported by the DSDO 120?
The DSDO 120 supports both sink and source digital outputs, which can be used to control a variety of external devices, such as relays, actuators, and solenoids.
What is the power supply required for the DSDO 120 module?
The module operates with a 24 V DC power supply, with a tolerance of ±20%.
What is the operating temperature range of the DSDO 120 module?
The module operates in temperatures ranging from -20°C to +60°C, making it suitable for use in a variety of industrial environments.
How many digital outputs does the DSDO 120 provide?
The DSDO 120 offers 16 digital outputs, making it ideal for controlling multiple devices within industrial applications.
Can the DSDO 120 module control heavy machinery?
Yes, the module is capable of controlling heavy machinery by providing reliable digital output control for actuators, relays, and other industrial equipment.
What is the protection rating of the DSDO 120 module?
The module is rated IP20, offering protection against solid objects larger than 12 mm, suitable for typical industrial environments.
How is the DSDO 120 module installed?
The module is designed for DIN rail mounting, providing a convenient and space-saving installation solution for industrial control panels.
Is the DSDO 120 compatible with third-party systems?
Yes, it is compatible with any system that uses digital output control, making it highly versatile and easy to integrate into existing industrial setups.
What is the current consumption of the DSDO 120 module?
The module has a typical current consumption of 0.3 A, ensuring efficient energy use while maintaining high performance.
Does the DSDO 120 module include diagnostic features?
Yes, the module includes integrated diagnostic functions to monitor output statuses and help quickly identify and resolve issues.
