ABB DSBC 172 57310001-KD Bus Repeater Master End

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

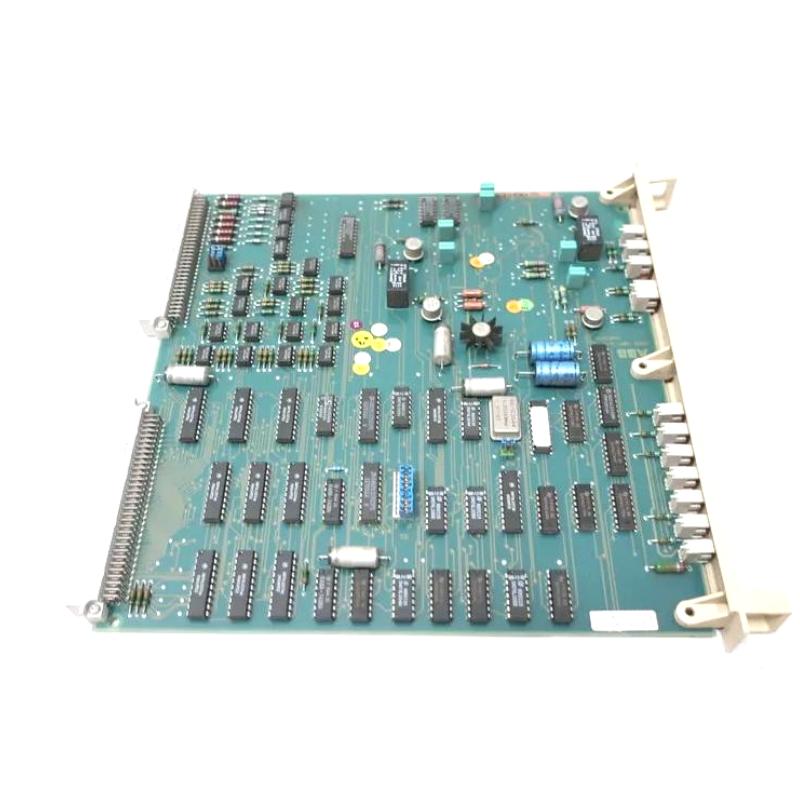

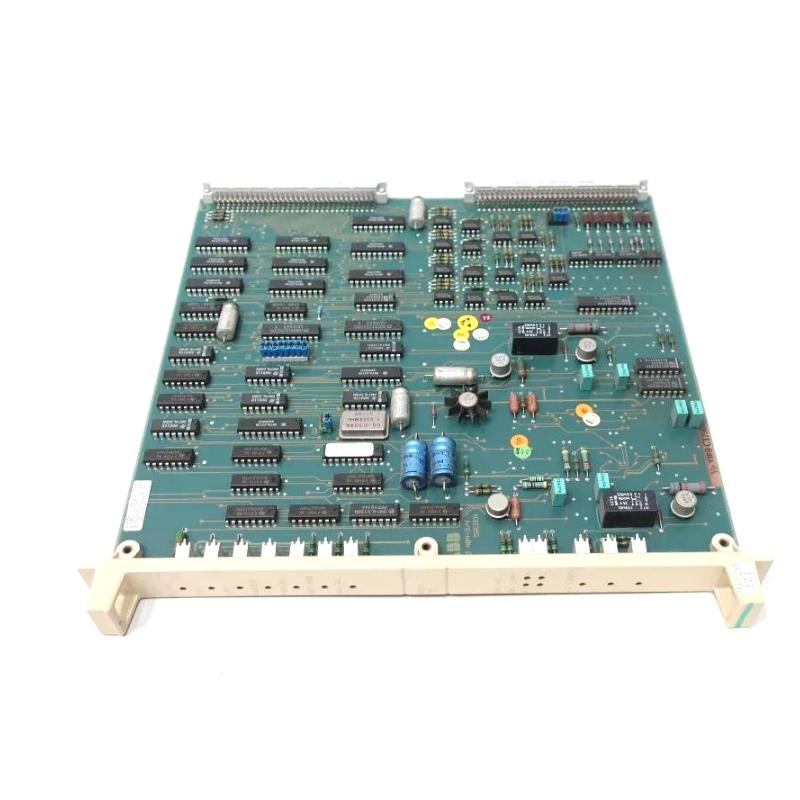

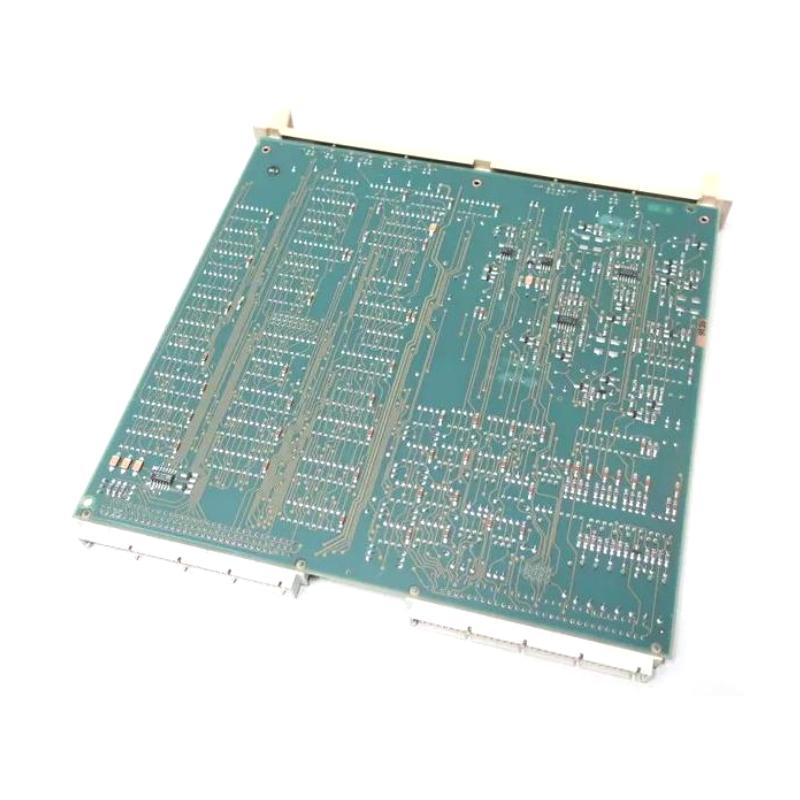

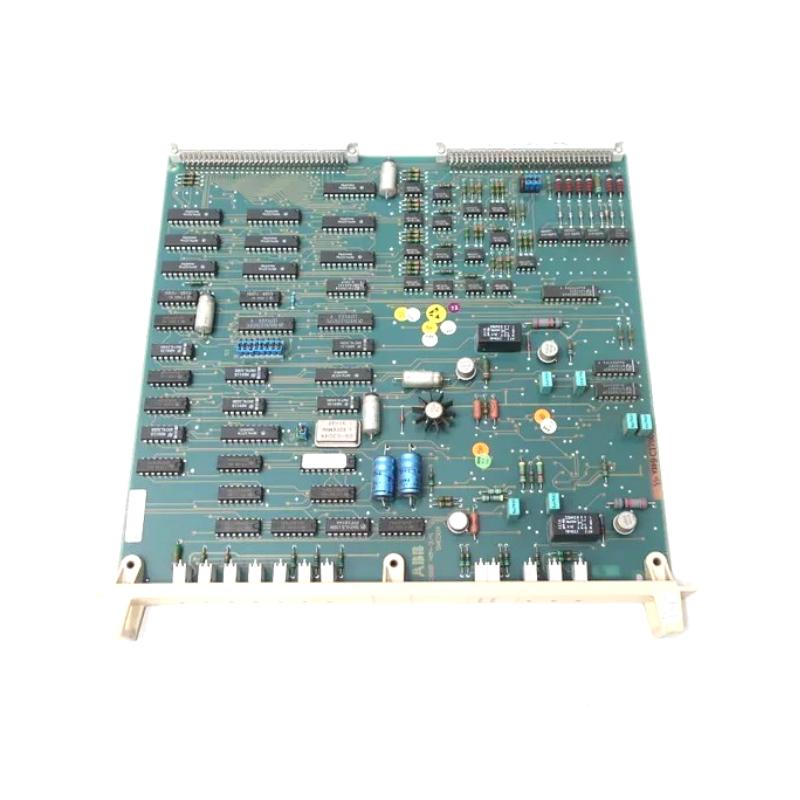

ABB DSBC 172 57310001-KD Bus Repeater Master End

Name: ABB DSBC 172 57310001-KD Bus Repeater Master End
Brand: ABB PLC
SKU: 4523
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:DSBC 172
Product Origin:Sweden (SE)
Product Dimensions:324 x 22.5 x 234 mm
Product Weight:0.4 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction:

The ABB DSBC 172 57310001-KD Bus Repeater Master End is an essential component for extending the reach and improving the reliability of communication in industrial networks. This bus repeater is designed to facilitate communication between field devices and control systems over long distances by regenerating and amplifying signals in Fieldbus networks. With its advanced signal processing capabilities, the DSBC 172 is perfect for applications that require high-performance, long-range communication without signal degradation, making it ideal for large-scale industrial systems and complex automation networks.

Technical Specifications:

Specification	Details
Dimensions (L x W x H)	324 x 22.5 x 234 mm
Weight	0.4 kg
Power Supply	24 V DC ± 20%
Input/Output Ports	2 x RJ45 Ethernet ports
Communication Protocol	Fieldbus
Operating Temperature Range	-20°C to +60°C
Mounting Type	DIN rail mounting
Protection Class	IP20
Current Consumption	0.15 A (typical)

Applications:

Extended Communication Networks: The DSBC 172 is designed to extend the communication range of Fieldbus networks, enabling signal transmission over longer distances between field devices, sensors, and control systems in large industrial setups.
Factory Automation: In large-scale factory automation systems, this module helps ensure reliable communication between distributed control systems and remote I/O modules, ensuring precise operation and minimal downtime.
Complex Industrial Systems: Ideal for complex automation systems requiring robust communication over long distances, the DSBC 172 enhances the performance of the overall system by maintaining signal integrity across multiple network segments.

Advantages:

Signal Regeneration and Amplification: The DSBC 172 module regenerates and amplifies signals, preventing degradation over long distances, ensuring stable and reliable communication in extensive industrial networks.
Energy-Efficient Operation: Consuming only 0.15 A under typical conditions, the DSBC 172 module offers an energy-efficient solution, making it suitable for continuous use in large-scale industrial environments.
Flexible Installation: Designed for DIN rail mounting, the module can be easily integrated into existing control panels, allowing for efficient use of space and ensuring compatibility with standard industrial setups.

Technical FAQs:

What is the maximum communication distance that the DSBC 172 supports?
The DSBC 172 extends the communication range of Fieldbus networks by regenerating and amplifying signals, ensuring reliable communication over long distances (up to 1,000 meters or more depending on network configuration).
What power supply is required for the DSBC 172?
The module operates with a 24 V DC power supply, with a tolerance of ±20%.
What is the operating temperature range of the DSBC 172 module?
The module is designed to operate in environments with temperatures ranging from -20°C to +60°C.
What communication protocols are supported by the DSBC 172?
The DSBC 172 supports the Fieldbus communication protocol, making it compatible with a wide range of industrial devices and systems.
How many devices can be connected through the DSBC 172?
The DSBC 172 supports the communication of multiple devices over extended distances, depending on the network configuration and Fieldbus setup.
How is the DSBC 172 module installed?
The DSBC 172 is designed for DIN rail mounting, allowing for simple and secure installation in control panels or industrial enclosures.
What is the protection rating of the DSBC 172?
The module is rated IP20, offering protection against solid objects larger than 12 mm.
Is the DSBC 172 suitable for hazardous environments?
No, the DSBC 172 module is intended for standard industrial environments and is not certified for use in hazardous areas.
Can the DSBC 172 be used for high-speed communication?
Yes, the module supports high-speed data transfer and ensures reliable communication at distances, maintaining signal integrity even in extensive network configurations.
What diagnostic functions does the DSBC 172 include?
The module includes integrated diagnostics for monitoring network performance and identifying any communication issues quickly and efficiently.
