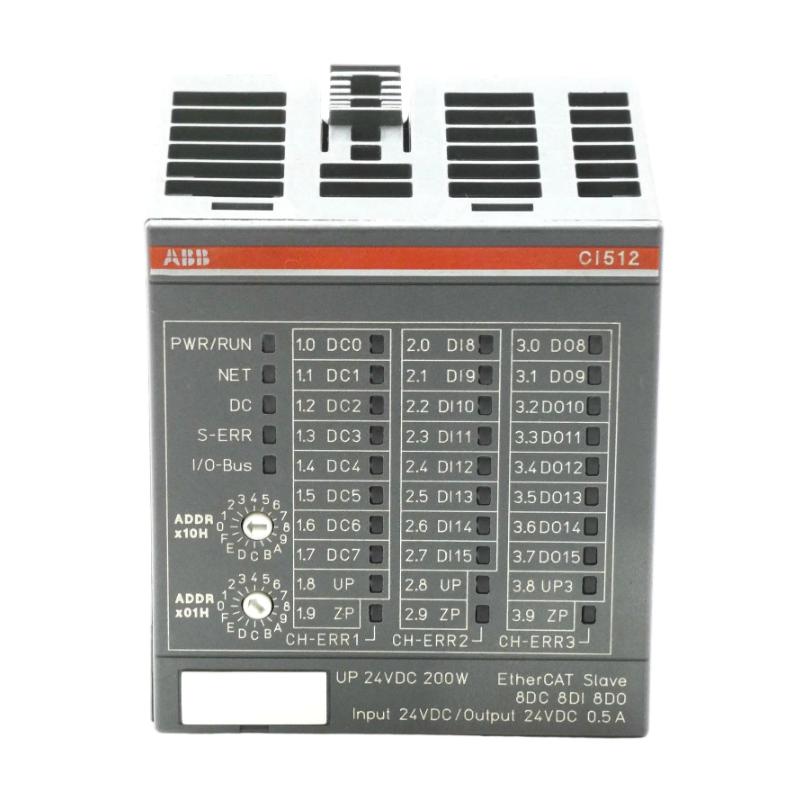

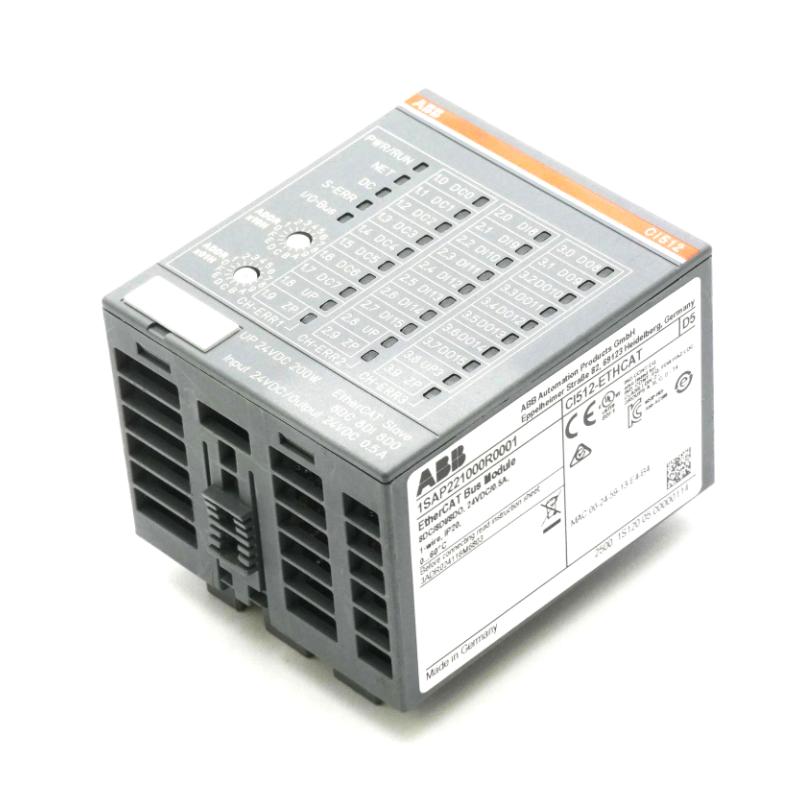

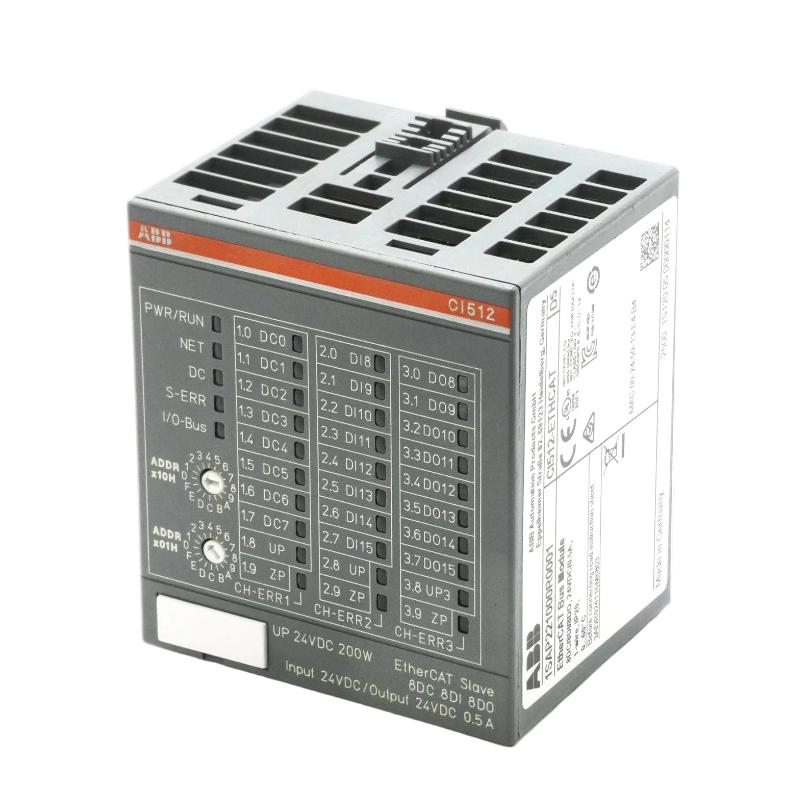

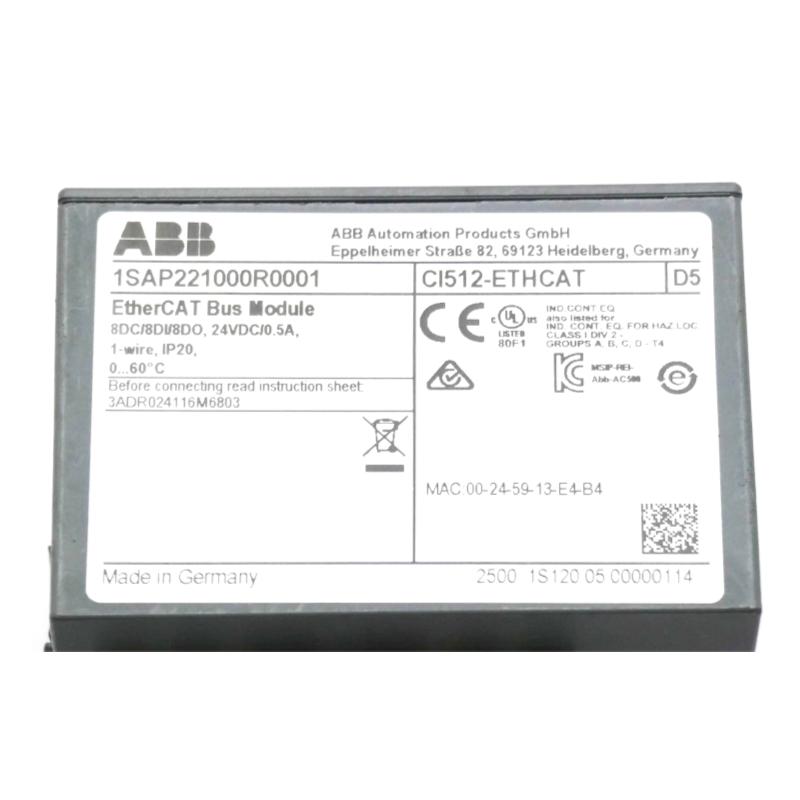

ABB CI512-ETHCAT 1SAP221000R0001 Interface Module

Name: ABB CI512-ETHCAT 1SAP221000R0001 Interface Module
Brand: ABB PLC
SKU: 4518
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:CI512-ETHCAT
Product Origin:Sweden (SE)
Product Dimensions:62 x 76 x 67.5 mm
Product Weight:0.138 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction:

The ABB CI512-ETHCAT 1SAP221000R0001 Interface Module is a highly efficient and reliable communication interface, designed to integrate seamlessly into industrial automation systems. This module enables fast and secure data exchange between various control systems and field devices, supporting EtherCAT communication protocol. Whether for factory automation, energy monitoring, or remote control applications, the CI512-ETHCAT ensures smooth operation with minimal latency, making it a valuable addition to any automation network.

Technical Specifications:

Specification	Details
Dimensions (L x W x H)	62 x 76 x 67.5 mm
Weight	0.138 kg
Power Supply	24 V DC ± 20%
Input/Output Ports	2 x RJ45 Ethernet ports
Communication Protocol	EtherCAT
Operating Temperature Range	-20°C to +60°C
Mounting Type	DIN rail mounting
Protection Class	IP20
Current Consumption	0.07 A (typical)

Applications:

Industrial Automation Systems: The CI512-ETHCAT module facilitates fast and efficient communication within automated manufacturing systems, connecting various components like PLCs, sensors, and I/O systems to ensure precise control and operation.
Energy Management and Distribution: Ideal for energy monitoring systems, this module provides high-speed communication for real-time data acquisition from energy meters and control units, helping to optimize power distribution and reduce waste.
Remote Monitoring and Control: The module supports applications that require remote monitoring and control of equipment, such as SCADA (Supervisory Control and Data Acquisition) systems, where remote data collection and system management are essential for operational efficiency.

Advantages:

Fast Communication with EtherCAT: The CI512-ETHCAT uses the EtherCAT protocol, which provides low-latency, real-time communication, ideal for high-speed applications requiring immediate data exchange between devices.
Energy-Efficient Operation: The module consumes only 0.07 A under typical conditions, making it highly energy-efficient, thus reducing operating costs and extending the longevity of the entire system.
Flexible Integration with Existing Systems: The module supports DIN rail mounting, allowing easy installation in control panels and offering a flexible solution for integration into existing automation setups without the need for additional modifications.

Technical FAQs:

What is the communication speed supported by the CI512-ETHCAT module?
The module supports EtherCAT communication at up to 100 Mbps, ensuring fast and reliable data transmission.
What power supply does the CI512-ETHCAT module require?
The module operates with a 24 V DC power supply, with a tolerance of ±20%.
What is the operating temperature range for the CI512-ETHCAT module?
It operates efficiently in environments ranging from -20°C to +60°C.
How many devices can the CI512-ETHCAT module connect to?
The module can support up to 64 devices on an EtherCAT network, depending on the configuration.
Is the CI512-ETHCAT module compatible with other EtherCAT devices?
Yes, the module is fully compatible with any device supporting the EtherCAT protocol.
What is the typical installation method for the CI512-ETHCAT module?
The CI512-ETHCAT module is designed for DIN rail mounting, allowing for simple integration into existing industrial control panels.
What is the protection rating of the CI512-ETHCAT module?
The module has an IP20 protection rating, offering protection against solid objects larger than 12 mm.
Is the CI512-ETHCAT module suitable for hazardous environments?
No, this module is not certified for use in hazardous locations, but it is suitable for typical industrial environments.
How easy is it to configure the CI512-ETHCAT module?
Configuration is straightforward using ABB Automation Studio or other compatible software tools for EtherCAT networks.
What diagnostic features does the CI512-ETHCAT module include?
The module includes built-in diagnostic capabilities to monitor network health, detect issues, and help troubleshoot any communication problems quickly.
