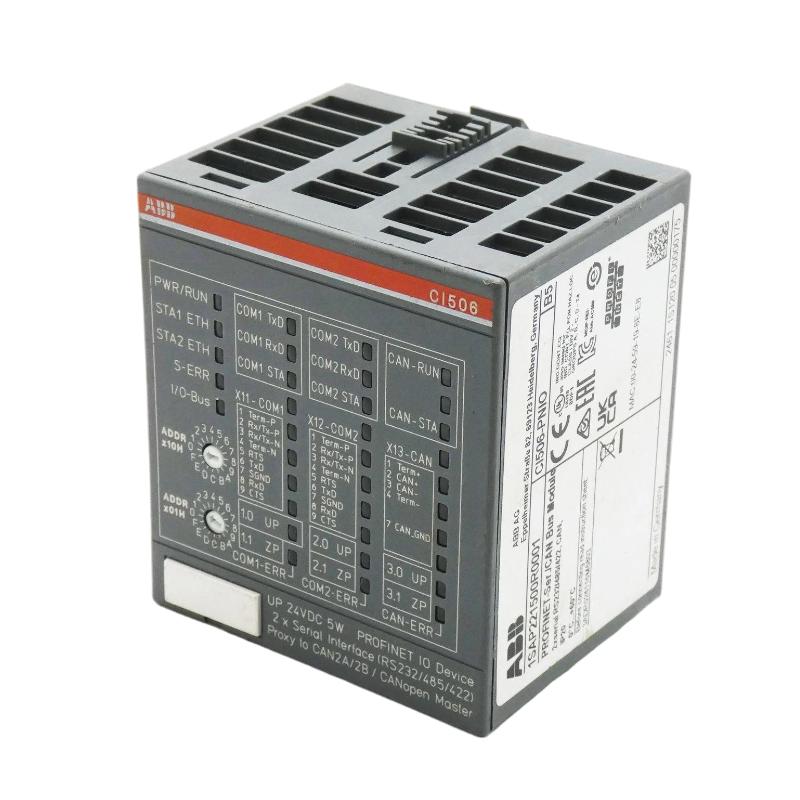

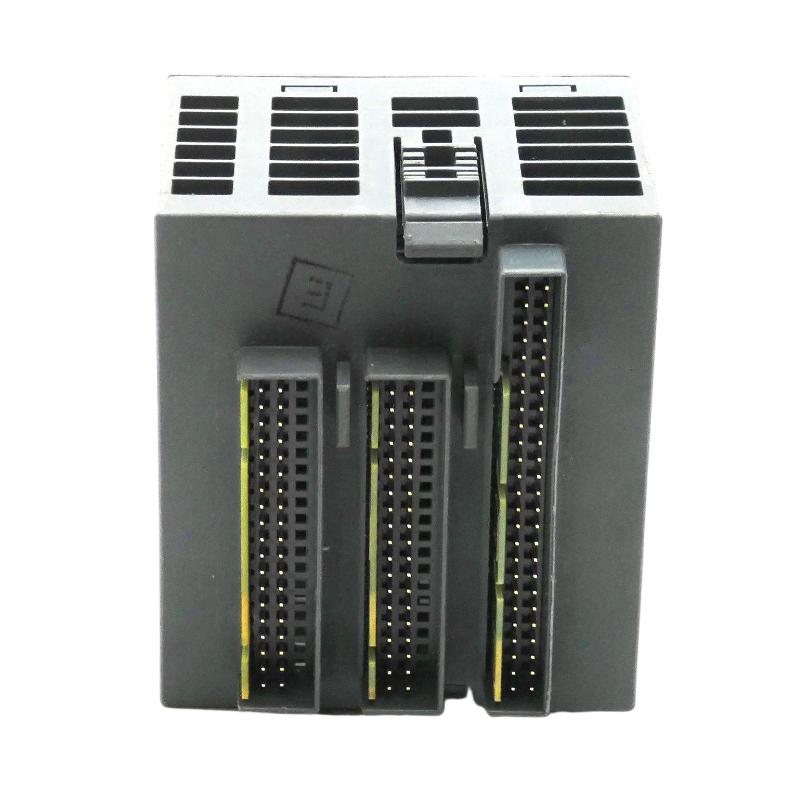

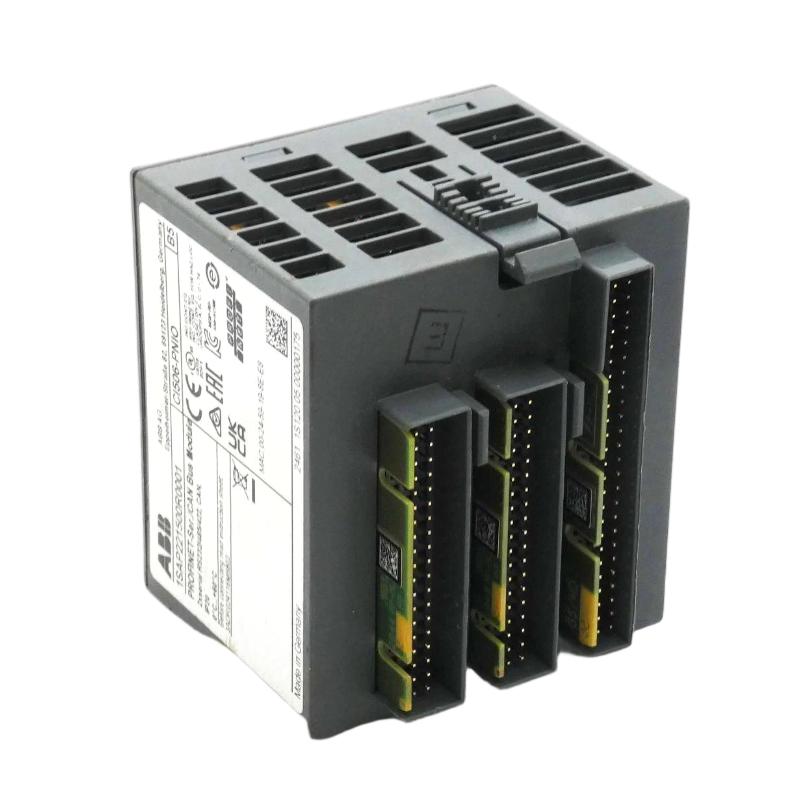

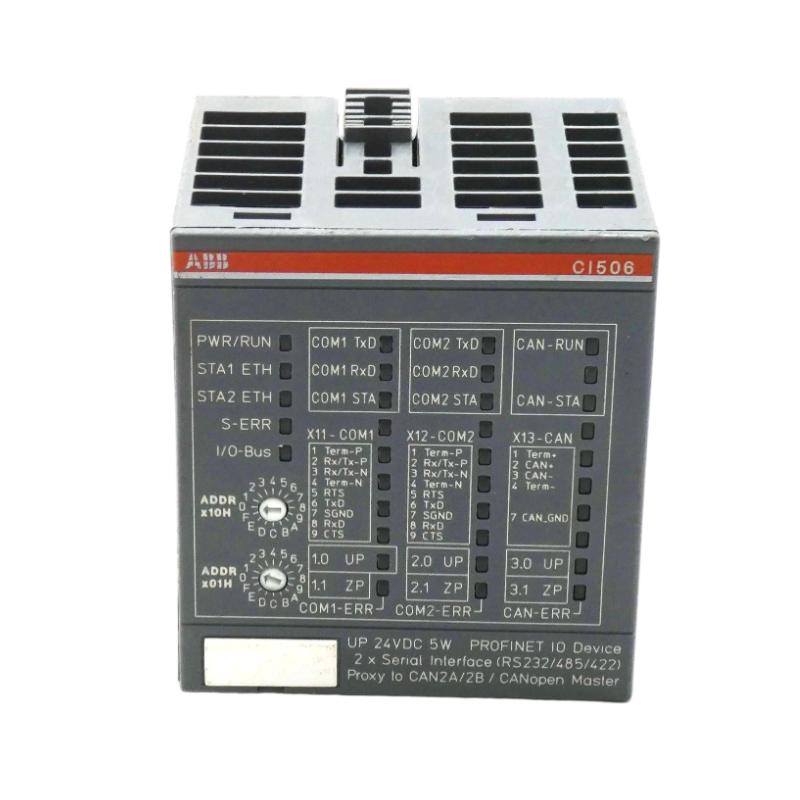

ABB CI506-PNIO 1SAP221500R0001 Interface Module

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

ABB CI506-PNIO 1SAP221500R0001 Interface Module

Name: ABB CI506-PNIO 1SAP221500R0001 Interface Module
Brand: ABB PLC
SKU: 4517
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:CI506-PNIO
Product Origin:Sweden (SE)
Product Dimensions:62 x 76 x 67.5mm
Product Weight:0.144 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction:

The ABB CI506-PNIO 1SAP221500R0001 Interface Module is a high-performance communication interface designed to seamlessly integrate into industrial automation systems. It provides reliable and fast data exchange between control systems and field devices, supporting both Profinet and EtherNet/IP protocols. This module plays a crucial role in enhancing operational efficiency by enabling precise control, monitoring, and communication in a variety of industrial applications.

Technical Specifications:

Specification	Details
Dimensions (L x W x H)	62 x 76 x 67.5 mm
Weight	0.144 kg
Power Supply	24 V DC ± 20%
Input/Output Ports	2 x RJ45 Ethernet ports
Communication Protocol	Profinet, EtherNet/IP
Operating Temperature Range	-20°C to +60°C
Mounting Type	DIN rail mounting
Protection Class	IP20
Current Consumption	0.07 A (typical)

Applications:

Industrial Automation Systems: The CI506-PNIO is integral to factory automation, enabling high-speed communication between PLCs, sensors, and peripheral devices. It supports a wide range of industrial networks, facilitating reliable data transfer and control.
Energy Distribution and Monitoring: Ideal for energy management applications, the module ensures fast and secure communication between power meters, control units, and supervisory systems, contributing to real-time data monitoring and power optimization.
Remote Control and Monitoring: Thanks to its Ethernet-based connectivity, the CI506-PNIO is ideal for SCADA systems, providing remote operators with access to control and monitor equipment across geographically dispersed locations.

Advantages:

Flexible and Robust Communication: The module’s support for Profinet and EtherNet/IP allows it to seamlessly integrate into diverse industrial control systems, offering flexibility in network configurations and device compatibility.
Energy-Efficient Performance: Operating at just 0.07 A of current consumption, this module is designed to deliver high performance while keeping energy usage low, making it a cost-effective choice for long-term operations.
Reliable and Durable Construction: Built to withstand industrial environments, the CI506-PNIO offers robust protection with an IP20 rating, ensuring longevity and reliable operation in typical factory settings.

Technical FAQs:

What is the maximum communication speed for the CI506-PNIO module?
The CI506-PNIO module supports 100 Mbps (Fast Ethernet) for efficient data transfer.
What power supply is required for the CI506-PNIO module?
The module operates with a 24 V DC power supply, with a tolerance of ±20%.
What is the typical operating temperature range for this module?
The module can operate in environments with temperatures ranging from -20°C to +60°C.
How many devices can be connected to the CI506-PNIO module?
The module supports up to 255 devices connected via Profinet or EtherNet/IP networks.
Is the CI506-PNIO module compatible with both Profinet and EtherNet/IP?
Yes, it is compatible with both Profinet and EtherNet/IP, ensuring broad compatibility with industrial networks.
What is the preferred installation method for the CI506-PNIO module?
The module is designed for DIN rail mounting, simplifying the installation process in control panels.
What protection class is the CI506-PNIO module rated for?
It is rated at IP20, offering protection against solid objects larger than 12 mm, making it suitable for general industrial environments.
Is the CI506-PNIO module suitable for hazardous environments?
The CI506-PNIO is not certified for hazardous environments but can operate in most standard industrial settings with proper enclosure.
How simple is it to configure the CI506-PNIO module?
Configuration is user-friendly and can be done using ABB’s Automation Studio or other compatible tools for Profinet and EtherNet/IP.
What kind of system diagnostics can the CI506-PNIO module provide?
The module includes advanced diagnostic tools to help quickly identify network issues, ensuring easy troubleshooting and faster system recovery.
