ABB PFTL201CD 3BSE028140R65 Tension Sensor

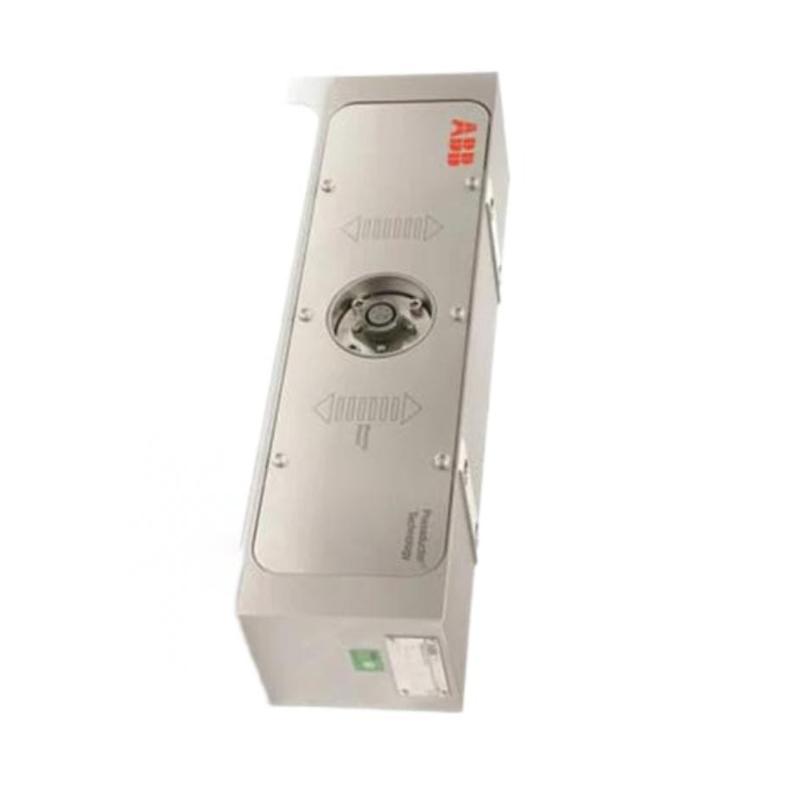

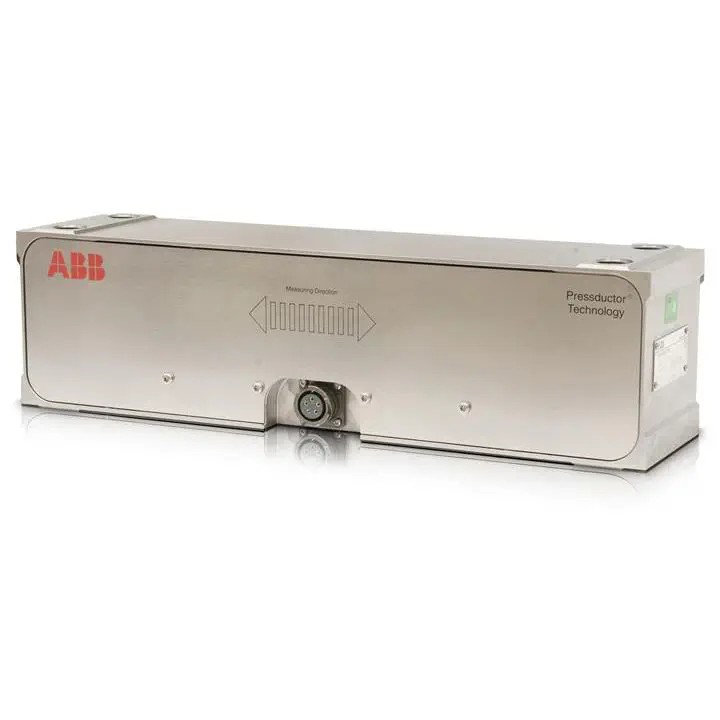

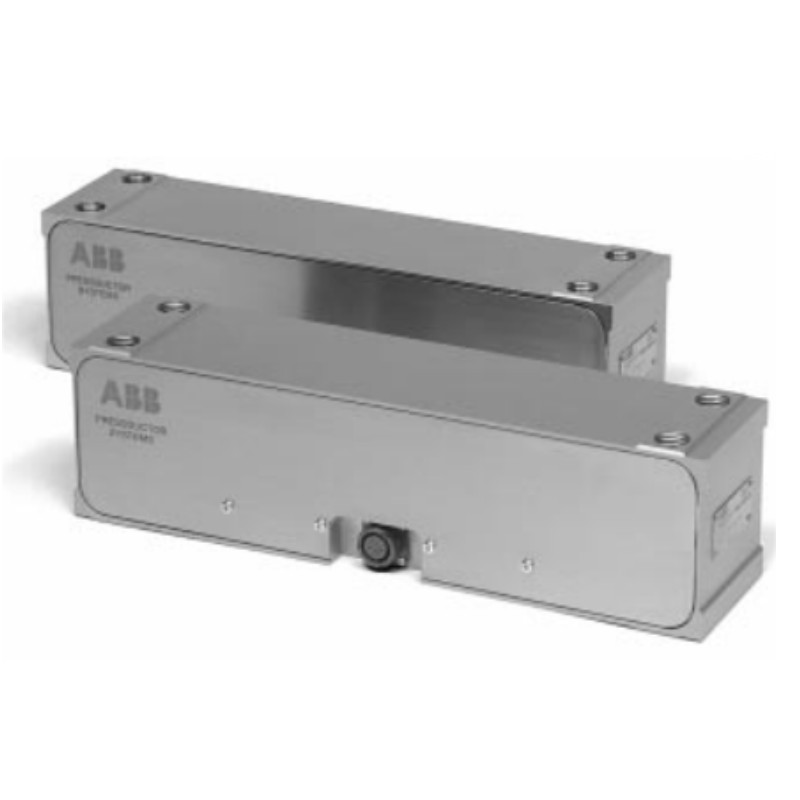

Name: ABB PFTL201CD 3BSE028140R65 Tension Sensor
Brand: ABB PLC
SKU: 4507
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:PFTL201CD 3BSE028140R65
Product Origin:Sweden
Product Dimensions:150 × 70 × 45 mm
Product Weight:0.5kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The ABB PFTL201CD load cell is a high-precision tension and force sensor designed for industrial measurement applications. Built on a robust sensing principle, this load cell delivers reliable, repeatable readings even under continuous use. Its rugged design makes it a strong choice for environments where accuracy, durability, and long-term stability are critical, such as material handling, web tension monitoring, and process control systems.

Technical Specifications (with Dimensions & Weight)

Specification	Details
Model Number	PFTL201CD
Product Type	Load Cell / Tension Sensor
Manufacturer	ABB
Measurement Principle	High-accuracy force sensing technology
Rated Force Capacity	Typically up to 20 kN (varies by configuration)
Output Signal	Analog output proportional to applied force
Accuracy	High precision with low drift
Overload Tolerance	High overload capacity for industrial shock resilience
Mounting Style	Pillow block or frame mount
Operating Temperature	Industrial range
Environmental Protection	Designed for vibration and harsh environments
Dimensions (H × W × D)	Approx. 150 × 70 × 45 mm
Net Weight	Approx. 0.5 kg
Typical Use	Tension measurement, web control, load monitoring

Applications

The PFTL201CD is ideal for systems requiring continuous and accurate force feedback. Common applications include strip tension monitoring in rolling mills, web handling and converting lines, winding and unwinding processes, and material handling systems. It is also used in process automation where reliable tension data is essential for closed-loop control, quality assurance, and reducing production waste.

Advantages

Exceptional Accuracy: Designed for precise force measurement with stable long-term performance.
Strong Overload Resistance: Built to tolerate shock and overload conditions beyond nominal ratings.
Industrial Durability: Constructed to withstand vibration, dust, and harsh operating environments.
Easy Installation: Pillow block mounting makes integration into existing machinery straightforward.
Consistent Output: Provides stable analog signals suitable for controllers and monitoring systems.

Technical FAQs (10 Common Questions)

What does the PFTL201CD measure?
It measures tension or force applied to the load cell in industrial settings.
What is the rated capacity?
It is typically rated up to around 20 kN, depending on the configuration.
What output signal does it provide?
It provides an analog output proportional to the applied force.
Is it suitable for continuous operation?
Yes, it is designed for long-term use in industrial environments.
Can it handle overload or shock?
Yes, it has high overload tolerance for industrial conditions.
What mounting style is used?
Pillow block or frame mounting for easy integration.
What industries commonly use this load cell?
Web handling, converting, rolling mills, and material handling industries.
What are the dimensions?
Approximately 150 × 70 × 45 mm.
What is the weight?
Approximately 0.5 kg.
Can it be used with tension controllers?
Yes, it is often paired with tension electronics and PLC systems for closed-loop control.
