ABB PCO 012 3BDZ000372R1 PROFIBUS DP Connector

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

ABB PCO 012 3BDZ000372R1 PROFIBUS DP Connector

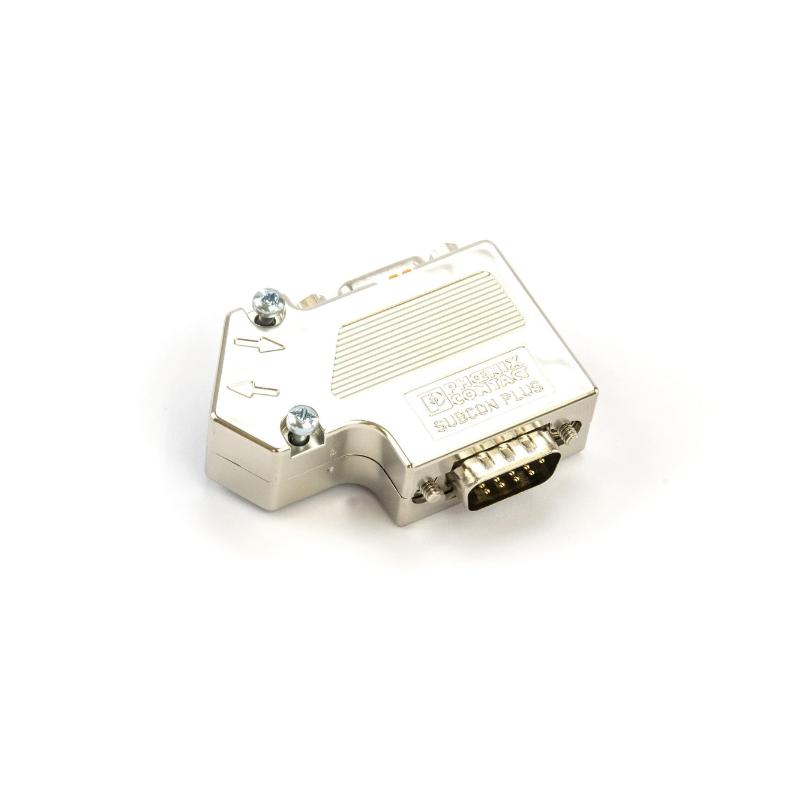

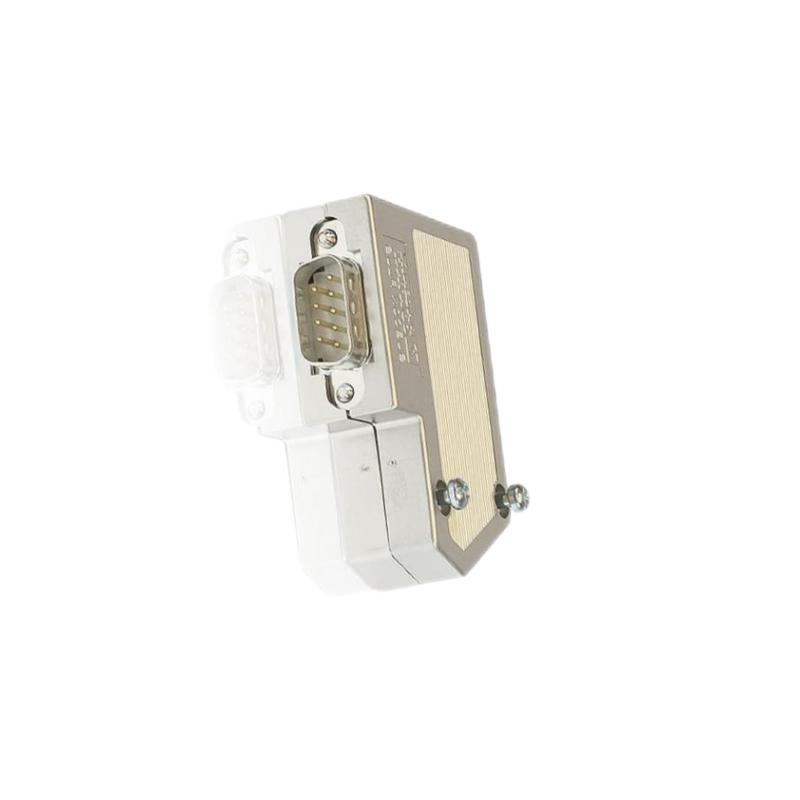

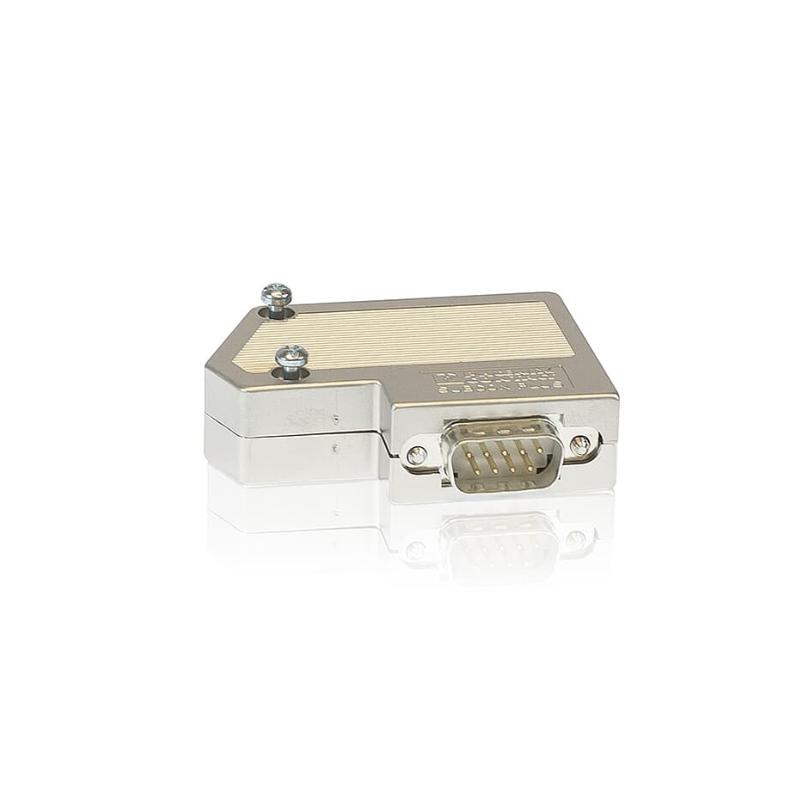

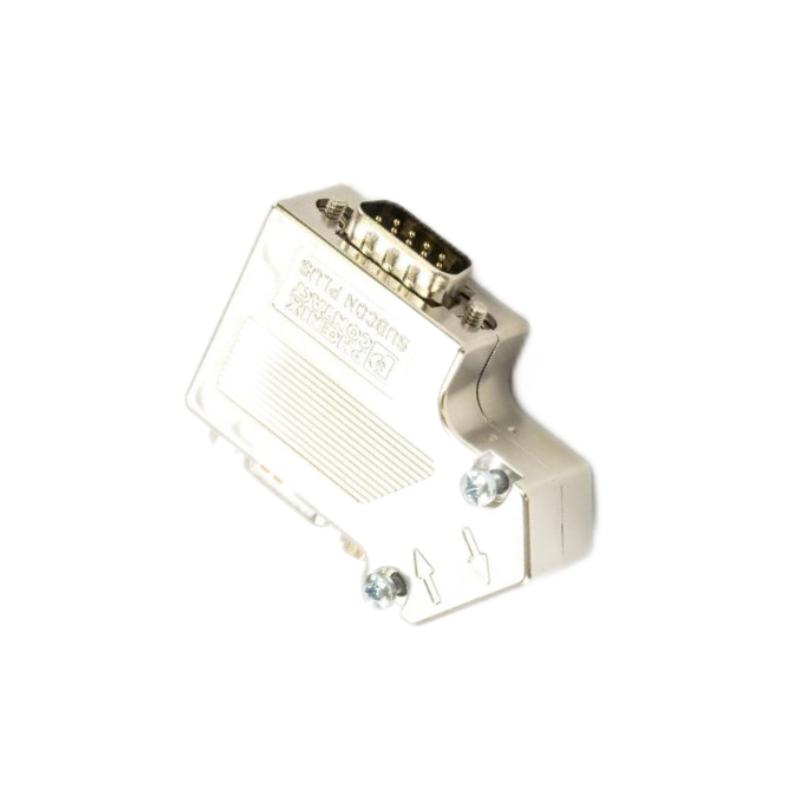

Name: ABB PCO 012 3BDZ000372R1 PROFIBUS DP Connector
Brand: ABB PLC
SKU: 4482
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:PCO 012 3BDZ000372R1
Product Origin:Sweden
Product Dimensions:82.8 × 34.2 × 58.5 mm
Product Weight:0.38 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The ABB PCO 012 3BDZ000372R1 is a dedicated PROFIBUS DP connector designed for industrial networks that require both reliable signal transmission and practical installation features. This connector is built to provide stable communication in harsh factory environments while offering integrated bus termination and a convenient programming/test interface. For system builders and panel designers, the PCO 012 streamlines wiring layouts and helps maintain network integrity over long PROFIBUS segments.

Technical Specifications (with Dimensions & Weight)

Specification	Details
Model Number	PCO 012 3BDZ000372R1
Product Type	PROFIBUS DP Connector
Manufacturer	ABB
Communication Standard	PROFIBUS DP
Connector Type	PROFIBUS DP interface with integrated adapter
Bus Termination	Switchable termination included
Programming/Test Interface	Sub-D connection for diagnostics or programming
Mounting Style	Panel or device mounting compatible
Operating Temperature	Industrial range
Environmental Rating	Designed for vibration and electrical noise resilience
Dimensions (H × W × D)	Approx. 82.8 × 34.2 × 58.5 mm
Net Weight	Approx. 0.38 kg
Typical Use	PROFIBUS DP network connection and termination

Applications

This connector is widely used in PROFIBUS DP networks across manufacturing, process automation, and utilities. It is especially valuable in control panels, machine enclosures, and field junction boxes where a stable bus interface and clean cable management are essential. Typical applications include linking PLCs, HMIs, drives, and distributed I/O modules, as well as providing a convenient access point for programming and network diagnostics.

Advantages

Integrated Termination: Built-in switchable termination simplifies network setup and improves signal stability.
Programming/Test Access: The Sub-D interface offers an easy way to connect diagnostic tools without disrupting the main bus.
Reliable Industrial Design: Designed to withstand vibration, electrical noise, and typical industrial operating conditions.
Space-Saving Footprint: Compact size fits well in tight panel layouts and junction boxes.
Improved Network Reliability: Helps maintain signal integrity over longer cable runs and complex installations.

Technical FAQs (10 Common Questions)

What is the ABB PCO 012 used for?
It is a PROFIBUS DP connector that includes integrated termination and a programming/test interface.
Does it support bus termination?
Yes, it has a switchable termination function built in.
Can it be used for programming access?
Yes, it provides a Sub-D port for diagnostic or programming connections.
What PROFIBUS speed does it support?
It supports standard PROFIBUS DP communication speeds up to 12 Mbit/s.
Is it compatible with other PROFIBUS DP devices?
Yes, it follows standard PROFIBUS DP physical specifications and works with compatible devices.
Does it require external power?
No, it is a passive connector and does not need a power supply.
Can it be panel mounted?
Yes, it is designed for panel or device mounting.
Is it suitable for harsh industrial environments?
Yes, it is built to handle vibration and electrical noise typical of factory settings.
What are its dimensions?
Approximately 82.8 × 34.2 × 58.5 mm.
What is its weight?
Approximately 0.38 kg.
