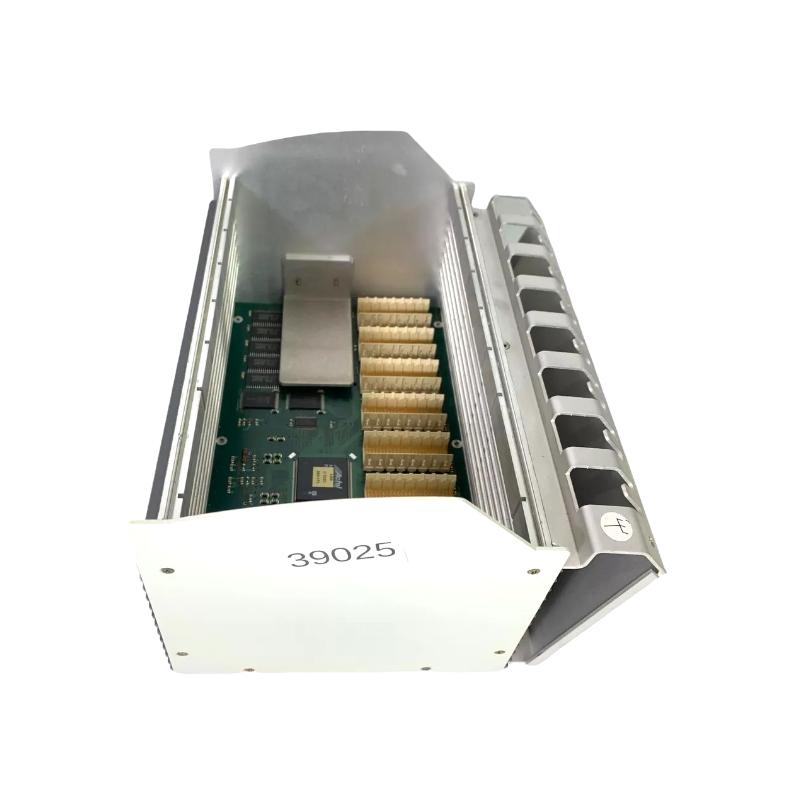

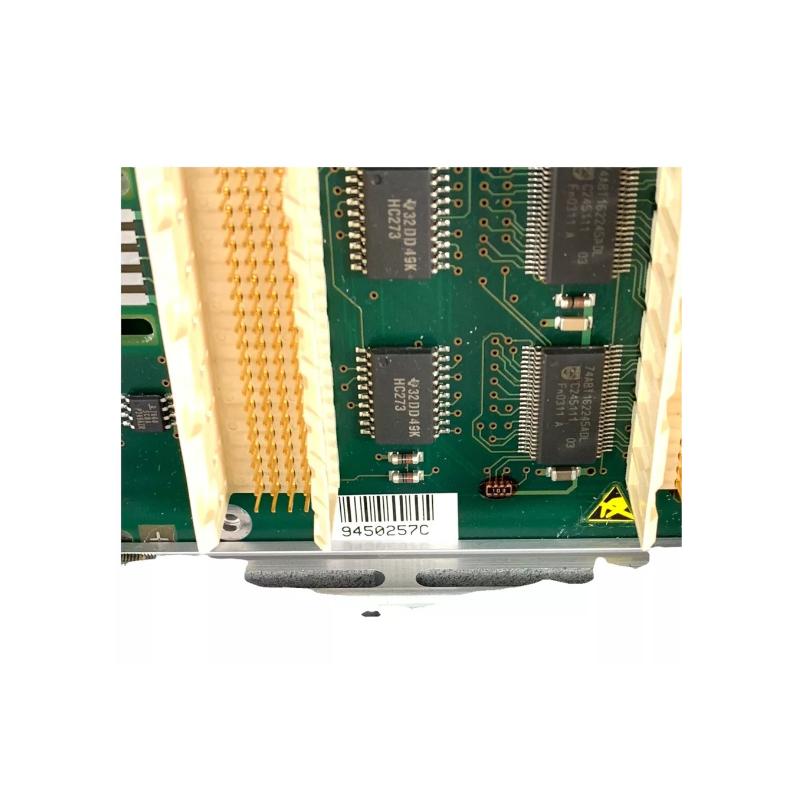

ABB PM 802F 3BDH000002R1 CPU Processor Unit

Name: ABB PM 802F 3BDH000002R1 CPU Processor Unit
Brand: ABB PLC
SKU: 4475
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:PM 802F 3BDH000002R1
Product Origin:Sweden
Product Dimensions:239 × 164 × 202 mm
Product Weight:1.5 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The ABB PM 802F 3BDH000002R1 is a high-performance CPU processor unit from ABB’s AC800F automation family. Designed for demanding industrial environments, this controller serves as the central processing backbone of a distributed control system (DCS), delivering reliable logic execution, real-time communication, and scalable I/O integration. Its modular architecture and proven control capabilities make it a trusted choice for complex automation tasks across manufacturing, energy, and process industries.

Technical Specifications (with Dimensions & Weight)

Specification	Details
Model Number	PM 802F 3BDH000002R1
Module Type	CPU Processor Unit / Base Unit
Manufacturer	ABB
Processor	32-bit RISC Super Scalar CPU, up to 150 MIPS
RAM Memory	4 MB static RAM with battery backup
Flash-EPROM	4 MB, 32-bit words
CPU Cache	16 KB internal cache RAM
I/O Slots	4 fieldbus module slots
Communication Interfaces	Supports Ethernet and fieldbus protocols
Operating Temperature Range	Typical industrial range
Mounting	Rack or panel mount
Dimensions (H × W × D)	Approx. 239 × 164 × 202 mm
Net Weight	Approx. 1.5 kg
Expandability	Modular I/O and communication modules

Applications

The ABB PM 802F controller unit is engineered for large-scale and distributed automation platforms where performance, reliability, and real-time control are essential. Typical use cases include central processing in distributed control systems, logic execution in process automation, and integration with PLCs, HMIs, and supervisory control systems. It is especially suited for petrochemical, energy, and material processing industries where scalable I/O and multi-protocol communications are critical to operational success.

Advantages

Industrial-grade Processing Power: Capable CPU ensures fast and dependable execution of control logic.
Modular Architecture: Supports flexible expansion with fieldbus and communication interface modules.
Reliable Memory with Backup: Battery-backed RAM protects program data against power interruptions.
Scalable I/O Support: Multiple slots allow integration of extensive I/O modules for large systems.
Redundancy Support: Compatible with redundant configurations for mission-critical operations.

Technical FAQs (10 Common Questions)

What is the primary function of the PM 802F?
It serves as the central CPU and base unit in ABB’s AC800F control system.
What processor does it use?
A 32-bit RISC Super Scalar processor capable of up to 150 MIPS.
How much memory does it have?
It includes 4 MB of static RAM with battery backup.
Can it support network communications?
Yes, it interfaces with Ethernet and fieldbus protocols.
Is it expandable?
Yes, the module supports additional I/O and communication cards.
Can it operate in harsh industrial environments?
Yes, it is built to meet industrial temperature and shock conditions.
What are its approximate dimensions?
About 239 × 164 × 202 mm.
What is the typical weight?
Roughly 1.5 kg.
Does it support redundancy?
Yes, redundancy configurations with dual units are supported for high availability.
What kinds of applications is it best suited for?
Complex industrial control systems requiring scalable I/O and reliable real-time processing.
