Yokogawa AAI143-S03/A4S00 Analog Input Module

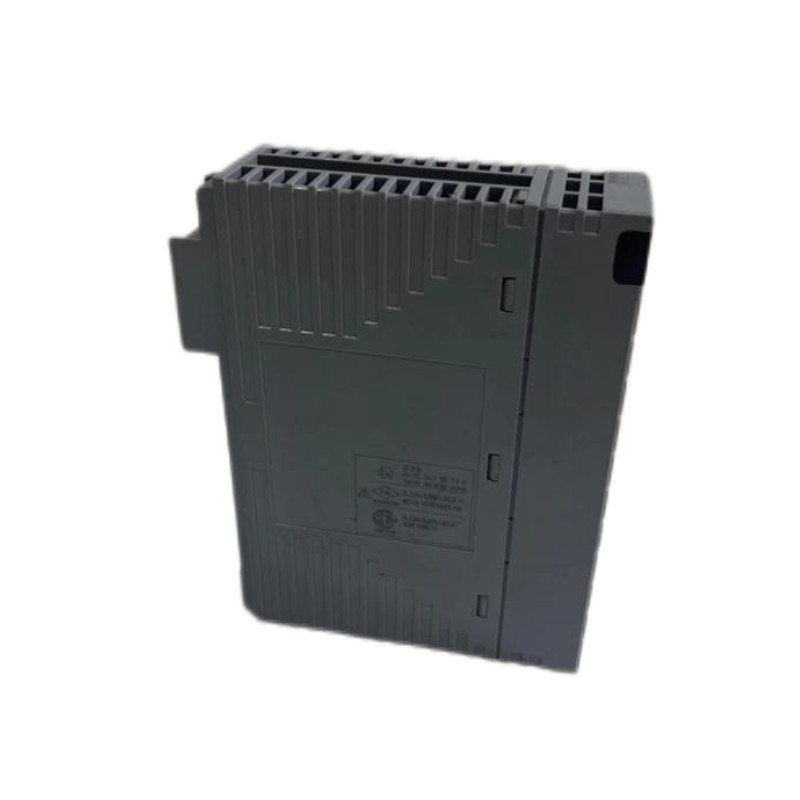

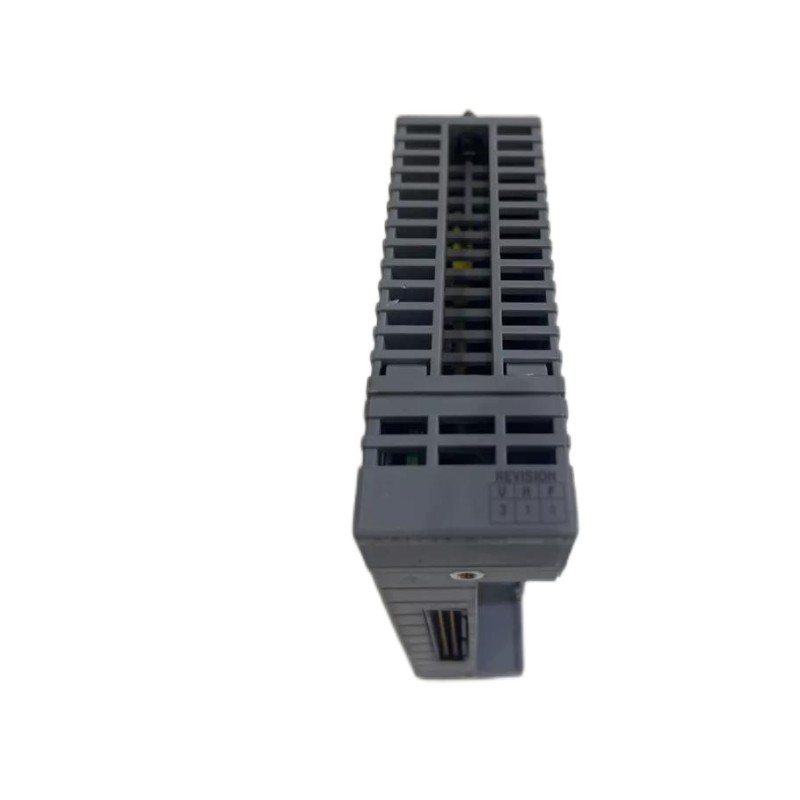

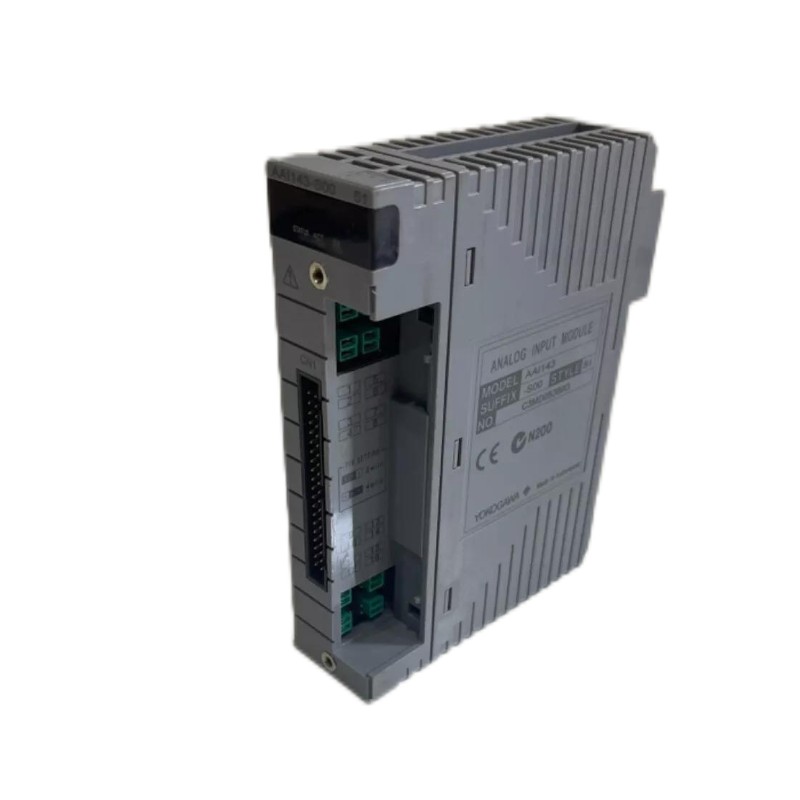

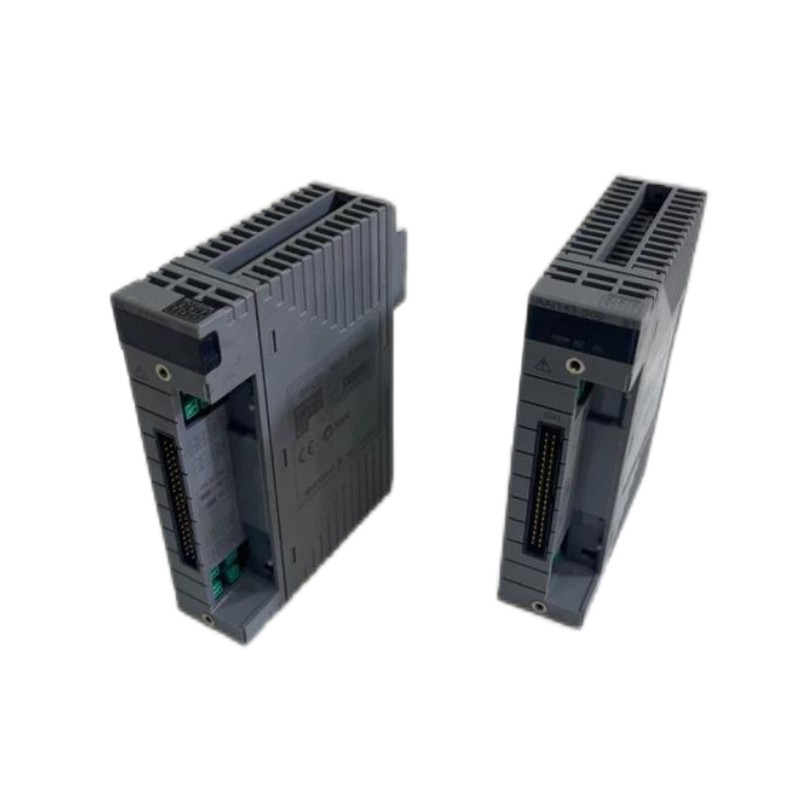

Name: Yokogawa AAI143-S03/A4S00 Analog Input Module
Brand: Yokogawa Electric
SKU: 444
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Yokogawa Electric
Item No.:AAI143-S03/A4S00
Product Origin:Japan
Product Dimensions:130 mm × 25 mm × 180 mm
Product Weight:0.3KG
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction — Reliable Analog Input with Enhanced Wiring

The Yokogawa AAI143-S03/A4S00 Analog Input Module provides precise and stable 4–20 mA signal acquisition for distributed control systems (DCS). Featuring 8 isolated channels and the A4S00 pressure-clamp terminal interface, this module ensures secure and reliable wiring while simplifying installation and maintenance. Ideal for standard industrial applications, the S03/A4S00 variant offers consistent performance for process control loops without HART communication.

Technical Specifications — Performance & Physical Profile

Specification	Description
Module Type	8-channel Isolated Analog Input Module (Standard, non-HART, A4S00 terminal)
Input Signal	4–20 mA DC
Number of Channels	8 isolated inputs
Input Impedance	250 Ω
Accuracy	±0.1% of span
Update Rate	10 ms per channel
Isolation Voltage	1500 V AC (input-to-system)
Power Supply	24 V DC nominal
Operating Temperature	–25°C to +70°C
Dimensions	130 mm × 25 mm × 180 mm
Weight	~0.32 kg
Terminal Interface	A4S00 dual pressure-clamp for secure wiring

Applications — Key Use Cases

Collecting 4–20 mA signals from field transmitters in chemical, water treatment, and power plants
High-density DCS installations requiring secure terminal connections
Standard process control loops for pumps, valves, and actuators
Replacement or expansion of legacy analog input modules
Industrial environments needing electrically isolated inputs for interference protection
Applications where HART communication is not required

Advantages — Key Benefits

8 isolated channels reduce cross-channel interference and ensure accurate measurements
Pressure-clamp terminal interface simplifies wiring and maintenance
Reliable accuracy of ±0.1% of span ensures stable process measurement
Fast 10 ms update rate supports real-time monitoring
1500 V AC isolation protects against electrical surges and noise
Compact and durable design fits industrial racks efficiently
Cost-effective solution for standard analog input requirements

Technical FAQs — 10 Common Questions

How many channels are available on the module?
- 8 isolated analog input channels.
What type of signals does it accept?
- 4–20 mA DC signals.
Does it support HART communication?
- No, it is a standard analog input module.
What is the measurement accuracy?
- ±0.1% of span.
What is the isolation voltage?
- 1500 V AC between input and system.
What is the update rate per channel?
- 10 ms.
What type of terminal interface does it use?
- Dual pressure-clamp A4S00 for secure wiring.
What are the module’s dimensions and weight?
- 130 mm × 25 mm × 180 mm; ~0.32 kg.
What is the required power supply?
- 24 V DC nominal.
Is it suitable for electrically noisy environments?
- Yes, isolation ensures reliable signal acquisition.
