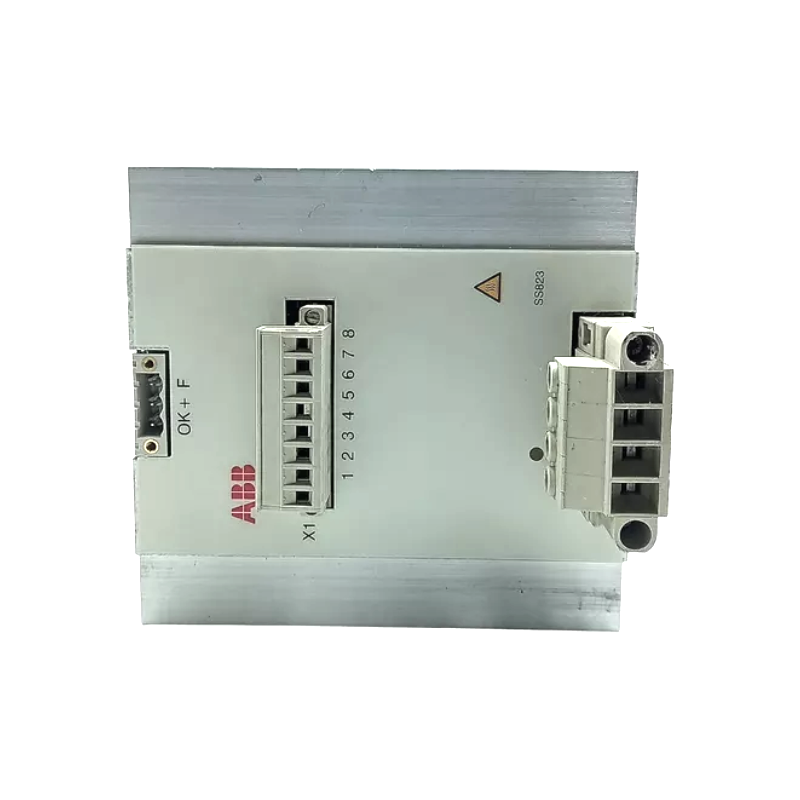

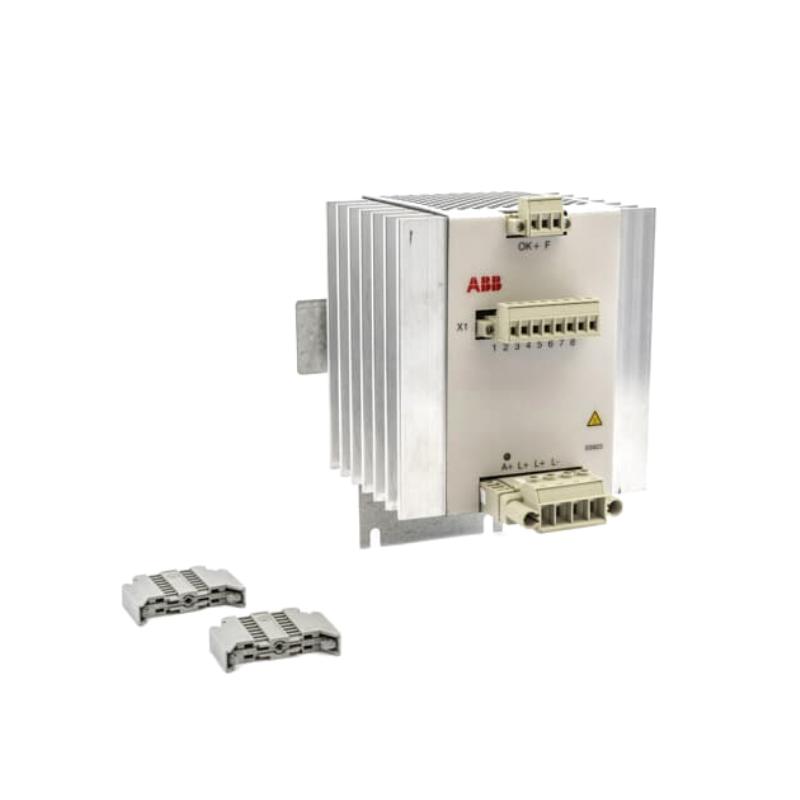

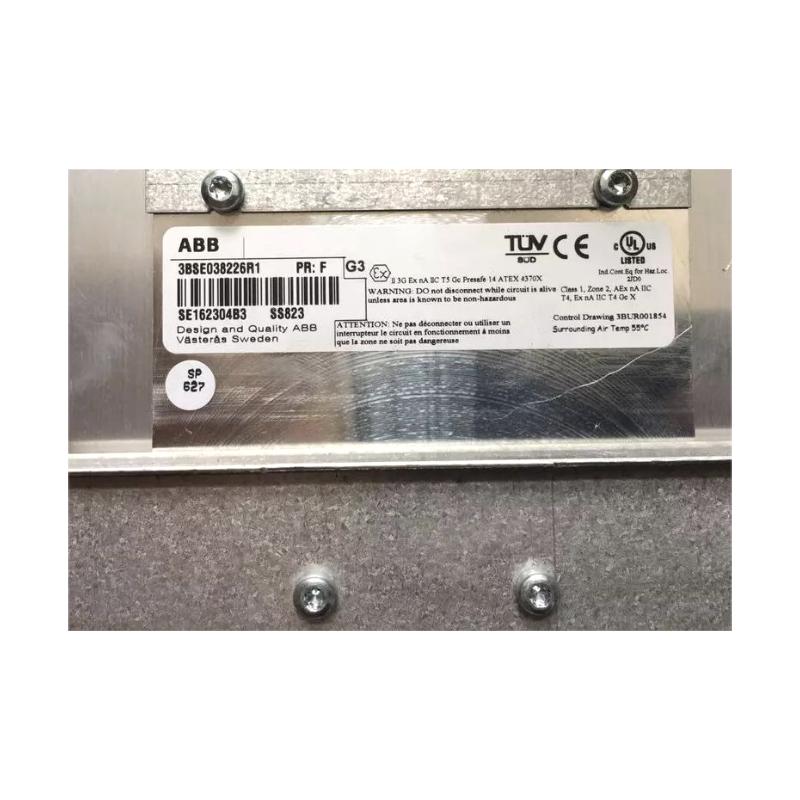

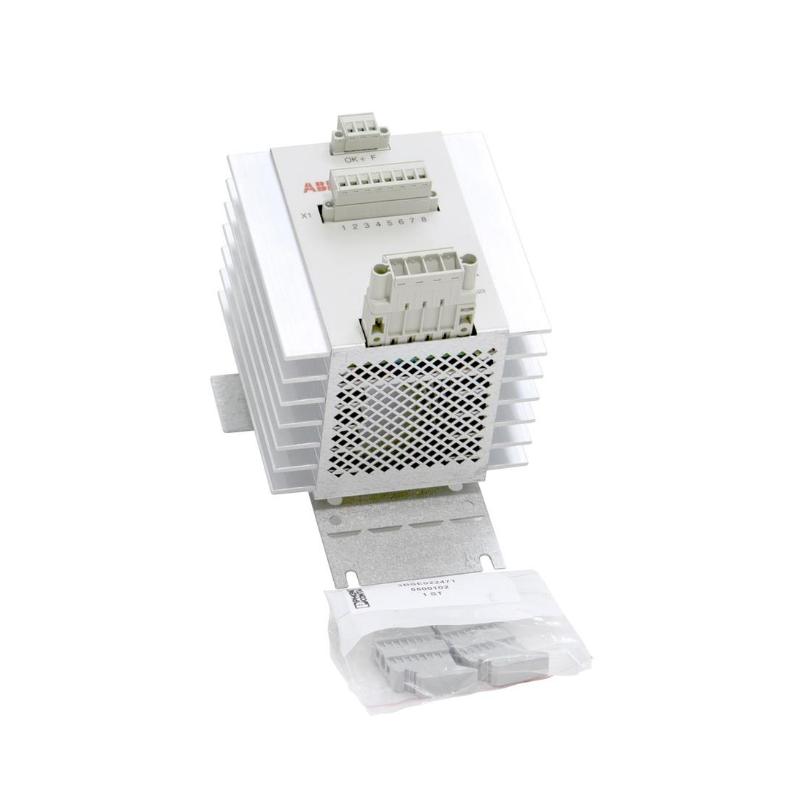

ABB SS823 3BSE038226R1 Power Voting Unit

Name: ABB SS823 3BSE038226R1 Power Voting Unit
Brand: ABB PLC
SKU: 4431
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:SS823 3BSE038226R1
Product Origin:Sweden
Product Dimensions:160 × 100 × 20 mm
Product Weight:0.28 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

What This Module Is

The ABB SS823 3BSE038226R1 Power Voting Unit is a dedicated reliability and safety logic module engineered for industrial control systems that require fault-tolerant decision making. It assesses multiple redundant inputs and makes authoritative output decisions based on voting logic, ensuring that only verified conditions influence critical operations. This module is built for environments where uptime, accuracy, and consistent response to system conditions are paramount.

Technical Specifications & Physical Data

Specification	Details
Model	SS823
Part Number	3BSE038226R1
Module Type	Power Voting Unit
Primary Function	Redundant input evaluation and voting logic execution
System Compatibility	ABB safety and control architectures
Voting Logic	2-out-of-3 majority voting logic (configurable in system context)
Installation Format	Plug-in module for compatible backplanes
Power Supply	Delivered through system backplane
Operating Temperature	0 °C to +55 °C
Storage Temperature	-40 °C to +70 °C
Cooling Method	Passive, system airflow
Dimensions (approx.)	160 × 100 × 20 mm
Weight	~0.28 kg

Where It’s Used

The SS823 Power Voting Unit is commonly deployed in systems and applications that depend on verified decision logic and redundancy, such as:

Safety-critical automation systems
Redundant PLC and controller networks
Process control plants with high uptime requirements
Power generation and distribution control systems
Industrial applications requiring fail-safe input validation

By applying voting logic, this unit ensures that only consistent, confirmed input data drives control decisions, minimizing false trips and unintended actions.

Key Advantages

Enhanced System Reliability: Implements robust decision logic to support fault-tolerant operation.
Fault Tolerance Support: Evaluates redundant inputs to prevent single-point failures from affecting system outcomes.
Seamless System Integration: Designed for ABB control architectures with plug-in installation to simplify deployment.
Industrial-Grade Design: Built for continuous operation in demanding environments.
Improved Operational Confidence: Voting logic ensures output reflects verified and consensus-based inputs.

Technical FAQs

What does a power voting unit do?
It evaluates multiple redundant inputs and applies voting logic to determine correct outputs, enhancing decision reliability.
What voting logic does this unit support?
It typically uses 2-out-of-3 majority voting logic, configurable based on the control system’s design.
Where is the SS823 typically used?
It is used in systems requiring redundancy and high reliability such as safety PLCs and fault-tolerant control networks.
How is the module powered?
Power is supplied through the control system backplane.
Can the SS823 operate continuously?
Yes, it is designed for 24/7 industrial service life.
Does it add operational latency?
The voting process introduces minimal latency relative to typical control cycle times.
Is it suitable for process automation?
Yes, it is frequently used in process plants with high uptime and safety requirements.
Can the module be field-replaced?
Yes, its modular design allows replacement when system engineering supports modular swaps.
What environmental conditions can it withstand?
Standard industrial temperature and storage ranges make it suitable for most plant environments.
Does this unit support diagnostics?
Diagnostics are handled through the control system, which uses module status to validate voting results.
