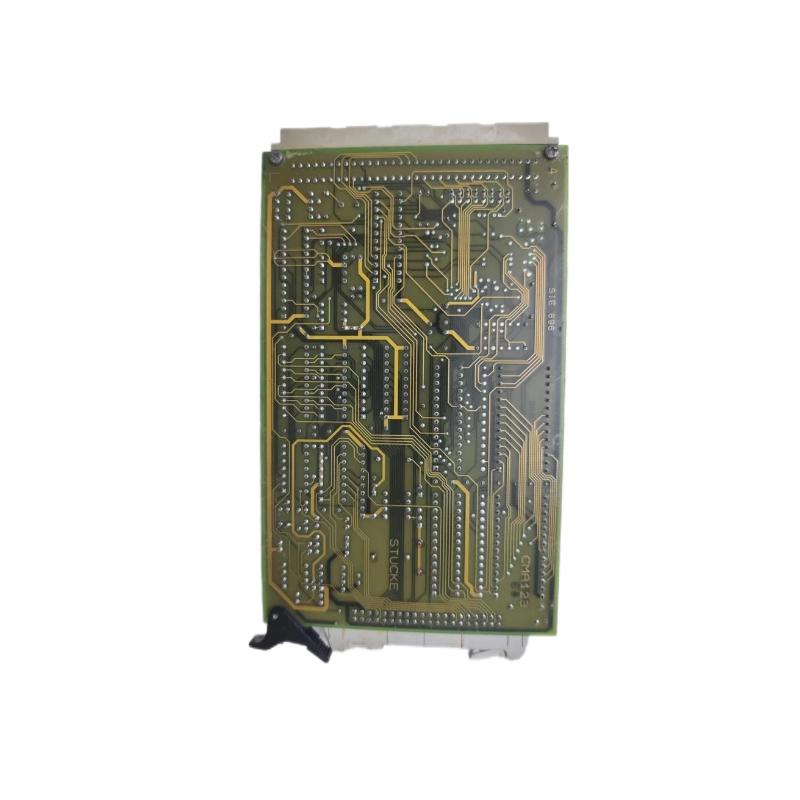

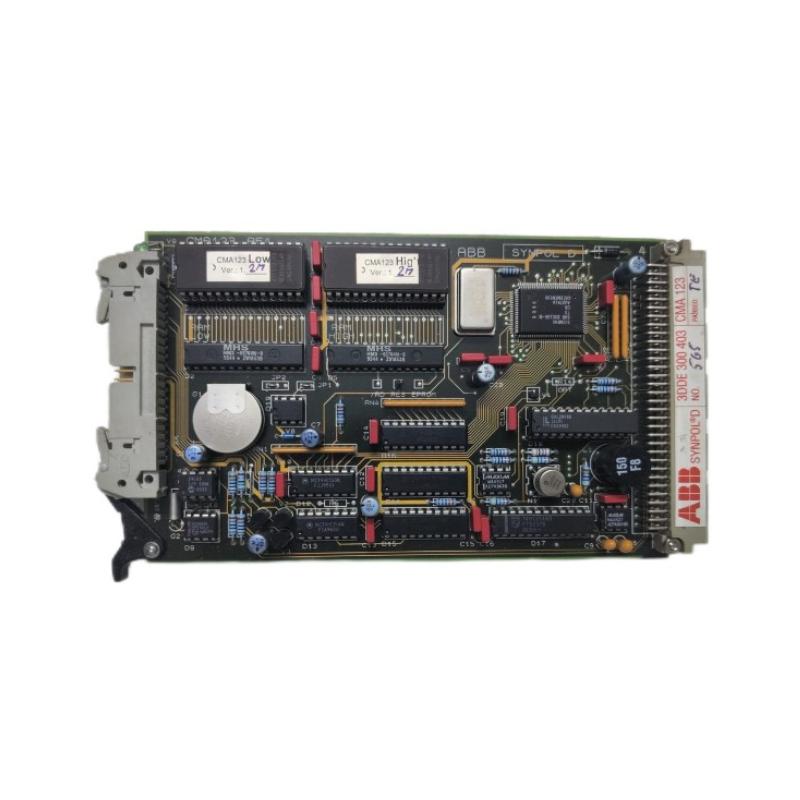

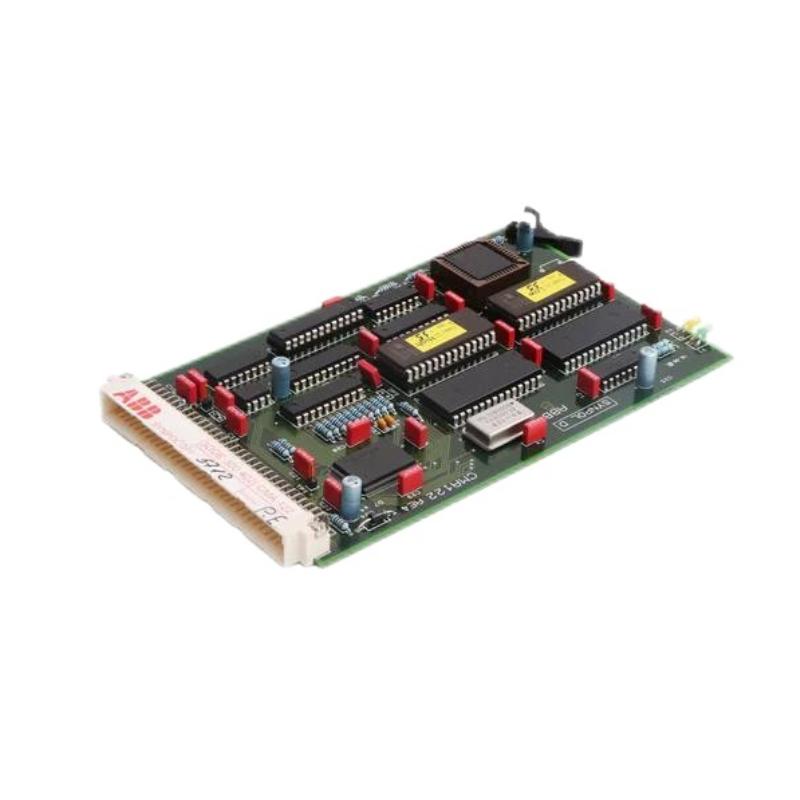

ABB CMA 123 3DDE300403 display card

Name: ABB CMA 123 3DDE300403 display card
Brand: ABB PLC
SKU: 4401
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:CMA 123 3DDE300403
Product Origin:Sweden
Product Dimensions:160 × 100 × 20 mm
Product Weight:0.19 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Functional Overview

The ABB CMA123 3DDE300403 Display Card is a dedicated human–machine interface component developed to provide clear visual feedback within ABB industrial control systems. Designed to work in close coordination with control and CPU cards, this display card enables operators and maintenance engineers to monitor system status, diagnostics, and operational data directly from the control hardware. Its stable display performance and industrial-grade construction make it well suited for environments where clarity, reliability, and long service life are essential.

Technical Characteristics & Physical Data

Item	Specification
Model	CMA123
Part Number	3DDE300403
Module Type	Display Card
Primary Function	System status and operational data display
System Compatibility	ABB industrial control platforms
Display Interface	Integrated display control circuitry
Installation Type	Plug-in card
Power Supply	Provided via system backplane
Operating Temperature	0 °C to +55 °C
Storage Temperature	-40 °C to +70 °C
Cooling Method	Passive cooling
Dimensions (approx.)	160 × 100 × 20 mm
Weight	~0.19 kg

Practical Application Areas

The CMA123 Display Card is typically used in automation systems where direct visual indication of system status is required. Common application areas include:

Industrial drive control cabinets
Process automation systems
Power and energy management equipment
Machine control and monitoring panels
System upgrades and replacement projects

By presenting key information locally, the card supports faster diagnostics and more efficient system operation.

Key Value Points

Clear Visual Feedback: Provides immediate insight into system conditions and operating states.
Seamless Integration: Designed specifically for ABB control architectures, ensuring reliable communication with other modules.
Industrial Reliability: Built to operate continuously in demanding environments.
Compact Card Design: Minimizes space requirements inside control cabinets.
Service-Friendly: Supports faster troubleshooting and maintenance through on-board display functionality.

Technical FAQs

What is the main purpose of the CMA123 Display Card?
It provides visual indication of system status and operational information within ABB control systems.
Is this display card compatible with non-ABB controllers?
No, it is designed exclusively for ABB industrial control platforms.
How is the CMA123 powered?
Power is supplied directly through the system backplane.
Does the display card store system data?
It displays information generated by the control system rather than storing data independently.
Is additional cooling required for this card?
No, passive cooling is sufficient under normal operating conditions.
Can the card be replaced without affecting system configuration?
In most cases, replacement does not require reconfiguration, provided compatibility is maintained.
What type of information is typically displayed?
Status indicators, diagnostic messages, and operational parameters.
Is the CMA123 suitable for continuous operation?
Yes, it is designed for 24/7 industrial use.
What should be checked before installation?
Confirm system compatibility, correct slot placement, and secure backplane connection.
Is the display card used in safety-critical systems?
It can be part of such systems, depending on the overall system design and certification.
