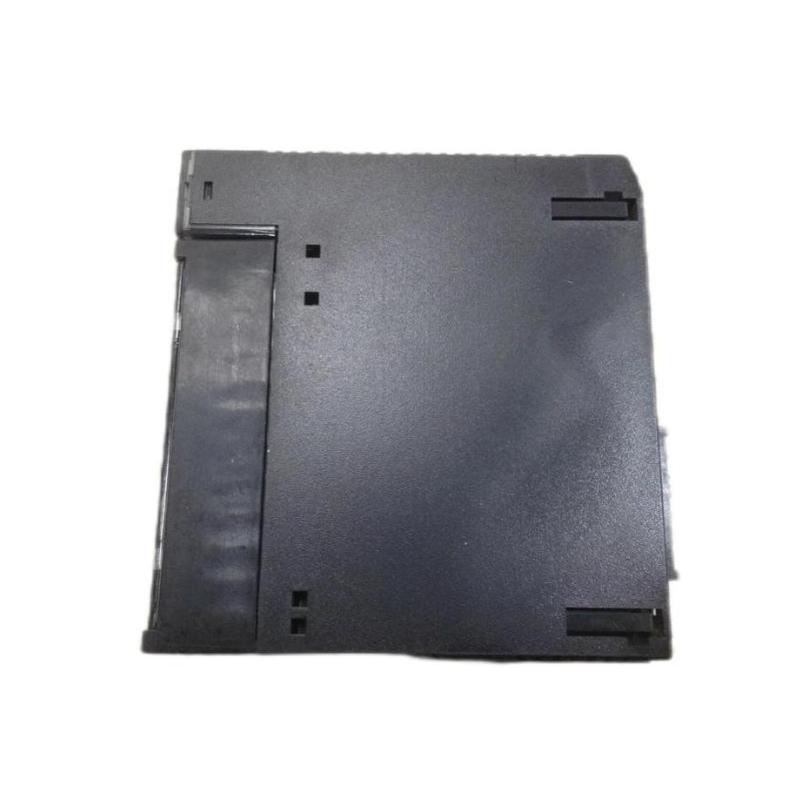

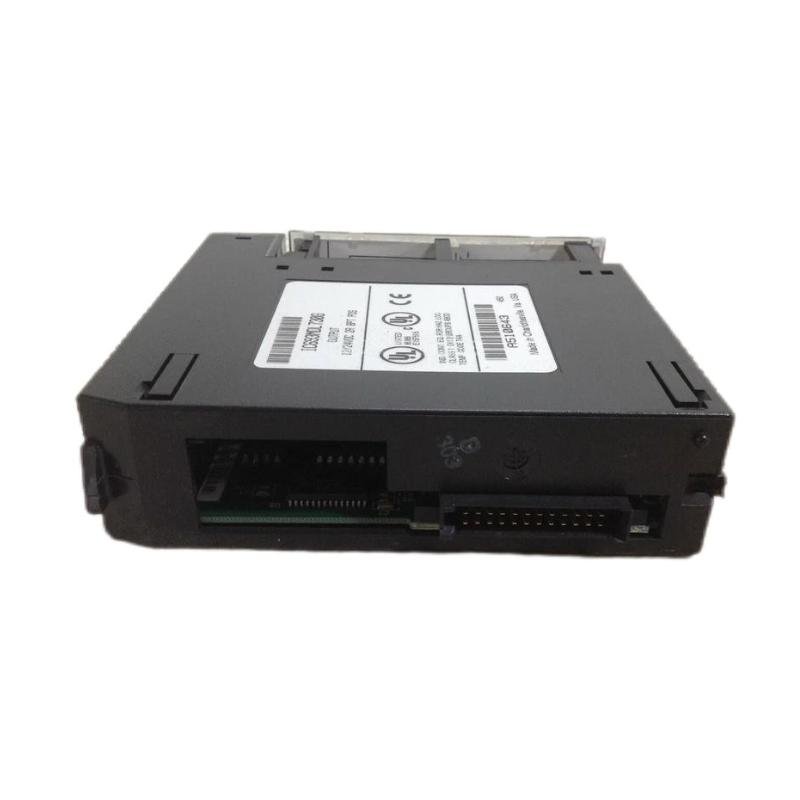

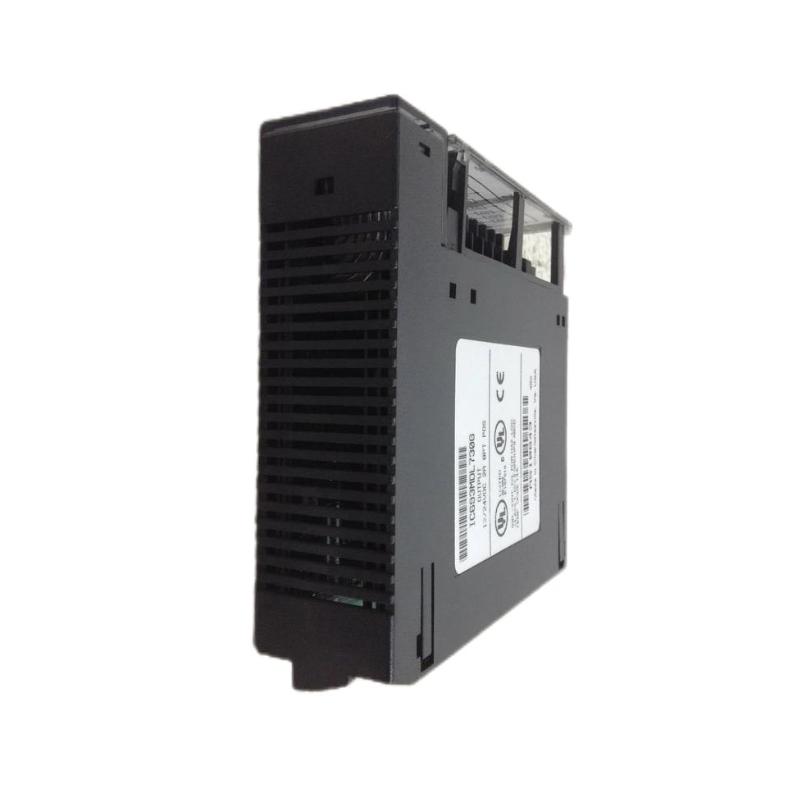

GE Fanuc IC693MDL734 Positive/Negative Logic Output Module

Brand:GE Fanuc PLC
Item No.:IC693MDL734
Product Origin:USA
Product Dimensions:150 × 100 × 70 mm
Product Weight:0.4kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

IC693MDL734 1IC693MDL734 2IC693MDL734 4IC693MDL734 3

Introduction

The GE Fanuc IC693MDL734 Positive/Negative Logic Output Module is a dependable, industrial-grade discrete output solution designed for Series 90-30 PLC systems. Its unique ability to support both positive and negative logic makes it a flexible choice for a wide range of field devices, especially in systems where wiring conventions or device polarity varies. Built for consistent performance, the IC693MDL734 offers strong output control with clear diagnostics, helping reduce downtime and simplify troubleshooting in complex automation environments.

Technical Specifications (Including Dimensions & Weight)

SpecificationDetail
ModelIC693MDL734
Module TypePositive/Negative Logic Output
Platform CompatibilityGE Fanuc Series 90-30 PLCs
Output Points6 isolated outputs
Rated Output Voltage125 VDC nominal
Output Voltage Range+10.8 to +150 VDC
Maximum Output Current per Point1.0 A
Power ConsumptionApprox. 90 mA from 5 V backplane supply
Isolation Voltage1500 V between field and logic
Response Time (On/Off)~7 ms / ~5 ms
Backplane Supply5 VDC
Status IndicatorsLED output state display
Dimensions (approx.)263 × 58 × 28 mm (L × W × H)
Weight~0.26 kg


Applications

The IC693MDL734 is widely used in automation systems that require reliable control of high-voltage DC loads. Typical applications include:

  • Driving indicator lamps, solenoids, and actuators

  • Controlling relays and contactor coils

  • Implementing machine safety interlocks

  • Managing discrete outputs in manufacturing lines

  • Integrating with Series 90-30 PLC systems in factory automation

Its dual logic support makes it especially useful in retrofits or systems with mixed wiring standards, allowing engineers to adapt without redesigning field wiring.


Advantages

  • Flexible Logic Options: Supports both sourcing and sinking output configurations, making it compatible with diverse field devices.

  • High Voltage Handling: Rated for 125 VDC with an extended operating range for demanding applications.

  • Isolated Outputs: Provides isolation between field circuits and logic for improved safety and signal integrity.

  • Quick Visual Diagnostics: Built-in LEDs provide instant status of each output point, reducing troubleshooting time.

  • Compact Industrial Design: Fits standard Series 90-30 racks while delivering robust, long-term performance.


Technical FAQs

  1. What does “positive/negative logic” mean on this module?
    It means outputs can either source current (positive logic) or sink current (negative logic), depending on wiring and device requirements.

  2. How many outputs does this module provide?
    The IC693MDL734 has six isolated output points.

  3. What voltage range can the outputs handle?
    It is rated at 125 VDC nominal, with a range from 10.8 VDC up to 150 VDC.

  4. What is the maximum current per output?
    Each output can handle up to 1.0 A.

  5. Does this module support isolation between outputs?
    Yes, it provides isolation between field circuits and the logic side.

  6. Can the module be installed in any Series 90-30 rack?
    Yes, it fits standard Series 90-30 I/O slots.

  7. What type of diagnostics are available?
    LED indicators show the ON/OFF status of each output point.

  8. Does the module require an external power supply?
    The module uses 5 VDC from the backplane for logic; field loads must be powered externally.

  9. Is the module suitable for high-noise industrial environments?
    Yes, its design and isolation make it suitable for harsh industrial conditions.

  10. What should I consider when wiring field devices?
    Ensure proper fusing, correct polarity, and that voltage/current ratings match the module’s specifications.
